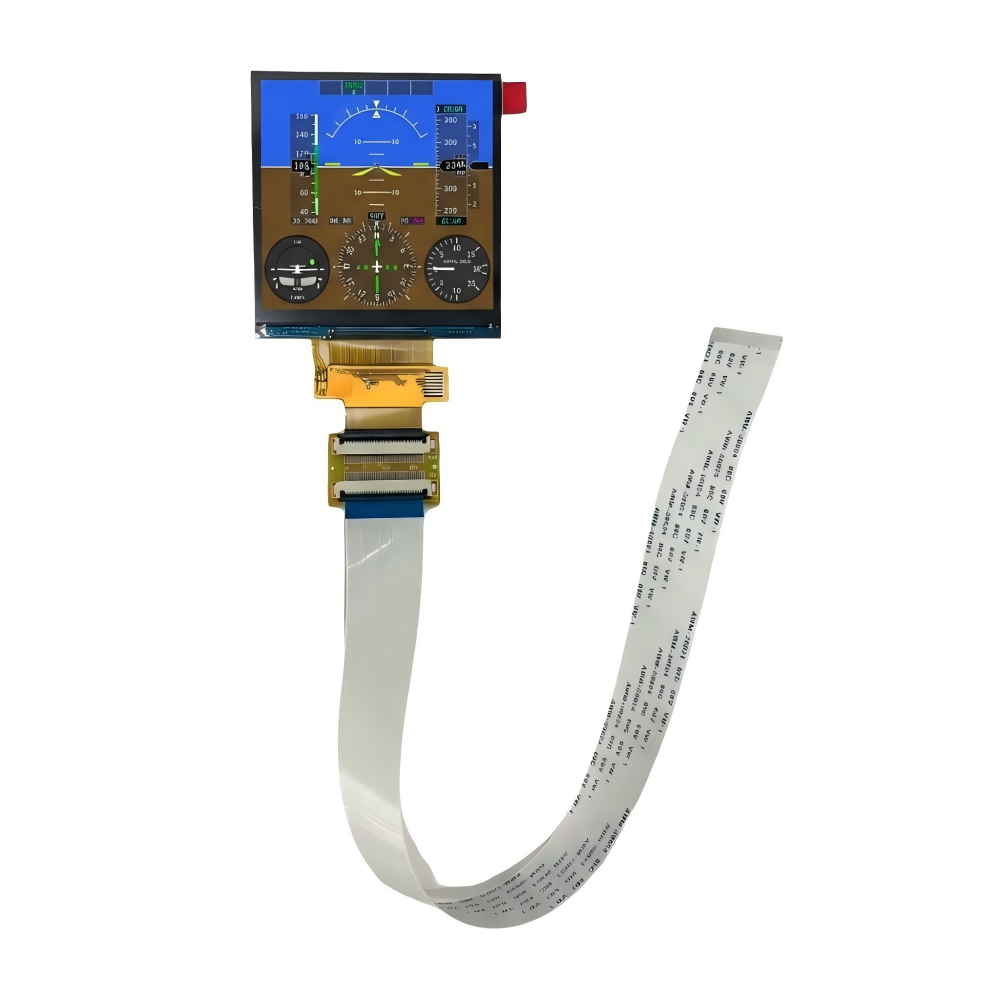

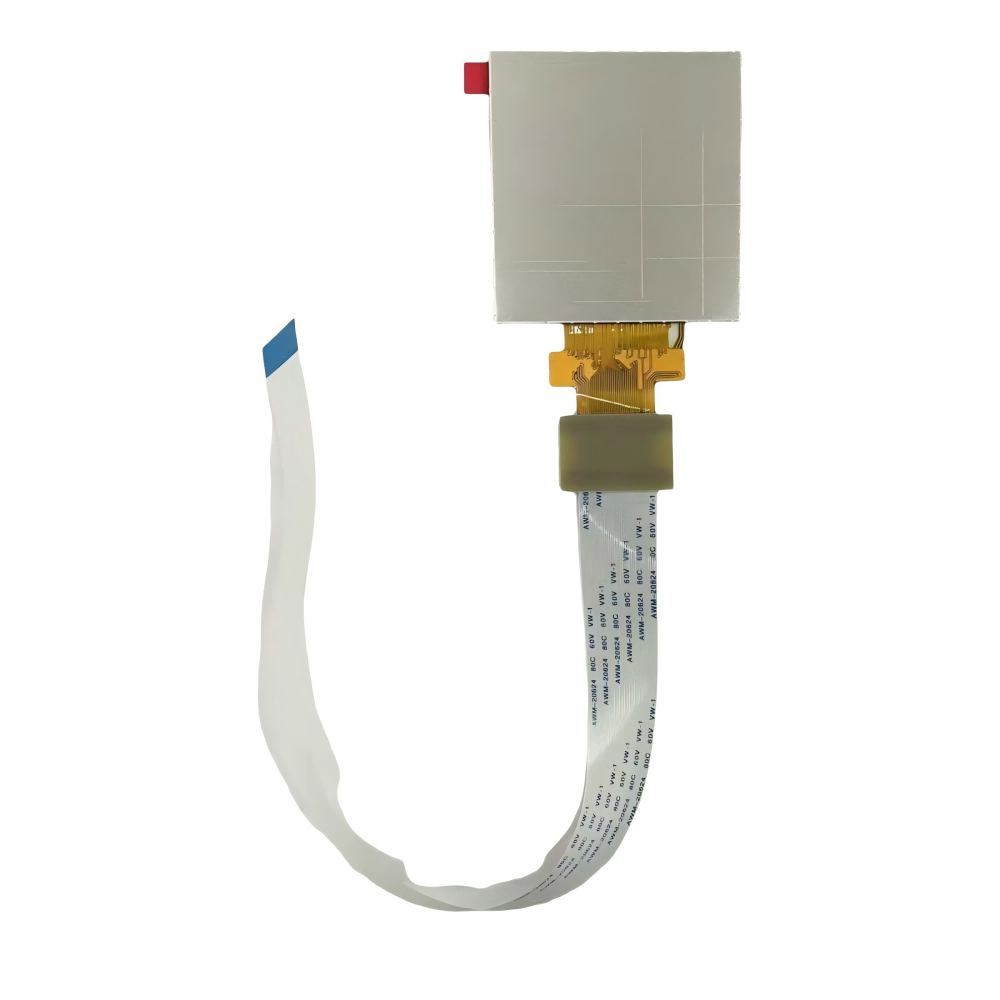

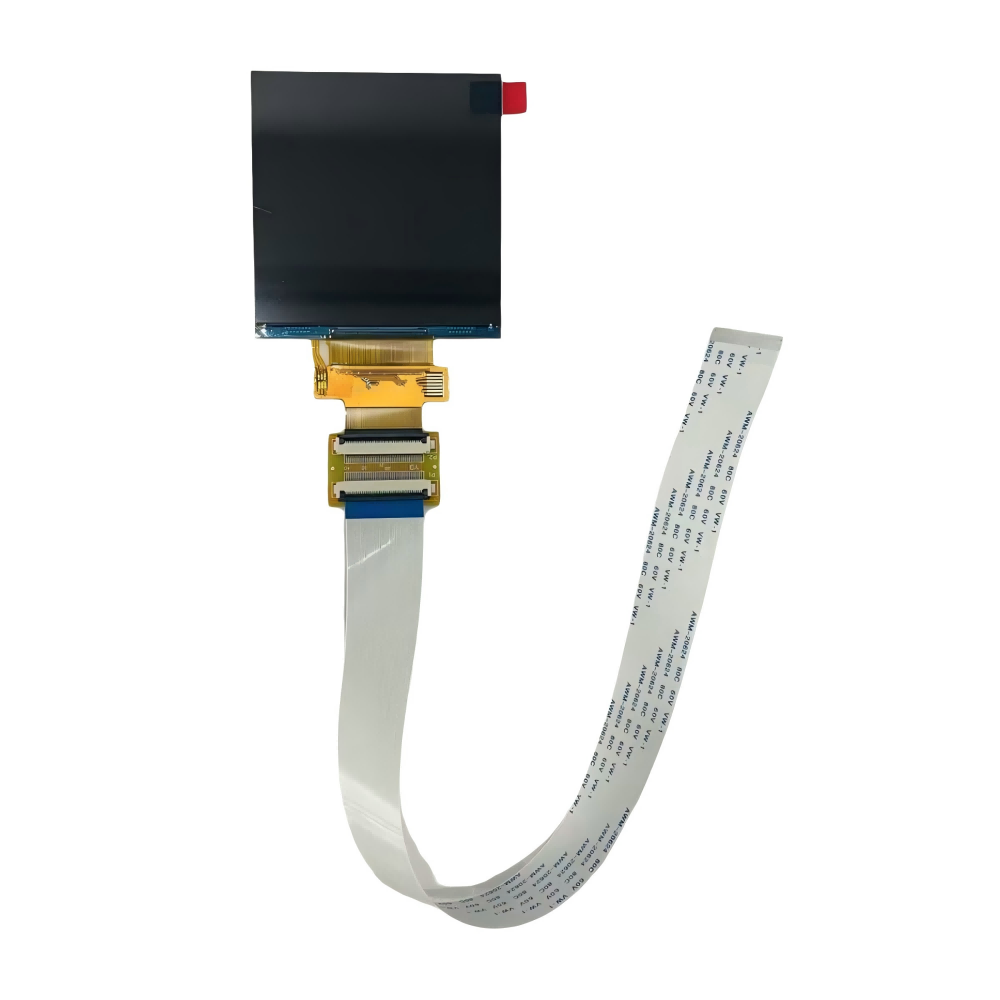

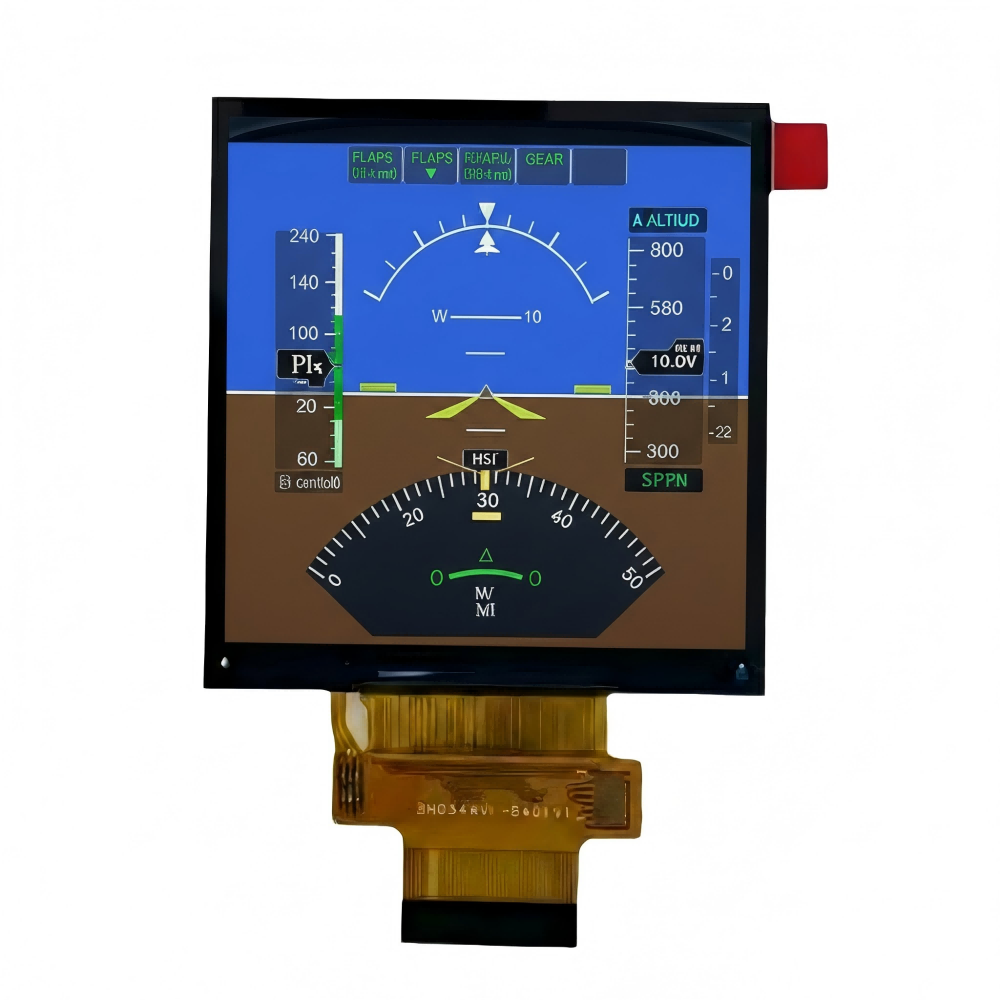

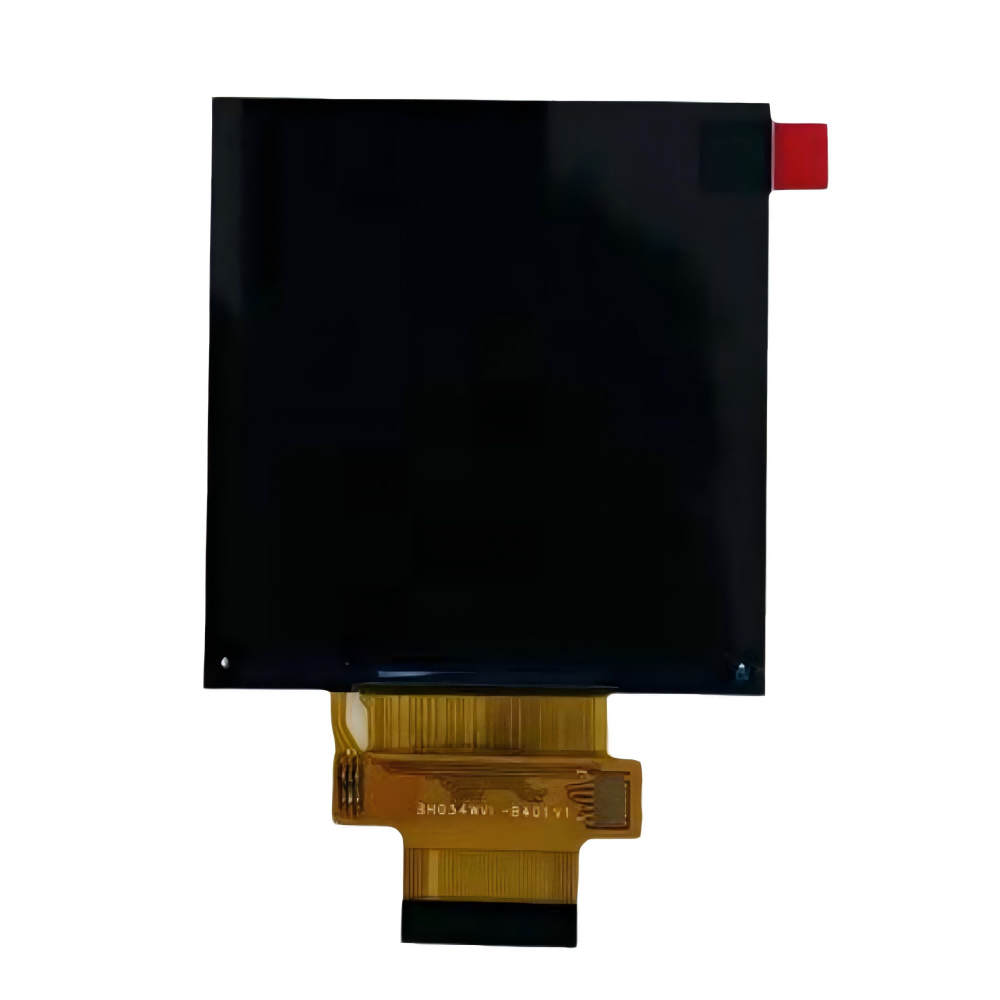

The 3.4-inch 480×480 TFT LCD module is specifically engineered for flight simulator cockpit systems and aviation instrument displays, where precision, stability, and real-time responsiveness are critical.
Unlike standard display modules, this unit is optimized for simulation environments that require accurate rendering of cockpit data, including navigation indicators, altitude readings, and system diagnostics. The square display format allows flexible UI layout, supporting both circular gauges and multi-function display panels commonly used in modern simulator setups.
With a combination of high-resolution output, IPS viewing technology, and SPI + RGB interface architecture, this module ensures stable performance across a wide range of embedded systems and simulator platforms.
Flight simulation systems demand more than just a standard display. They require:
High clarity for instrument readability
Stable signal transmission for real-time updates
Wide viewing angles for multi-user environments
Consistent brightness for controlled lighting conditions
This LCD module is designed to meet these requirements, making it suitable for:
Flight simulator cockpit dashboards
Digital instrument panels
Attitude indicator and navigation displays
Altimeter and engine monitoring systems
Training simulators and control consoles
The 480×480 resolution provides sufficient pixel density for detailed graphical elements, ensuring that instrument readings remain clear and easy to interpret.
Unlike rectangular displays, square LCD modules offer distinct advantages in simulator environments:
Many cockpit instruments are circular in design. A square display allows developers to render circular gauges without excessive unused space, improving layout efficiency.
The square resolution supports both:
Circular gauge interfaces
Grid-based control panels
This flexibility makes it easier to design modular simulator systems.
In cockpit panels where multiple displays are arranged side by side, square modules provide better alignment and symmetry.
This display module is designed with a focus on performance and integration:
480×480 resolution for precise graphical rendering
SPI + RGB interface for flexible communication with embedded systems
IPS technology for full viewing angle visibility
350 cd/m² brightness optimized for indoor simulator environments
Normally Black display mode for improved contrast and readability
Compact structure for easy panel integration
| Item | Specification |
|---|---|
| Model Number | DBT034BFN40R035A |
| Screen Size | 3.4 inch |
| Resolution | 480 × 480 |
| Display Type | TFT LCD (IPS) |
| Interface | 3SPI + RGB |
| Brightness | 350 cd/m² |
| Viewing Angle | 80/80/80/80 |
| Operating Temperature | -20°C to +70°C |
| Outline Dimensions | 70.45 × 70.34 × 2.2 mm |
The module supports integration with a wide range of embedded platforms used in simulator hardware. The SPI interface can be used for command and initialization, while the RGB interface handles high-speed data transmission for display output.
This dual-interface design ensures:
Stable signal performance
Compatibility with common controller boards
Efficient rendering of dynamic graphical content
Developers can integrate this display into:
Custom simulator control boards
FPGA-based systems
Embedded Linux or RTOS platforms
In flight simulators, display quality directly affects user experience and training accuracy.
This module delivers:
IPS technology ensures that the display remains visible from different positions, which is important in multi-user or instructor-assisted training scenarios.
With 350 nits brightness, the display is optimized for indoor environments where excessive brightness can cause glare, while insufficient brightness reduces readability.
The Normally Black mode enhances contrast, making graphical elements stand out clearly against dark backgrounds, which is common in cockpit UI design.
To meet different project requirements, this LCD module supports customization options including:
Capacitive touch panel integration
Custom GG5 cover glass
Optical bonding for improved clarity
Brightness adjustment
Connector and FPC customization
These options allow system integrators to tailor the display for specific simulator hardware designs.
Q1: Is this display suitable for professional flight simulators?
Yes, it is designed for cockpit instruments and training systems that require stable and accurate visual output.
Q2: Can it support real-time instrument updates?
Yes, the SPI + RGB interface combination supports real-time graphical rendering for dynamic flight data.
Q3: Is the display easy to integrate into custom hardware?
Yes, it is compatible with a wide range of embedded systems and controller boards.
Q4: Can the display be customized for specific cockpit designs?
Yes, customization options include touch integration, cover glass, and interface adjustments.
