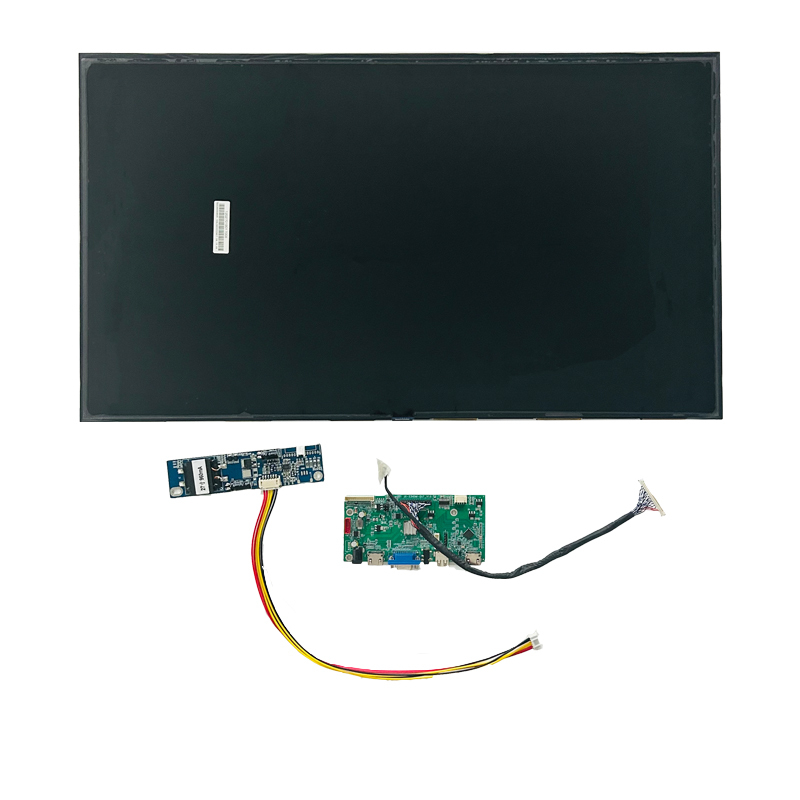

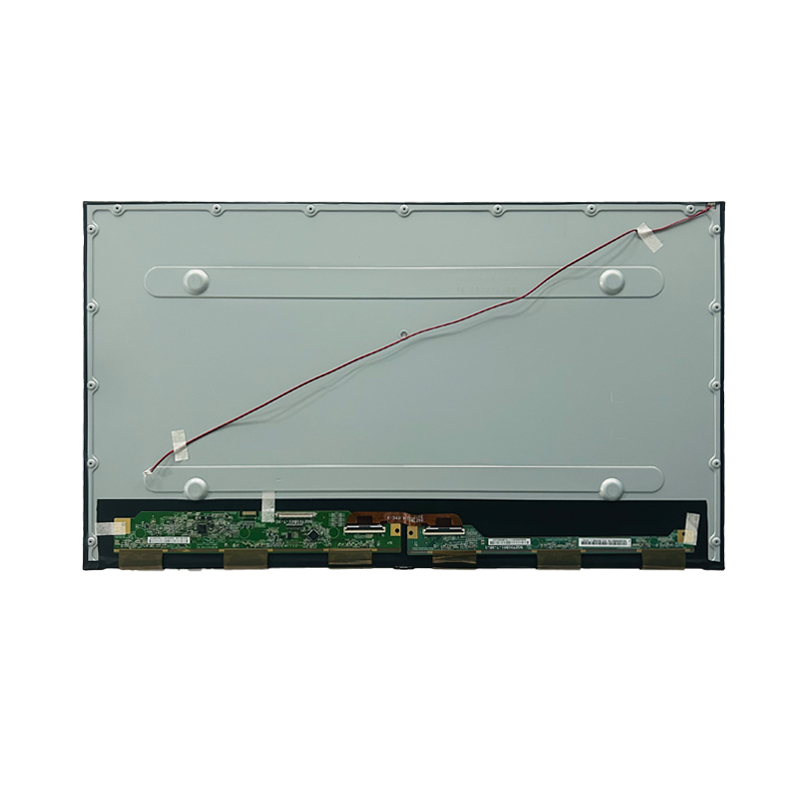

Experience Vibrant Displays with the DBT270BHN30L150A, a 27-inch TFT LCD Module Designed for Clarity and Precision.

Overview:

The DBT270BHN30L150A is a 27-inch color active matrix TFT LCD module that utilizes amorphous silicon TFTs (Thin Film Transistors) for active switching devices. This module offers a spacious 27.0-inch diagonal active area with Full HD resolutions of 1920 horizontal by 1080 vertical pixels, allowing for detailed and vivid imagery. Capable of displaying 16.7 million colors, this module is perfect for desktop PCs, workstations, standalone monitors, and control system display terminals.

Key Features:

- Large Display: A generous 27-inch screen size for an immersive viewing experience.
- High Resolution: FHD resolution ensures crisp images and fine details.
- Wide Color Gamut: With the ability to display 16.7 million colors, this module offers a broad spectrum of visual representation.
- LED Backlighting: Incorporated edge-type backlighting (LED) for high luminance and even illumination.
- LVDS Interface: Features a high-speed LVDS interface with 2 pixels per clock for efficient data transfer.
- High-Speed Response: Fast response times for smooth motion rendering.
- RoHS/Halogen Free: Compliant with environmental standards, promoting eco-friendly practices.
- Gamma Correction: Ensures accurate color reproduction and consistent image quality.

Technical Specifications:

- Active Area: 597.9 (H) × 336.3(V) mm, providing ample space for content display.
- Pixel Pitch: 0.3114(H) × 0.3114(V) mm, ensuring high clarity and detail.
- Pixel Arrangement: RGB Vertical Stripe, optimizing color reproduction and uniformity.
- Display Colors: 16.7M colors, offering a rich visual experience.
- Display Mode: Normally Black, suitable for various applications where contrast is crucial.
- Dimensional Outline: 626.2(H) x 364.6(V) x 17.7(D) mm, allowing for versatile mounting options.
- Weight: Up to 3400g, designed for stability and durability.
- Bezel Width: 13.65mm on all sides for a sleek and modern look.
- Surface Treatment: Haze 25%, 3H for scratch resistance and reduced glare.

Optical Specifications:

- Viewing Angle: To be determined (TBD) degrees both horizontally and vertically, ensuring visibility from multiple perspectives.
- Luminance Contrast Ratio: To be determined (TBD), delivering deep blacks and bright whites for high contrast visuals.
- Center Luminance of White: 1350 to 1500 cd/m², ensuring bright and clear display.
- White Luminance Uniformity: 75% to 80%, maintaining consistent brightness across the screen.
- Color Reproduction: CIE1931 standards with specific coordinates for white, red, green, and blue for accurate color representation.
- Response Time: GTG TBD up to 20 ms, ensuring smooth transitions for dynamic content.

Interface Connection:

- Electrical Interface: CN1 Module Side Connector: IS100-L30B-C23 or equivalent, User Side Connector: JAE FI-X30H or equivalent, for reliable connections.
- LVDS Interface: THC63LVDF83A or equivalent, facilitating high-speed data transfer.

Reliability and Durability:

- Operating Temperature: 0 to +60℃, ensuring functionality in various environmental conditions.
- Storage Temperature: -30 to +80℃, protecting the module during storage in extreme temperatures.
- Reliability Tests: Undergoes high temperature storage, low temperature storage, high temperature & high humidity operation, thermal shock, vibration, shock, and electrostatic discharge tests to ensure long-term reliability.

Handling and Operating Precautions:

- Mounting: Use specified mounting holes and avoid applying mechanical stress or static pressure to the panel.
- Operating: Avoid sudden temperature changes, electromagnetic interference, and ensure proper grounding to protect against static electricity.
- Storage: Store in a sealed polythene bag, away from direct sunlight and moisture, with controlled temperature and humidity.

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
