Large display solutions play an essential role in modern industrial automation and embedded control systems. The 23.8-inch 1920×1080 30-pin LVDS 500nit LCD module from Aptus Display is an industrial-grade visual interface designed to meet the rigorous demands of factory automation, operator HMI panels, embedded control terminals, and infrastructure monitoring systems.
Combining full high-definition resolution with a stable LVDS interface and high brightness performance, this LCD module delivers clear visualization, reliable signal communication, and robust performance in demanding operational environments.
In industrial control environments, displays are a primary interface between operators and machines. They must present data clearly, sustain continuous operation, and withstand ambient lighting variations and electromagnetic interference. Consumer-grade displays often fall short of these requirements due to limitations in brightness, signal stability, and ruggedness.
The 23.8-inch LCD module is engineered specifically for industrial control use cases. Its Full HD resolution (1920×1080) provides clear visual feedback, while the stable LVDS interface ensures reliable signal transmission even in electrically noisy environments typical of automation systems.
Industrial display modules are widely applied in:
Factory floor automation operator panels
Embedded machine control terminals
Production line monitoring screens
Infrastructure and utility control stations
These systems rely on dependable display solutions to visualize real-time data, alerts, and operational dashboards. The 23.8-inch LCD module is purpose-built to support these requirements with precision and performance.
The 23.8-inch LCD module delivers 1920×1080 Full HD resolution, offering:
Sharp and detailed display of graphics and control data
High pixel density for accurate text and visual element rendering
Support for multiple data streams and graphical interfaces
Clear presentation of alarms, status indicators, and system metrics
This level of detail is especially important for operator decision-making, situational awareness, and real-time monitoring in industrial environments.
Industrial control panels are often installed in environments with strong ambient lighting such as factory floors, control rooms with overhead lighting, or embedded panels near windows. Standard brightness levels may struggle to maintain legibility under such conditions.
With a 500nit brightness rating, this display module significantly enhances readability by delivering:
Increased contrast under ambient and variable lighting
Clear visualization of data without glare or reflection issues
Improved operator experience during long shifts
Reliable performance even in bright industrial or embedded applications
High brightness contributes to reduced operator fatigue and a safer, more effective control environment.
This module features a 30-pin LVDS (Low-Voltage Differential Signaling) interface — a widely adopted communication standard in embedded and industrial systems. LVDS provides:
Low noise, high integrity signal transmission
Compatibility with industrial controllers and embedded boards
Stable image performance under electrical noise conditions
Reduced signal loss over longer connection distances
This interface makes integration into industrial control architectures straightforward and reliable, minimizing design complexity and ensuring consistent display communication.
The following table summarizes the key specifications of the 23.8-inch 1920×1080 30-pin LVDS LCD module:
| Specification | Details |
|---|---|
| Panel Size | 23.8 inches |
| Resolution | 1920 × 1080 (Full HD) |
| Interface | 30-pin LVDS |

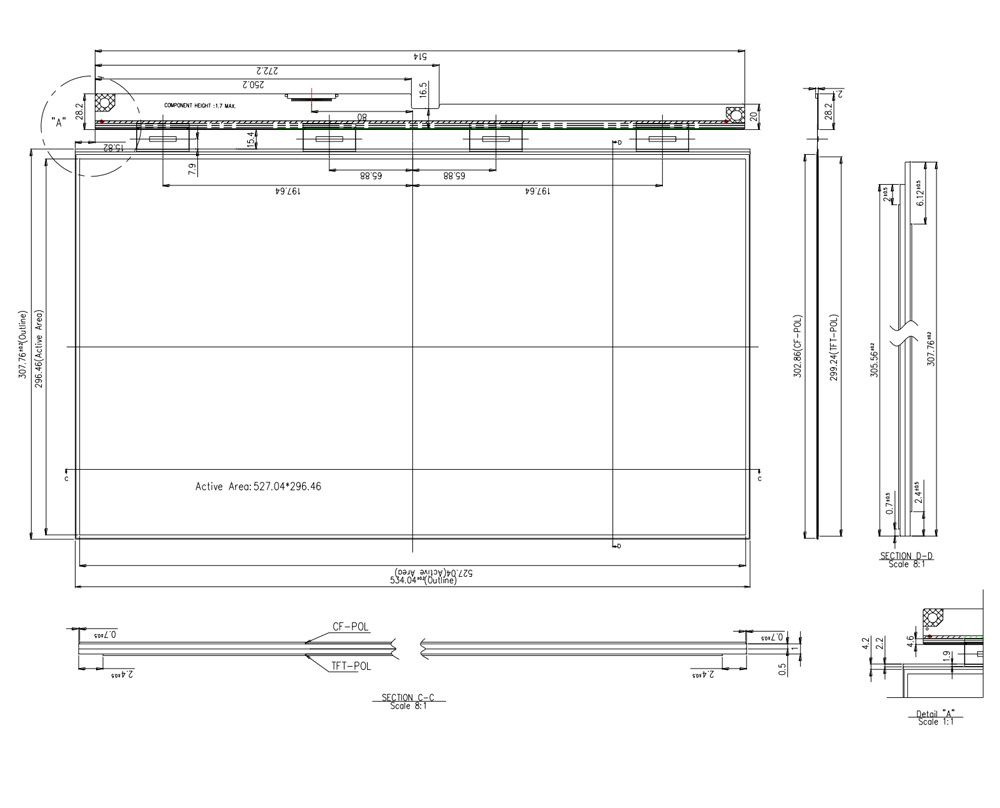

| Active Area | 527.04 × 296.46 mm |
| Pixel Pitch |
0.2745×0.2745mm |
| Display Colors | 16.7M (8-bit) |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Response Time | 14 ms |
| Viewing Angle | 89/89/89/89 (L/R/U/D) |
| Backlight | LED backlight |
| Power Supply | Standard LVDS compatible voltage |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
Notes: Brightness and operating ranges can be customized based on project requirements.
The 23.8-inch LCD module is widely used in industrial control environments where operator feedback, visualization, and monitoring are critical:
Large operator panels and control stations benefit from Full HD visuals to present process metrics, alarms, and key performance indicators in real time.
Embedded systems often require integrated displays that provide detailed visualization without adding unnecessary complexity. The stable LVDS interface and compact form factor make this module ideal for embedded controller screens.
Industrial monitoring systems use large screens to display multi-element dashboards, production statistics, and real-time alerts — enabling faster response and better decision-making.
Control rooms and utility management panels rely on high-quality displays to visualize network performance, sensor data, and system notifications simultaneously.
Each of these scenarios demands reliable performance, stable signal handling, and clear visualization — attributes well supported by this 23.8-inch FHD LVDS LCD module.
When integrating this display module into industrial systems, engineers should consider several design aspects to ensure optimal performance:
Ensure that the display is securely mounted within operator consoles, embedded housings, or control cabinets. Mechanical supports should accommodate vibration and provide ease of access for maintenance.
Use shielded LVDS cabling to prevent electromagnetic interference, especially near industrial machinery and power systems.
Implement regulated power supplies with appropriate filtering to protect the display and LED backlight from voltage fluctuations.
Adding resistive or capacitive touch overlays enhances interactivity for operator panels when needed.
These integration considerations help maximize display stability and extend operational life in industrial environments.
Aptus Display subjects each industrial LCD module to rigorous testing protocols, ensuring dependable performance:
Pixel quality inspections for uniformity and clarity
Electrical testing for stable signal behavior
Environmental testing for temperature endurance
Vibration and mechanical stress resilience
Backlight stability and lifespan verification
These stringent quality assurance procedures ensure that the display modules operate consistently and reliably throughout their lifetime.
Aptus Display specializes in industrial LCD modules and advanced visual solutions for embedded systems and industrial control applications. With extensive expertise in display technologies, Aptus Display delivers products designed to meet the performance, reliability, and integration requirements of industrial environments.
Our mission is to provide visualization solutions that empower engineers and system integrators to build dependable, long-lasting control systems with clear, accurate display interfaces.
To support your industrial display needs, Aptus Display offers a comprehensive suite of services:
We provide tailored display configurations including brightness adjustments, interface options, touch integration, and mechanical adaptations to fit specific project demands.
Our engineering team assists with electrical interfacing, mechanical design considerations, and system optimization to ensure seamless display integration.
From early concept design through production volume, we collaborate with customers to deliver custom solutions aligned with project specifications and timelines.
We maintain consistent product availability and production planning support to ensure long-term deployments stay on schedule.
These services reduce risk, accelerate development, and ensure your industrial control systems operate reliably.
For reliable 23.8-inch 1920×1080 30-pin LVDS LCD modules suitable for industrial control, embedded visualization, and automation interfaces, Aptus Display offers expert technical guidance, customization options, and dependable support.
Contact our sales and engineering team today to discuss your specifications, explore customization possibilities, and receive personalized solutions for your industrial display requirements.
