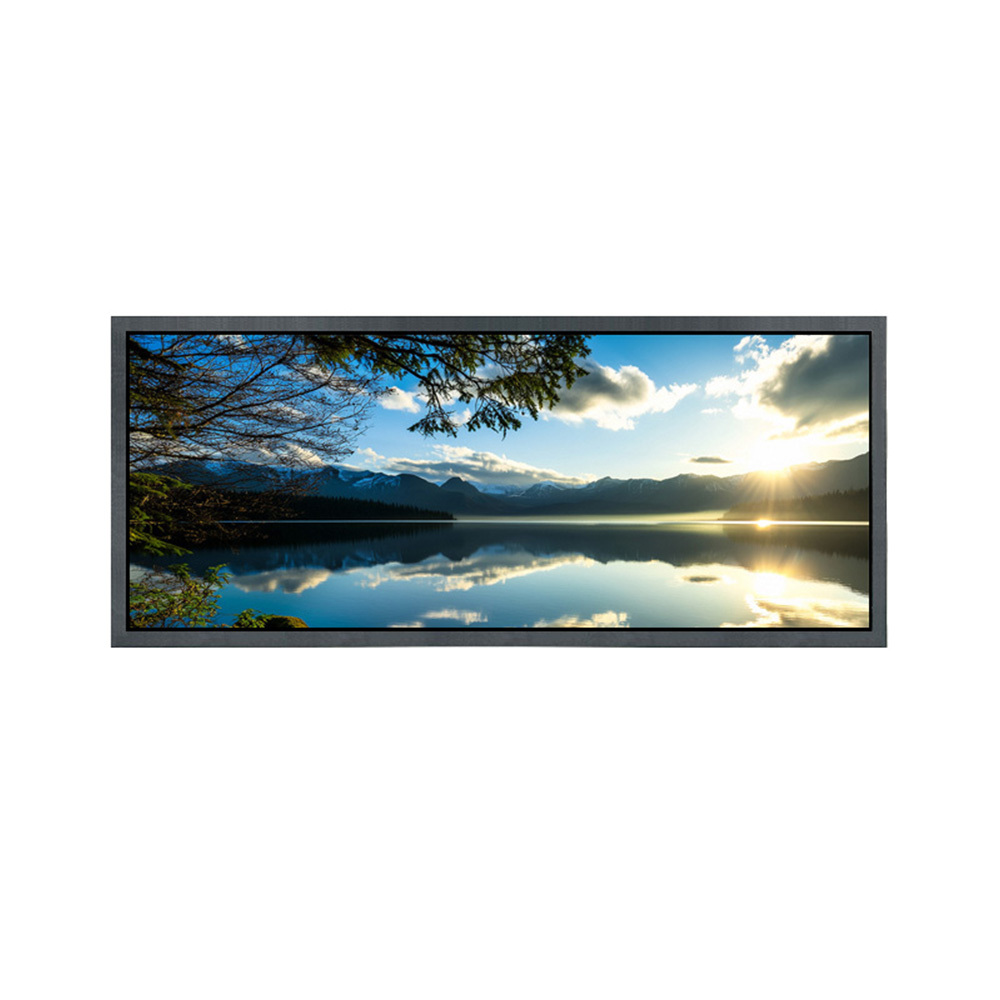

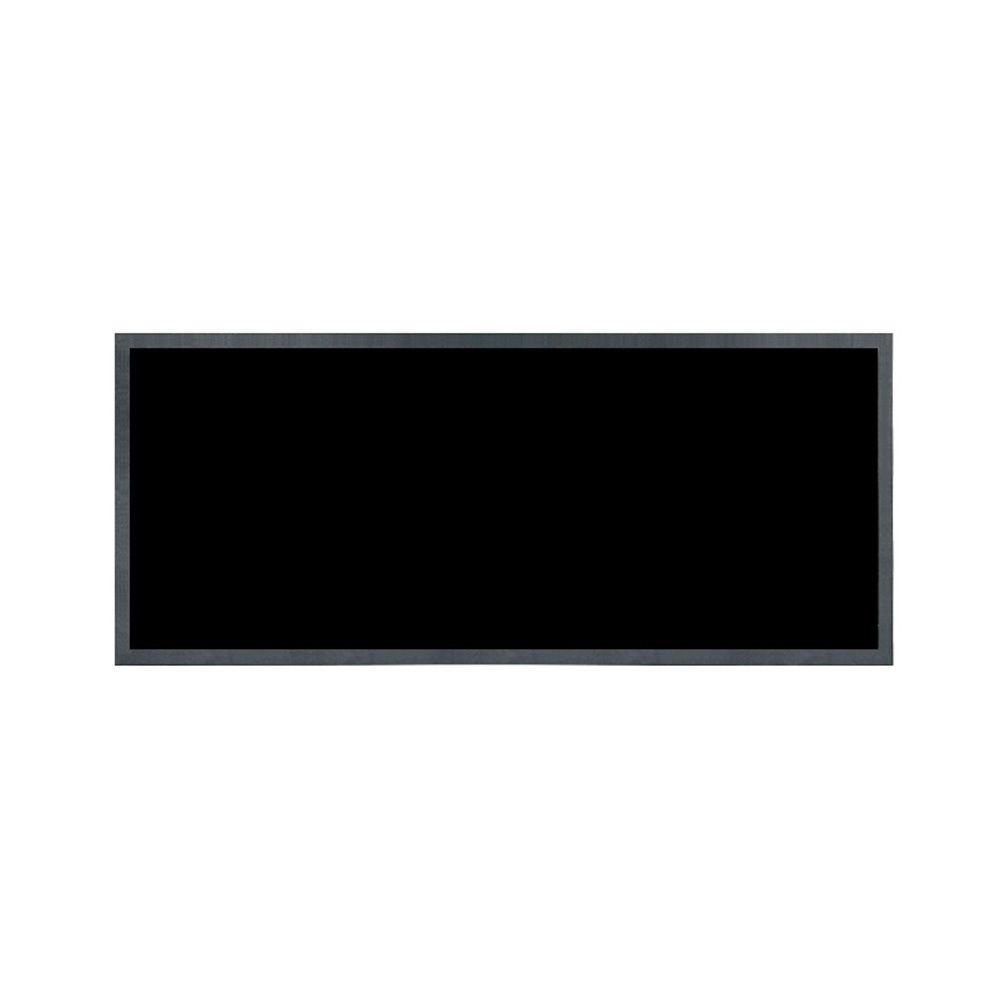

The 22-inch QHD 2560×1024 TFT LCD module is a high-brightness commercial display designed for professional environments where visual clarity, extended screen width, and stable performance are essential. With a 1000-nit brightness level, this module delivers excellent visibility in brightly lit indoor spaces such as retail environments, public information systems, and professional display terminals.
This display is engineered specifically for commercial display applications, offering a wide active area, fine pixel structure, and reliable electrical performance. It operates within a 0°C to +50°C working temperature range and supports -20°C to +60°C storage conditions, making it suitable for long-term operation in controlled commercial environments.
22-inch wide TFT LCD panel with QHD 2560×1024 resolution
1000 nits high brightness for strong ambient light readability
Extra-wide display ratio optimized for commercial layouts
Precise pixel structure for sharp text and graphics
Stable performance for continuous commercial operation
Designed for commercial display systems, not automotive or medical use
| Item | Specification |
|---|---|
| Display Size | 22.0 inch |
| Resolution | 2560 × 1024 |
| Display Type | TFT LCD |
| Display Mode | Normally Black |
| Active Area (W × H) | 526.85 × 210.74 mm |
| Pixel Pitch | 205.8 μm (H) × 205.8 μm (V) |
| Brightness | 1000 nits (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Viewing Angle | 178° (H) / 178° (V) |
| Display Colors | 16.7M |
| Interface | LVDS / eDP (configurable) |
| Backlight Type | LED |
| Outline Dimensions | 550.00 × 236.00 × 14.00 mm |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Application Category | Commercial Display |
All parameters above are based on the confirmed product configuration and suitable for commercial display system integration.
The 2560×1024 QHD resolution offers a wider horizontal display compared to standard Full HD panels. This aspect ratio is particularly valuable in commercial environments where more information needs to be displayed simultaneously without reducing readability.
Benefits include:
Clear and sharp text rendering for menus, data panels, and signage
Enhanced graphical detail for visual content and UI layouts
Improved layout flexibility for split-screen or multi-zone displays
Reduced eye strain during long-term viewing in professional spaces
Combined with a 22-inch screen size, this resolution provides an ideal balance between display area and pixel density for commercial systems.
With a typical brightness of 1000 nits, this LCD module is specifically designed for environments with strong ambient lighting. Compared to standard commercial panels, the higher luminance ensures:
Excellent visibility under retail lighting and showroom illumination
Clear presentation of visual content near windows or open spaces
Improved contrast perception and color vividness
Reliable readability for information displays and signage systems
This makes the module well-suited for commercial display terminals that must remain clear and legible throughout the day.
The panel supports 178° horizontal and vertical viewing angles, ensuring consistent color and brightness even when viewed from off-center positions. This characteristic is essential in commercial scenarios where multiple users may view the display simultaneously from different angles.
Uniform brightness and color performance across the 526.85 × 210.74 mm active area help maintain a professional visual presentation in public-facing installations.
This 22-inch TFT LCD module is designed exclusively for commercial display use, excluding automotive, medical, and consumer electronics.
Typical applications include:
Retail stores, shopping malls, and exhibition spaces where high-brightness and wide layouts enhance visual impact.
Public information boards, directory displays, and service counters requiring continuous, reliable operation.
User interfaces for building management systems, access control platforms, and facility monitoring terminals.
Embedded displays used in conference rooms, showrooms, and corporate environments for data visualization and presentations.
The slim 14.00 mm profile and precise 550.00 × 236.00 mm outline dimensions support clean integration into metal or plastic commercial enclosures.
Stable power input and proper grounding are recommended to ensure consistent brightness and long-term backlight performance.
While designed for commercial indoor environments, adequate ventilation is advised to maintain optimal performance over extended operating hours.
Each display module undergoes strict quality checks, including:
Pixel defect inspection
Brightness and uniformity testing
Interface signal validation
Thermal and aging tests within specified temperature ranges
These processes help ensure dependable performance in long-term commercial installations.
Aptus Display is a professional LCD module and display solution supplier serving global commercial and industrial markets. We focus on delivering stable, high-quality display products supported by responsive technical service and reliable supply capabilities.
Our product portfolio covers a wide range of sizes, resolutions, brightness levels, and interfaces to meet the diverse needs of commercial display systems.
Display customization support (brightness, interface, mechanical structure)
Technical consultation for system integration
OEM & ODM project cooperation
Long-term supply and lifecycle management
We work closely with customers to ensure each display solution aligns with project requirements and production schedules.
If you are developing a commercial display system and require a 22-inch high-brightness QHD TFT LCD module, Aptus Display is ready to assist.
Contact our sales and technical team to discuss specifications, customization options, and project support.
