The 21.5-inch 1920×1080 30-pin LVDS 500nit LCD module is a Full HD TFT display designed for professional equipment manufacturers, system integrators, OEMs and embedded display developers. Model DBT215BHN30L050A combines a 21.5-inch viewing area, 1920×1080 resolution, 500 cd/m² typical brightness, 30-pin LVDS interface and wide viewing angles of 89°/89°/89°/89° under CR ≥ 10. With a slim 2.05 mm panel profile and an operating temperature range of -20°C to +70°C, it is suitable for a wide range of indoor professional, industrial and embedded display applications.
Unlike a standard consumer monitor, this TFT LCD module is intended to be integrated into a larger equipment or display system. Engineers can combine the panel with a compatible controller board, cable assembly, touch panel, cover glass or customized mechanical enclosure to develop a complete display solution for a specific application.
The 1920×1080 Full HD resolution provides a practical balance between image detail, system compatibility and graphics performance. Meanwhile, the 500 cd/m² brightness provides enhanced visibility for professional indoor environments and applications with relatively strong ambient lighting.
The 21.5-inch screen provides a large workspace for applications that need to display detailed information, dashboards, menus, control parameters, graphics or multimedia content.
With a 1920×1080 Full HD resolution and 16:9 format, the module is well suited to modern graphical user interfaces and professional display systems. The active area is 476.64 × 268.11 mm, providing sufficient physical space for detailed HMI interfaces and monitoring content.
For equipment designers, a 21.5-inch display can also reduce the need to divide information across multiple small screens. Operators can view more system information at the same time, which can be beneficial in control, monitoring and visualization applications.
The DBT215BHN30L050A uses a 30-pin LVDS interface. LVDS is commonly used in embedded and professional display systems because it provides differential high-speed data transmission between the display controller and LCD panel.
For an existing system, engineers should verify the exact LVDS pin assignment, signal configuration, timing requirements, power specifications and connector orientation before replacing an existing panel.
A 30-pin connector alone does not guarantee compatibility between two LCD models. Aptus Display can assist customers with panel matching and controller-board integration when the original display specifications or system requirements are provided.
The module provides 500 cd/m² typical brightness, offering stronger visual output than many conventional standard-brightness indoor LCD panels. This makes it appropriate for professional environments where ambient lighting may be relatively high.
Potential environments include industrial facilities, professional workstations, control equipment, self-service terminals and retail equipment.
For direct outdoor sunlight applications, however, 500 cd/m² should not automatically be considered sunlight-readable. Outdoor visibility depends on brightness, reflectivity, optical structure, surface treatment, bonding technology and enclosure design. If the application will operate under direct sunlight, Aptus Display can recommend higher-brightness alternatives.
The published specification provides a viewing angle of 89°/89°/89°/89° under CR ≥ 10.
A wide viewing angle is particularly useful when several people may view the display from different positions or when the operator is not always directly in front of the panel.
This makes the module suitable for monitoring terminals, equipment interfaces, retail systems and professional display products where viewing flexibility is important.
The display has a specified 14 ms response time, supporting smoother image transitions for dynamic interface content and moving graphical elements.
For applications displaying dashboards, animations, video or rapidly changing system information, response time is one of the parameters engineers should consider alongside refresh rate, controller performance and image-processing architecture.
One of the notable characteristics of this model is its -20°C to +70°C operating temperature range, with a storage temperature range of -30°C to +80°C.
This provides more environmental flexibility than a typical office-oriented LCD panel and makes the module a candidate for professional equipment deployed in variable-temperature environments.
The complete system must still be evaluated as a whole. Enclosure temperature, backlight heat, controller-board heat generation, airflow and installation location can all affect the actual operating temperature experienced by the LCD.
The panel specification lists Haze 25% and 3H surface treatment.
Surface treatment can help manage reflections and improve the viewing experience in environments with ambient lighting. For applications requiring particularly strong anti-glare or optical performance, the final optical design should be evaluated according to the installation environment.
| Parameter | Specification |
|---|---|
| Model | DBT215BHN30L050A |
| Display Type | TFT LCD Module |
| Display Size | 21.5 inches |
| Resolution | 1920 × 1080 pixels |
| Resolution Type | Full HD |
| Aspect Ratio | 16:9 |

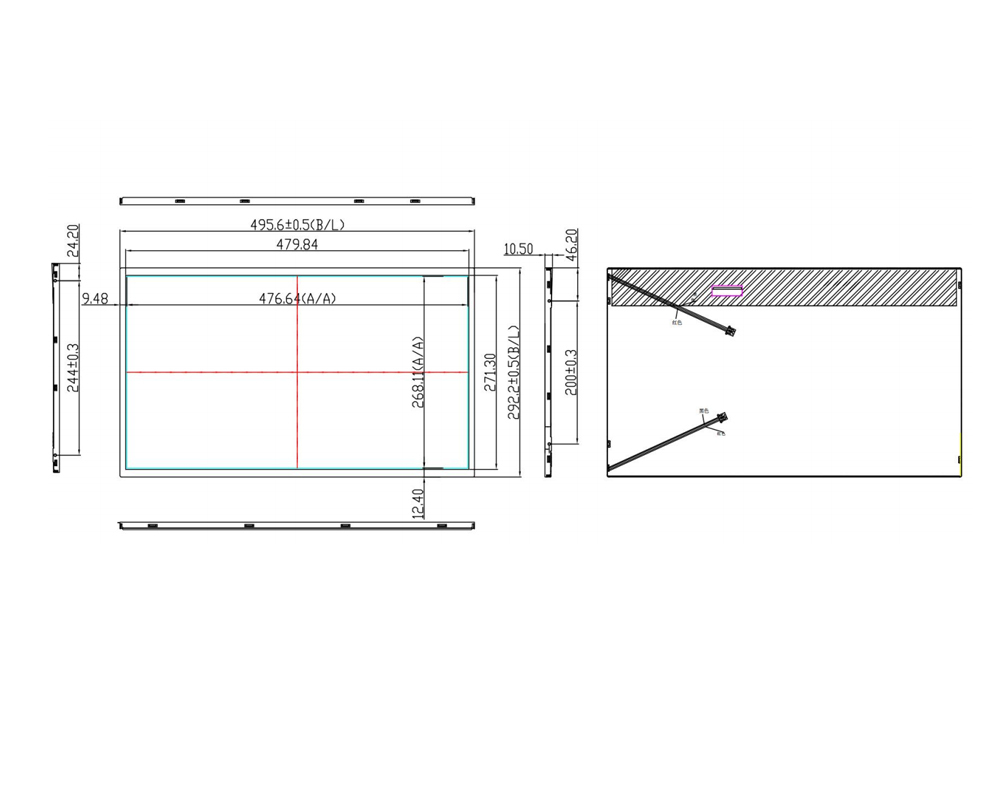

| Active Area | 476.64 × 268.11 mm |
| Outline Dimension | 487.2 × 281 × 2.05 mm |
| Pixel Pitch | 0.24825 × 0.24825 mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Colors | 16.7 million |
| Display Mode | Normally Black |
| Viewing Angle | 89°/89°/89°/89° |
| Contrast Criterion | CR ≥ 10 |
| Response Time | 14 ms |
| Interface | 30-Pin LVDS |
| Brightness | 500 cd/m² typical |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Surface Treatment | Haze 25%, 3H |
The specifications above are based on the current Aptus Display product listing for DBT215BHN30L050A. Before production integration, customers should request the latest datasheet, mechanical drawing and electrical specifications to confirm project-level compatibility.
The large 21.5-inch display area makes this module suitable for industrial control interfaces where operators need to monitor multiple parameters simultaneously.
Typical use cases can include machine control panels, production monitoring terminals, automation equipment, process visualization systems and industrial HMI interfaces.
The Full HD resolution provides enough workspace for charts, status indicators, alarms, control buttons and graphical process information.
The module can be integrated into custom embedded systems using a compatible LVDS controller.
OEM developers can combine the LCD with their preferred computing platform, controller board and software environment to create a dedicated display interface for professional equipment.
Because the LCD is a module rather than a finished consumer monitor, mechanical and electrical integration can be optimized around the customer's equipment design.
The 21.5-inch Full HD format is also suitable for professional desktop monitor designs.
The 1920×1080 resolution is widely supported by computers and embedded systems, while 500 cd/m² brightness can provide good visibility in bright indoor environments.
For customized monitor manufacturers, Aptus Display can evaluate additional requirements such as controller boards, cables, housing, touch panel integration and other display accessories.
The display can also be used in professional retail equipment, POS systems, self-service terminals and information kiosks.
When user interaction is required, a compatible capacitive touch panel can be integrated with the LCD to create a complete interactive display assembly.
The appropriate touch technology depends on factors such as cover glass thickness, glove operation, moisture exposure, operating environment and user-interface requirements.
The 21.5-inch screen is well suited to equipment that needs to present a relatively large amount of information on one display.
Potential applications include monitoring terminals, information terminals, access-control equipment, commercial equipment and professional visualization systems.
A display should be selected based on the complete system requirements rather than screen size alone. Engineers should consider interface compatibility, optical performance, environmental conditions, mechanical dimensions and long-term supply.
The DBT215BHN30L050A provides several useful characteristics for OEM development:
Full HD 1920×1080 resolution provides a familiar 16:9 working format for professional interfaces.
21.5-inch display size offers a large visual workspace while maintaining a practical form factor.
30-pin LVDS interface makes the module appropriate for compatible embedded display architectures.
500 cd/m² brightness supports visibility in many bright indoor professional environments.
Wide viewing angles provide better usability when users view the screen from different positions.
14 ms response time supports responsive image transitions.
-20°C to +70°C operating temperature gives system designers additional environmental flexibility.
2.05 mm panel profile provides opportunities for slim display integration where enclosure design requires a thin LCD structure.
Before integrating this panel into an existing system, several engineering parameters should be checked.
The first consideration is the LVDS interface. The host controller must support the panel's required LVDS configuration. Engineers should compare the panel's pin definition and signal mapping with the controller-board specification.
The second consideration is the electrical design. Power supply requirements, backlight driving, timing parameters and control signals should be verified using the latest technical documentation.
The third consideration is the mechanical structure. The panel outline is approximately 487.2 × 281 × 2.05 mm. Designers should provide sufficient space for the LCD, connector, cable routing and mechanical mounting structure.
The fourth consideration is thermal management. Although the LCD itself is specified for -20°C to +70°C operation, the temperature inside the final enclosure may differ significantly from ambient temperature. The controller board, LED backlight and other electronic components can generate additional heat.
Finally, optical performance should be evaluated according to the installation environment. If the product will be installed under strong lighting or near windows, the system designer should consider reflections, surface treatment and viewing conditions in addition to the nominal 500 cd/m² brightness.
Aptus Display supports customers who need more than a standard TFT LCD panel. The company provides customized display engineering and integration services covering display specifications, touch integration, cover glass and other display-related components.
Depending on project requirements, customers can discuss:
Customized display brightness
Capacitive touch panel integration
Resistive touch solutions
Cover glass customization
Optical bonding or adhesive bonding
LVDS cables and interconnect solutions
Controller and AD boards
Customized mechanical structures
Display assembly integration
Prototype and sample development
This type of semi-custom or complete display solution can simplify the development process for OEM manufacturers and system integrators.
Instead of sourcing the LCD panel, touch panel, controller board and cables separately, customers can work with a display supplier to evaluate the compatibility of the complete system.
Aptus Display is a professional LCD module and display solution provider based in Shenzhen, China. The company states that it was established in 2007 and specializes in TFT-LCD solutions for customers worldwide. Its product portfolio includes TFT LCD modules, touch panel LCD solutions, flight simulator displays, bar-type LCD displays, gaming display solutions, wide-temperature displays and other customized display products.
Aptus Display focuses on supporting OEM and ODM customers through product customization, engineering assistance, prototyping, quality assurance and global supply.
For customers developing professional equipment, this engineering-oriented approach can be particularly useful because LCD integration often involves more than selecting a suitable screen size. Interface compatibility, controller selection, mechanical structure, touch integration and environmental requirements must all be considered during product development.
Aptus Display's services include custom engineering, sample development, technical support, quality assurance, global logistics and after-sales support.
The DBT215BHN30L050A uses a 1920×1080 Full HD resolution, providing a 16:9 display format suitable for professional monitors, embedded systems, HMI equipment and information terminals.
This LCD module uses a 30-pin LVDS interface. The exact LVDS pin assignment and electrical/timing requirements should be verified against the latest technical documentation before connecting the panel to a controller board.
Yes. The product specification lists 500 cd/m² typical brightness, which is equivalent to approximately 500 nits. This makes the display suitable for many professional indoor environments with moderate to high ambient lighting.
The specified operating temperature is -20°C to +70°C, while the storage temperature is -30°C to +80°C. This makes the panel suitable for a broader range of professional equipment environments than standard office-oriented displays.
Yes. Aptus Display offers display customization and touch integration services. Customers can discuss capacitive touch panels, cover glass and other display integration requirements based on their equipment design and operating environment.
The 500 cd/m² brightness is appropriate for many bright indoor applications, but it should not automatically be classified as a direct-sunlight-readable display. Outdoor applications may require higher brightness, optical bonding, anti-reflective treatment and other optical improvements. Aptus Display can recommend a more suitable high-brightness LCD when direct sunlight is expected.
Yes. The product page provides a quotation/sample request process, and Aptus Display lists prototyping and sample delivery among its services. Customers should provide their application, required quantity and technical specifications when requesting a sample.
If you are looking for a 21.5-inch 1920×1080 30-pin LVDS 500nit LCD module for an industrial HMI, embedded system, professional monitor, retail terminal or customized equipment, the DBT215BHN30L050A is a practical display platform to evaluate.
For engineering samples, OEM projects or volume procurement, contact Aptus Display with your required display size, resolution, interface, brightness, operating temperature and application requirements.
