21.5 Inch 1920x1080 1000nits LCD Touch Screen Monitor

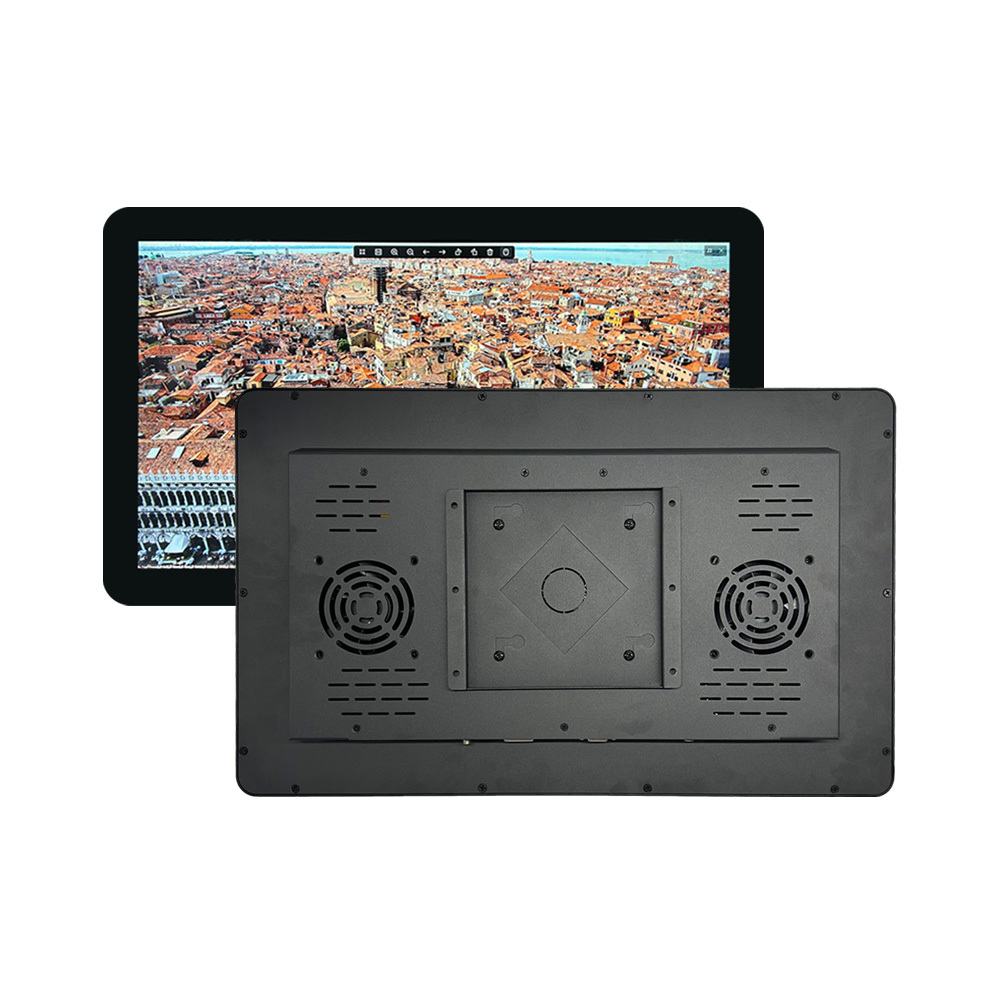

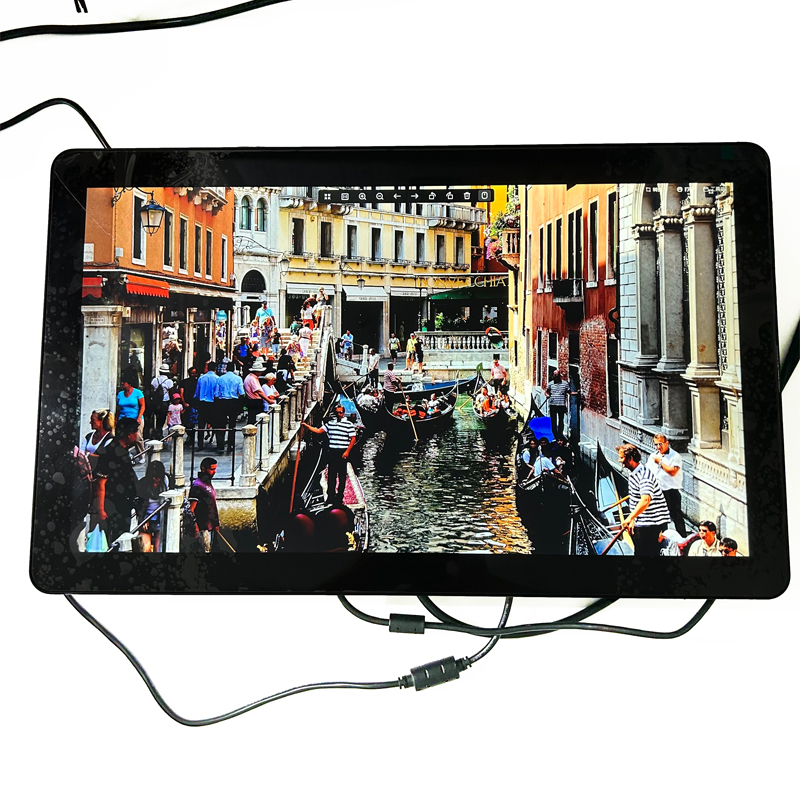

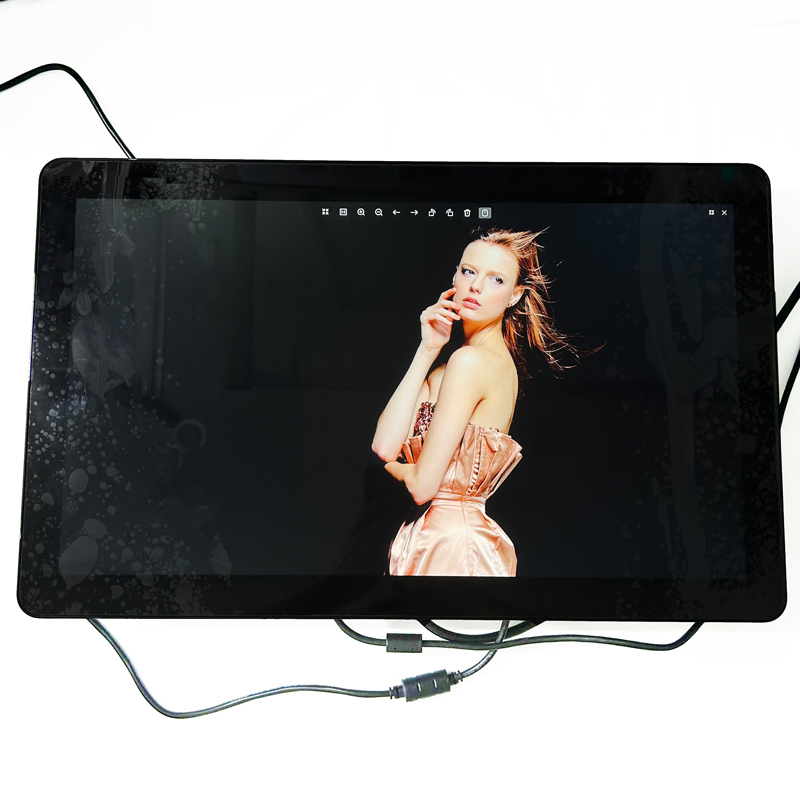

Product Introduction: DBT215BHC30L100A - 21.5" Full HD LCD Touch Screen Monitor

Overview:
The DBT215BHC30L100A is a 21.5-inch Full HD LCD touch screen monitor designed for industrial and commercial display applications.     With its active matrix TFT-LCD using amorphous silicon TFTs (Thin Film Transistors), this monitor boasts a high-resolution display of 1920 horizontal by 1080 vertical pixels, allowing for crisp and vivid imagery.     Each pixel is divided into red, green, and blue dots arranged in a vertical stripe, enabling the display of 16.7 million colors.



Key Features:
- LVDS Interface: Supports 2 pixels/clock for efficient data transfer.
- High-Speed Response: Ensures smooth display of dynamic content.
- 0.5t Glass: For enhanced touch sensitivity and durability.
- 6-bit (Hi-FRC) Color Depth: Displays 16.7 million colors for rich visual representation.
- High Luminance and Contrast Ratio: Provides clear visibility even in bright environments.
- Low Reflection and Wide Viewing Angle: Ideal for public display and monitoring systems.
- DE (Data Enable) Only: Simplified operation for ease of use.
- RoHS/Halogen Free: Complies with environmental standards.
- Gamma Correction: Ensures accurate color reproduction.
- Landscape and Portrait Enabled: Versatile display orientation options.

Technical Specifications:
- Active Area: 476.64(H) × 268.11(V) mm.
- Number of Pixels: 1920(H) × 1080(V) pixels.
- Pixel Pitch: 0.24825(H) x 0.24825(V) mm.
- Pixel Arrangement: RGB Vertical stripe.
- Display Colors: 16.7 million colors.
- Display Mode: Normally Black.

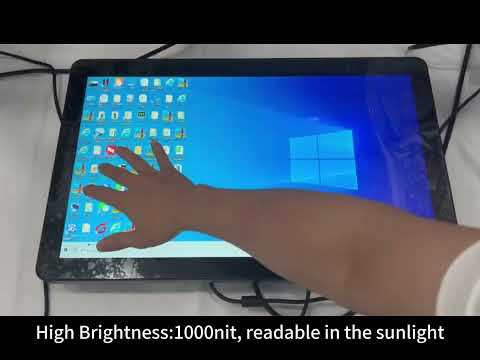

- Brightness (typ): 1000 nits.
- Weight: TBD grams.
- Surface Treatment: Anti-glare (AG) 80.

Electrical Specifications:
- Power Supply Voltage (VDD): 4.5 to 5.5 V.
- Power Supply Current (IDD): 700 mA to 1200 mA.
- In-Rush Current (IRUSH): 3 A.
- Permissible Input Ripple Voltage (VRF): 300 mV at VDD = 5.0V.
- Power Consumption (PD): 3.5 to 5.4 W.

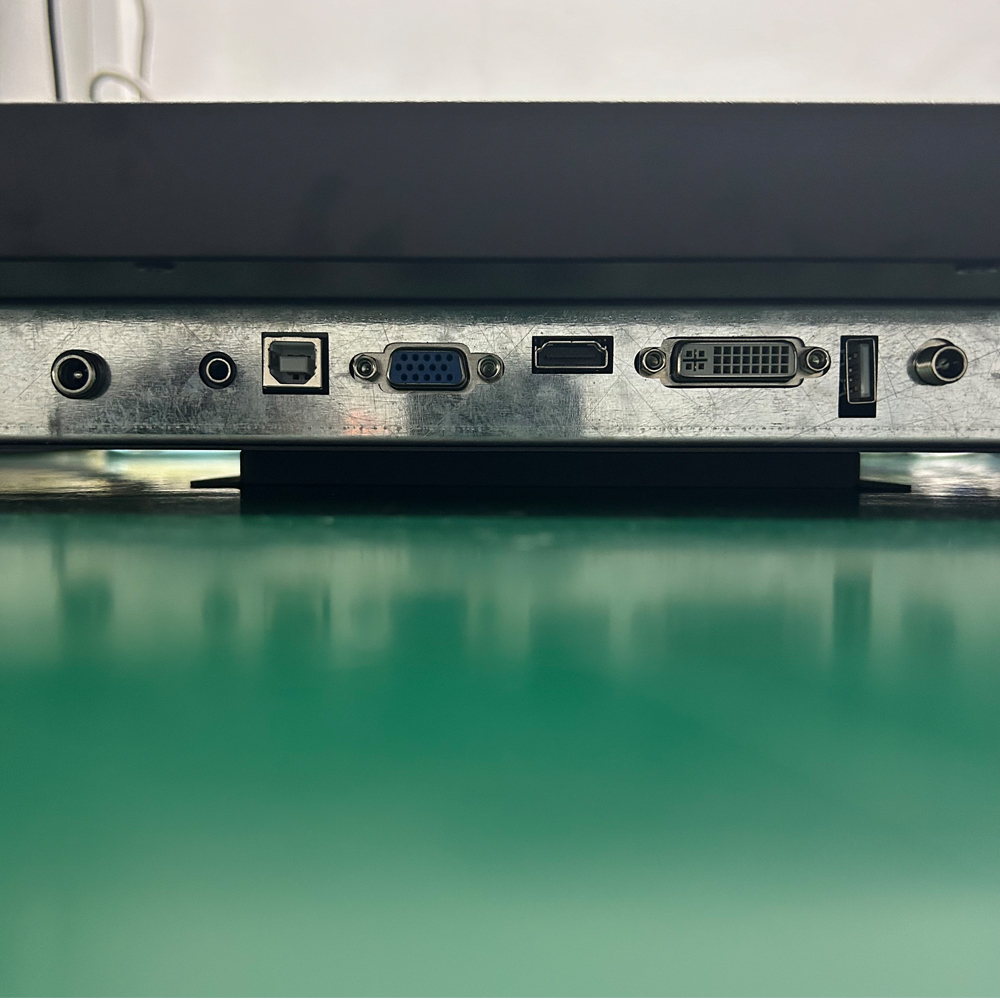

Interface Connection:
- CN1 Module Side Connector: UJU IS100-L30O-C23 or MSBKT2407P30.
- User Side Connector: JAE FI-X30H.

Optical Specifications:
- Viewing Angle: Horizontal 85°, Vertical 85°.
- Luminance Contrast Ratio (CR): 700:1 to 1000:1.
- White Luminance Uniformity (ΔY): 75% to 80%.
- Color Reproduction: Accurate chromaticity coordinates for white, red, green, and blue.
- Response Time (GTG Tg): 14 to 25 ms.
- Cross Talk (CT): 2.0%.

Mechanical Characteristics:

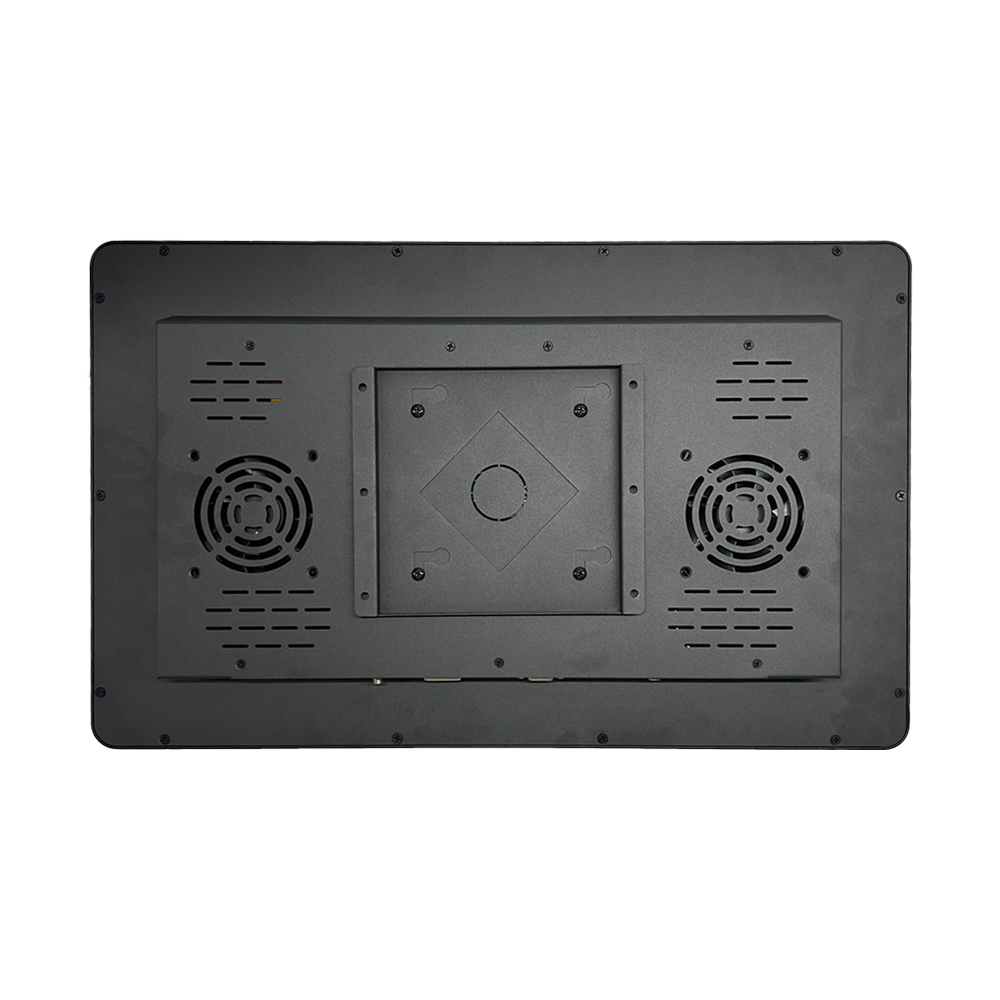

- Outdimension: 495.6*292.2*18.45 mm.

Reliability Test:
- High Temperature Storage Test: 85℃, 240 hrs.
- Low Temperature Storage Test: -30℃, 240 hrs.
- High Temperature & High Humidity Operation Test: 50℃, 80%RH, 240hrs.
- Thermal Shock: -20℃ ↔ 60℃ (0.5 hr), 100 cycle.

Applications:
The DBT215BHC30L100A is suitable for a variety of industrial and commercial applications, including desktop PCs, workstations, slim-size standalone monitors, control system display terminals, process controllers, and digital signage for class information.     Its high brightness and touch capabilities make it an excellent choice for environments where interaction and visibility are crucial.

Purchase Notice:
The information provided on this product detail page is for reference only.     For specific technical parameters and custom requirements, please contact our sales representative to obtain detailed materials and quotations.     We look forward to working with you to create outstanding display solutions.

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
