►Size : 2.99 inch
►Resolution : 268*800 dots
►View Direction : IPS
►Interface : RGB/MIPI
►Brightness (cd/m²): 350
►Datasheet：Plese contact us

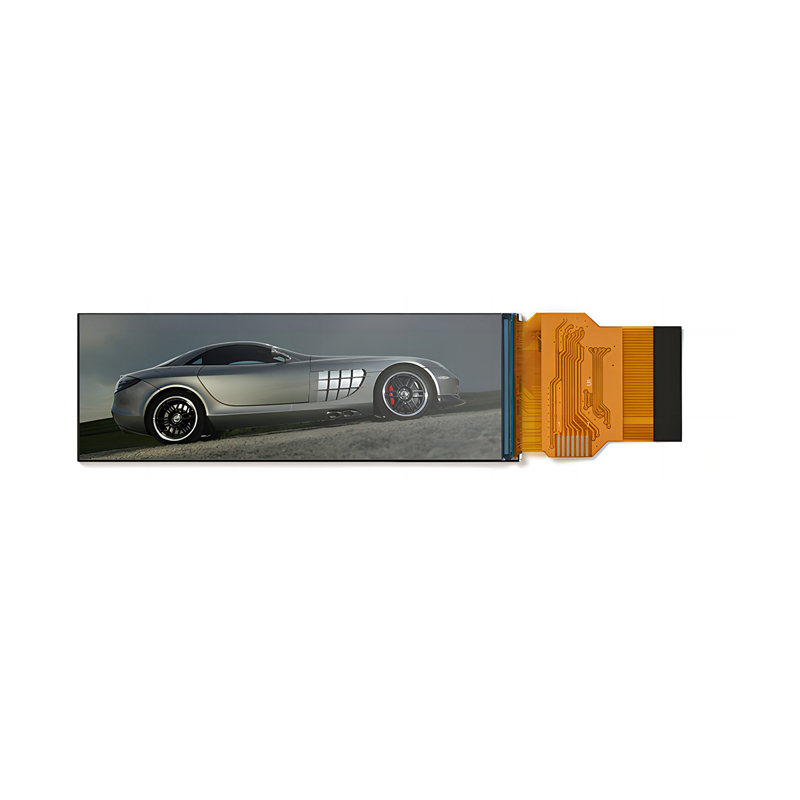

The 2.99-inch 268×800 IPS RGB/MIPI Bar LCD Display is a compact and elongated TFT LCD module designed for embedded equipment, industrial control interfaces, IoT devices, retail equipment, and other applications where conventional square or rectangular displays cannot make efficient use of the available space. Model DBC030HVN40R035A combines a 268×800 resolution, IPS viewing technology, RGB/MIPI interface options, and 350 cd/m² brightness in a slim bar-type display format.
With an active area of approximately 24.1 × 72 mm and an outline dimension of approximately 26.52 × 78.7 × 1.95 mm, this LCD module provides a practical solution for narrow product structures. Its elongated 800-pixel vertical resolution allows designers to display menus, status information, icons, measurements, product information, and other vertically arranged content without requiring a larger conventional display.
For OEMs, system integrators, electronics manufacturers, and display procurement teams, this 2.99-inch bar LCD can also be customized according to project requirements, including brightness, pin definition, cover glass, touch panel, and driver board options.
2.99-inch compact bar-type TFT LCD
268×800 resolution for vertically oriented content
IPS display technology for broad viewing performance
RGB/MIPI interface options for embedded system integration
350 cd/m² brightness for clear indoor viewing
a-Si TFT-LCD technology
16.7 million colors for detailed color reproduction
1200:1 contrast ratio
Approx. 80° viewing angle
Slim 26.52 × 78.7 × 1.95 mm mechanical size
-20°C to +70°C operating temperature
-30°C to +80°C storage temperature
Optional customization for touch panel, cover glass, driver board, brightness, and pin definition
The published product specifications confirm the 268×800 resolution, IPS viewing direction, RGB/MIPI interface, and 350 cd/m² brightness.
| Parameter | Specification |
|---|---|
| Product Type | Bar LCD Display / TFT LCD Module |
| Model Number | DBC030HVN40R035A |
| Display Size | 2.99 Inch |
| Resolution | 268 × 800 dots |
| Display Technology | a-Si TFT-LCD |
| Display Mode | IPS |
| Interface | RGB / MIPI |
| Brightness | 350 cd/m² |
| Colors | 16.7M |
| Contrast Ratio | 1200:1 |
| Active Area | 24.1 × 72 mm |
| Outline Dimension | Approx. 26.52 × 78.7 × 1.95 mm |
| LED Backlight | 6 LEDs |
| Backlight Lifetime | >25,000 hours |
| Viewing Angle | Approx. 80° |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Touch Panel | Optional / Customizable |
| Cover Glass | Optional / Customizable |
| Driver Board | Optional / Customizable |
| Pin Definition | Customizable |
| Application | Industrial, IoT, retail and embedded equipment |
Final electrical, optical and mechanical specifications should be confirmed against the latest product datasheet before mass production. Contact Aptus for the complete datasheet and engineering documentation.
Traditional LCD modules are normally designed around rectangular aspect ratios. However, many modern products do not have enough horizontal or vertical space for a standard display. Equipment such as control panels, smart appliances, dispensers, instrumentation, access devices, and compact IoT products may have narrow front panels where a conventional TFT LCD would result in wasted mechanical space.
A bar LCD display solves this problem by using an elongated form factor.
The 2.99-inch 268×800 module is particularly suitable for applications where information needs to be presented vertically. Instead of increasing the overall product size, designers can integrate a narrow display into an existing enclosure.
The 268×800 resolution also provides significantly more vertical pixels than a low-resolution status display. This makes it possible to display graphical interfaces, icons, menus, numerical information, advertisements, operating instructions, or system status information within a compact physical footprint.
The DBC030HVN40R035A uses IPS display technology. For equipment that may be viewed from different positions, viewing performance is an important consideration.
Operators may not always look directly at the display from the center. A control panel can be installed at an angle, while an embedded IoT product may be viewed from above, below, or from either side. IPS technology helps maintain consistent visual performance across different viewing directions compared with many basic display technologies.
The approximately 80° viewing specification makes this module suitable for interfaces where users may not always interact with the display directly from the front.
Interface selection is an important part of LCD integration. The 2.99-inch bar display supports RGB/MIPI, giving system designers flexibility when matching the module with their host processor or display controller.
MIPI is widely used in compact embedded systems because it can support high-speed display data transmission while helping designers maintain compact interconnect architectures. RGB interfaces can also be useful in embedded platforms where the display controller and system architecture are already designed around parallel RGB output.
The appropriate interface should be selected based on the host processor, display controller, required resolution, PCB design, cable length, power architecture, and software support.
Aptus can also assist customers with display integration and controller-board requirements when a standard LCD module does not directly match the customer's existing hardware.
Mechanical integration is one of the strongest advantages of this bar LCD.

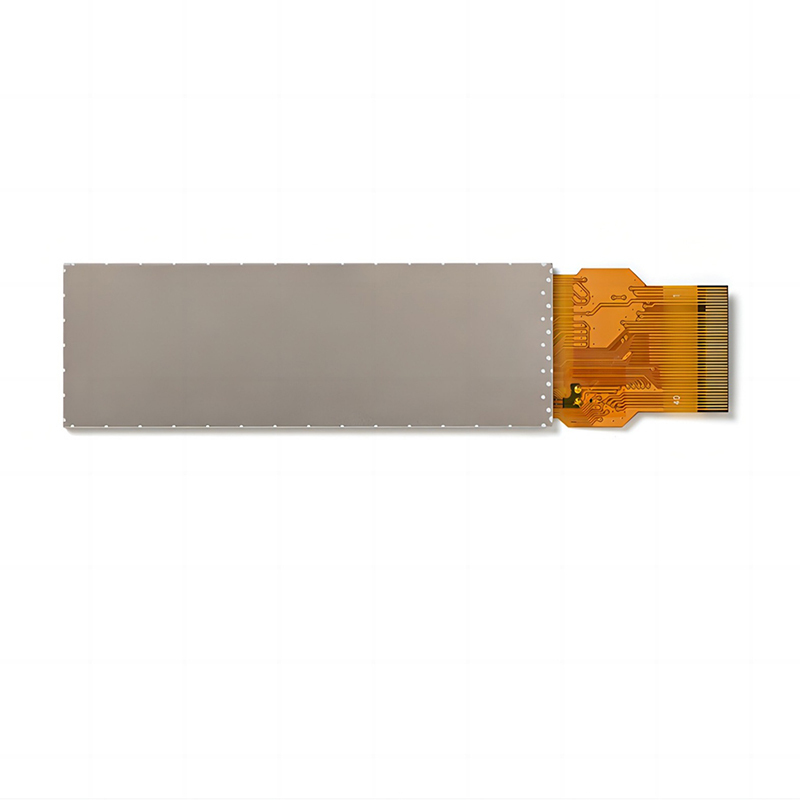

The module has an approximate outline dimension of 26.52 × 78.7 × 1.95 mm, with an active display area of approximately 24.1 × 72 mm.
This compact structure allows product designers to reserve more internal space for batteries, PCBs, sensors, processors, communication modules, or other components.
The slim profile can also help when the display needs to be integrated behind a narrow front panel or into a customized enclosure.
For OEM projects, mechanical dimensions should always be evaluated together with FPC routing, connector position, mounting method, bezel opening, optical stack, and enclosure tolerances.
With a rated brightness of 350 cd/m², the display is designed to provide clear visual output in many indoor environments.
This brightness level can be suitable for equipment installed in offices, factories, retail environments, indoor kiosks, embedded control systems, and IoT devices.
For outdoor applications or equipment exposed to direct sunlight, 350 nits may not be sufficient depending on the optical structure and ambient lighting. In such cases, customers should discuss higher-brightness alternatives, optical bonding, anti-reflective treatment, cover glass, and other sunlight-readability requirements with Aptus.
The compact bar format can be integrated into industrial control equipment where front-panel space is limited. The display can show machine status, operating parameters, warnings, process information, or simple graphical interfaces.
IoT products often require compact displays without significantly increasing the overall enclosure size. The 2.99-inch bar LCD can provide a visual interface for sensor information, network status, operating modes, or device configuration.
The elongated format can be integrated into smart appliances where a narrow display opening is preferred. It can present operating status, temperature information, mode selection, timers, or user instructions.
Bar LCD displays are increasingly useful when product designers need to place digital information in a narrow space. The 268×800 resolution provides sufficient vertical pixel density for graphical information, icons, product details, or promotional content.
Instrumentation equipment can use the display to present numerical measurements, status indicators, alarms, and configuration menus while keeping the overall instrument compact.
For compact HMI products, a bar-shaped LCD can create a distinctive user interface while making efficient use of the front-panel area. Optional touch panel integration can further expand the interaction possibilities.
Aptus provides more than standard LCD modules. According to the product information, this model can be customized in several areas, including brightness, pin definition, cover glass, touch panel, and driver board.
For OEM and ODM projects, customization can be particularly useful when the standard module needs to fit an existing enclosure or electronic platform.
Potential customization requirements may include:
Custom FPC and connector configuration
Pin-definition customization
Custom cable or interconnect solution
Higher-brightness backlight
Custom cover glass
Capacitive touch panel integration
Driver/controller board development
Mechanical integration support
Customized optical requirements
Project-specific display configuration
Aptus's product portfolio specifically states that its technical team supports standard, semi-custom, and total custom LCD solutions, including connectors, ZIF/FPC, touch panels, interconnect solutions, control boards, and system-integrated solutions.
Aptus Display is operated by Shenzhen Aptus Technology Co., Ltd. and has been active in the LCD industry since 2014. The company focuses on LCD display R&D, manufacturing, marketing, customization, and related display accessories.
For customers purchasing an LCD module for an OEM or commercial project, choosing a supplier with engineering support can be as important as selecting the display specification itself.
Aptus supports customers with custom LCD/LCM development and can provide related components such as LCD driver boards, cables, touch panels, and other accessories. The company's product portfolio covers TFT LCD modules, bar-type LCD displays, touch panel LCD modules, wide-temperature displays, flight simulator displays, gaming displays, and other specialized display solutions.
Aptus's one-stop approach covers the development process from requirement analysis and prototype support through production and after-sales service.
For procurement teams, this can simplify communication because display specifications, touch integration, controller boards, and related accessories can potentially be coordinated through one supplier.
Yes. Its elongated 26.52 × 78.7 mm outline and 268×800 resolution make it a compact bar-type LCD designed for narrow installation spaces.
The product is specified with RGB/MIPI interface options. The exact interface configuration and pin definition should be confirmed with Aptus based on the selected version and host system.
The standard brightness is 350 cd/m², which is generally more appropriate for indoor and controlled-lighting environments. For direct sunlight applications, customers should request a higher-brightness configuration and discuss optical enhancements with Aptus.
Yes. Aptus states that touch panel integration can be customized for this product. Cover glass and other interface components can also be customized according to project requirements.
Yes. A driver board can be provided or customized depending on the host system and interface requirements. Aptus also lists LCD driver boards and related accessories as part of its display solution offering.
The published specification lists an operating temperature range of -20°C to +70°C, with a storage temperature range of -30°C to +80°C.
Yes. The product page specifically states that brightness can be customized. Customers requiring higher brightness should provide the target brightness and application environment when requesting a quotation.
For an accurate quotation and engineering assessment, it is useful to provide the required display size, resolution, interface, quantity, application, operating temperature, brightness requirement, touch requirement, mechanical constraints, and target delivery schedule.
The 2.99-inch 268×800 IPS RGB/MIPI Bar LCD Display is a practical solution for product developers who need a narrow, high-resolution display without sacrificing visual performance. Its compact mechanical dimensions, IPS technology, RGB/MIPI interface options, 350-nit brightness, and customization capabilities make it suitable for a wide range of embedded, industrial, IoT, smart-appliance, instrumentation, and retail applications.
If your project requires a different brightness level, customized FPC, touch panel, cover glass, driver board, connector, or mechanical configuration, Aptus can evaluate the requirements and recommend a suitable LCD solution.
When contacting Aptus, please provide your target size, resolution, interface, quantity, application, operating temperature, brightness, and customization requirements. This allows the engineering team to evaluate compatibility and provide a more accurate solution and quotation.
Shenzhen Aptus Technology Co., Ltd. has been engaged in the LCD industry since 2014, providing LCD module development, manufacturing, customization, and display-related accessories for customers worldwide. Aptus has experience supporting projects involving industrial equipment, agriculture, aircraft simulators, automotive systems, and other specialized applications.
For display projects that require more than an off-the-shelf panel, Aptus can support the development of customized LCD modules, touch panels, controller boards, cables, and related integration solutions.
For sample evaluation, bulk purchasing, OEM/ODM customization, or technical integration support, contact Aptus Display with your project requirements.
