High-brightness LCD modules play a pivotal role in industrial automation, embedded control systems, and commercial visualization interfaces. The 18.5-inch 1366×768 30-pin interface LVDS 1000nit LCD module from Aptus Display combines clear, high-contrast visuals with stable electrical performance, making it ideal for environments requiring readability under bright lighting and robust integration with embedded systems or operator interfaces.
With a balance of durability, visual clarity, and reliable LVDS signal communication, this module meets the needs of industrial and commercial applications where standard displays fall short.
Displays in industrial control or embedded systems must contend with challenges that consumer panels do not typically face:
High ambient lighting, such as factory floors or commercial public spaces
Electromagnetic interference from nearby machinery or power assemblies
Continuous operation over extended duty cycles
Integration with embedded controllers, PLCs, and industrial PCs
This 18.5-inch LCD module is engineered specifically to address these needs, offering a high brightness of 1000nit for enhanced visibility and a robust 30-pin LVDS interface for stable signal transmission in demanding practical environments.
With a 1366×768 resolution, the display strikes an excellent balance between clarity, system demands, and performance:
Clear visualization of control parameters, text, and numeric data
Smoother rendering of graphical interfaces
Enhanced multi-window monitoring screens
Improved readability for large dashboard layouts
The resolution, while not Full HD, is well suited for embedded control panels, operator dashboards, and monitoring systems where data density and visual quality are necessary without imposing excessive processing requirements on industrial controllers.
This display module uses a 30-pin LVDS (Low-Voltage Differential Signaling) interface — a reliable standard for embedded and industrial display systems. LVDS offers:
High-speed signal transmission with minimal noise
Resistance to electrical interference
Compatibility with a wide range of embedded processors and industrial controllers
Lower susceptibility to signal degradation over cable length than parallel RGB interfaces
These features make LVDS particularly valuable in control panels and embedded displays where stable signal integrity is a priority.
The 1000nit brightness rating is one of the standout features of this LCD module. High brightness displays are essential in applications such as:
Industrial operator stations with overhead lighting
Embedded display systems near windows or bright ambient zones
Control consoles visible under varying lighting conditions
Commercial visualization displays in indoor bright areas
High brightness not only ensures readability but also enhances contrast, reduces eye strain for operators, and improves overall usability in demanding environments.
This 18.5-inch LCD module is suitable for a variety of non-consumer, non-medical use cases, including but not limited to:
Factory operator panels
Embedded PLC supervision terminals
Production line status displays
Control panels in manufacturing equipment
Monitoring dashboards in embedded appliances
Equipment interface screens for system status
Control station monitors in logistics hubs
Information panels in transport facilities (non-medical)
Embedded kiosks in bright ambient environments
These scenarios benefit from the combination of high brightness, balanced resolution, and stable LVDS communication — ensuring dependable performance in real-world implementations.

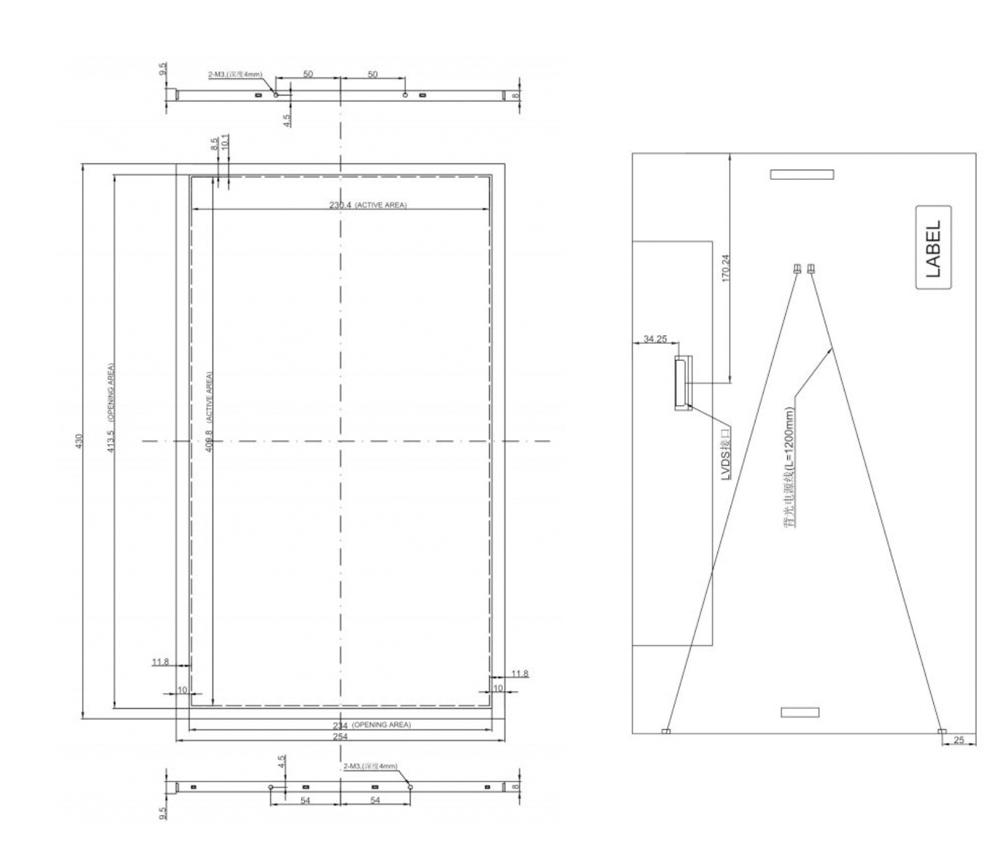

Below is the complete technical specification table for the 18.5-inch 1366×768 30-pin LVDS LCD module (parameters preserved exactly as required):
| Specification | Details |
|---|---|
| Panel Size | 18.5 inches |
| Resolution | 1366 × 768 |
| Interface | 30-pin LVDS |
| Active Area | 409.92 × 230.4 mm |
| Pixel Pitch | 0.3 mm |
| Display Colors | 16.7M (8-bit) |
| Brightness | 1000 nits |
| Contrast Ratio | 1000:1 |
| Response Time | 25 ms (typical) |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Backlight | High Brightness LED |
| Power Supply | Standard LVDS panel voltage |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
When deploying the 18.5-inch module within industrial or embedded systems, several design factors should be considered to ensure optimal performance and long-term stability:
Secure mechanical support is essential, especially when displays are mounted in control racks, embedded housings, or operator consoles. Proper mounting reduces impact from vibration and stress.
Use regulated and filtered power supplies to protect the display and high brightness backlight from voltage variations common in industrial power systems.
Shielded LVDS cabling along with proper grounding practices ensure signal integrity, particularly in environments with electrical noise from motors, drives, and power lines.
While the display performs optimally within standard operating temperatures, effective ventilation around the display enclosure supports longevity and brightness consistency.
Aptus Display maintains rigorous quality control and testing processes to ensure product consistency and reliability:
Pixel integrity inspection for uniformity
Electrical and signal performance validation
Environmental tolerance testing (temperature, vibration, humidity)
Long-duration operation testing for backlight and panel stability
These procedures help guarantee that the display module performs reliably in demanding conditions where dependable visual feedback is critical.
Aptus Display is a global provider of industrial and embedded display solutions, specializing in high-performance LCD modules tailored to challenging operational environments. With extensive experience in display technologies, we deliver solutions optimized for clarity, stability, and seamless integration.
Our products serve a wide range of applications — from industrial automation and embedded control systems to commercial visualization panels — backed by technical expertise, customization options, and long-term availability support.
Aptus Display offers a full suite of professional services to support your display integration needs:
We provide custom display configurations including brightness tuning, mechanical modifications, interface options, and optional touch integration tailored to specific project requirements.
Our engineering team offers guidance on electrical interfacing, mechanical design fit, system optimization, and performance tuning throughout the development lifecycle.
From initial concept design to production scale deployment, we collaborate with customers on custom display solutions that align with specification, timeline, and volume requirements.
We maintain stable product availability and provide production planning support to ensure consistent supply for long-term projects.
These services help reduce risk, accelerate development, and ensure dependable performance for your display system.
For high-brightness 18.5-inch 1366×768 30-pin LVDS LCD modules and customized display solutions for industrial control, embedded systems, or commercial display applications, Aptus Display offers expert technical guidance, tailored options, and reliable support.
Contact our sales and engineering team today to discuss specifications, customization possibilities, and pricing tailored to your project needs.
