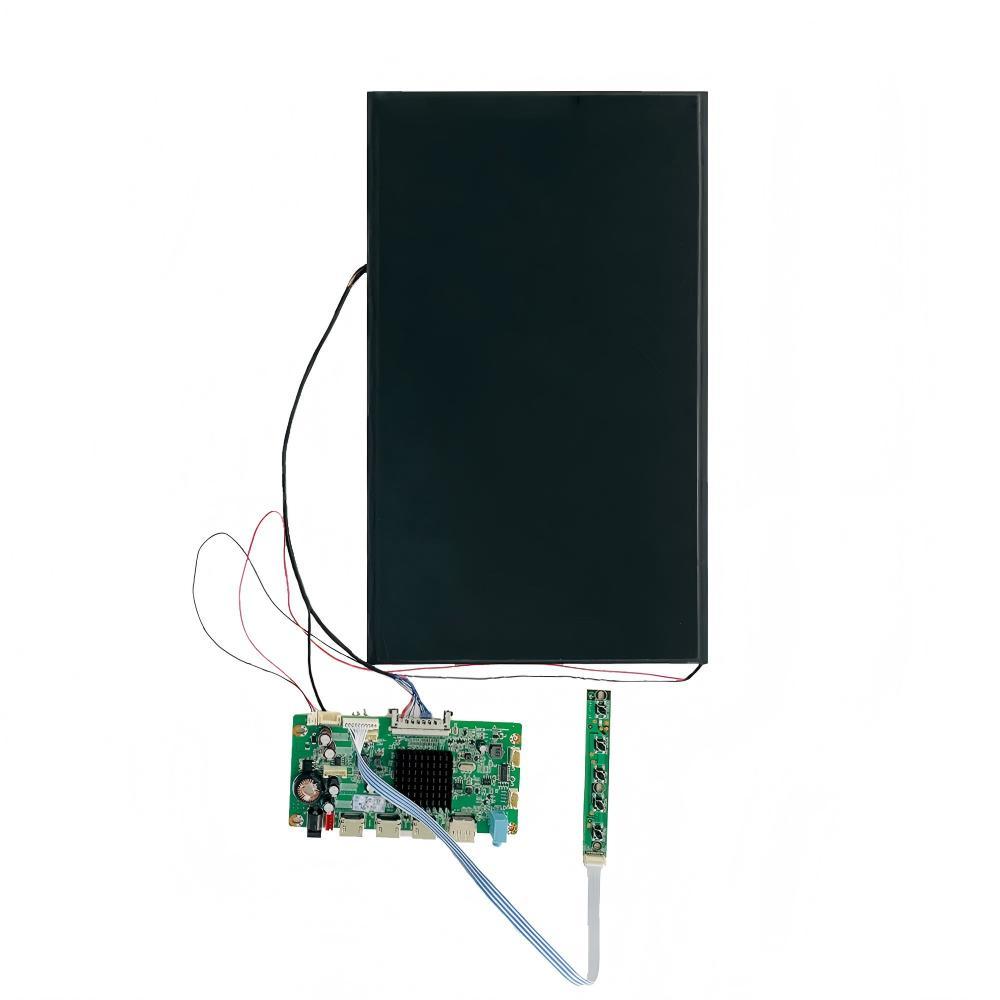

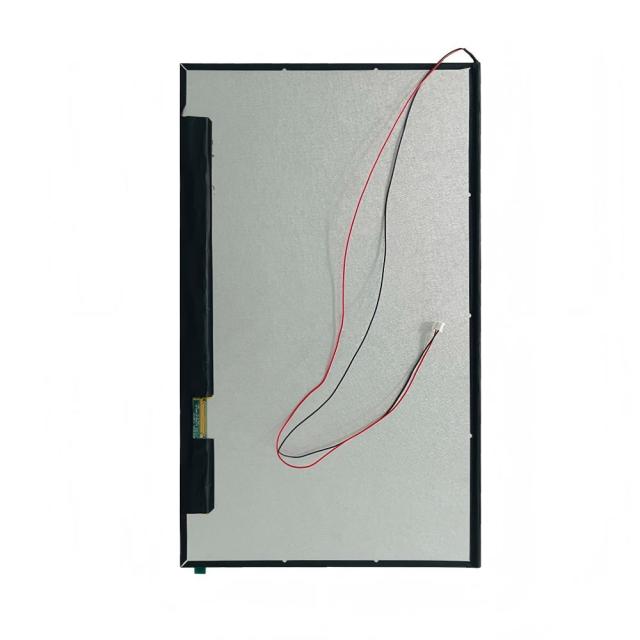

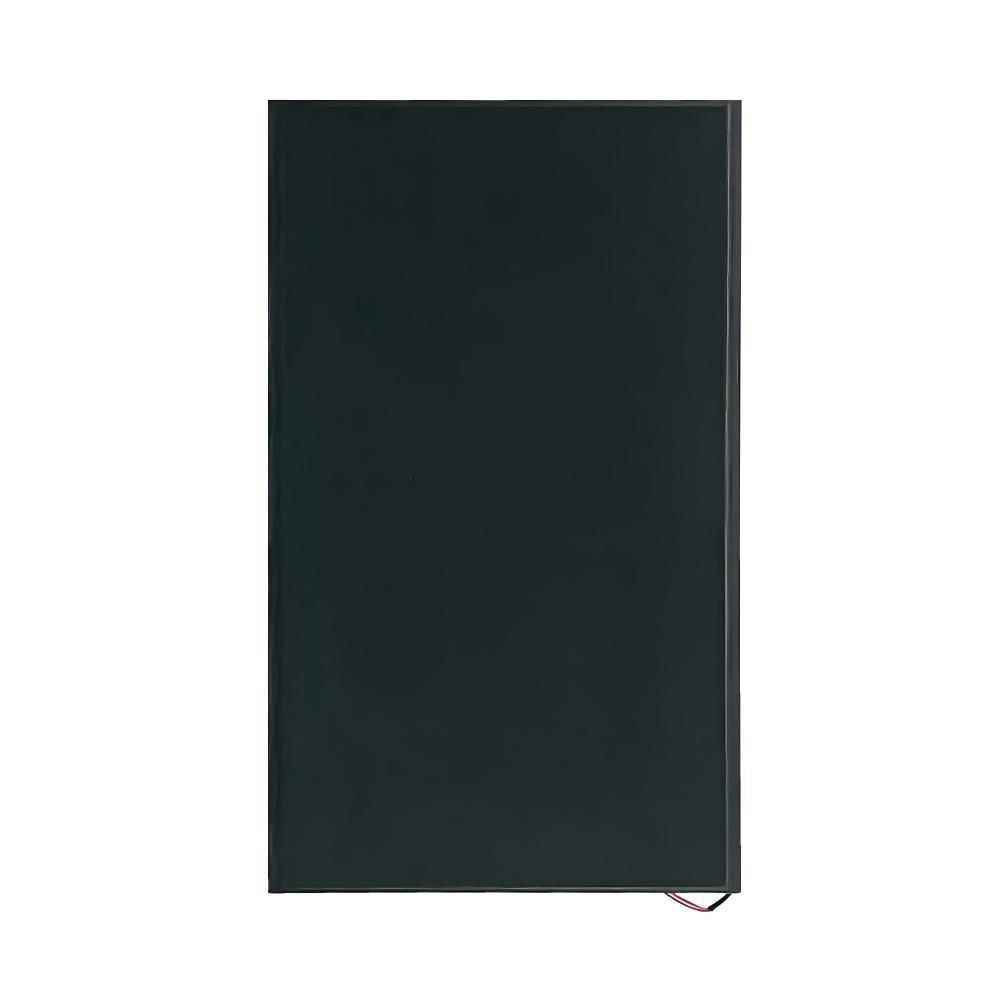

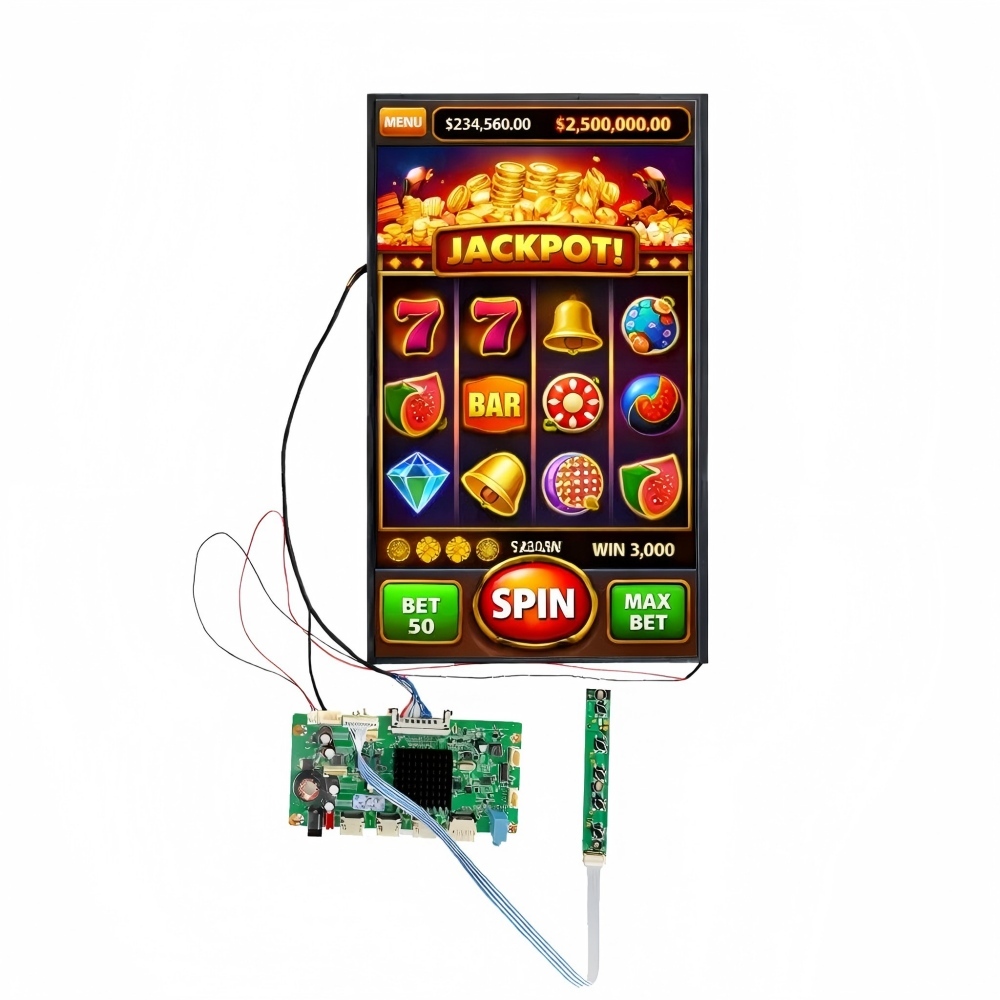

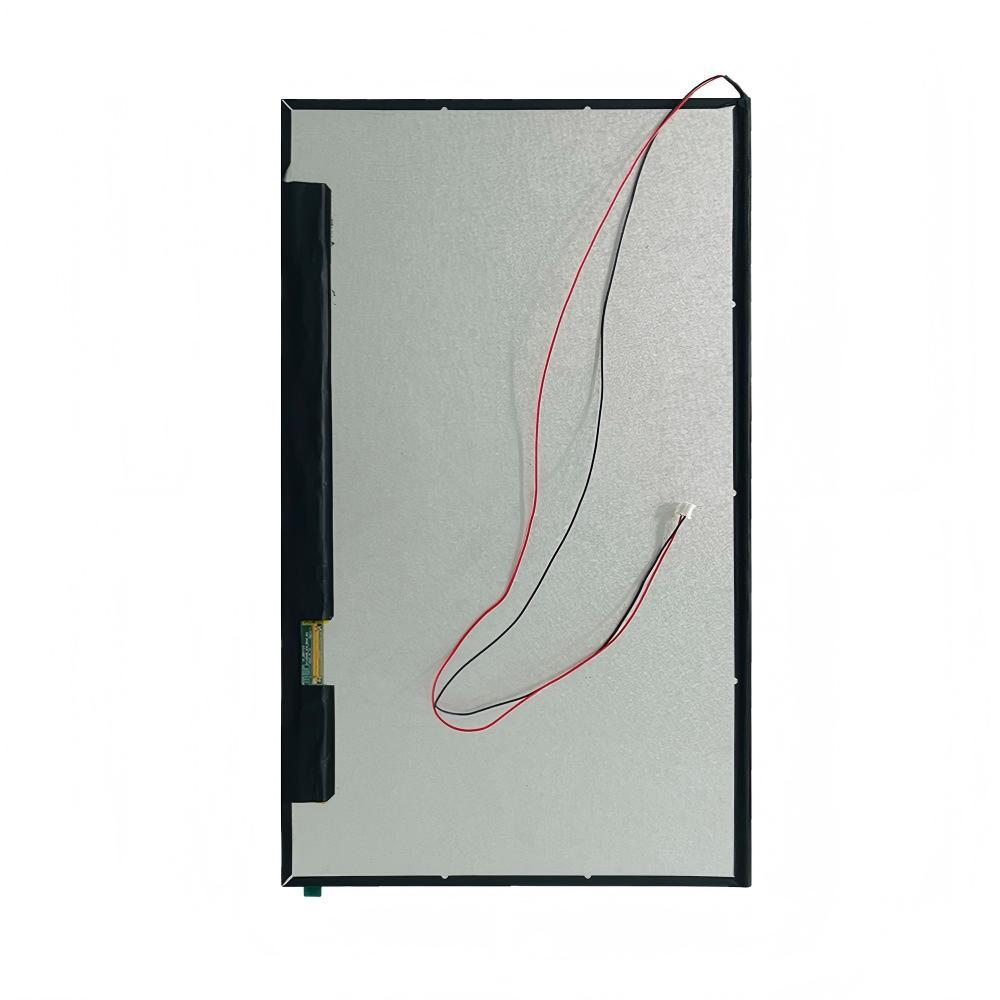

DBT156BZN40E060A 15.6" UHD 4K high resolution gaming TFT-LCD module delivers true 3840×2160 resolution, 4-lane eDP interface, ADS wide viewing angle, and 16.7M colors in a slim 354.8×212.4×4.6 mm outline. Perfect for portable gaming monitors, high-res laptops, and compact gaming builds with razor-sharp detail.
Ultra-Sharp 3840×2160 Portable Gaming Power – Built for Precision and Clarity
Discover the ultimate in portable high-resolution gaming with the DBT156BZN40E060A 15.6" UHD 4K TFT-LCD module. This compact powerhouse packs true 3840×2160 resolution into a slim, lightweight open-cell design, delivering pixel-perfect sharpness that makes every detail in fast-paced games crystal clear. Whether you’re building a high-end portable gaming monitor, upgrading a gaming laptop, or creating a compact esports setup, this module sets a new standard for portable gaming displays.
Engineered with advanced ADS technology, a fast 4-lane eDP interface supporting 5.4 Gbps link rates, and 16.7 million colors (8-bit + FRC), the DBT156BZN40E060A ensures smooth visuals, accurate color reproduction, and wide viewing angles. The anti-glare surface treatment reduces reflections, while the reinforced slim outline (354.8 × 212.4 × 4.6 mm) offers excellent structural integrity for custom enclosures. At just 4.6 mm thick (max 5.4 mm), it’s ideal for thin, lightweight gaming rigs that you can take anywhere.
This high-resolution LCD module is the perfect choice for gamers who demand uncompromising detail in a compact form factor.
| Parameter | Specification | Unit / Advantage |
|---|---|---|
| Screen Diagonal | 15.6 inches | Compact high-res gaming size |
| Resolution | 3840 × 2160 UHD | True 4K sharpness |
| Active Area | 345.6 (H) × 194.4 (V) | mm |
| Pixel Pitch | 0.09 (H) × 0.09 (V) | mm – ultra-fine detail |
| Pixel Arrangement | RGB Vertical Stripe | Natural color reproduction |
| Display Colors | 16.7 Million (8-bit + FRC) | Vibrant, smooth gradients |
| Display Mode | ADS | Wide viewing angle |
| Interface | 4-Lane eDP (5.4 Gbps) | High-speed, low-latency |
| Power Supply Voltage | 3.0 ~ 3.6 V (Typ. 3.3 V) | Stable operation |
| Power Supply Current | TBD (measured at connector) | Efficient portable power |
| Backlight Power | VLED 30 V Typ., ILED 240 mA Typ. | Bright LED illumination |
| Surface Treatment | Anti-Glare (AG) | Reduced reflections |
| Outline Dimension | 354.8 × 212.4 × 4.6 (max 5.4) | mm – ultra-slim profile |
| Viewing Angle | 85° / 85° / 85° / 85° (Typ.) | All directions |
| Response Time | 35 ms (Typ.) | Smooth motion |
| Operating Temperature | -20 °C to +60 °C | Reliable in any environment |
| Storage Temperature | -30 °C to +70 °C | Worldwide shipping |
| Weight | TBD | Lightweight portable design |
All values measured at 25 °C with standard test patterns. Supports 60 Hz frame rate optimized for gaming.
The DBT156BZN40E060A turns any portable setup into a high-resolution gaming powerhouse. With 3840×2160 pixels packed into 15.6 inches, you get incredible pixel density that reveals every enemy, texture, and UI element with stunning clarity. The fast eDP interface ensures instant response to your inputs, while the ADS panel maintains accurate colors and contrast even when viewed off-center — ideal for couch co-op or competitive play.
Anti-glare coating keeps the screen readable in bright rooms or outdoor settings, and the slim 4.6 mm profile fits perfectly into custom portable monitors, gaming laptops, or mini-PC builds. The module’s robust reliability testing (high/low temperature, humidity, vibration, ESD) guarantees years of trouble-free performance in demanding gaming environments.
The ultra-fine 0.09 mm pixel pitch and 16.7 million colors make this module the go-to choice for gamers who refuse to sacrifice detail for portability.
This module has undergone rigorous reliability testing including thermal shock, high-humidity operation, ESD, and vibration. Precise power sequencing, stable eDP signaling, and robust LED backlight ensure consistent performance whether you’re gaming at home, on the road, or in competitive tournaments.
Q: Is this suitable for 4K gaming on portable devices? A: Absolutely! True 3840×2160 UHD resolution with fast eDP interface delivers sharp, smooth gameplay in compact builds.
Q: How does the high resolution improve gaming? A: The 0.09 mm pixel pitch provides incredible detail — every texture, enemy, and HUD element appears razor-sharp for a competitive edge.
Q: What interface does it use? A: 4-lane eDP at 5.4 Gbps — the modern standard for stable, high-bandwidth 4K portable gaming panels.
Q: Is it easy to integrate into custom builds? A: Yes — slim 4.6 mm profile, standard mounting points, and anti-glare surface make it perfect for portable gaming monitors and laptops.
Q: Does it support wide viewing angles? A: Yes — ADS technology gives 85° viewing in all directions with no color shift, ideal for multiplayer or streaming.
The DBT156BZN40E060A 15.6" UHD 4K high resolution gaming TFT-LCD module combines massive 3840×2160 detail, fast eDP connectivity, and a slim portable design in one powerful package.
Contact APTUS Display today for:
Take your portable gaming to the next level with this premium 15.6" UHD 4K high resolution LCD module — built for razor-sharp immersion anywhere.
