A high-brightness display is often required when an LCD must remain clearly visible under strong ambient lighting. The DBT156DHN30E100A provides 1000 cd/m² typical brightness, making it substantially brighter than conventional indoor LCD modules.
The combination of Full HD resolution and IPS display technology delivers detailed images and consistent visual performance across a wide viewing direction. Its 1920×1080 pixel resolution is suitable for interfaces containing graphics, dashboards, control information, menus, video, and other detailed visual content.
The display uses an a-Si TFT + IPS, Normally Black architecture and supports 16.7 million colors with 8-bit color depth. A typical color gamut of 70% NTSC provides balanced color reproduction for professional display applications.
The anti-glare surface treatment helps reduce distracting reflections from ambient light, which can be particularly useful for equipment installed in bright indoor environments or locations where lighting conditions vary.
The 1000 cd/m² typical brightness level is one of the key advantages of this 15.6-inch TFT LCD module. Higher brightness can improve readability when a display is used in environments with strong ambient illumination.
For system designers, brightness should always be evaluated together with cover glass, touch panel, optical bonding, enclosure design, ambient lighting, and viewing conditions. Aptus Display can help evaluate the display configuration according to the requirements of a specific project.
The 1920×1080 resolution provides a 16:9 Full HD format with sufficient pixel density for detailed professional interfaces. It is suitable for displaying control dashboards, equipment information, graphical user interfaces, monitoring data, video content, and other visual information.
The Full HD format also makes this module easier to integrate into systems based on common 16:9 display layouts.
The IPS panel structure provides wide viewing performance and stable image presentation from different viewing directions. This is valuable for HMI and professional equipment applications where operators may not always look directly at the display.
The normally-black display mode also provides a modern visual appearance suitable for professional equipment and embedded display designs.
The DBT156DHN30E100A uses a 30-pin eDP interface. Embedded DisplayPort is widely used in modern display systems where a compact digital interface and high-resolution signal transmission are required.
For engineers developing a new system, the exact eDP pin definition, signal configuration, power requirements, timing parameters, and host-side compatibility should be verified during the integration stage. Aptus Display can support customers with display interface and integration requirements.

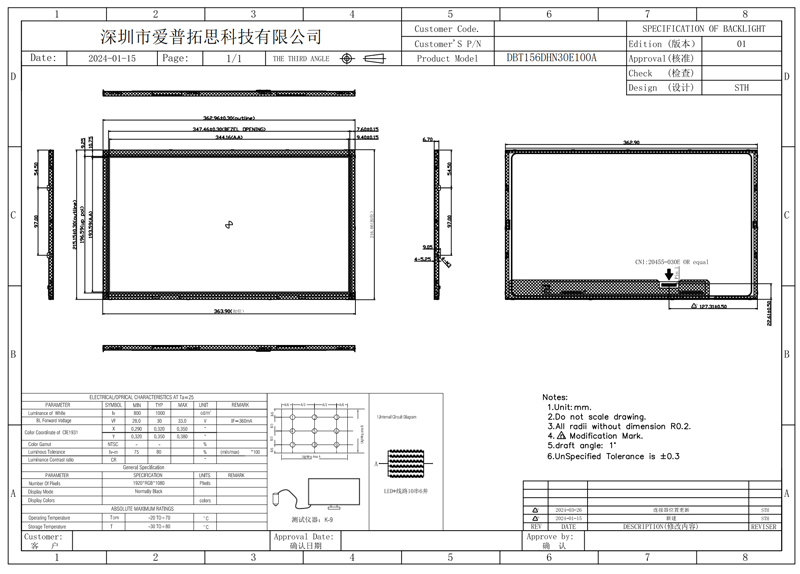

The module measures approximately 362.96 × 215.15 × 6.7 mm, providing a relatively slim form factor for embedded equipment and compact display assemblies.
Mechanical integration should consider the complete display stack, including brackets, cables, touch panels, cover glass, housing, and thermal-management components.
The integrated LED driver helps simplify the overall display architecture. Instead of designing a separate backlight driving solution, system engineers can work with the module's integrated backlight configuration, potentially reducing component count and simplifying system integration.
| Parameter | Specification |
|---|---|
| Model | DBT156DHN30E100A |
| Display Size | 15.6 inch |
| Resolution | 1920 × 1080 pixels |
| Display Type | a-Si TFT LCD |
| Panel Technology | IPS |
| Display Mode | Normally Black |
| Interface | eDP |
| Interface Connector | 30-Pin |
| Active Area | 344.16 × 193.59 mm |
| Module Dimensions | 362.96 × 215.15 × 6.7 mm |
| Brightness | 1000 cd/m² typical |
| Color Depth | 16.7 million colors / 8-bit |
| Color Gamut | 70% NTSC typical |
| Surface Treatment | Anti-glare |
| Backlight | LED |
| LED Driver | Integrated |
| Viewing Direction | All directions |
| Reliability Tests | Storage, thermal, vapor, shock, vibration and ESD |
| Compliance | RoHS and Halogen-free |
The specifications above are based on the product information published by Aptus Display. For production projects, customers should confirm the latest datasheet, mechanical drawing, electrical specifications, connector pinout, and sample revision with the Aptus engineering team before mass production.
Choosing a professional TFT LCD module involves more than comparing screen size and resolution. Engineers and purchasing teams should also consider brightness, interface, mechanical dimensions, viewing performance, reliability, integration requirements, and long-term supply.
The DBT156DHN30E100A is designed as a professional LCD module rather than a general consumer monitor. Its 15.6-inch form factor provides a relatively large working area while maintaining a compact module structure.
The 1000-nit brightness makes the display suitable for applications requiring stronger visibility than standard indoor LCD modules. The IPS panel provides wide-viewing performance, while the eDP 30-pin interface supports integration into compatible digital display architectures.
For OEM and ODM projects, Aptus Display can also evaluate customization requirements involving display brightness, touch panel integration, interface solutions, cables, mechanical structures, and other display-related components.
The 15.6-inch format is well suited to industrial HMI systems where operators need sufficient space for control buttons, status indicators, graphs, alarms, and equipment data.
The Full HD resolution allows system designers to create information-rich interfaces without requiring an excessively large display enclosure.
This LCD module can be integrated into professional equipment that requires a high-brightness display for visualization and system operation.
Examples include equipment control terminals, embedded visualization systems, monitoring equipment, automation interfaces, and specialized professional machines.
The 15.6-inch 16:9 format is suitable for portable display systems and professional monitor designs. Its 1000 cd/m² brightness can provide an advantage in environments where standard laptop-class brightness may not be sufficient.
The Full HD resolution and high brightness can support embedded digital signage and information-display applications where visual content must remain clear under relatively bright ambient lighting.
System designers should evaluate operating environment, thermal management, enclosure design, and continuous-use requirements when developing a commercial display product.
The eDP interface makes this module a candidate for embedded computing platforms designed around compatible eDP output. Engineers can use the display for graphical user interfaces, system dashboards, equipment monitoring, and visualization applications.
Before integrating the DBT156DHN30E100A into a finished product, engineers should verify several key parameters.
First, confirm that the host system supports the required 30-pin eDP interface and corresponding signal configuration. Connector pinout and electrical parameters should be checked against the latest technical documentation.
Second, confirm the mechanical installation area. The module dimensions are approximately 362.96 × 215.15 × 6.7 mm, while the complete product assembly may require additional space for cables, brackets, touch panels, cover glass, and housing components.
Third, evaluate thermal conditions. A 1000 cd/m² display can require appropriate thermal planning depending on operating environment, backlight configuration, enclosure structure, and system duty cycle.
Finally, if a touch panel is required, the touch solution should be evaluated together with the LCD module from the beginning of the project. Aptus Display can support customized display integration, including touch panel and mechanical solutions.
Different projects often require different display configurations. A standard LCD module may provide the right resolution and size but still require changes to the interface, brightness, touch panel, cable, mechanical structure, or driver solution.
Aptus Display provides standard and customized LCD display solutions for OEM and ODM customers. Depending on project requirements, customization can include brightness, interface, touch panel, connectors, FPC, cables, mechanical structures, and display integration solutions.
The engineering team can also support prototype development and integration evaluation before customers move to volume production.
Aptus Display, operated by Shenzhen Aptus Technology Co., Ltd., is an LCD display manufacturer and solution provider based in Shenzhen, China. The company states that it was founded in 2007 and provides display products and customized solutions for customers worldwide.
Aptus Display's product portfolio includes TFT LCD modules, touch panel LCD modules, wide-temperature LCD displays, flight simulator displays, bar-type LCD displays, gaming display solutions, automotive-related LCD products, LCD accessories, and other display solutions.
The company combines product sourcing, display engineering, customization, reliability testing, supply-chain support, and technical service to help customers move from display selection to product integration.
For OEM and ODM customers, Aptus Display can provide support throughout the project lifecycle, including initial specification review, sample evaluation, customization, prototype integration, production support, and after-sales technical service.
For professional display applications, reliability is an important part of product selection. The DBT156DHN30E100A is listed with reliability testing covering storage, thermal, vapor, shock, vibration, and ESD-related testing.
The module is also specified as RoHS and halogen-free compliant, supporting projects with relevant environmental and material requirements.
For projects with strict reliability or environmental requirements, customers should communicate their operating temperature, humidity, vibration, shock, usage cycle, installation environment, and lifetime expectations to Aptus Display during the product-selection stage.
Yes. The DBT156DHN30E100A is specified with a typical brightness of 1000 cd/m², making it a high-brightness 15.6-inch TFT LCD module.
The display resolution is 1920 × 1080 pixels, providing a Full HD 16:9 display format.
This model uses a 30-pin eDP interface. Host-side compatibility, signal configuration, pinout, and electrical requirements should be verified before integration.
Yes. The module uses an a-Si TFT + IPS display structure with a normally-black display mode. IPS technology provides wide viewing performance and stable image presentation.
Yes. Aptus Display provides customized LCD display solutions. Depending on project requirements, customization may include brightness, touch panel, interface, connectors, cables, mechanical components, and other display integration requirements.
The product is described by Aptus Display as a high-brightness display suitable for indoor and outdoor use. However, outdoor deployment should not be evaluated based on brightness alone. The complete system should also consider sunlight readability, thermal management, enclosure design, waterproofing, anti-reflection requirements, operating temperature, and other environmental conditions.
Yes. Customers can contact Aptus Display to discuss sample requirements, technical specifications, project quantities, and integration requirements before proceeding to volume production.
If you are developing an HMI, embedded control system, professional monitor, industrial equipment, digital signage product, or another system requiring a 15.6-inch 1920×1080 high-brightness TFT LCD, the DBT156DHN30E100A provides a strong starting point with 1000 cd/m² brightness, IPS technology, eDP 30-pin connectivity, Full HD resolution, anti-glare treatment, and an integrated LED driver.
