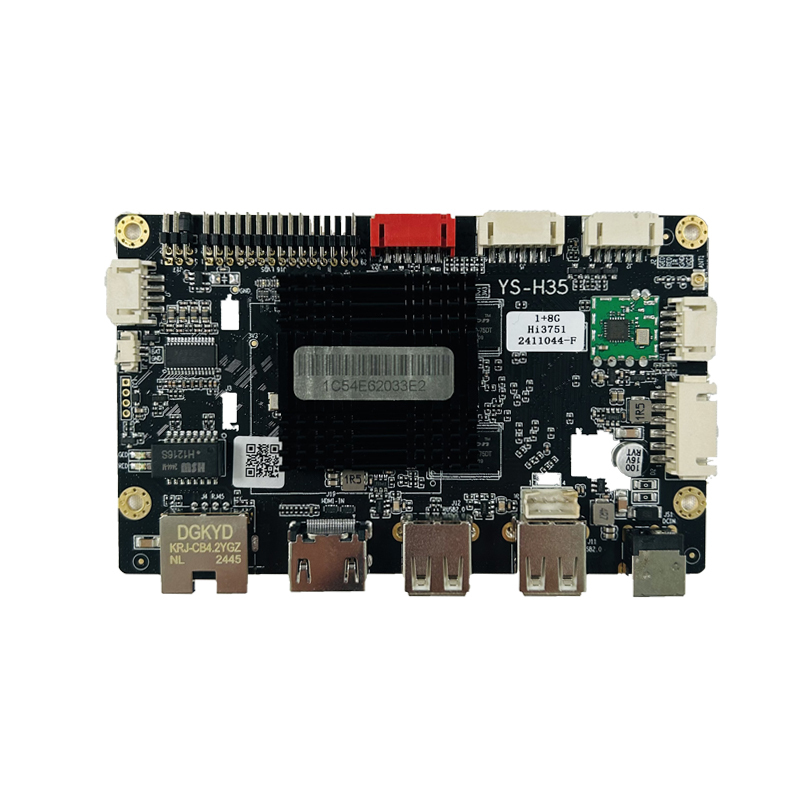

YS-H35 Smart Android Driver Board

Overview:
The YS-H35 is a sophisticated smart Android mainboard designed for versatile applications, featuring a compact design and powerful performance. It is the ideal solution for a wide range of digital devices requiring a robust and energy-efficient computing platform.

Key Features:
- CPU: Quad-core 32-bit Cortex-A53 for high-speed processing.
- GPU: ARM MaliTM-450 GPU supporting OpenGL ES 2.0/1.1/1.0 and OpenVG 1.1, capable of FHD graphics rendering.
- Storage: DDR default 1GB, EMMC default 8GB, with the option to upgrade up to 32GB.
- Multimedia: Supports H.264/MVC/MPEG1/MPEG2/MPEG4/AVS+(AVS-P16)/VC-1/VP6/8 1080P@60fps video decoding; VP9 10bit, FHD@60fps video decoding; JPEG hardware decoding up to 64 million pixels; MJPEG Baseline decoding; and various audio decoding formats.
- Display: Supports LVDS output and HD-MI-IN input.
- Peripheral Interfaces: Includes 100M/10M adaptive Ethernet, WIFI-2.4G (optional BT4.2), 3 USB 2.0 hosts, 2 TTL serial ports (one Debug port optional), 4 general GPIO ports, and more.

Technical Specifications:

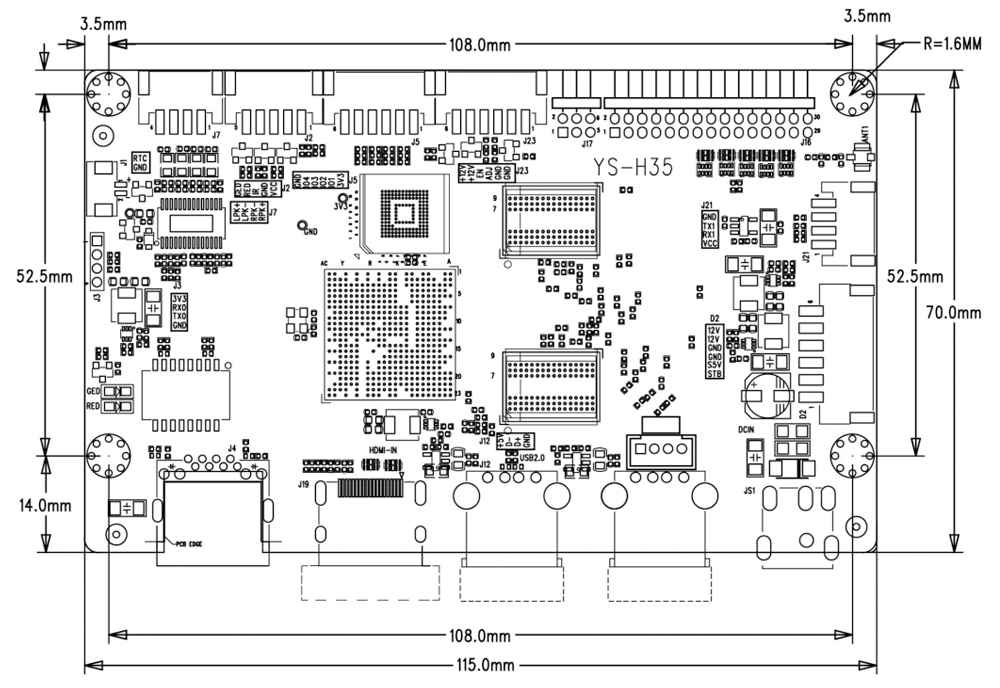

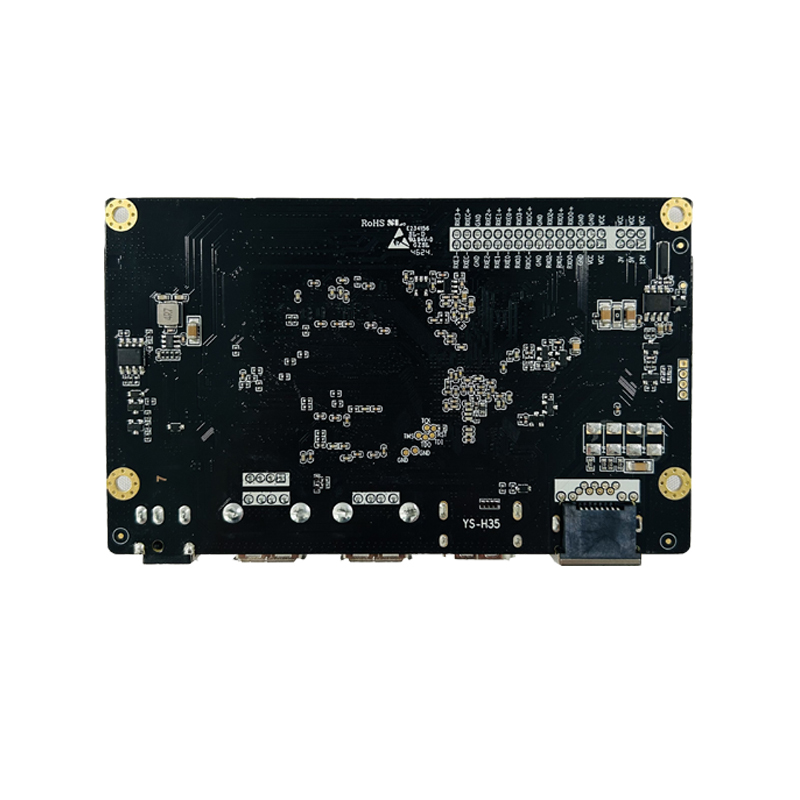

- Dimensions: PCB Length: 115mm, Width: 70mm, Height: 12mm, Screw hole diameter: 3.2mm x4.

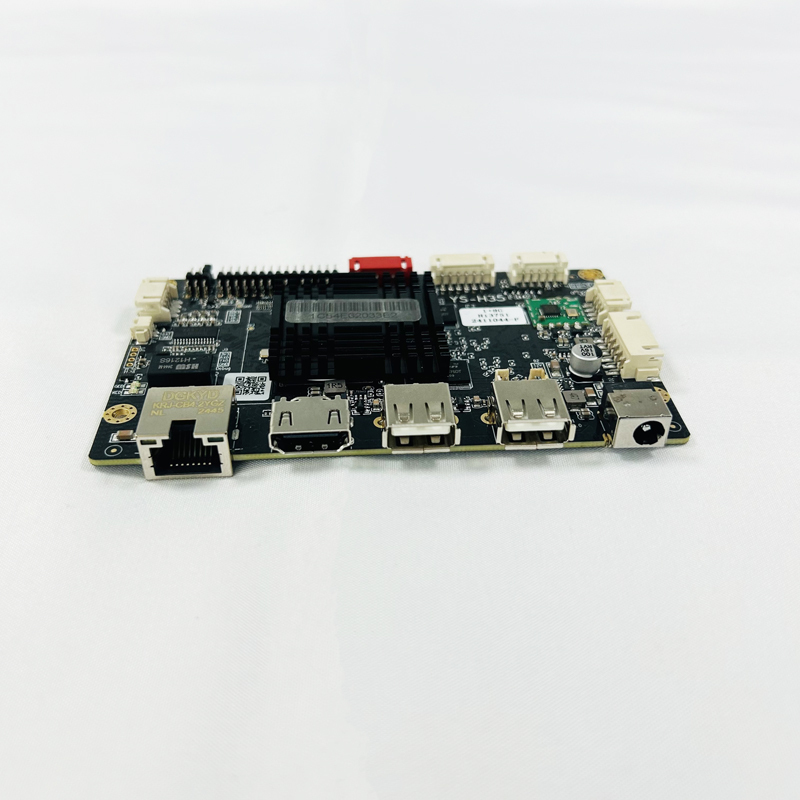

- Interfaces: Comprehensive set of interfaces including 12V DC_IN, USB2.0, HD-MI-IN, RJ45, and more.
- Operating Conditions: Relative humidity ≤85%, Storage temperature: -30℃ to +70℃, Operating temperature: -5℃ to +60℃.

Product Usage:

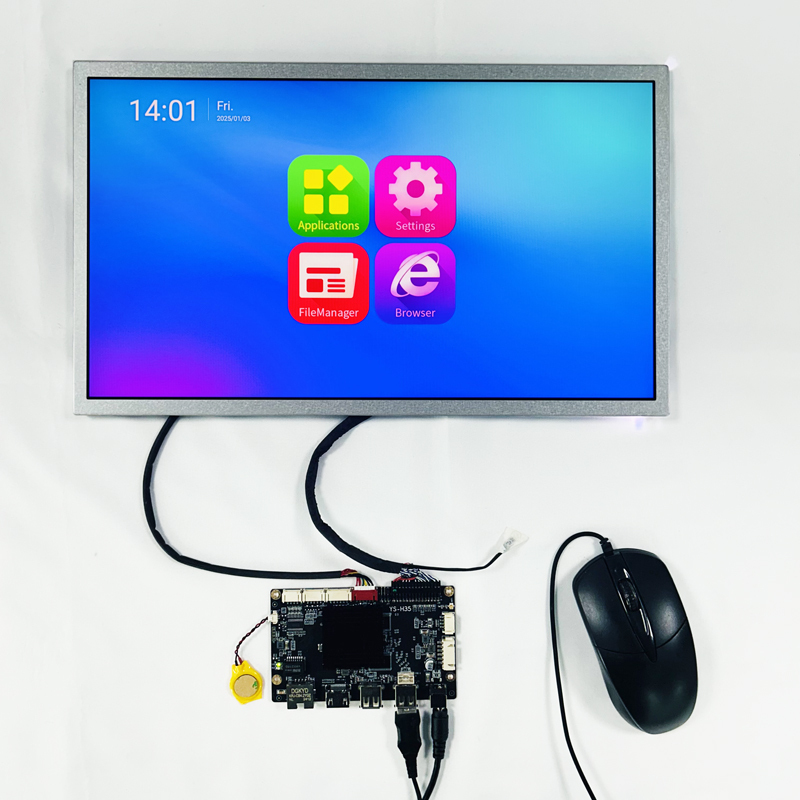

- Peripheral Support: Detailed support for various peripherals and assembly diagrams provided.
- Assembly and Use Precautions: Includes guidelines for anti-static treatment, wiring, and installation to ensure optimal performance and safety.

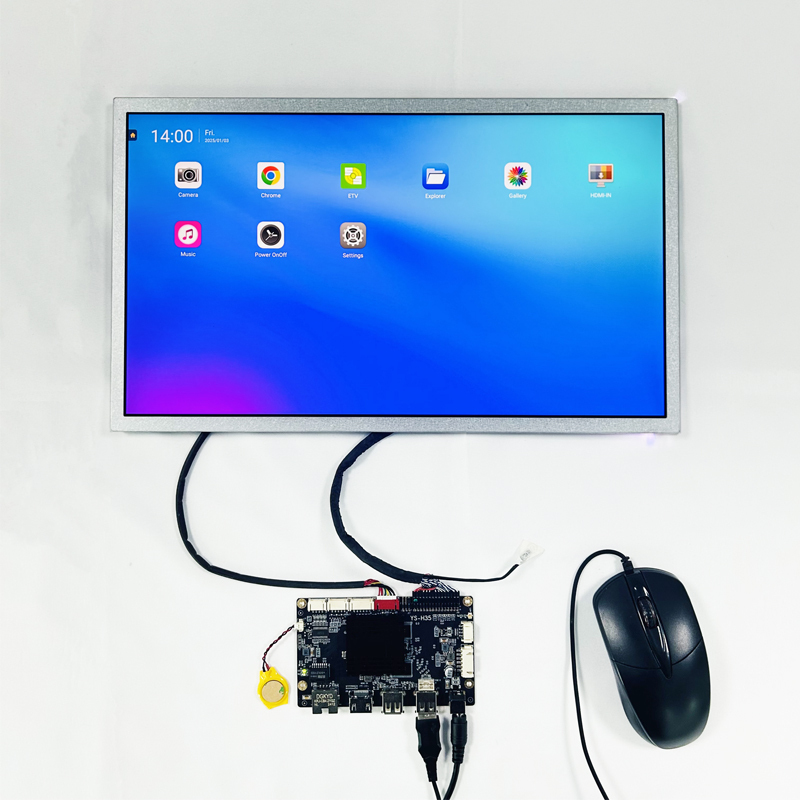

- System Usage Instructions: Comprehensive guide on Android system interface, network connections, storage information viewing, and navigation bar settings.

Interface Definitions:
- Battery Interface (J1): 2PIN/1.25mm pitch wafer connector for RTC battery interface.
- Speaker Interface (J7): 4PIN/2.0mm pitch wafer connector for amplifier output interface.
- IR and LED Interface (J2): 5PIN/2.0mm pitch wafer connector for remote control and indicator lights.
- GPIO Interface (J5): 6PIN/2.0mm pitch wafer connector for GPIO interfaces.
- Backlight Power Interface (J23): 6PIN/2.0mm pitch wafer connector for screen backlight control.
- LVDS Interface (J16): 30PIN/2.0mm pitch DIP connector for LVDS interface, supporting up to 1920x1080 resolution.

Electrical Performance:
- Standard Power Supply: Voltage range of 11V to 13.5V with a typical voltage of 12V and current of 3A.
- Operational Current: Work current without peripherals ranges from 250mA to 400mA.
- USB Power Supply: OTG_USB and HOST_USB with 5V supply, typical current of 500mA, and maximum current of 1000mA.
