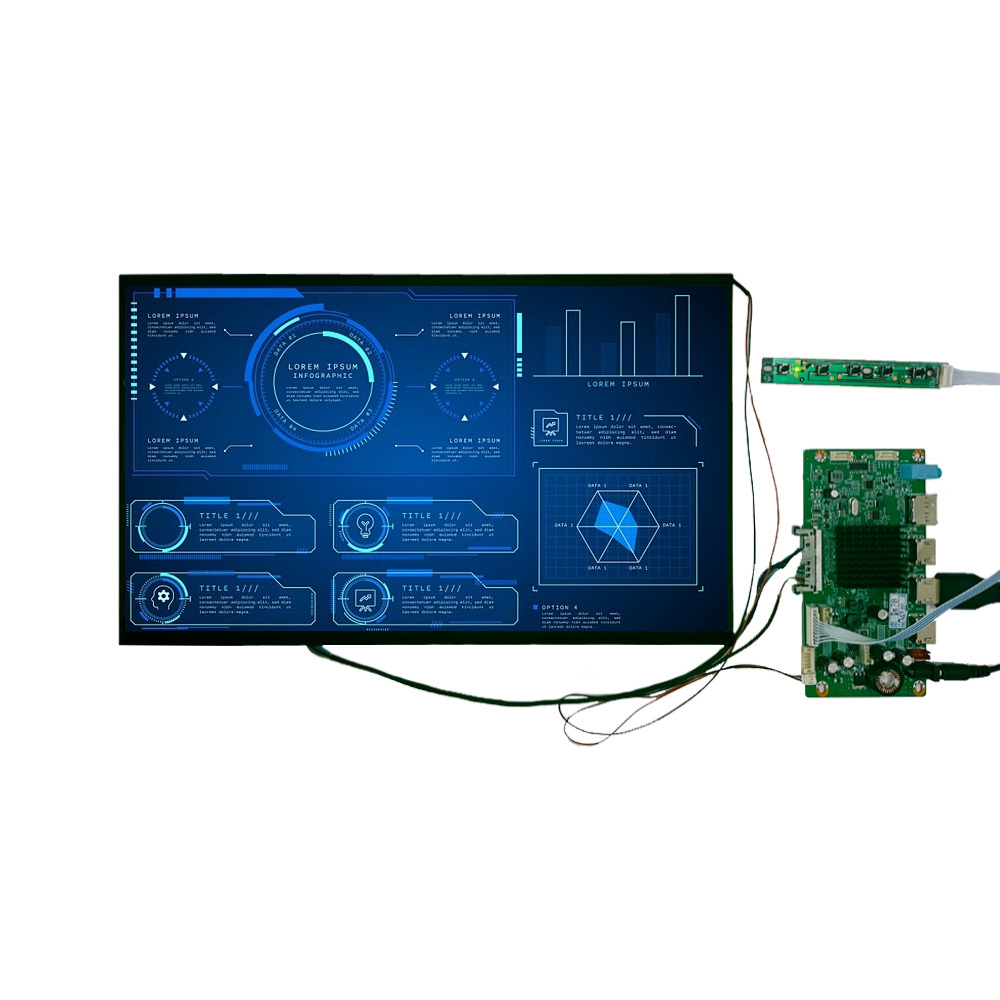

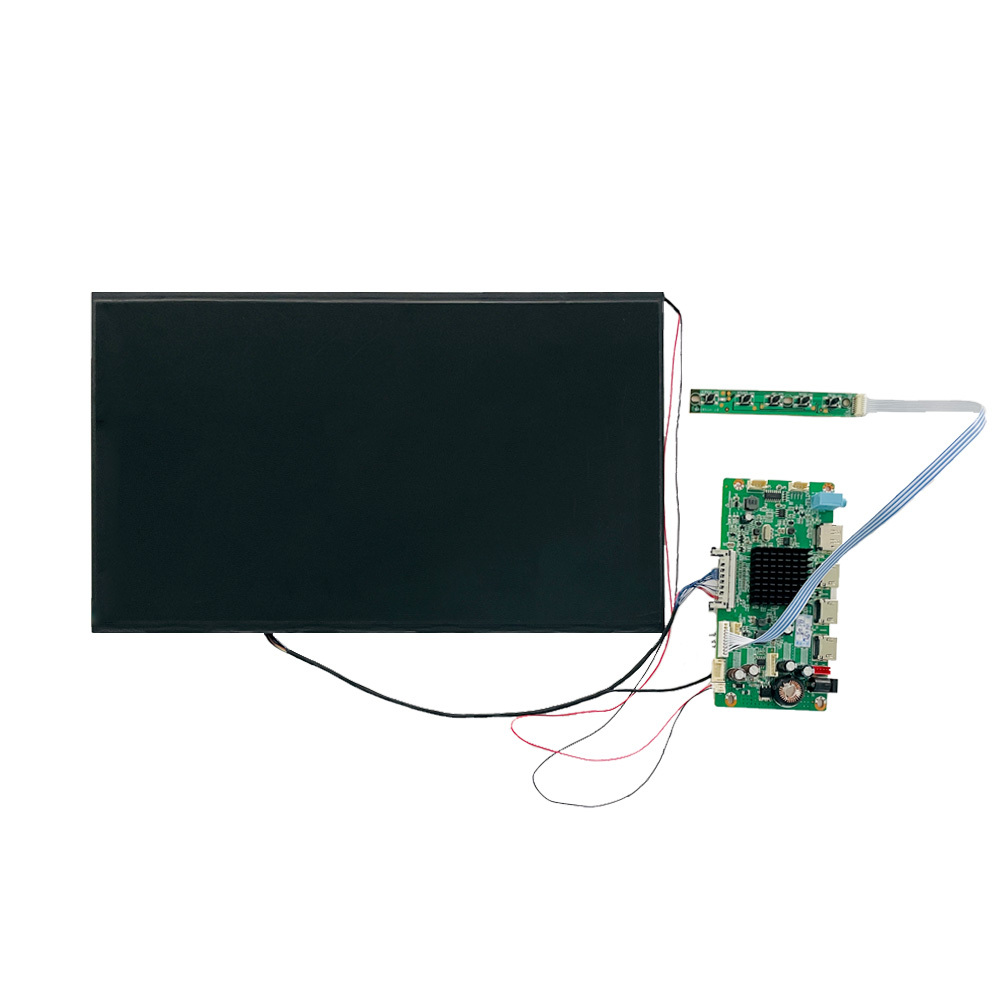

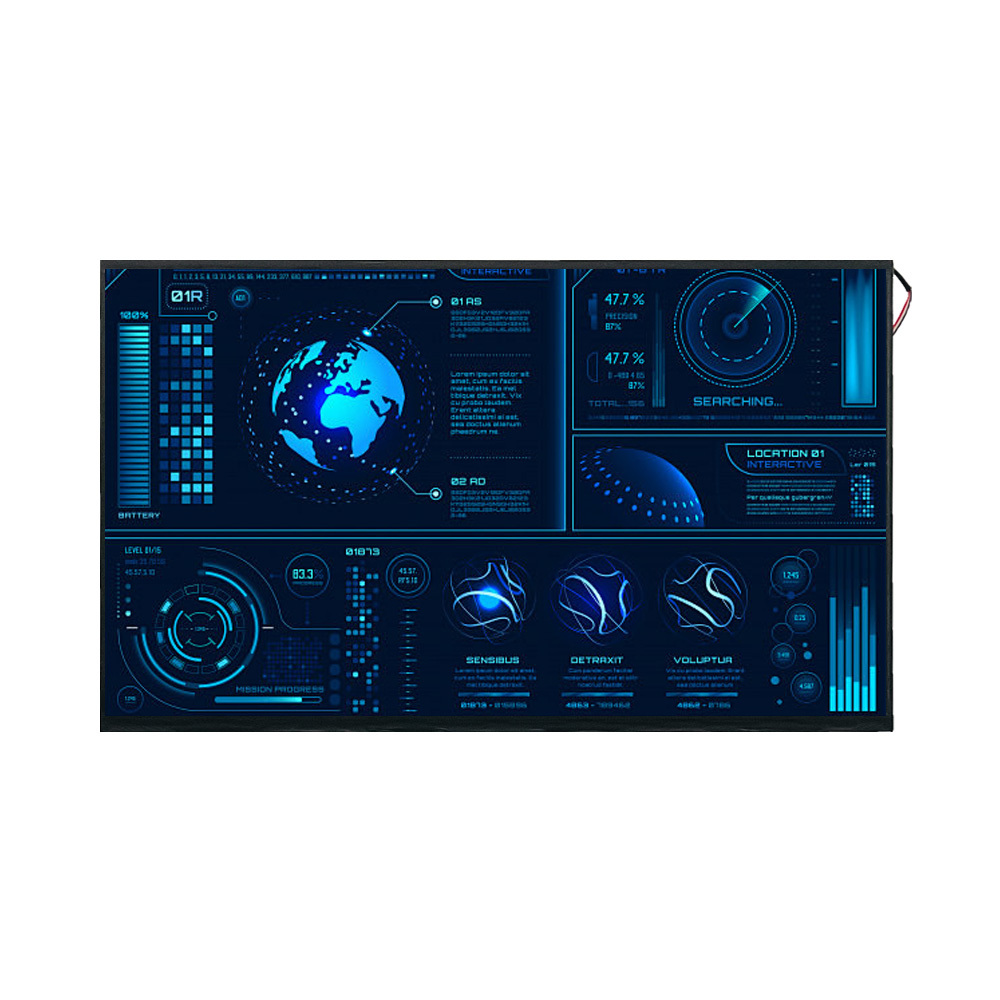

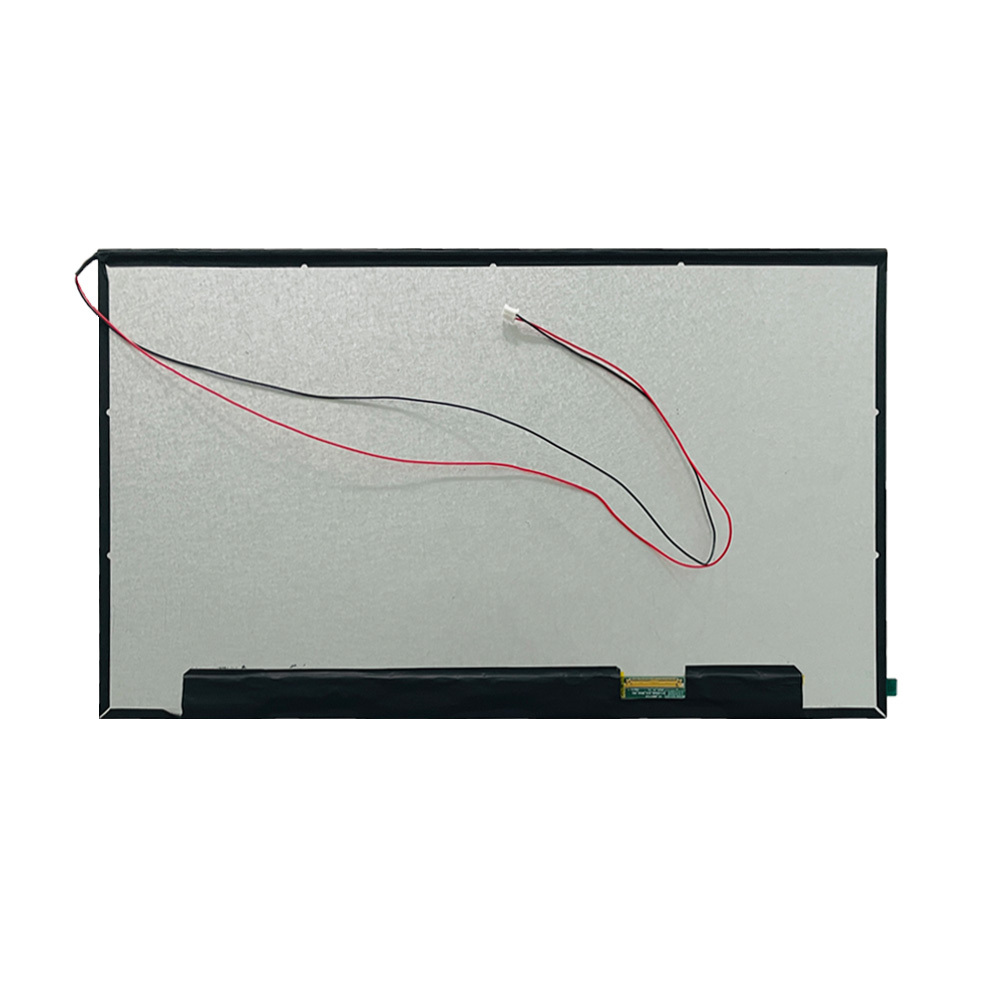

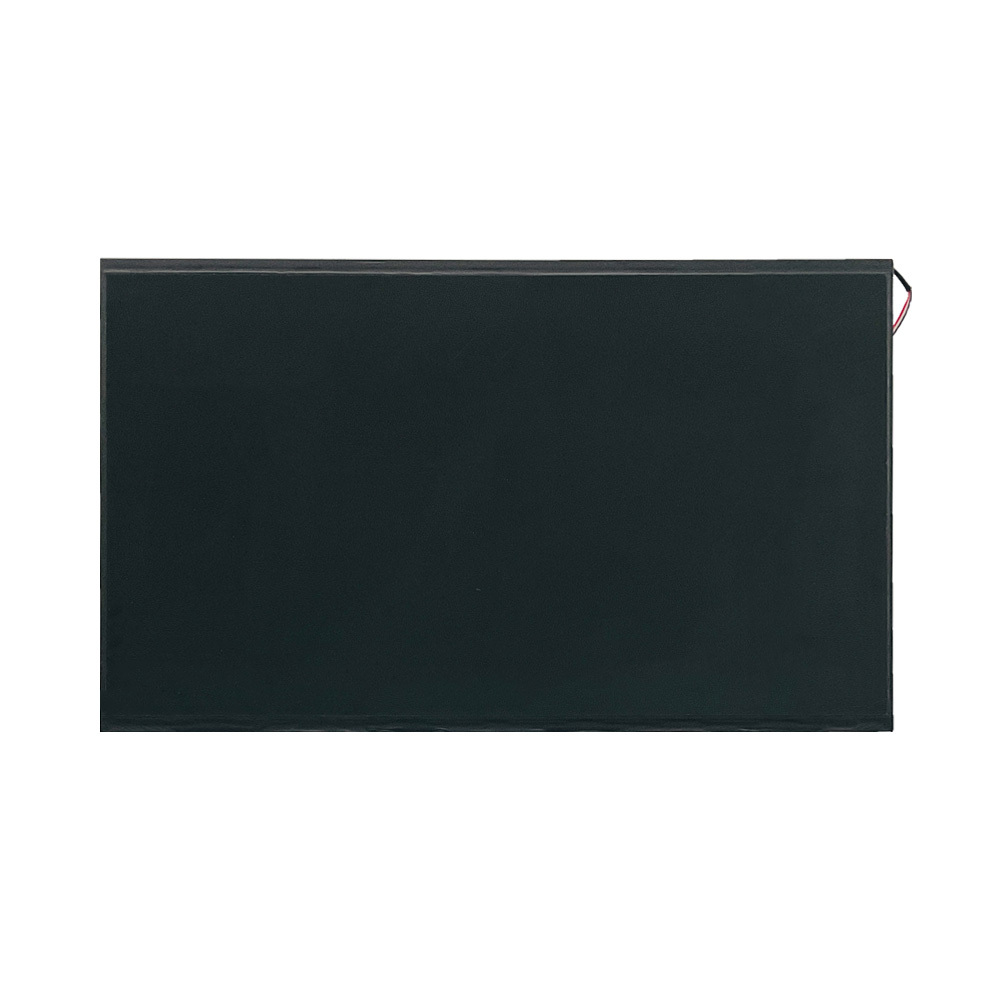

The 15.6-inch 4K industrial TFT LCD module DBT156BZN40E060A is a high-resolution display solution featuring 3840×2160 UHD resolution, 600 cd/m² brightness, a 40PIN eDP interface, ADS panel technology, and a wide operating temperature range of –20°C to +60°C. With a compact 354.8 × 212.4 mm outline and a slim 4.6/5.4 mm profile, this LCD module is designed for equipment manufacturers, system integrators, industrial control systems, professional terminals, gaming systems, and other applications that require detailed images and reliable long-term operation.
When selecting a display for professional equipment, resolution alone is not enough. Engineers also need to consider interface bandwidth, mechanical dimensions, viewing performance, brightness, temperature range, backlight lifetime, and integration requirements.
The DBT156BZN40E060A combines these requirements in one 15.6-inch TFT LCD module. Its 3840 × 2160 resolution provides four times the pixel count of Full HD, allowing equipment manufacturers to display detailed graphics, high-resolution interfaces, technical diagrams, dashboards, video content, and other information with greater visual clarity.
The module uses a 4-lane eDP interface with up to 5.4 Gbps bandwidth, providing a high-speed digital connection suitable for modern embedded computing platforms and display controllers. Its 40PIN eDP configuration also makes it a practical option for system designers who need a high-resolution display without adopting a larger panel size.
The 600 cd/m² brightness level provides stronger image visibility than many standard indoor LCD modules, while the wide 85°/85°/85°/85° viewing specification helps maintain consistent images when the display is viewed from different positions.
The 3840 × 2160 resolution delivers approximately 8.3 million pixels. This high pixel density is especially useful for professional interfaces where small text, fine graphics, detailed images, or multiple information windows need to be displayed simultaneously.
For industrial equipment, control interfaces, simulation systems, and professional terminals, a 4K LCD can provide a significantly more detailed visual interface than conventional 1280×800 or 1920×1080 panels.
The 15.6-inch format offers a useful balance between viewing area and system footprint. It provides enough screen space for detailed information while remaining compact enough for embedded equipment, control consoles, kiosks, professional monitors, and other space-conscious designs.
The active display area is 345.6 × 194.4 mm, while the overall module dimensions are 354.8 × 212.4 × 4.6/5.4 mm. This compact construction gives engineers greater flexibility when designing the enclosure and mechanical structure.
The display uses a 40PIN eDP interface with a 4-lane, 5.4 Gbps configuration. eDP is widely used in modern computing and embedded display architectures because it supports high-resolution digital video transmission while helping simplify system-level display connectivity.
For engineers replacing an LVDS panel with a high-resolution eDP LCD, interface compatibility should be evaluated carefully, including lane configuration, connector pinout, voltage, timing, EDID, and host-controller compatibility.
With a brightness rating of 600 cd/m², this panel is positioned above many conventional standard-brightness LCD modules. The higher brightness can be beneficial in professional environments where ambient lighting conditions make ordinary displays difficult to read.
Brightness requirements should always be evaluated together with optical bonding, cover glass, anti-glare treatment, enclosure design, and ambient illumination. A higher-nit panel alone does not automatically make a complete display sunlight readable.
The module is specified for an operating temperature range of –20°C to +60°C, with a storage temperature range of –30°C to +70°C. This makes it suitable for a wider range of professional equipment environments than standard consumer-oriented panels.
For equipment deployed in environments with significant temperature fluctuations, system engineers should also consider enclosure thermal management, heat dissipation, controller-board temperature, backlight performance, and overall system-level environmental testing.
The LED backlight lifetime is specified at approximately 40,000 hours. For equipment that operates for extended periods, long backlight life can help reduce maintenance requirements and support longer product service cycles.
Actual service life depends on operating conditions, brightness settings, thermal management, and the design of the complete display system.
| Parameter | Specification |
|---|---|
| Product Type | Industrial TFT LCD Module |
| Model | DBT156BZN40E060A |
| Display Size | 15.6 inch |
| Resolution | 3840 × 2160 pixels |
| Resolution Type | 4K UHD |
| Panel Technology | ADS |
| Display Colors | 16.7M (6-bit + FRC) |
| Active Area | 345.6 × 194.4 mm |
| Pixel Pitch | 0.09 × 0.09 mm |
| Contrast Ratio | 1000:1 typ. |
| Viewing Angle | 85° / 85° / 85° / 85° |
| Interface | eDP |
| Connector | 40PIN |
| eDP Configuration | 4-Lane |
| eDP Data Rate | Up to 5.4 Gbps |
| Logic Voltage | 3.3V typ. |
| Brightness | 600 cd/m² |
| Backlight | LED |
| Backlight Lifetime | 40,000 hours |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –30°C to +70°C |
| Module Dimensions | 354.8 × 212.4 × 4.6/5.4 mm |
| Application | Industrial, Commercial, Professional Equipment |
Specifications should be confirmed against the latest technical datasheet before mass production, especially when the module is being used as a direct replacement for an existing LCD.
The combination of 4K resolution, 600 cd/m² brightness, wide viewing characteristics, and –20°C to +60°C operating temperature makes this module suitable for industrial control interfaces and professional monitoring equipment.
A 4K display can provide additional workspace for complex HMI interfaces, engineering dashboards, equipment monitoring, process visualization, and graphical control software.
Human-machine interfaces often require more than simple numerical information. Modern equipment may display charts, process diagrams, video feeds, alarms, equipment status, and multiple data panels simultaneously.
The 15.6-inch 4K format provides sufficient screen resolution for these detailed interfaces while maintaining a relatively compact mechanical footprint.
The 40PIN eDP interface makes this LCD module suitable for embedded computing platforms equipped with compatible eDP display output.
It can be integrated into professional embedded computers, industrial panel PCs, operator terminals, inspection equipment, and specialized computing systems.
High-resolution displays are useful in systems where operators need to inspect fine visual information. The 3840×2160 resolution provides greater image detail than Full HD and can be particularly useful when displaying high-resolution camera feeds, technical graphics, maps, or detailed software interfaces.
Aptus also lists the DBT156BZN40E060A in its gaming application display portfolio.
For simulation and gaming equipment, the combination of 15.6-inch size, 4K resolution, and 600 cd/m² brightness can provide a detailed visual experience in a compact display format.
The panel can be considered for professional simulation equipment, gaming cabinets, training systems, and embedded visual systems where high-resolution graphics are important.
The module can also be considered for professional commercial equipment such as self-service terminals, interactive kiosks, information terminals, and specialized digital interfaces.
When used in a public-facing system, the display can be combined with a customized touch panel and protective cover glass according to project requirements.
Aptus Display provides more than a standard LCD module. The company supports display customization and system integration, including touch panel integration, protective glass, connectors, cables, driver boards, and OEM/ODM development.
For projects requiring user interaction, a capacitive touch panel or resistive touch panel can be integrated with the LCD module. Protective GG5 glass can also be considered for applications where additional surface protection is required.
Customization may include:
Capacitive touch panel integration
Resistive touch panel integration
GG5 protective glass
Custom FPC and cable solutions
eDP interface matching
Driver-board integration
Mechanical customization
OEM/ODM development
Display system integration
Engineering sample support
Aptus's product portfolio specifically states that its technical team supports standard, semi-custom, and total custom LCD solutions, including connectors, ZIF/FPC, touch panels, interconnect solutions, control boards, and system integration.
Before selecting the DBT156BZN40E060A for a new project, engineers should verify the following system-level requirements.
Host compatibility: Confirm that the host processor, GPU, SBC, or display controller supports the required eDP configuration and data rate.
Pinout: A 40PIN eDP connector does not guarantee universal pin compatibility. The connector definition and signal mapping should be checked against the customer's mainboard.
Power: Confirm the LCD logic voltage, backlight power requirements, and power sequencing.
Mechanical design: The available enclosure space should accommodate the 354.8 × 212.4 mm module dimensions and the specified thickness.
Thermal design: For continuous operation, the enclosure should provide appropriate heat dissipation, particularly when the system operates near the upper temperature limit.
Optical requirements: If the display will be used in bright environments, engineers should evaluate brightness together with anti-glare treatment, cover glass, optical bonding, and ambient lighting.
These checks can reduce integration risk before mass production.
Aptus Display specializes in professional LCD display solutions for industrial, commercial, embedded, gaming, simulation, and other specialized applications. Its product portfolio includes TFT LCD modules, wide-temperature displays, touch panel LCD modules, flight simulator displays, gaming LCD modules, bar-type LCD displays, automotive display solutions, and LCD accessories.
For customers purchasing LCD modules in volume, working directly with an experienced display supplier can simplify product selection, customization, sample evaluation, and technical communication.
Aptus can support customers from the initial display requirement through sample validation and production, helping engineering teams match the LCD module with the host system and mechanical structure.
For projects requiring a display that differs from the standard configuration, the technical team can evaluate requirements such as resolution, interface, brightness, touch panel, protective glass, cable, connector, and mechanical dimensions.
Yes. The DBT156BZN40E060A features a native 3840 × 2160 pixel resolution, which is commonly classified as 4K UHD.
The module uses a 40PIN eDP interface with a 4-lane configuration and up to 5.4 Gbps data rate. Engineers should verify the exact pinout and host compatibility before integration.
The specified brightness is 600 cd/m². This provides stronger visibility than many standard indoor LCD panels, although complete outdoor or sunlight-readable performance depends on the complete optical and mechanical design.
Yes. Aptus supports customization options including capacitive and resistive touch panel integration, as well as protective GG5 glass, depending on project requirements.
Yes. Aptus supports OEM/ODM and semi-custom display solutions. Depending on the project, customization can include touch panels, glass, cables, connectors, driver boards, and other integration requirements.
The specified operating temperature is –20°C to +60°C, while the storage temperature is –30°C to +70°C.
Yes. The combination of 4K resolution, 600 cd/m² brightness, eDP connectivity, compact dimensions, and a –20°C to +60°C operating temperature range makes it a strong candidate for industrial and professional equipment. Final suitability should be validated according to the environmental requirements of the complete system.
If you are looking for a 15.6-inch 4K industrial TFT LCD module, the DBT156BZN40E060A provides a combination of UHD resolution, 40PIN eDP connectivity, 600 cd/m² brightness, ADS technology, compact mechanical dimensions, and extended operating temperature capability.
Whether you are developing an industrial HMI, embedded computer, professional monitoring system, gaming equipment, simulation platform, kiosk, or specialized commercial terminal, Aptus Display can help evaluate the display configuration for your project.
