The DBT156BHN30E060A is a 15.6-inch Full HD TFT LCD module featuring a 1920×1080 resolution, 30-pin eDP interface, 600 cd/m² brightness, and a slim 360 × 212.3 × 6.4 mm outline dimension. It is designed for system integrators, equipment manufacturers, engineers, and OEM/ODM customers who need a reliable FHD LCD display for embedded and professional applications. The module supports customization according to project requirements, including display configuration, touch panel integration, mechanical design, and other display-related solutions.
A 15.6-inch display provides a practical balance between screen area, resolution, and equipment size. Combined with a 1920×1080 Full HD resolution, this LCD module can display detailed graphics, operating interfaces, dashboards, menus, images, and video content with a familiar 16:9 aspect ratio.
The DBT156BHN30E060A is particularly suitable for projects where engineers need a standard-size FHD panel while maintaining a relatively slim mechanical profile. With an outline dimension of approximately 360 × 212.3 × 6.4 mm, the module can be considered for embedded equipment where available installation space needs to be carefully managed.
The display uses a 30-pin eDP interface, making it suitable for embedded platforms designed around Embedded DisplayPort connectivity. The combination of Full HD resolution and eDP transmission provides a practical solution for modern embedded display architectures.
The 1920×1080 resolution provides sufficient pixel density for professional interfaces, graphical dashboards, equipment monitoring screens, and multimedia content. Full HD is also widely supported by modern computing and embedded platforms, which can simplify system-level display planning.
For equipment manufacturers, using a standard FHD resolution can reduce the need to redesign graphical user interfaces around an unusual display format. It also provides a familiar 16:9 layout for applications that need to display both operational data and visual content.
The DBT156BHN30E060A is specified with 600 cd/m² brightness, providing stronger luminance than many conventional indoor display panels. This can improve visual readability in applications exposed to relatively bright ambient lighting.
Brightness requirements should always be evaluated together with the enclosure design, ambient light, viewing distance, optical stack, and expected installation environment. For applications requiring even higher brightness, Aptus Display can evaluate alternative LCD modules or customized backlight configurations according to project requirements.
The module uses a 30-pin eDP interface. Embedded DisplayPort is commonly selected for modern embedded display designs that require high-resolution digital video transmission.
Compared with older display architectures, eDP can simplify high-resolution display integration by using a high-speed digital interface between the host system and LCD module. For engineers, interface compatibility remains one of the most important factors when selecting an LCD panel.
Before purchasing, customers should confirm the host controller's eDP lane configuration, connector definition, timing requirements, power requirements, and firmware compatibility with the selected panel.

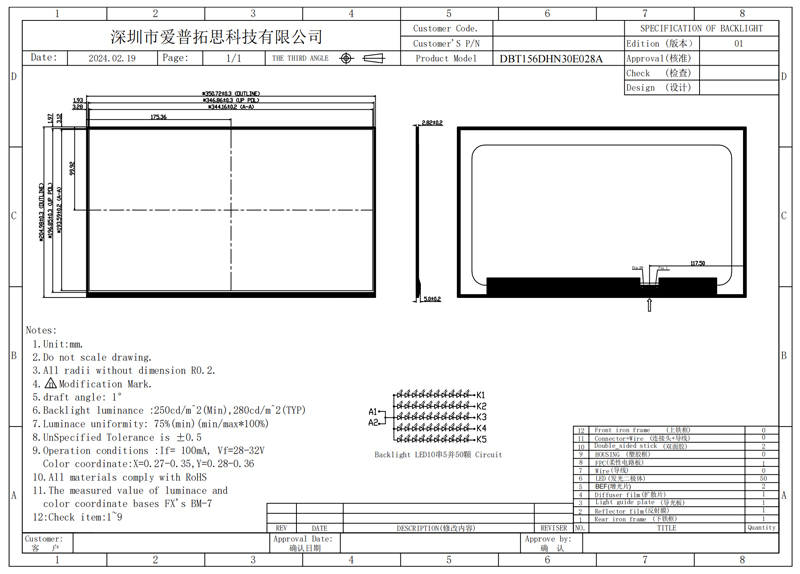

The module outline is approximately 360 × 212.3 × 6.4 mm, making mechanical integration an important consideration during system design. Engineers can use the panel dimensions to evaluate enclosure clearance, mounting structure, cable routing, and thermal management.
Aptus Display also provides customization and engineering support for projects requiring different mechanical configurations or display-related modifications.
| Parameter | Specification |
|---|---|
| Model | DBT156BHN30E060A |
| Display Size | 15.6 inches |
| Resolution | 1920 × 1080 |
| Display Type | TFT LCD Module |
| Interface | eDP |
| Connector | 30-pin |
| Brightness | 600 cd/m² |
| Active Area | 344.16 × 193.59 mm |
| Outline Dimension | 360 × 212.3 × 6.4 mm |
| Aspect Ratio | 16:9 |
| Operating Temperature | 0°C to +50°C |
| Backlight | LED |
| Touch Panel | Customization available |
| Customization | OEM / ODM supported |
Note: Final electrical, optical, mechanical, and environmental specifications should be confirmed with Aptus Display before mass production because specifications may vary according to the final configuration and project requirements. The product page currently identifies the DBT156BHN30E060A as a 15.6-inch 1920×1080, 30-pin eDP module with 600 cd/m² brightness and 0–50°C operating temperature.
For modern embedded display applications, interface selection affects system architecture, signal integrity, cable design, and overall integration complexity.
eDP is particularly relevant for high-resolution LCD modules because it provides a digital display interface designed for embedded applications. It can support high-resolution content while helping engineers maintain a streamlined display connection.
For a 15.6-inch 1920×1080 panel, eDP provides an effective interface option for systems that already use an eDP-compatible processor, graphics controller, or embedded computing platform.
When selecting an eDP LCD module, however, buyers should not evaluate the interface alone. The complete system should be checked for:
eDP lane configuration
Data rate compatibility
Connector and pin definition
Display timing
Power requirements
Backlight control
Cable length and signal integrity
Mechanical mounting requirements
Operating temperature
Touch panel requirements
Aptus Display can assist customers in evaluating these parameters before prototype integration.
The DBT156BHN30E060A can be considered for a range of professional embedded display applications.
The 15.6-inch format provides enough space for complex HMI layouts, including status information, graphs, operational parameters, alarms, and equipment controls.
For machine builders and automation equipment manufacturers, a larger FHD display can make complex interfaces easier for operators to understand compared with smaller panels.
The module can be integrated into professional equipment requiring a dedicated visual interface. Its FHD resolution provides enough screen space for software interfaces containing multiple information areas.
Typical equipment may include control terminals, monitoring equipment, automation interfaces, and specialized embedded systems.
Monitoring systems often need to display multiple data elements simultaneously. A 15.6-inch FHD LCD can provide sufficient workspace for dashboards, graphs, system status information, and real-time operational data.
The display can also be evaluated for commercial embedded equipment where a larger FHD panel and higher brightness are required.
Depending on the final system architecture, optional touch integration can turn the LCD module into an interactive display solution.
System integrators can use the module as part of a custom display assembly rather than purchasing a complete consumer monitor. This approach gives equipment manufacturers greater control over enclosure design, interface configuration, touch functionality, cable selection, and system integration.
Every embedded display project has different requirements. A standard LCD module may meet the resolution and size requirements but still require changes to the mechanical structure, touch panel, brightness, interface, or optical construction.
Aptus Display provides customization services for OEM and ODM projects. Depending on project requirements, customization can include:
Custom brightness configurations
Touch panel integration
Capacitive touch panel solutions
Resistive touch panel solutions
Optical bonding
Mechanical customization
Interface adaptation
Display cable solutions
Driver and controller solutions
Customized display assemblies
For projects requiring a complete display rather than an LCD panel alone, customers can discuss their enclosure, touch panel, cable, and electronic integration requirements with the Aptus engineering team.
Selecting the correct LCD module is only the first stage of an embedded display project. Engineers should verify the complete system before prototype production.
Check that the host board supports the panel's eDP configuration. Connector pinout and electrical definitions should be confirmed before connecting the panel.
The 360 × 212.3 × 6.4 mm outline dimension should be considered when designing the enclosure. Allow sufficient space for cables, connectors, mounting structures, and thermal management.
The 600 cd/m² configuration provides enhanced brightness, but actual readability depends on ambient illumination, viewing distance, cover glass, surface treatment, and optical design.
For continuous-use equipment, thermal design should not be overlooked. Adequate airflow and heat dissipation can help maintain stable display performance over the expected operating period.
If a touch panel, cover lens, optical bonding, or custom housing is required, the complete assembly should be validated rather than evaluating the LCD panel alone.
For B2B display projects, consistency between prototype samples and production units is an important consideration. Aptus Display supports customers from display selection and prototype evaluation through customization and production.
Quality-related evaluation can include visual inspection, electrical testing, display performance verification, and reliability assessment according to project requirements.
For automotive, industrial, and other demanding environments, customers should communicate the actual operating temperature, vibration, humidity, shock, duty cycle, and installation conditions during the specification stage. This allows the display solution to be selected according to the actual working environment rather than relying only on nominal panel specifications.
Aptus Display provides LCD modules and customized display solutions for engineers, OEMs, system integrators, distributors, and equipment manufacturers.
The company provides a broad range of TFT LCD modules covering different sizes, resolutions, interfaces, brightness levels, and application requirements. Its product portfolio includes TFT LCD modules, touch panel LCD modules, wide-temperature displays, bar-type LCD modules, flight simulator display solutions, automotive LCD solutions, and other specialized display products.
For customized projects, Aptus Display can support customers with display selection, touch integration, optical bonding, interface adaptation, mechanical integration, technical consultation, and OEM/ODM cooperation.
This engineering-oriented approach is particularly valuable for customers who need more than an off-the-shelf LCD panel and require a display solution that can be integrated into a complete product.
The DBT156BHN30E060A features a 1920×1080 Full HD resolution, providing a 16:9 display format suitable for professional embedded interfaces and visual applications.
The module uses a 30-pin eDP interface. Customers should verify the host board's eDP specifications, connector pinout, lane configuration, and electrical requirements before integration.
The product page specifies 600 cd/m² brightness for the DBT156BHN30E060A. This makes it a higher-brightness configuration suitable for applications where conventional indoor brightness may not provide sufficient readability.
Yes. Aptus Display provides customized display solutions, including touch panel integration, optical bonding, mechanical customization, and other display-related services depending on project requirements.
Yes. Aptus Display supports OEM/ODM projects and can provide technical assistance during display selection, prototype development, customization, testing, and production. Customers can provide the required display size, resolution, interface, brightness, quantity, application, and mechanical requirements for evaluation.
If you are looking for a 15.6-inch 1920×1080 LCD module with a 30-pin eDP interface, the DBT156BHN30E060A provides a practical starting point for professional embedded display projects.
Whether you are developing an industrial HMI, embedded control terminal, monitoring system, commercial equipment, or customized professional display, Aptus Display can help evaluate the LCD module against your electrical, optical, mechanical, and environmental requirements.
For a quotation or sample request, please provide your required display size, resolution, interface, brightness, application, quantity, touch panel requirements, and mechanical constraints. The Aptus Display engineering and sales team can then recommend the appropriate configuration and customization options.
If you are looking for a 15.6 Inch 1920×1080 FHD LCD Module, the DBT156DHN30E028A provides a practical solution for industrial HMI, automation equipment, embedded computers and control systems.
