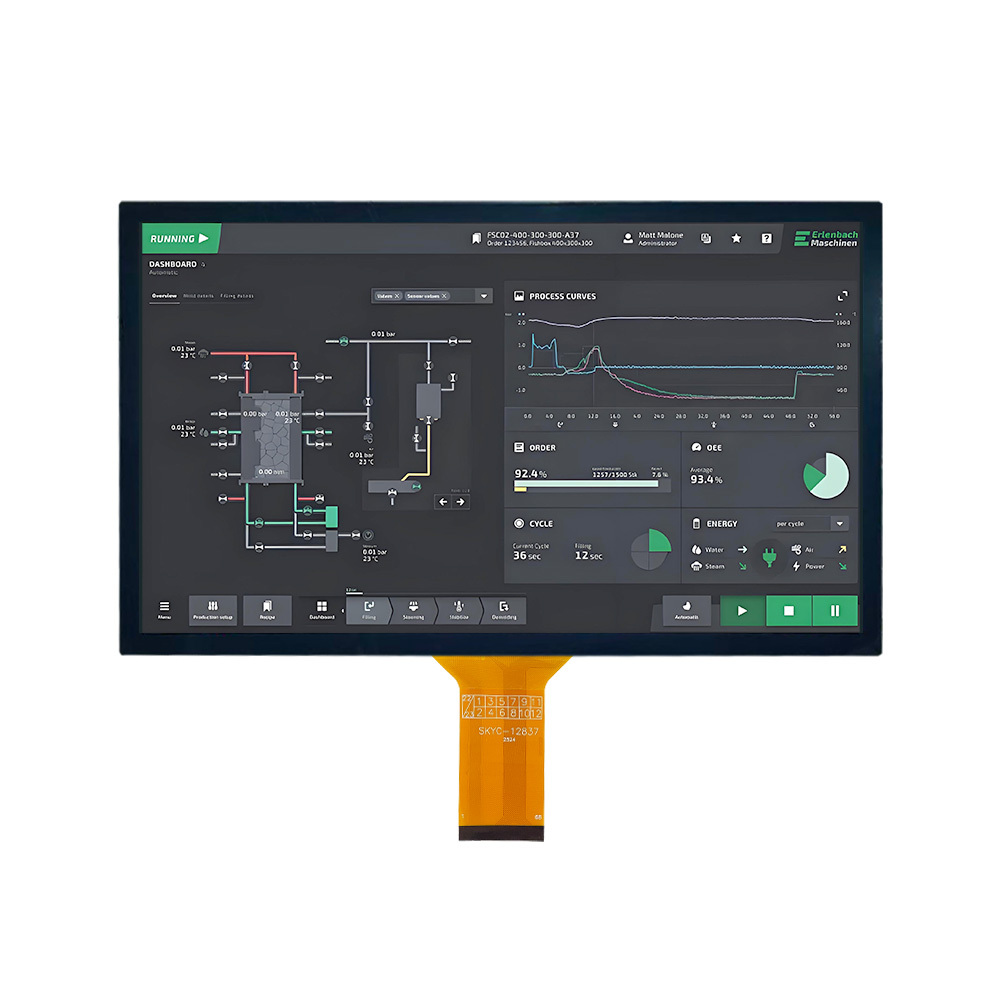

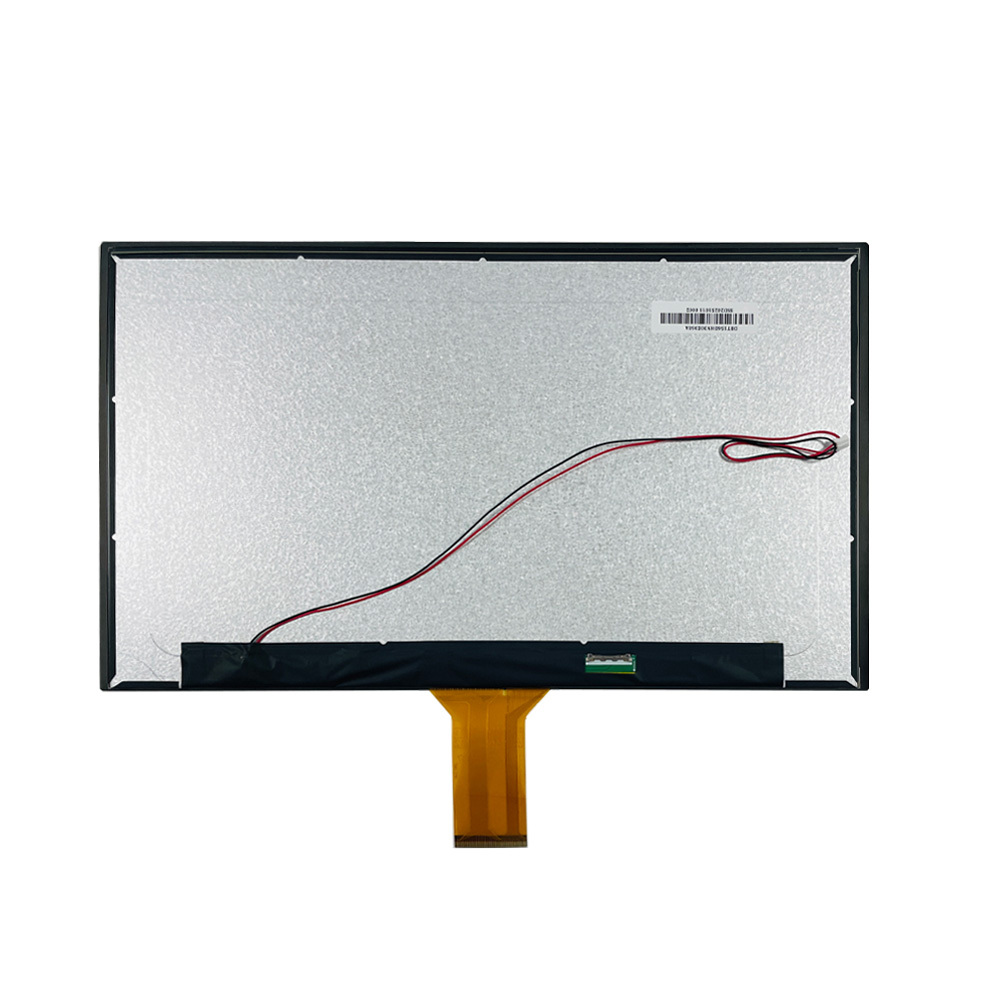

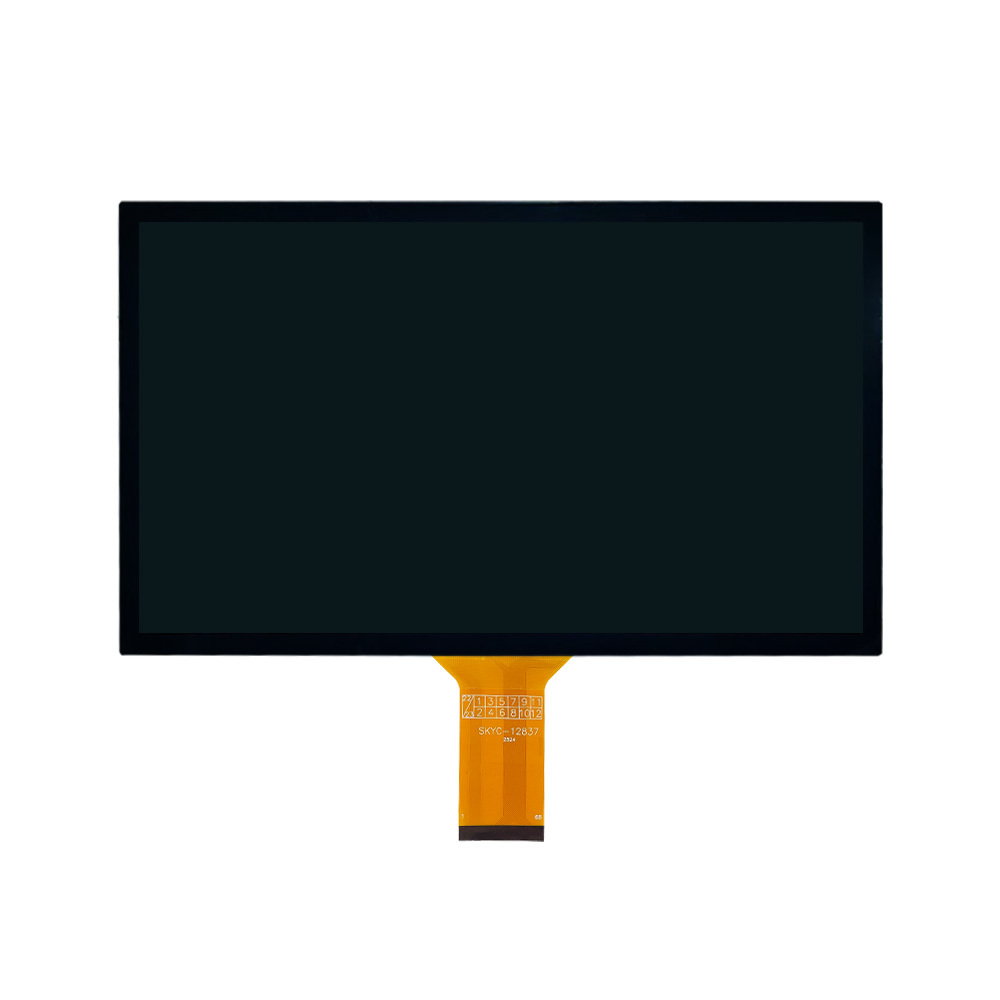

15.6 Inch 1920X1080 FHD 30PIN EDP CTP Touch LCD Module
The DBT156DHC30E050A combines a 15.6-inch TFT-LCD panel with an integrated capacitive touch panel, making it suitable for equipment manufacturers that need both high-quality visual output and interactive operation in one display assembly.
Its 1920×1080 Full HD resolution provides sufficient pixel density for interfaces containing text, icons, dashboards, images, menus, and graphical controls. The display uses an FFS (Fringe Field Switching) mode and offers a wide viewing-angle specification of approximately 85° in the four viewing directions, helping maintain consistent image visibility when operators view the display from different positions.
The module also uses a 30-pin eDP interface, supporting eDP 1.2 with 2 lanes at 2.7G according to the product specification. This makes it a practical option for embedded systems designed around modern display interfaces.
For interactive applications, the integrated CTP capacitive touch panel supports IIC/USB interfaces. The cover lens uses 1.1 mm chemically strengthened glass, with a reported surface hardness of ≥6H and touch-panel transmittance above 85%.
The 15.6-inch format provides a useful balance between screen size and equipment integration. With 1920×1080 resolution, the module can display detailed graphical interfaces, operating information, product menus, monitoring data, and multimedia content.
For commercial equipment manufacturers, FHD resolution is particularly useful when an application requires readable text and detailed graphical elements without moving to a higher-resolution panel that may increase system processing requirements.
The module provides a typical brightness of 500 cd/m², making it well suited to indoor commercial environments and equipment interfaces where standard displays may struggle under strong ambient lighting.
The anti-glare surface treatment further helps reduce distracting reflections from ambient light.
The 30-pin eDP interface simplifies integration with compatible embedded computing platforms and display controllers.
The specified interface is eDP 1.2, 2 lanes at 2.7G, providing a high-speed digital display connection for stable image transmission.
When integrating the module into a new system, engineers should confirm the host board's eDP lane configuration, connector definition, voltage requirements, timing parameters, and cable design before finalizing the hardware.

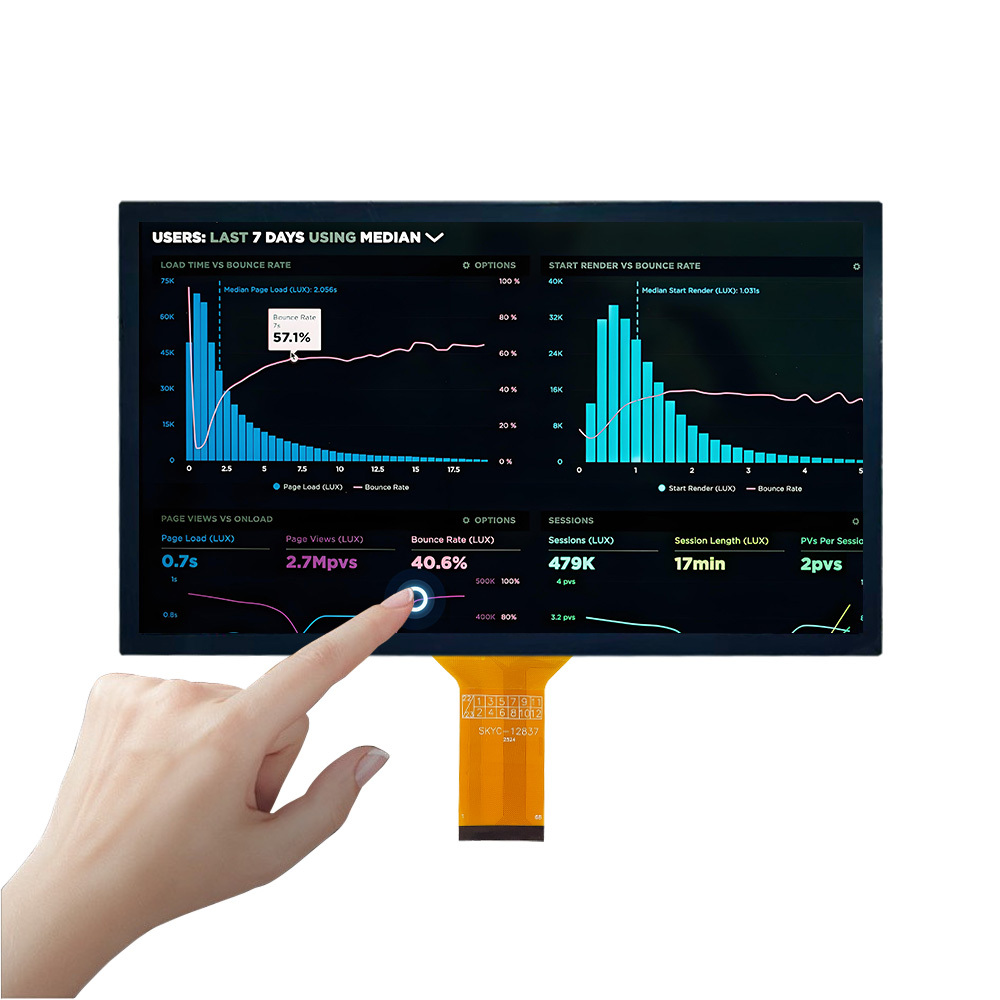

The CTP touch panel transforms the LCD module from a conventional display into an interactive interface.
The touch panel supports IIC and USB interfaces, allowing system designers to select an appropriate communication method according to their host platform. The chemically strengthened glass cover provides additional durability for repeated user interaction.
This makes the module particularly suitable for self-service terminals, interactive information systems, control interfaces, and commercial equipment.
The panel uses FFS display mode, helping provide stable visual performance across a wide viewing range.
The specified viewing direction is approximately 85°/85°/85°/85°, making the display suitable for applications where users may not always look directly at the center of the screen.
| Parameter | Specification |
|---|---|
| Product Model | DBT156DHC30E050A |
| Display Size | 15.6 inch |
| Display Type | TFT-LCD |
| Resolution | 1920 × RGB × 1080 |
| Resolution Type | Full HD |
| Display Colors | 16.7M (6bit + FRC) |
| Display Mode | FFS, Normally Black |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 344.16 × 193.59 mm |
| Pixel Pitch | 179.25 × 179.25 μm |
| Contrast Ratio | 1100:1 Typ. |
| Color Gamut | NTSC 66% Typ. |
| Transmission | 4.9% |
| Brightness | 500 cd/m² |
| Interface | 30-Pin eDP |
| eDP Specification | eDP 1.2, 2 Lane @ 2.7G |
| Surface Treatment | Anti-Glare |
| Touch Technology | Capacitive Touch Panel (CTP) |
| Touch Interface | IIC / USB |
| Cover Lens | Chemically Strengthened Glass |
| Cover Lens Thickness | 1.1 mm |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Outline Dimension | 360 × 212.3 × 14.1 mm |
| Viewing Direction | 85° / 85° / 85° / 85° |
Specifications are based on the current Aptus Display product information and should be confirmed with the engineering team before mass production.
For equipment manufacturers, selecting an LCD module is not simply about screen size and resolution. Interface compatibility, mechanical dimensions, touch integration, optical performance, environmental conditions, and long-term supply all affect the success of a display project.
The DBT156DHC30E050A addresses several of these requirements in one integrated module.
First, it combines display and touch functionality. Instead of sourcing a separate LCD panel and touch panel and developing the mechanical stack independently, equipment designers can work with an integrated CTP touch display solution.
Second, the 30-pin eDP interface provides a modern digital connection. This can simplify the display architecture for systems built around compatible embedded computing platforms.
Third, 500 cd/m² brightness and anti-glare treatment are suitable for many indoor commercial environments. These features can help improve usability where conventional lower-brightness displays may suffer from reflections.
Fourth, the 15.6-inch FHD format provides a large working area without requiring an unusually large enclosure. This is useful for commercial terminals, control equipment, interactive displays, and embedded HMI products.
The 15.6-inch size provides enough screen space for menus, instructions, advertisements, and interactive controls. The CTP touch panel allows users to interact directly with the interface.
Typical applications include self-service terminals, ticketing machines, ordering kiosks, and information terminals.

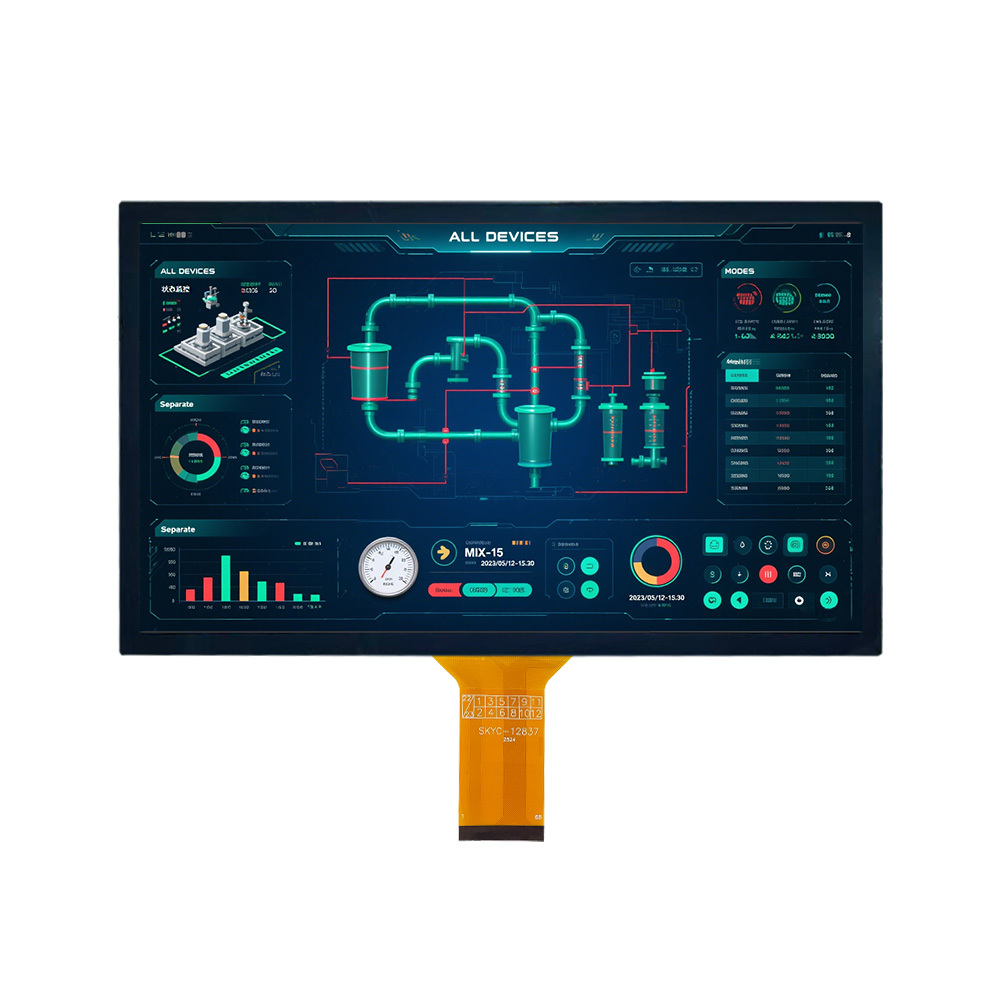

The FHD display and capacitive touch interface make the module suitable for embedded HMI systems that require graphical control interfaces.
Engineers can use the display to present machine status, operating parameters, alarms, menus, and control buttons.
With 500 cd/m² brightness, FHD resolution, and anti-glare treatment, the module can be integrated into indoor commercial advertising and information-display equipment.
It can be used for product information, promotional content, menus, wayfinding, and interactive advertising.
Retail equipment increasingly requires interactive displays rather than simple static screens. A 15.6-inch touch display can provide product selection, price information, promotional content, and customer interaction.
The large active display area and touch interface make this module suitable for information terminals deployed in commercial buildings, transportation facilities, retail environments, and public service locations.
When integrating the DBT156DHC30E050A into a finished product, several technical factors should be evaluated.
The specified overall dimensions are 360 × 212.3 × 14.1 mm, while the active area is 344.16 × 193.59 mm. Mechanical drawings should be reviewed before enclosure tooling to ensure adequate clearance for the LCD, touch panel, cable, and mounting structure.
The host controller should be checked for compatibility with the module's 30-pin eDP configuration and specified eDP 1.2 / 2-lane operating characteristics.
Cable pin assignment should always be verified against the official engineering documentation rather than assumed from another 30-pin eDP panel.
Because the CTP supports IIC/USB, the host system should provide the appropriate touch communication interface and driver support.
For embedded Linux, Android, or other operating environments, engineers should confirm touch-controller compatibility during the prototype stage.
The specified operating temperature is 0°C to +50°C. Therefore, enclosure designers should evaluate internal heat generation, airflow, ambient temperature, and backlight heat during system design.
Aptus Display's product information describes reliability-oriented testing for this module, including high-temperature storage, low-temperature operation, thermal shock, and ESD testing. The listed tests include +60°C storage for 96 hours, 0°C operation for 96 hours, thermal shock from -20°C to +60°C for 10 cycles, and ESD testing of ±8 kV contact / ±15 kV air.
These test conditions are useful reference points for engineers evaluating the module for professional equipment. Actual system-level reliability, however, depends on the enclosure, power architecture, thermal design, operating environment, assembly process, and application conditions.
Aptus Display is a professional LCD module and display solution provider serving industrial, commercial, embedded, and specialized equipment markets.
Aptus Display offers TFT LCD modules, touch panel LCD modules, wide-temperature displays, flight simulator displays, bar-type LCD displays, gaming display solutions, monochrome LCD solutions, LCD accessories, and customized display solutions. Its current product catalog includes a broad range of touch-panel LCD modules from compact displays through larger professional panels.
For OEM and ODM projects, Aptus Display can support customers with display customization and engineering assistance, helping match display size, resolution, interface, brightness, touch technology, mechanical requirements, and application-specific requirements.
The company's approach is particularly relevant to equipment manufacturers, system integrators, purchasing teams, distributors, and engineers who need more than a standard off-the-shelf consumer display.
Every embedded display project has different requirements. Depending on the project, customers may need modifications to:
Aptus Display can evaluate project requirements and recommend an appropriate LCD module or customized display architecture.
For projects requiring a different brightness level, interface, temperature range, or mechanical format, customers can also compare this model with other products in the Aptus Display touch-panel LCD portfolio.
Yes. The DBT156DHC30E050A is a 15.6-inch 1920×1080 FHD TFT-LCD module with an integrated capacitive touch panel.
The display uses a 30-pin eDP interface, specified as eDP 1.2 with 2 lanes at 2.7G. The touch panel supports IIC/USB communication.
The specified brightness is 500 cd/m². This makes it appropriate for many indoor commercial and professional display environments.
The specified operating temperature is 0°C to +50°C, while the storage temperature range is -20°C to +60°C.
Aptus Display provides OEM/ODM and display customization services. Depending on project requirements, customers can discuss display specifications, touch solutions, interfaces, mechanical integration, and other project-specific requirements with the engineering team.
If you are developing a commercial kiosk, interactive terminal, HMI, information terminal, digital signage system, or professional embedded device, the DBT156DHC30E050A provides a practical combination of 15.6-inch FHD resolution, 500 cd/m² brightness, 30-pin eDP connectivity, anti-glare treatment, and capacitive touch functionality.
For sample evaluation, bulk purchasing, OEM/ODM customization, or technical integration support, contact Aptus Display with your project requirements.
