Automotive LCD Display - C156HAX01.0

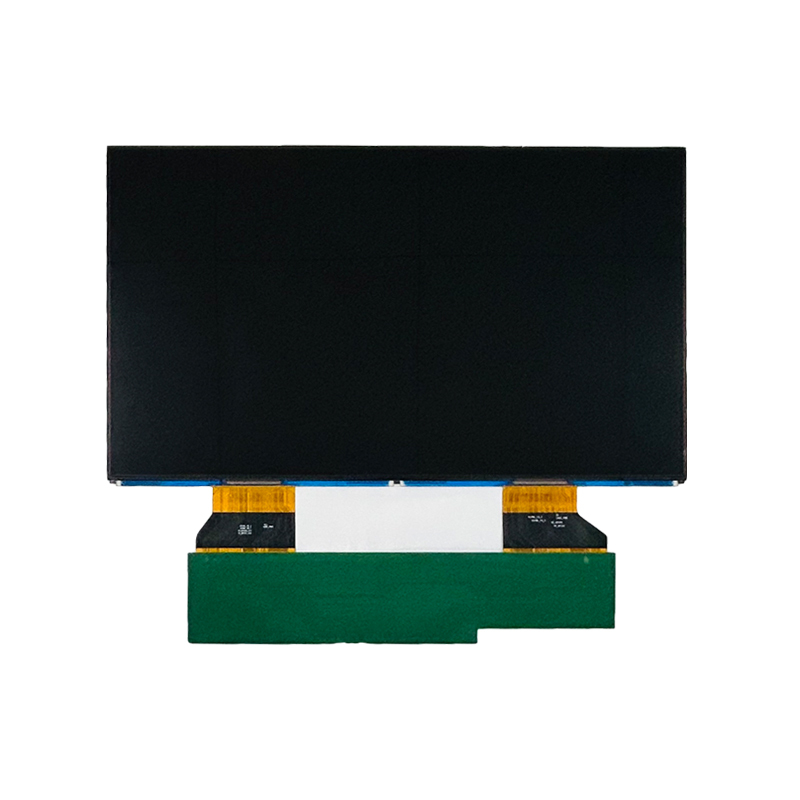

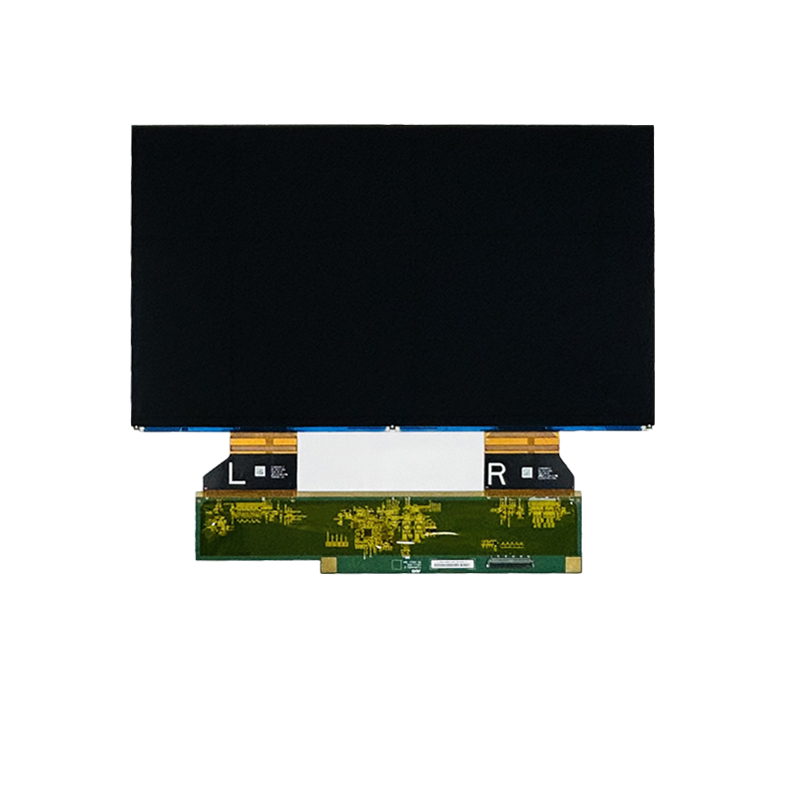

Product Name: AU Optronics C156HAX01.0 Automotive LCD Display FOG

Overview:
Aptus, as an authorized agent of AU Optronics, is proud to present the C156HAX01.0, a 15.6-inch TFT-LCD module designed for automotive applications.  This display features AHVA (Advanced Hyper View Angle) technology and in-cell touch capabilities, providing a high-quality visual experience and interactive control within vehicles.

Key Features:
- Display Specifications: The C156HAX01.0 offers a 1920RGB x 1080 resolution in an RGB stripe dot arrangement, ensuring high-definition visuals for navigation, entertainment, and control systems.
- Advanced AHVA Technology: Enjoy wide viewing angles and accurate color reproduction with AU Optronics' AHVA technology, ideal for various lighting conditions in the car.
- Interface Compatibility: With 2 Port LVDS interface, this display module ensures easy integration with a variety of automotive systems.
- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this display is an environmentally conscious choice for automotive manufacturers.
- In-Cell Touch Technology: Equipped with in-cell touch sensor technology, this display simplifies the design and enhances the durability of touch interactions within the vehicle.

Technical Specifications:
- Display Resolution: 1920 RGB(H) x 1080 (V) pixels
- Active Area: 344.16 mm (H) x 193.59 mm (V)
- Screen Size: 15.6-inch diagonal
- Dot Pitch: 179.25 x 179.25 μm
- Color Configuration: R. G. B. Stripe
- Color Depth: 16.7 million colors
- Weight: TBD +/-30g
- Display Mode: Normally Black
- Surface Treatment: H Hard Coating

Touch Panel Specifications:
- Sensor Mode: In-cell Self-Capacitance
- Touch Panel Controller: HX83192-C TDDI
- TP Channel: 1680 channels (56x30)
- Sensor Pitch: 6.15mm x 6.45mm
- Accuracy: Edge area <1.5mm, Center area <1mm
- Linearity: Edge area <1.5mm, Center area <1mm
- Support Finger Numbers: 10 Points
- Report Rate: 120Hz
- Finger Separation: Pinch x: 14.77mm, Pinch y: 15.06mm, Pinch diagonal: 17.37mm

Electrical Specifications:
- Power Supply Voltage: VDD1 3.0V - 3.6V
- LVDS Interface: 2 Port LVDS

Optical Performance:
- Response Time: Varies with temperature (0˚C: TBD, -20˚C: 200ms, -30˚C: 350ms)
- Contrast Ratio: 1200:1 (at θ=0°)
- Viewing Angle: 80° (Top / Bottom / Left / Right) with CR≥10
- Transmittance: 4.70% (Tentative)
- NTSC: 70.6% (Tentative)

Reliability and Durability:
- Temperature Range: Withstands storage and operation from -40°C to 95°C, ensuring reliable performance in extreme climates.
- Shock and Vibration Resistance: Designed to endure shocks and vibrations, making it suitable for the dynamic environment of automotive use.

Packaging and Storage:
- Packing Form: Each module is carefully packaged to ensure safe transportation and storage.
- Label Information: Includes a unique serial number for traceability and quality control.

Conclusion:
The C156HAX01.0 Automotive LCD Display FOG from AU Optronics, offered by Aptus, is a high-performance display solution for the automotive industry.  Its combination of high resolution, advanced technology, and robust design make it an ideal choice for automotive manufacturers seeking to enhance the in-vehicle experience.  For more information or to place an order, contact Aptus today.

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
