The 15.6-inch 1920×1080 LCD module combines Full HD image quality with a high-brightness LED backlight and LVDS connectivity. Compared with standard low-brightness LCD modules, the 1000-nit configuration is designed to provide stronger image visibility in environments with bright ambient lighting or industrial illumination.
The 40-pin LVDS interface provides a practical connection solution for embedded systems and display control architectures that already use LVDS output. For equipment manufacturers, using a standardized LVDS LCD module can simplify display integration while maintaining Full HD image quality.
The DBT156BHN40L100A is suitable for applications including industrial control panels, POS equipment, kiosks, embedded systems, and other professional equipment requiring a 15.6-inch Full HD display.
15.6-inch display size for a practical balance between viewing area and equipment size
1920×1080 Full HD resolution for detailed interface graphics and information
1000 cd/m² high brightness for improved visibility in bright working environments
40-pin LVDS interface for embedded display integration
1200:1 contrast ratio for clear differentiation between dark and bright image areas
89°/89°/89°/89° viewing angle for consistent visibility from different directions
25 ms response time for general industrial and commercial visual applications
-20°C to +70°C operating temperature range for a broad range of equipment environments
9.3 mm module thickness for relatively compact system integration
Custom display support for projects requiring interface, brightness, touch panel, or driver board modifications
| Parameter | Specification |
|---|---|
| Product Model | DBT156BHN40L100A |
| Display Type | TFT LCD |
| Display Size | 15.6 inch |
| Resolution | 1920 × 1080 pixels |
| Resolution Type | Full HD (FHD) |
| Active Area | 344.16 × 193.59 mm |

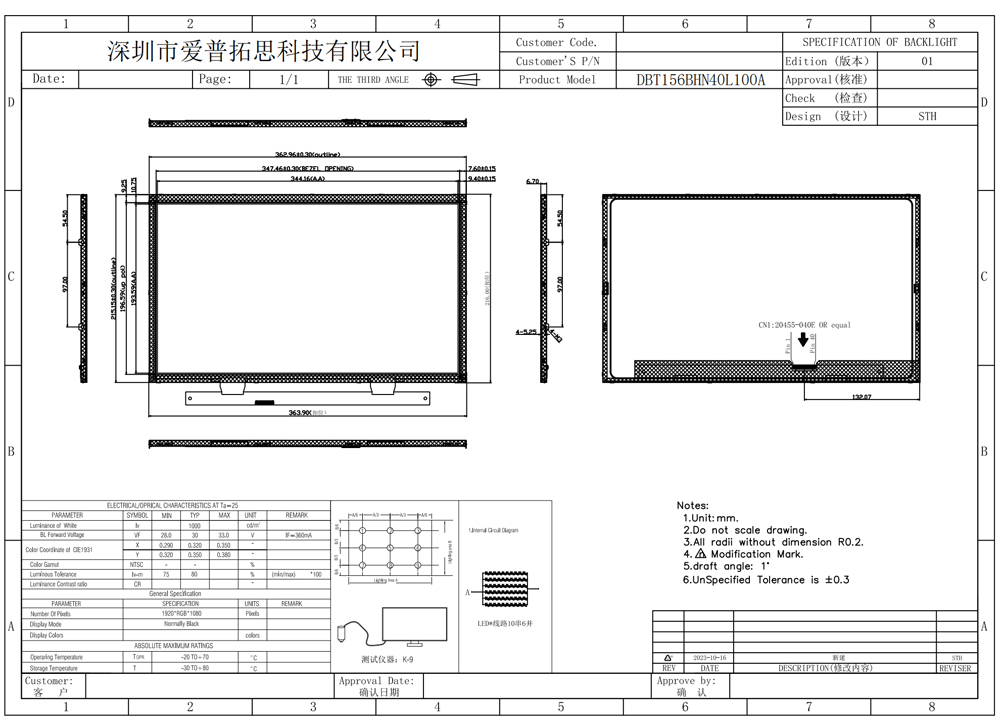

| Module Dimensions | 363.8 × 215.9 × 9.3 mm |
| Interface | 40-Pin LVDS |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 89° / 89° / 89° / 89° |
| Backlight | LED |
| Response Time | 25 ms |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Weight | 610 g |
| Application | Industrial and commercial equipment |
All specifications should be confirmed with Aptus Display before final engineering release, particularly when the module is being integrated into a new production system. The specifications above are based on the current product information published by Aptus Display.
Brightness is an important consideration when selecting an LCD module for professional equipment. A conventional display designed primarily for indoor environments may become difficult to read when ambient illumination increases. The DBT156BHN40L100A provides 1000 cd/m² brightness, offering substantially stronger luminance than typical standard-brightness LCD configurations.
This makes the module a practical option for equipment installed in bright factories, workshops, retail environments, service areas, control rooms, and other locations where ambient lighting can affect display readability.
However, display brightness should not be evaluated independently. For outdoor or direct-sunlight applications, system designers should also consider optical bonding, anti-glare treatment, cover glass, thermal management, enclosure design, and ambient-light conditions. Aptus Display can evaluate these requirements as part of a customized display solution.
The 1920×1080 Full HD resolution provides 2.07 million pixels across the 15.6-inch viewing area. This resolution is suitable for equipment interfaces that need to display detailed graphics, monitoring information, dashboards, menus, charts, video, or multiple information windows.
For industrial HMI and embedded equipment, Full HD can provide additional screen space compared with lower-resolution panels. Engineers can therefore design more information-rich user interfaces while maintaining a familiar 16:9 display format.
The 15.6-inch size also offers a useful compromise between readability and mechanical footprint. It is large enough for operators to view detailed information comfortably while remaining considerably more compact than many larger commercial displays.
The DBT156BHN40L100A uses a 40-pin LVDS interface. LVDS is widely used in embedded display systems because it supports high-speed differential signaling between the host system and LCD module.
For an engineering team replacing an existing LCD or developing new equipment, interface compatibility should be verified before ordering samples. Important considerations include LVDS signal configuration, connector orientation, pin definition, power requirements, backlight control, timing parameters, and mechanical mounting.
Aptus Display provides technical support for customers that need assistance evaluating LCD compatibility or developing a customized display solution.
The module specifies a viewing angle of 89° in the left, right, up, and down directions. This wide viewing performance is valuable for equipment where operators may view the display from different positions.
For example, industrial control equipment, kiosks, POS systems, and embedded machines may not always be viewed directly from the center. A wide viewing angle helps maintain usable image visibility when the operator moves around the equipment.
The DBT156BHN40L100A is specified for an operating temperature range of -20°C to +70°C, with a storage temperature range of -30°C to +80°C.
This temperature specification makes the module suitable for a broad range of professional equipment environments. Nevertheless, the actual operating temperature of a complete system depends on the enclosure, heat generation, backlight settings, installation position, airflow, and other components.
For applications with particularly demanding environmental conditions, customers should discuss thermal requirements with Aptus Display before mass production.
The 15.6-inch Full HD format is suitable for industrial control interfaces that need to display operating parameters, alarms, process information, equipment status, and graphical dashboards.
The 1000-nit brightness can provide an advantage in brightly illuminated production environments, while the 1920×1080 resolution allows engineers to create detailed operator interfaces.
The module can also be integrated into professional POS terminals, self-service kiosks, information terminals, and other commercial equipment.
Its 15.6-inch size provides sufficient viewing area for menus, product information, transaction interfaces, and interactive software. When touch functionality is required, Aptus Display can also evaluate touch panel integration according to the customer's mechanical and electrical requirements.
Embedded equipment manufacturers can use the module as a visual interface for computers, controllers, industrial PCs, monitoring systems, and specialized equipment.
The 40-pin LVDS interface is particularly relevant to system designers whose existing hardware architecture supports LVDS output.
The Full HD resolution and high brightness make this display suitable for monitoring systems that need to present detailed real-time information.
Potential applications include equipment monitoring terminals, automation interfaces, process visualization systems, and other professional display systems.
The module can be considered for customized machines where a standard 15.6-inch display format is required but higher brightness is preferable to conventional indoor LCD configurations.
Aptus Display can also discuss customization requirements such as touch panel integration, brightness optimization, driver board development, cable solutions, and other display-related components.
Selecting an LCD module is only one part of an embedded display project. Mechanical dimensions, signal interface, brightness, touch functionality, backlight control, mounting structure, cable routing, and operating environment all affect the final product.
Aptus Display provides customized and semi-custom display solutions for OEMs, system integrators, and equipment manufacturers. Depending on project requirements, customization can include brightness, resolution, interface, touch panel, driver board, connectors, cables, and other display integration components.
This approach allows customers to evaluate the display as part of a complete system instead of treating the LCD panel as an isolated component.
Aptus Display is an LCD display manufacturer providing TFT-LCD, IPS, OLED, high-brightness, and customized display solutions. The company states that it has more than 15 years of industry experience and supports customers across industrial automation, automotive, medical, embedded electronics, and other professional applications.
For B2B customers, Aptus Display focuses on more than supplying individual LCD modules. Its services include product customization, technical integration support, after-sales support, and global logistics.
Engineering Support: Aptus Display provides technical guidance for display integration, troubleshooting, and performance optimization.
Customization Capability: Customers can discuss requirements involving brightness, resolution, interface, touch panel, driver board, connectors, and related components.
Industrial Display Experience: The company develops display solutions for professional and embedded equipment rather than focusing exclusively on consumer electronics.
Global Customer Support: Aptus Display supports international OEMs, system integrators, distributors, and technology companies.
Long-Term Project Support: For customers developing equipment with long product lifecycles, technical communication and replacement planning can be discussed during the project development stage.
Yes. The DBT156BHN40L100A is a 15.6-inch TFT LCD module with a 1920×1080 Full HD resolution.
The display provides 1000 cd/m² (1000 nits) brightness, making it suitable for professional equipment operating in relatively bright environments.
This LCD module uses a 40-pin LVDS interface. System designers should verify the exact electrical pinout and timing requirements before integration.
The 1000-nit brightness provides improved visibility compared with conventional low-brightness displays, but brightness alone does not make an LCD fully sunlight-readable. For direct outdoor sunlight, Aptus Display recommends evaluating optical treatment, cover glass, anti-glare solutions, thermal management, and enclosure design according to the actual application.
Yes. Aptus Display provides customized and semi-custom display solutions. Depending on project requirements, customers can discuss brightness, interface, touch panel, driver board, connectors, cables, and other display integration requirements.
The specified operating temperature is -20°C to +70°C, while the storage temperature is -30°C to +80°C.
For a faster engineering evaluation, customers should provide the application, required display size, resolution, interface, brightness requirement, expected quantity, operating temperature, mechanical constraints, and whether a touch panel or customized driver board is required.
If you are developing industrial equipment, kiosks, POS terminals, embedded systems, monitoring equipment, or other professional products requiring a 15.6-inch 1920×1080 high-brightness LCD, the DBT156BHN40L100A is a practical display module to evaluate.
