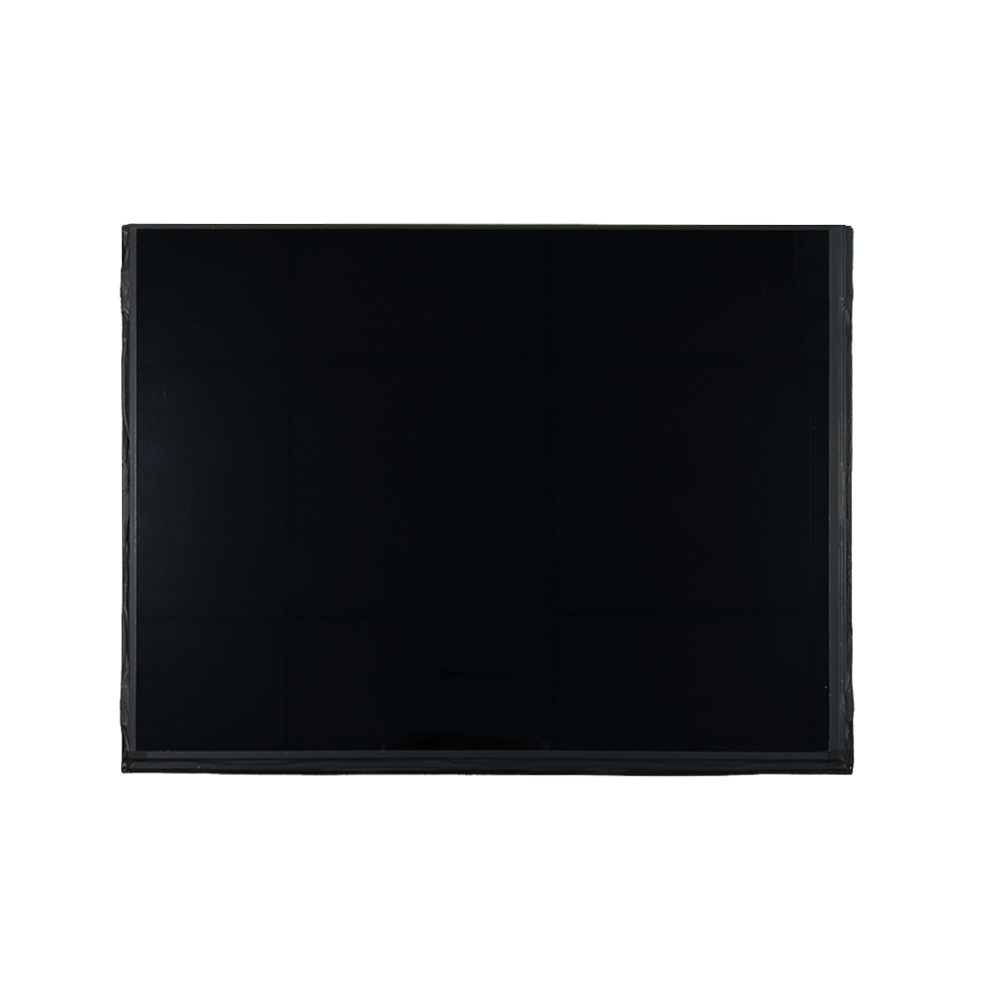

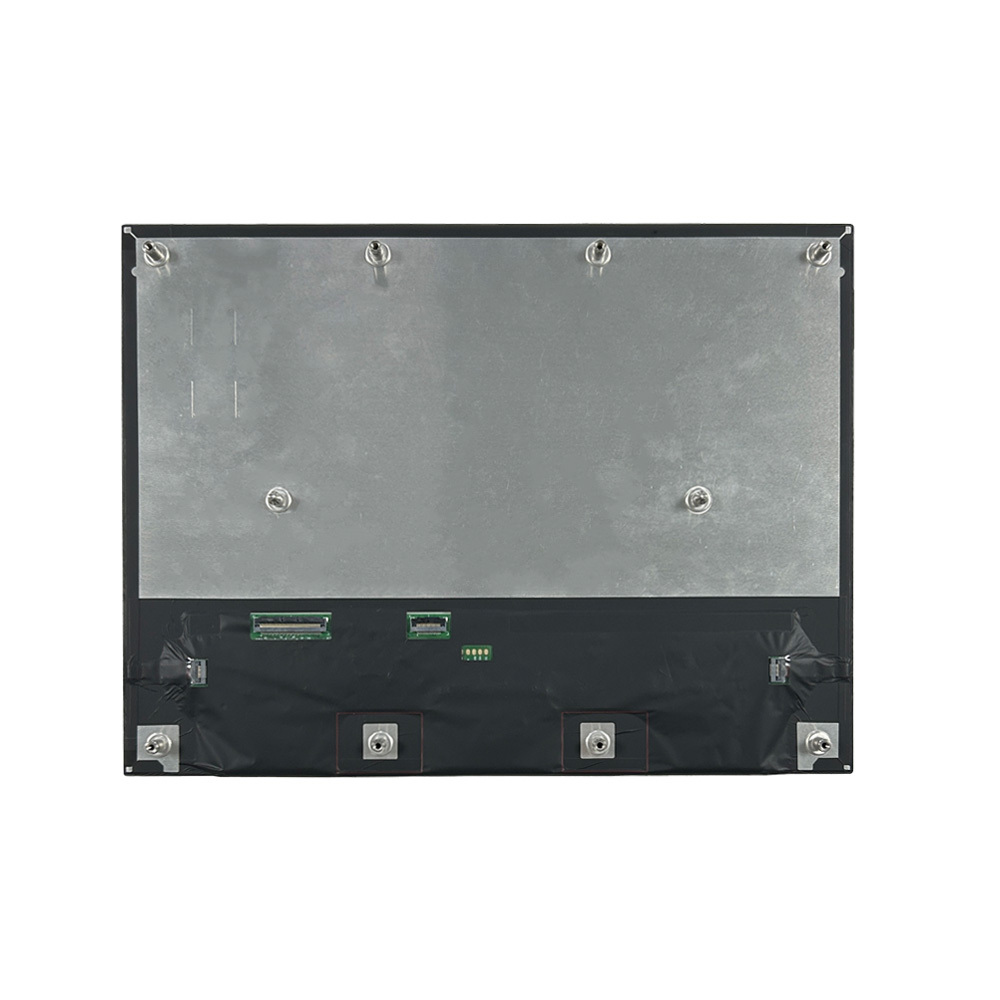

The 14-inch 1600×1200 LCD module from Aptus Display is designed specifically for flight simulator displays, cockpit instrument panels, navigation interfaces, and aviation simulation equipment that require a compact 4:3 display format, high brightness, and stable LVDS signal transmission. With 1600×1200 resolution, 800 cd/m² brightness, a 50-pin LVDS interface, and a 4:3 aspect ratio, this LCD module provides detailed image reproduction while fitting naturally into cockpit-style display layouts.
Unlike conventional widescreen LCD displays, this 14-inch square-format module is particularly suitable for flight simulator systems where the display geometry needs to match instrument panels or vertically oriented cockpit information. The high-resolution UXGA panel can display detailed flight instruments, navigation information, system status, engine parameters, and other graphical interfaces with good visual clarity.
For OEM manufacturers, simulator developers, aviation training equipment companies, and system integrators, Aptus Display also provides display customization services covering interface design, touch panel integration, brightness enhancement, anti-glare treatment, housing, mounting structures, and other display integration requirements.
| Parameter | Specification |
|---|---|
| Product Model | AS140HL02 |
| Display Size | 14 inch |
| Resolution | 1600 × 1200 pixels |
| Aspect Ratio | 4:3 |
| Active Area | 213.12 × 284.16 mm |
| Interface | 50-pin LVDS |
| Brightness | 800 cd/m² |
| Viewing Angle | 85° / 85° / 85° / 85° |
| Backlight | Long-life LED backlight |
| Operating Temperature | -20°C to +70°C |
| Touch Option | Capacitive or resistive touch available on request |
| Certification | RoHS, CE |
| Application | Flight simulators and cockpit simulation systems |
| Customization | LVDS pinout, FPC, touch panel, housing, optical bonding and more |
The specifications above are based on the current Aptus Display product information.
Flight simulator equipment requires more than a standard commercial monitor. The display needs to reproduce cockpit information accurately while fitting into a predefined mechanical structure. A suitable LCD module should provide an appropriate aspect ratio, sufficient resolution, stable signal transmission, and reliable operation over extended periods.
This 14-inch LCD module combines a 4:3 display format with 1600×1200 resolution, making it suitable for simulator designs that replicate traditional aircraft instrument layouts. The 4:3 format provides a balanced vertical and horizontal display area, which can be useful when displaying multiple cockpit parameters within a relatively compact panel.
The 1600×1200 resolution also provides significantly more pixels than lower-resolution 1024×768 panels. This allows simulator developers to display sharper gauges, navigation graphics, labels, maps, system indicators, and other detailed cockpit elements.
Another important advantage is the 800 cd/m² brightness. Flight simulator environments can vary from dark training rooms to brightly illuminated demonstration areas. Higher brightness helps maintain display readability when ambient light is relatively strong.
The primary application of this LCD module is flight simulation.

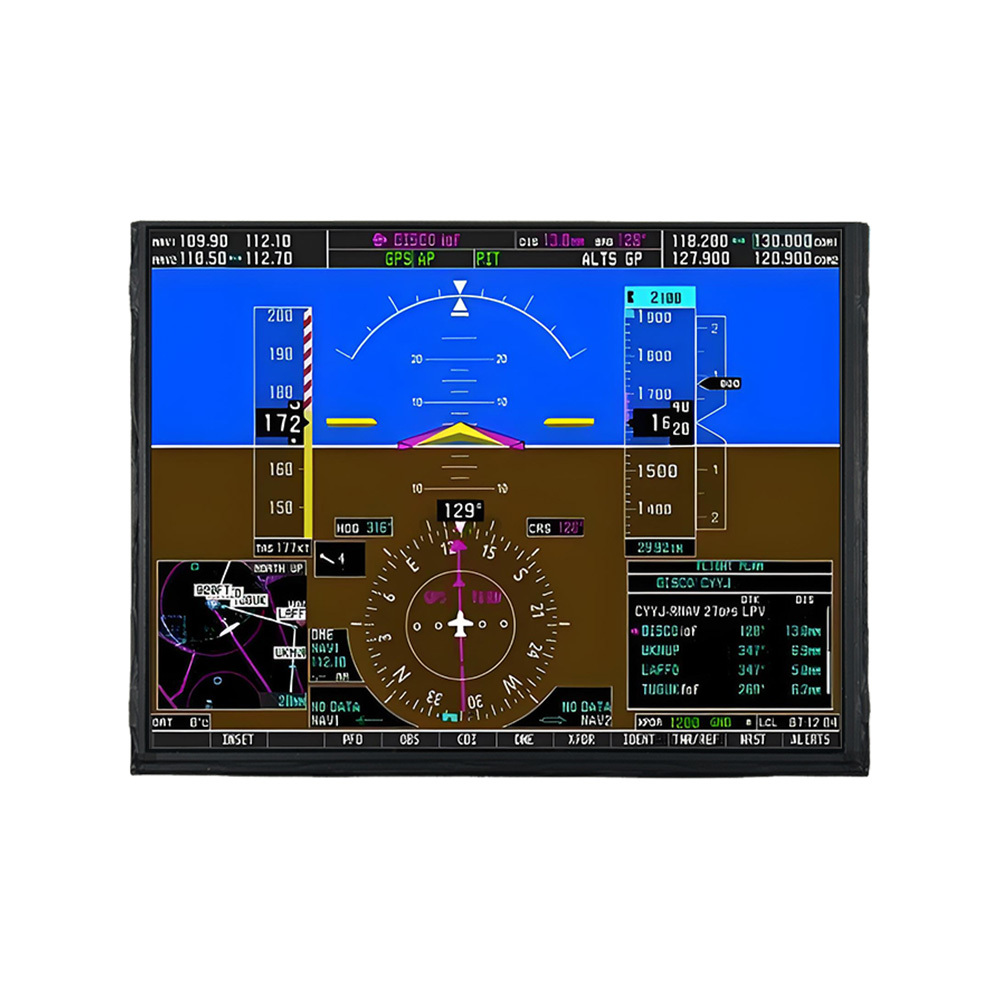

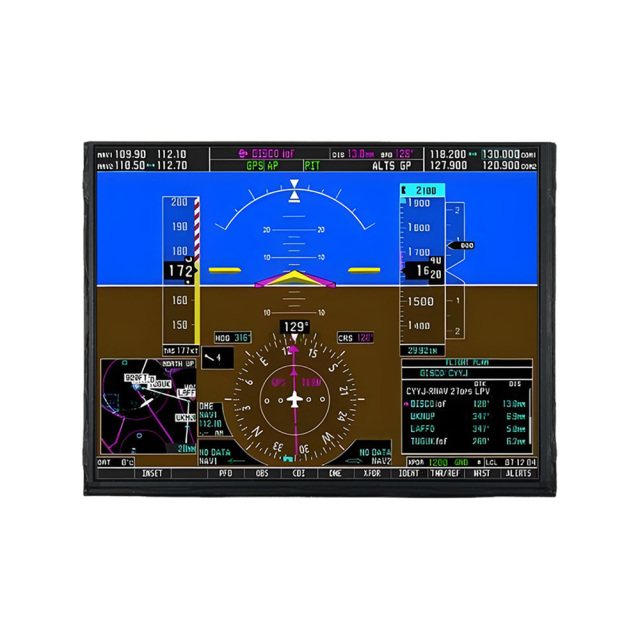

In a flight simulator cockpit, different displays may be responsible for presenting primary flight information, navigation information, engine parameters, aircraft system status, or simulated avionics interfaces. A 14-inch 4:3 LCD can be integrated into a cockpit panel where a conventional 16:9 monitor would leave unused space or require additional scaling.
Typical flight simulator applications include:
Professional and commercial flight training simulators often reproduce aircraft cockpit layouts as accurately as possible. The 14-inch 1600×1200 LCD module can be used for simulated cockpit instruments, avionics interfaces, navigation screens, or secondary information displays.
Fixed-base simulators used by training organizations, universities, flight schools, and research facilities can benefit from compact LCD modules that are easier to integrate into custom cockpit structures.
Training equipment manufacturers can use the display for aircraft system simulation, instrument training, navigation exercises, and other aviation education applications.
Custom simulator builders can integrate the module into dedicated cockpit panels where screen dimensions and aspect ratio are important mechanical constraints.
The 4:3 format can be useful for reproducing instrument-style layouts without excessive image stretching or unused horizontal space.
One of the most important characteristics of this product is its 4:3 aspect ratio.
Many modern commercial displays use 16:9 or wider formats. However, a widescreen format is not always ideal for cockpit simulation. When a simulator application is designed around a compact instrument panel, a wide display may require significant mechanical redesign or software scaling.
A 4:3 LCD module offers several practical advantages.
Better use of cockpit panel space: The balanced dimensions can fit naturally into compact instrument layouts.
Reduced image distortion: Simulator graphics designed for 4:3 interfaces can be displayed without unnecessary stretching.
Suitable for vertical information: The relatively tall active area provides useful space for gauges, status information, navigation graphics, and other vertically arranged content.
Easier integration into custom enclosures: OEM designers can build mounting structures around the module without having to compensate for a very wide display shape.
For simulator developers replacing an older display, maintaining a similar aspect ratio can also reduce mechanical and software modification requirements.
The 800 cd/m² brightness specification is another important feature for flight simulator applications.
Simulator displays may be installed in environments with different lighting conditions. A display that performs well in a dark room may become difficult to read when strong ambient light enters the simulator cockpit.
The 800 cd/m² brightness level helps improve visibility in brighter environments. It can be particularly useful for demonstration simulators, training rooms, exhibition equipment, and simulator cockpits where lighting conditions cannot always be controlled.
For projects requiring additional optical performance, Aptus Display can also discuss options such as enhanced brightness and anti-glare treatment according to the system's mechanical and optical requirements.

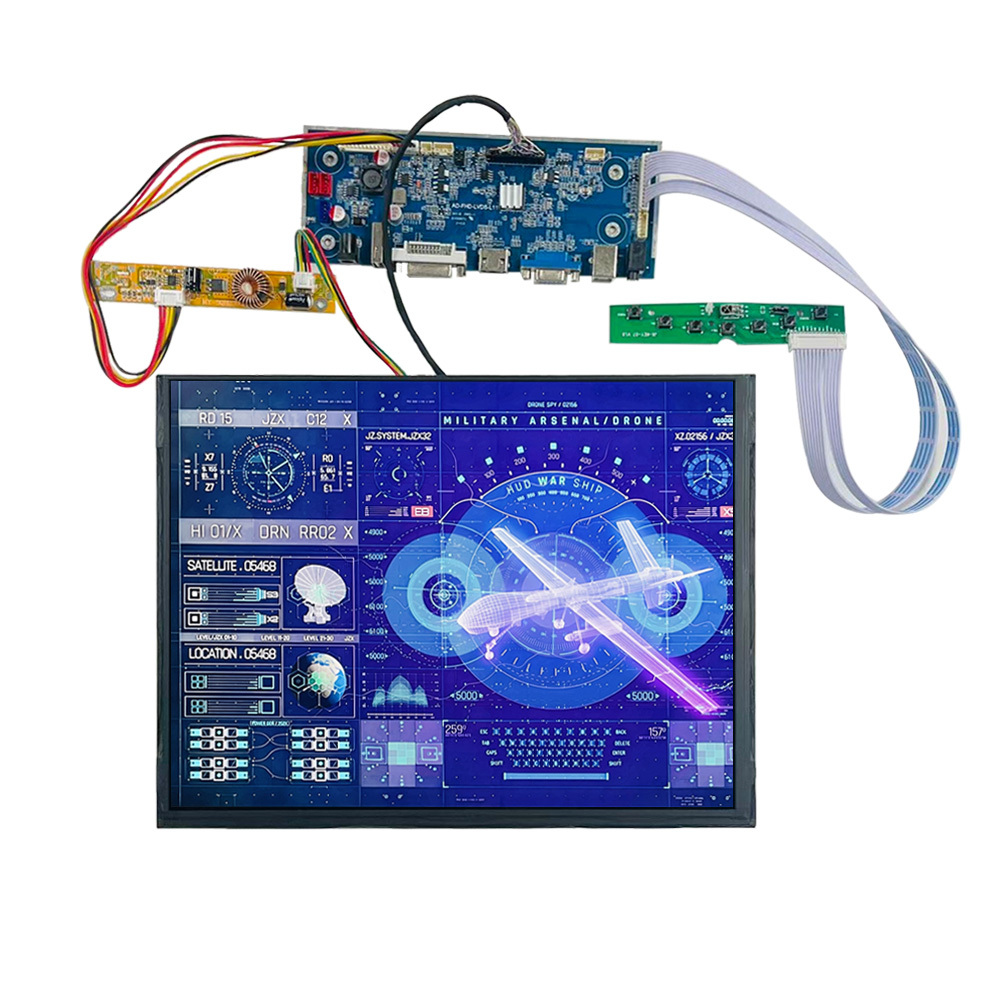

This LCD module uses a 50-pin LVDS interface, providing a practical solution for connecting the display to compatible simulator electronics and display controller hardware.
For an OEM project, interface compatibility should always be confirmed before purchasing. Engineers should evaluate the controller board, LVDS signal configuration, pin assignment, cable length, power requirements, timing parameters, and mechanical connector position.
Aptus Display supports customization for OEM projects, including custom LVDS pinouts and FPC design, helping customers integrate the LCD module into their existing electronic architecture.
This makes the module suitable not only for new simulator development but also for customized replacement and upgrade projects.
Different flight simulator manufacturers can have very different requirements. Some projects may need a standard LCD module, while others require a complete display assembly.
Aptus Display provides OEM customization services that can include:
Custom LVDS pinout and FPC design
Capacitive or resistive touch panel integration
Higher-brightness display options
Anti-glare surface treatment
Custom housing and mounting frames
Optical bonding
Waterproof sealing
Display assembly customization
These options allow the display to be adapted to the mechanical, electrical, and user-interface requirements of different flight simulator platforms.
For engineering teams, customization can be particularly valuable when the display needs to fit an existing cockpit enclosure or communicate with an existing display controller.
When selecting an LCD module for a flight simulator, engineers should consider more than screen size and resolution.
The first consideration is mechanical compatibility. The active area, overall dimensions, mounting position, connector location, and installation space should match the simulator enclosure.
The second consideration is electrical compatibility. The LVDS interface, pinout, controller board, cable configuration, power supply, and signal timing should be checked during the design stage.
The third consideration is optical performance. Brightness, viewing angle, anti-glare treatment, and ambient-light conditions can directly affect cockpit readability.
The fourth consideration is operating environment. The listed operating temperature range of this model is -20°C to +70°C, providing a practical range for many simulator and control-system environments.
Finally, manufacturers should consider whether they need a standard LCD module or a customized display assembly with touch functionality, optical bonding, housing, or other components.
Aptus Display is a professional display solution provider based in Shenzhen, China, serving customers in Europe, North America, and other international markets. The company focuses on LCD modules, TFT displays, touch panel integration, display driver boards, backlight solutions, and customized display assemblies for OEM applications.
Its product portfolio includes TFT LCD modules, flight simulator display solutions, wide-temperature LCD displays, touch panel LCD modules, automotive display solutions, bar-type LCD displays, and other professional display products.
For flight simulator manufacturers, Aptus Display combines standard display products with engineering customization capabilities. This approach allows customers to start with an existing LCD platform while adapting key components to their specific system requirements.
The company supports projects from prototype development through volume production and provides English-language sales and engineering communication for international customers. Its stated capabilities include rapid prototyping, mass production, flexible MOQ, quality control, and global shipping.
For OEM and simulator manufacturers, choosing a display supplier is not only about obtaining an LCD panel. Long-term project support, engineering communication, customization flexibility, and supply capability are also important.
Aptus Display offers:
Professional experience in LCD display solutions
OEM and ODM display customization
Engineering support for display integration
Flexible solutions for prototype and production projects
Touch panel integration capability
Custom FPC and LVDS solutions
Housing and mounting customization
International sales and technical communication
Global shipping support
These capabilities make Aptus Display a suitable partner for companies developing flight simulator equipment and other professional display systems.
Yes. The product is specifically positioned for flight simulator applications. Its 14-inch size, 1600×1200 resolution, 4:3 aspect ratio, 800 cd/m² brightness, and 50-pin LVDS interface make it suitable for cockpit instrument and simulation display integration.
A 4:3 display provides a balanced horizontal and vertical viewing area that can better match many cockpit instrument layouts. It can also reduce unused space and minimize image scaling when the simulator interface is designed around a 4:3 format.
Touch integration is available on request. Aptus Display can provide capacitive or resistive touch panel solutions depending on the simulator's interface requirements.
Yes. For OEM projects, Aptus Display lists custom LVDS pinout and FPC design as available customization services. Engineers should provide their controller-board and interface requirements for compatibility evaluation.
Yes. Customization options can include mounting frames, housing, FPC design, touch integration, optical bonding, waterproof sealing, brightness enhancement, and anti-glare treatment, depending on project requirements.
If you are developing a flight simulator cockpit, aviation training system, aircraft instrument simulator, or custom flight simulation platform, the 14-inch 1600×1200 LCD module can provide a practical combination of resolution, brightness, aspect ratio, and LVDS connectivity.
For a quotation, sample request, engineering evaluation, or customized display solution, please contact Aptus Display and provide your required display size, resolution, interface, quantity, mechanical requirements, and application details.
