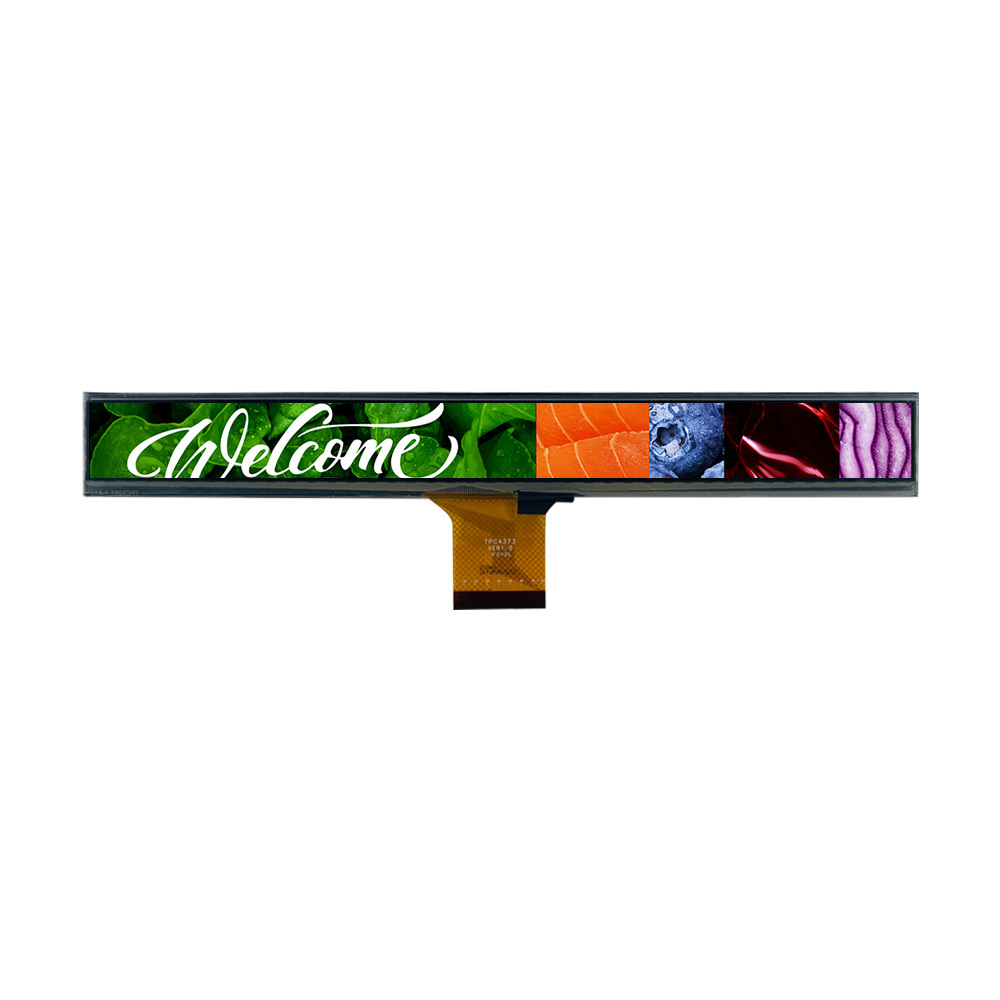

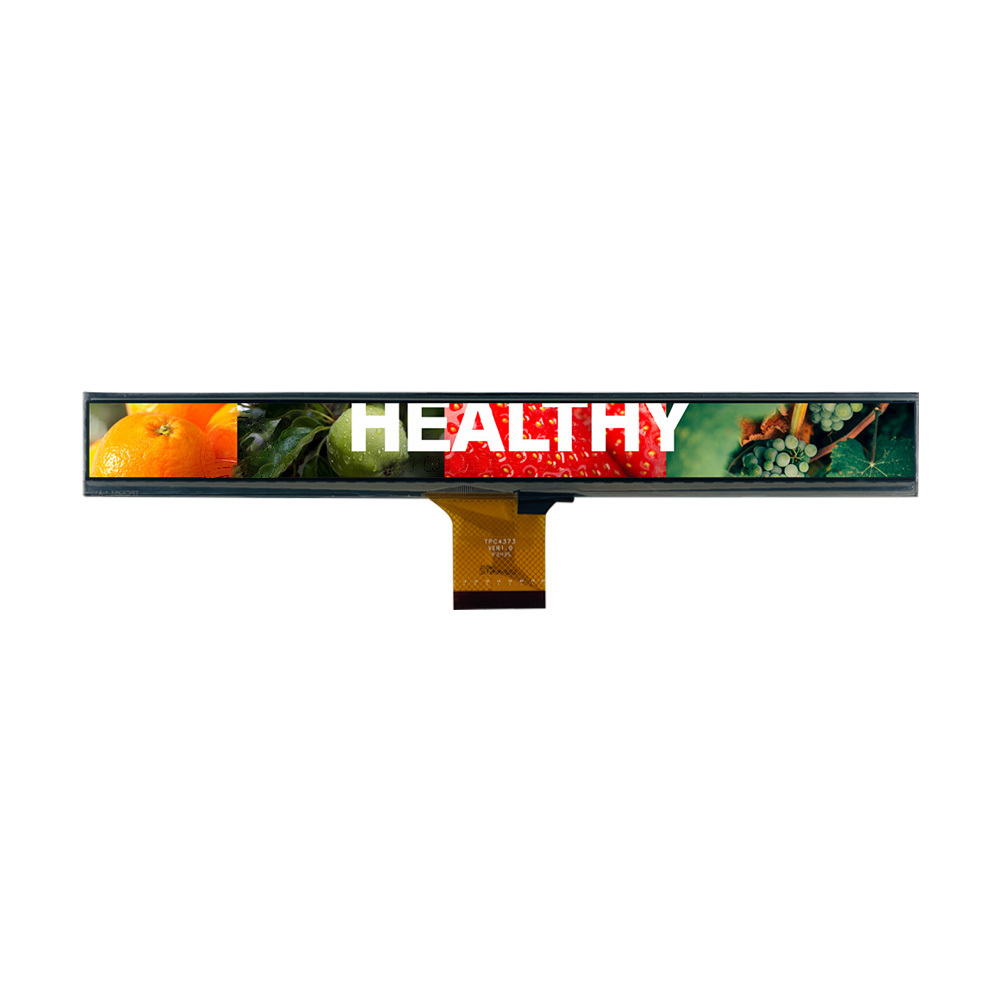

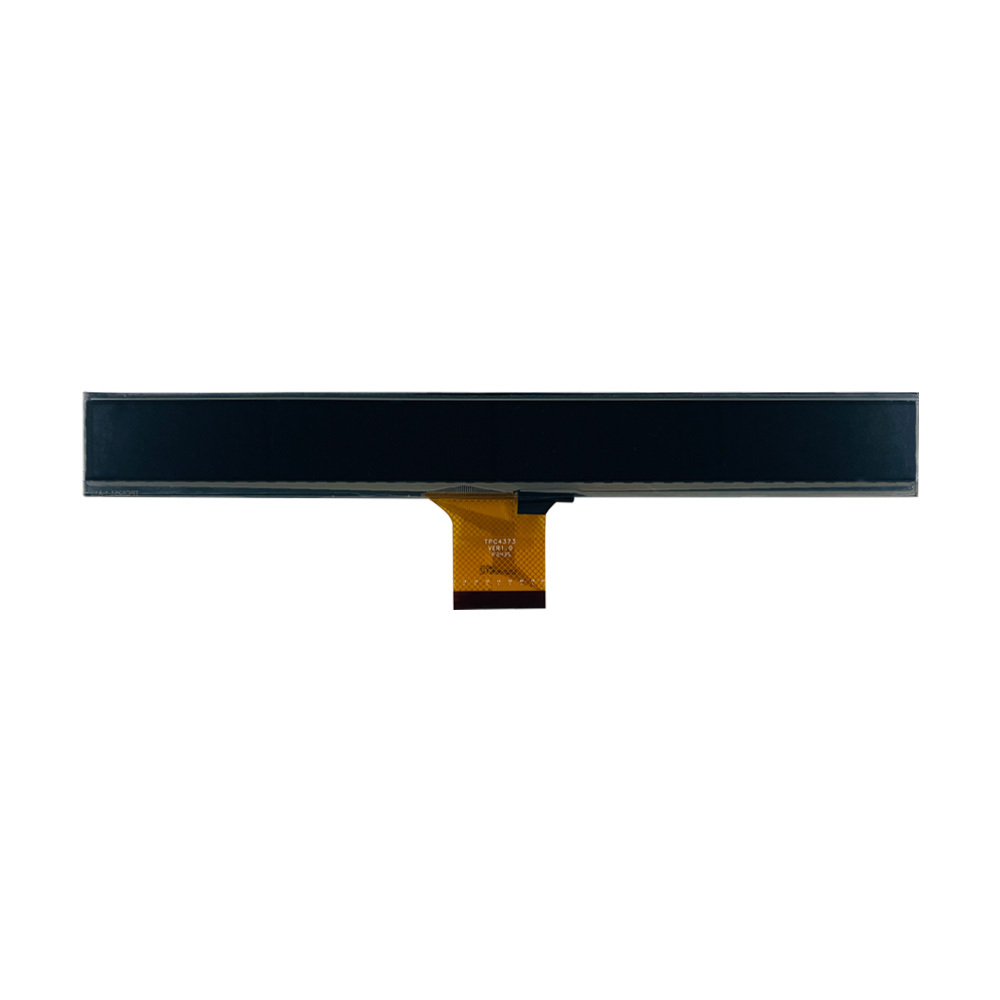

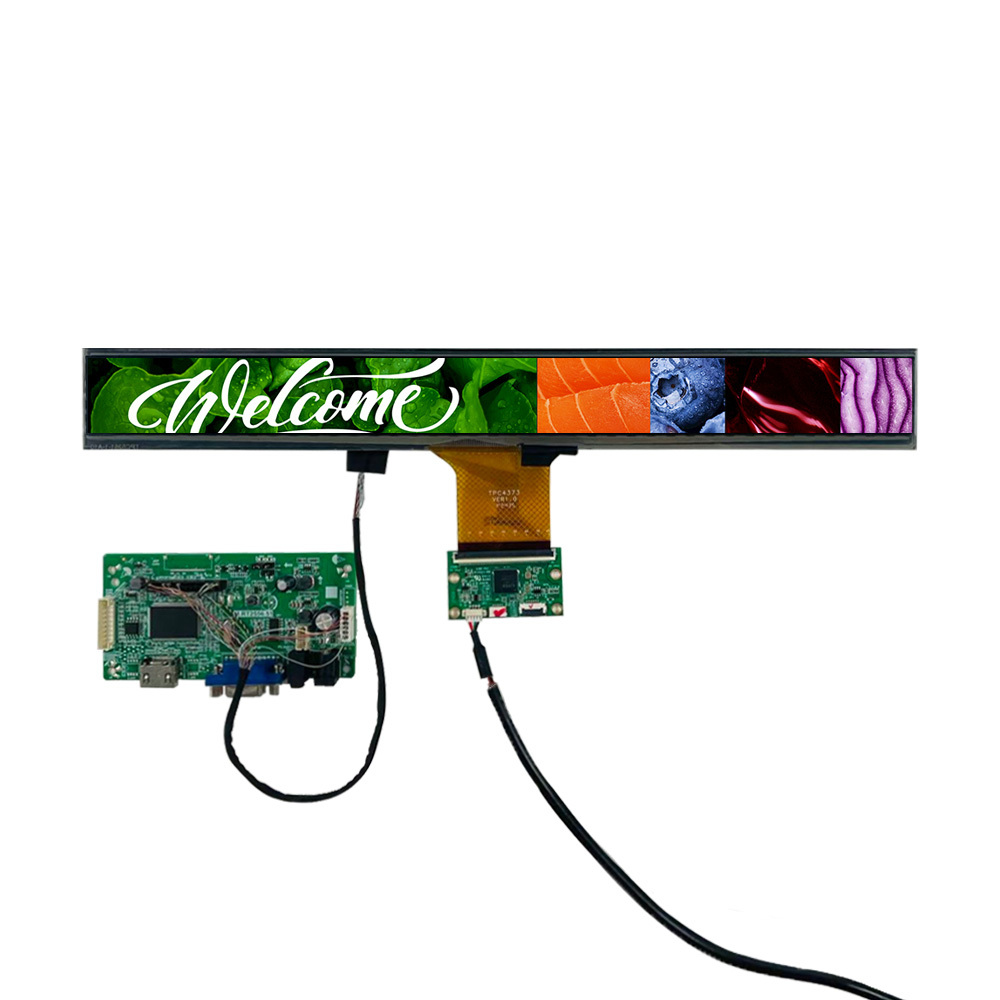

The 13.6-inch 1920×168 30-pin eDP 500-nit CTP Touch Bar LCD Module is an ultra-wide bar-type TFT LCD designed for space-constrained industrial equipment, smart appliances, control panels, smart audio systems, vending machines, and modern human-machine interfaces. Model DBC136ICN30E050A combines a 1920×168 resolution, 500 cd/m² brightness, 30-pin eDP interface, full-view viewing performance, capacitive touch functionality, and a compact 350.7×43.6×9.6 mm module size. Its 344.16×30.11 mm active area and extremely wide display format allow product designers to present status information, controls, menus, icons, and scrolling content in a horizontal layout without requiring a conventional rectangular LCD.
Traditional TFT LCD modules are generally designed around standard 4:3, 16:9, or 16:10 display formats. However, many modern products do not need a conventional rectangular screen. Industrial control equipment, smart appliances, smart speakers, retail equipment, and embedded HMI systems may have long and narrow installation areas where a standard LCD wastes valuable mechanical space.
This is where an ultra-wide touch bar LCD provides a practical alternative.
The 13.6-inch 1920×168 LCD provides an extended horizontal display area while maintaining a relatively narrow vertical profile. The 1920-pixel horizontal resolution allows designers to arrange multiple interface elements across one continuous display, while the 168-pixel vertical resolution is well suited to information bars, control strips, operating status, menus, icons, and scrolling information.
The result is a display solution that can become an integral part of the product's industrial design rather than simply being installed as a conventional monitor.
| Item | Specification |
|---|---|
| Product Model | DBC136ICN30E050A |
| Display Size | 13.6 inch |
| LCD Type | TFT LCD |
| Resolution | 1920 × 168 pixels |
| Display Format | Ultra-wide bar type |
| Active Area | 344.16 × 30.11 mm |
| Module Dimensions | 350.7 × 43.6 × 9.6 mm |
| Viewing Angle | All View / 80/80/80/80 |
| Interface | eDP, 30-pin |
| Brightness | 500 cd/m² |
| Touch Technology | Capacitive Touch Panel (CTP) |
| Operating Temperature | -20°C to +70°C |
| Application Type | Industrial, commercial and smart equipment |
| Touch Interaction | Finger and compatible stylus applications |
| Product Category | Touch Bar LCD Module |
The specifications above are based on the product information published by Aptus Display.
The most distinctive feature of this LCD module is its 1920×168 ultra-wide resolution.
Instead of using the display area for large vertical images, the wide format is optimized for horizontally organized information. This makes it particularly useful when the user interface needs to show multiple functions or data points on a single line.
For example, an industrial machine can display operating status, temperature, production information, warning indicators, and control buttons across the same horizontal interface. A smart appliance can use the display for mode selection, status information, operating instructions, or menu navigation.
The 1920-pixel horizontal resolution also provides sufficient pixel density for small interface elements, text, icons, and graphical controls.
For designers developing a custom HMI, this means the screen can be treated more like a digital control strip than a traditional monitor.
The module provides a 500 cd/m² brightness rating, making it suitable for a variety of indoor commercial and industrial environments where a standard low-brightness LCD may not provide sufficient visibility.
500 nits can be useful for applications installed in:
Factory environments
Retail equipment
Smart appliances
Vending machines
Commercial equipment
Bright indoor environments
Industrial control cabinets with integrated displays
The actual visibility of any LCD in a particular environment depends on ambient illumination, cover glass, optical bonding, surface treatment, viewing direction, and enclosure design. For projects requiring operation under direct sunlight, Aptus Display can evaluate higher-brightness display options according to the application's requirements.

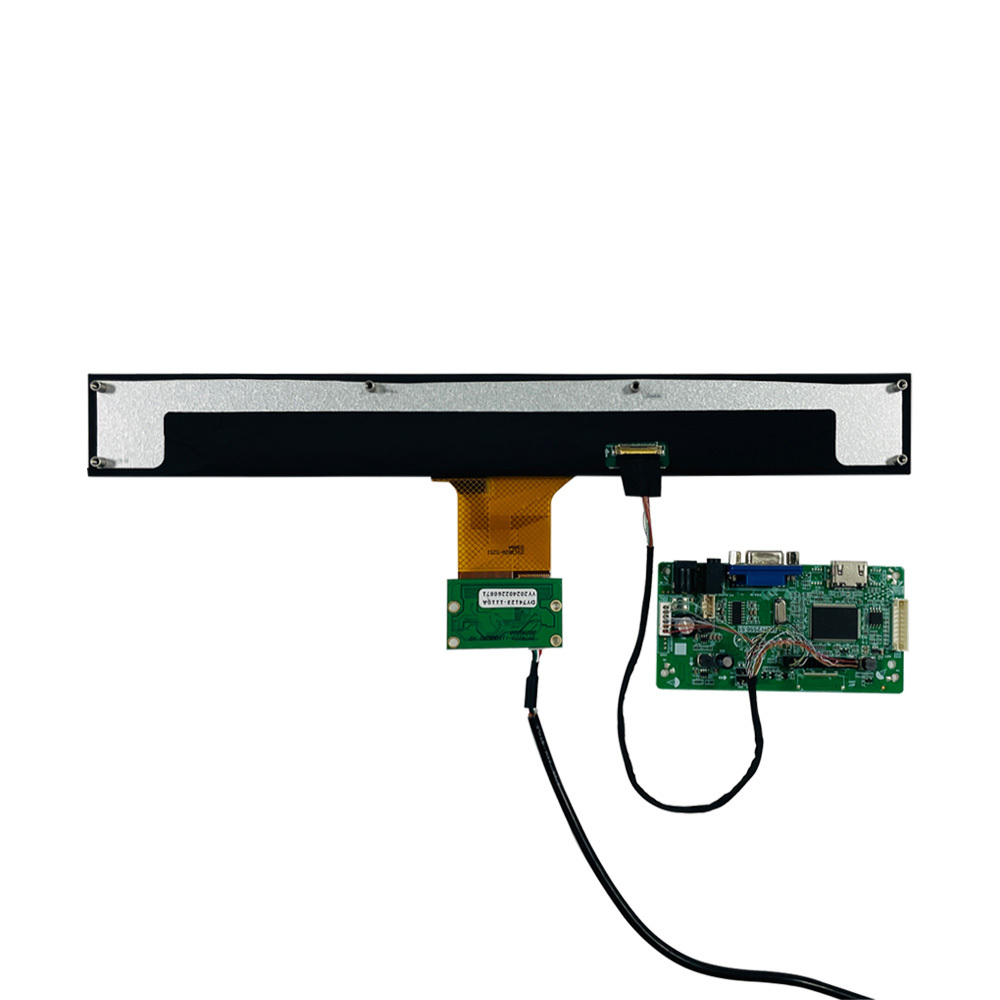

The 30-pin eDP interface provides a modern digital display connection for compatible embedded computing platforms and display controller architectures.
Compared with legacy parallel RGB interfaces, eDP can simplify high-speed digital display integration and is widely used in modern computing and embedded display systems. For product developers, selecting an eDP LCD module can also help align the display architecture with an existing eDP-based hardware platform.
However, interface compatibility should always be verified at the system design stage. Engineers should check:
eDP lane configuration
Signal timing
Connector definition
Pin assignment
Power requirements
Backlight control
Host controller compatibility
Touch-panel communication
Mechanical clearance
Aptus Display can support customers in evaluating display and system compatibility before prototype production.
This model integrates a capacitive touch panel (CTP), transforming the display from a simple information output device into an interactive user interface.
Capacitive touch technology is particularly appropriate for modern HMI designs where users need to select menus, adjust parameters, activate functions, or navigate through different operating screens.
Typical touch operations may include:
Menu selection
Parameter adjustment
Equipment control
Mode switching
Status confirmation
Volume control
Product configuration
User-interface navigation
The touch layer also helps manufacturers create cleaner product designs because physical buttons can potentially be reduced or replaced by software-defined controls.
For OEM applications, touch sensitivity, cover-lens construction, controller selection, interface configuration, and mechanical integration should be evaluated together with the final enclosure.
The module measures approximately 350.7 × 43.6 × 9.6 mm, giving designers a narrow display structure suitable for products where vertical space is restricted. The active area measures 344.16 × 30.11 mm.
This form factor can be integrated into:
Long horizontal control panels
Narrow equipment interfaces
Smart appliance front panels
Speaker control strips
Retail equipment
Vending-machine interfaces
Industrial dashboards
Embedded HMI systems
Because the display has a fundamentally different aspect ratio from standard LCDs, mechanical integration should be considered early in the product development process. Aperture dimensions, mounting structure, cable routing, touch-panel clearance, and enclosure tolerance should all be reviewed before tooling.
The product specification lists an all-view viewing configuration, with 80/80/80/80 viewing-angle information.
This characteristic is valuable for equipment where users may approach the interface from different positions rather than directly facing the screen.
For industrial equipment, for example, operators may view the HMI from the left or right side while standing beside a machine. In commercial equipment, multiple users may need to see the information from different angles.
A wide viewing characteristic therefore helps maintain a consistent visual experience across different viewing positions.
The specified operating temperature range is -20°C to +70°C, providing flexibility for equipment designed for environments with significant temperature variation.
This temperature range can support applications such as industrial equipment, commercial machinery, smart equipment, and other embedded systems where environmental conditions may be less controlled than a typical office environment.
For projects involving extreme temperature, outdoor exposure, rapid temperature cycling, condensation, or direct solar heating, engineers should evaluate the complete display assembly rather than the LCD panel alone. Enclosure ventilation, thermal management, optical bonding, touch-panel construction, and system-level heat generation can all influence actual operating performance.
The ultra-wide format is well suited to industrial equipment where the HMI needs to display multiple parameters without occupying a large vertical area.
Manufacturers can use the display for machine status, operating parameters, alarms, production information, control buttons, and process indicators.
The combination of CTP touch interaction and a horizontal interface can help create a modern and simplified machine-control experience.
Smart appliances increasingly use embedded displays to provide configuration and operating information.
The 13.6-inch bar LCD can be integrated into products where a long horizontal interface fits the industrial design better than a conventional rectangular display.
Possible applications include smart kitchen equipment, smart home control equipment, automated appliances, and other connected devices.
The long horizontal format is also suitable for smart audio products.
The display can be used for volume adjustment, playback controls, mode selection, status information, or other interactive functions. Its unusual form factor can become part of the visual identity of a premium smart speaker or professional audio product.
Commercial equipment often requires an intuitive interface that combines information display with direct user interaction.
The 500-nit brightness and capacitive touch panel make this module a candidate for indoor vending machines, self-service equipment, product information terminals, and other commercial interfaces.
The module is particularly relevant to HMI designers looking for an alternative to standard 16:9 screens.
Its ultra-wide layout can be used to create customized dashboards where horizontal information hierarchy is more important than vertical content.
Selecting a display for an OEM or industrial product involves more than choosing resolution and screen size. Mechanical dimensions, interface compatibility, touch performance, operating temperature, brightness, lifecycle requirements, and supply stability all need to be considered.
Aptus Display is a professional LCD module manufacturer and display solution provider based in Shenzhen, China, with more than a decade of experience in TFT LCD and customized display solutions. The company works with customers in Europe, the United States, and other international markets and supports projects from prototype development through mass production.
Aptus Display's engineering capabilities cover standard LCD modules as well as customized display solutions. Depending on project requirements, support can include LCD selection, touch-panel integration, interface matching, mechanical customization, optical optimization, and technical assistance.
The company's product portfolio includes TFT LCD modules, touch-panel LCD modules, bar-type LCD displays, wide-temperature displays, LCD accessories, and other specialized display solutions.
For OEM and ODM projects, working directly with an experienced display supplier can reduce integration risks and make it easier to coordinate LCD, touch, interface, mechanical, and production requirements.
The 13.6-inch 1920×168 touch bar LCD is suitable as a standard starting point, but different projects may require different specifications.
Depending on application requirements, customers can discuss:
Custom touch-panel configurations
Cover glass requirements
Brightness optimization
Interface and cable requirements
Mechanical integration
Touch-controller configuration
Optical bonding requirements
Anti-glare or optical treatments
Customized mounting solutions
Prototype samples
Mass-production support
Aptus Display's engineering team can evaluate project requirements and recommend a suitable display architecture before customers finalize their hardware design.
For engineers and purchasing teams evaluating this display, several points should be confirmed before sample approval.
First, verify that the host system supports the module's 30-pin eDP interface and electrical requirements.
Second, confirm the mechanical envelope. The module size is approximately 350.7 × 43.6 × 9.6 mm, while the active display area is 344.16 × 30.11 mm.
Third, evaluate whether 500 cd/m² is appropriate for the final ambient-light environment.
Fourth, test the CTP touch panel together with the final enclosure, cover material, grounding structure, and system electronics. Touch performance can change after complete system integration.
Finally, for commercial or industrial products requiring long-term availability, customers should discuss lifecycle, forecast quantity, sample approval, production schedule, and supply requirements with the display supplier.
No. This is an ultra-wide bar-type LCD module with a 1920×168 resolution. Its long horizontal format is designed for applications where a conventional 16:9 display is unsuitable.
Yes. The product integrates a capacitive touch panel (CTP), providing an interactive touch interface.
The module uses a 30-pin eDP interface. System designers should verify the host controller, pin assignment, timing, power, and cable configuration before integration.
The 500 cd/m² brightness is suitable for many indoor and bright indoor environments. However, direct-sunlight applications generally require a system-level evaluation and potentially higher brightness, optical bonding, anti-glare treatment, and thermal optimization.
The specified operating temperature range is -20°C to +70°C.
Aptus Display provides customized LCD and touch display solutions. Depending on project requirements, customers can discuss mechanical, optical, touch, interface, cable, and other display-related customization requirements with the engineering team.
Typical applications include industrial control panels, smart appliances, smart audio systems, vending machines, commercial equipment, and embedded HMI systems. The ultra-wide form factor is especially useful when horizontal information needs to be presented in a narrow installation area.
If you are developing an industrial HMI, smart appliance, commercial terminal, vending machine, smart speaker, or other embedded product that requires an ultra-wide interactive display, the 13.6-inch 1920×168 30-pin eDP 500-nit CTP Touch Bar LCD Module provides a practical starting point.
