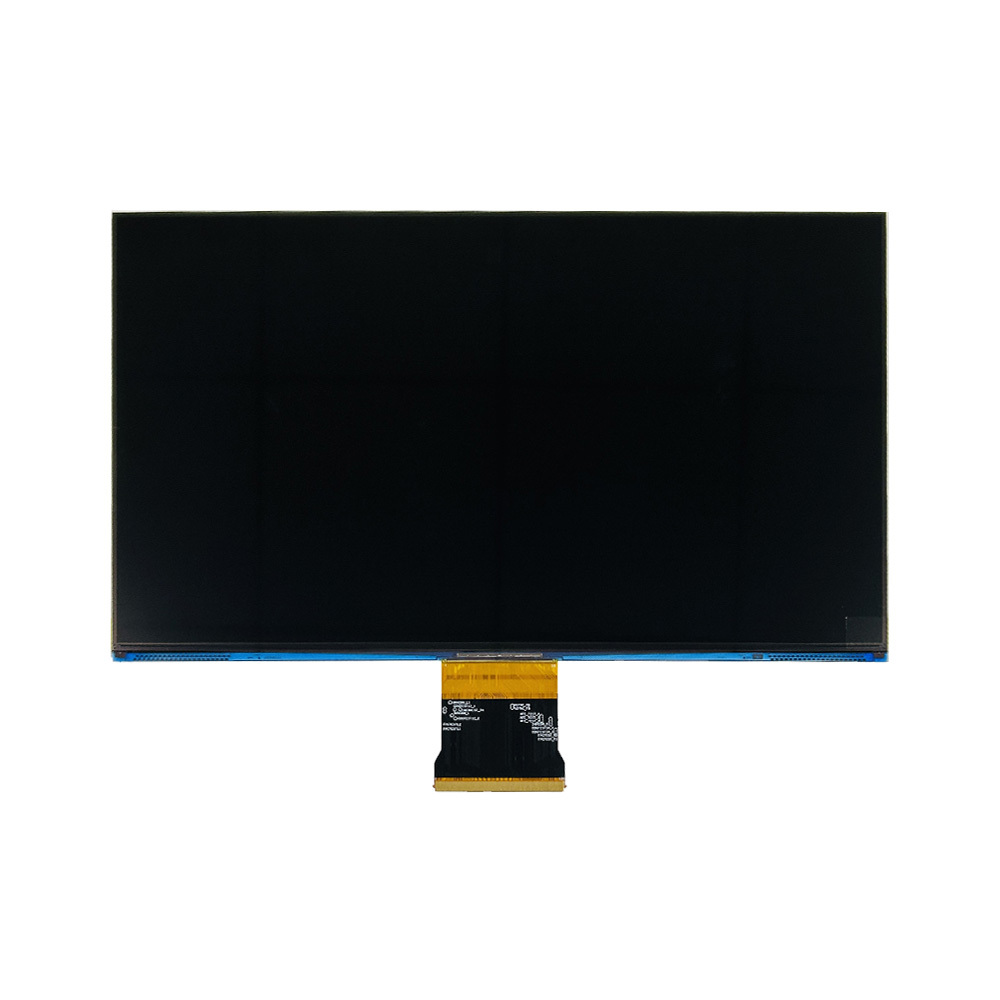

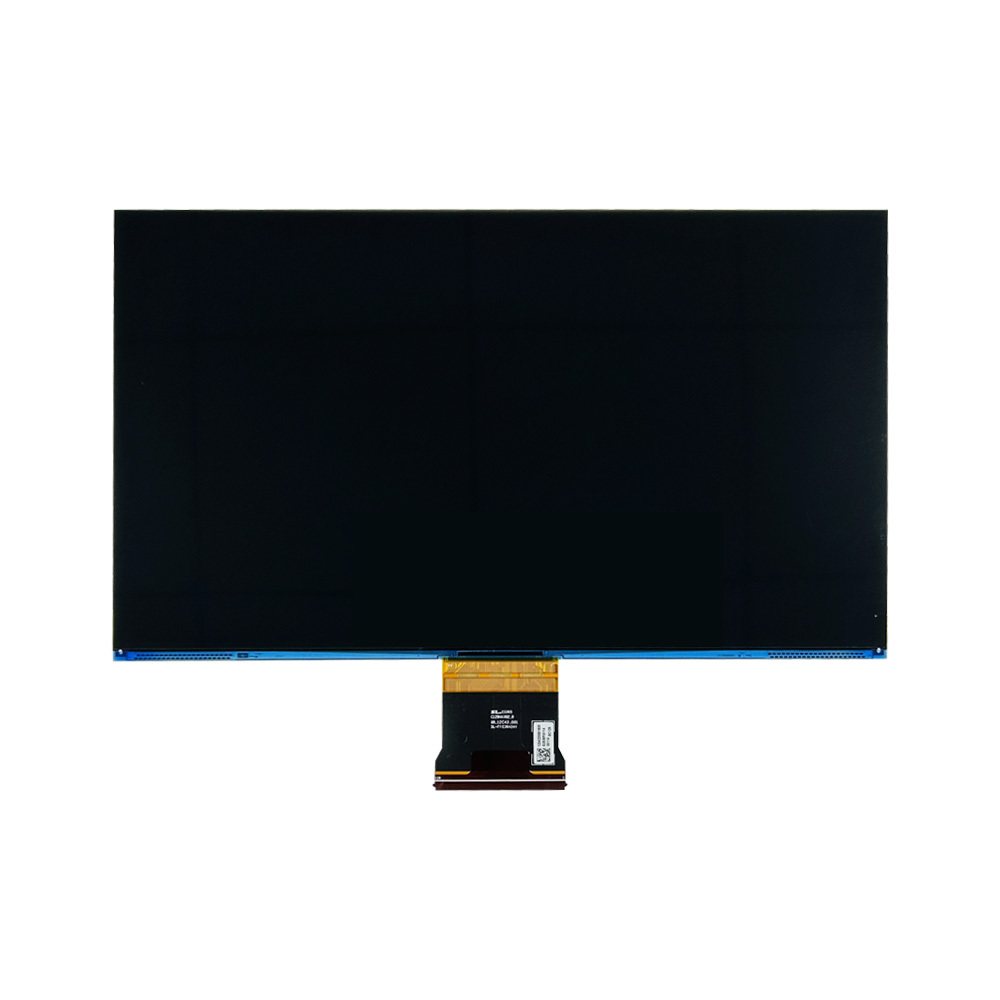

Model: C129HAX02.0
The C129HAX02.0 is a 12.88-inch LTPS TFT LCD with AHVA wide viewing technology, delivering Full HD 1920×1080 resolution and in-cell touch capability.
Engineered for automotive environments, it combines exceptional clarity, rugged durability, and smooth touch performance, making it ideal for infotainment, navigation, and control systems.
| Feature | Details |
|---|---|
| Model Number | C129HAX02.0 |
| Display Size | 12.88 inches (Diagonal) |
| Resolution | 1920 × 1080 (Full HD) |
| Panel Technology | LTPS TFT-LCD with AHVA |
| Interface | LVDS |
| Touch Solution | In-cell touch |
| Active Area | 285.12 × 160.38 mm |
| Pixel Pitch | 0.1485 × 0.1485 mm |
| Color Arrangement | RGB Stripe |
| Overall Dimensions | 289.12 × 169.68 mm |
| Display Mode | Normally Black |
| Surface Treatment | HC (Upper POL) / AG (Bottom POL) |
| Operating Temp. | –40 °C to +85 °C |
| Storage Temp. | –40 °C to +95 °C |
| Contrast Ratio | 1200:1 (Typ.) |
| Response Time | 20 ms @ 25°C |
| Viewing Angle | H: ±85°, V: +85°/-85° |
| Transmittance | 4.76% (Typ.) |
| NTSC Coverage | 86% |
| Reliability Tests | Vibration, Drop, Heat Shock, High Temp/Humidity |
✅ Full HD Visuals – Crisp, high-definition images for maximum clarity.
✅ Wide Viewing Angles – AHVA technology keeps colors accurate from any position.
✅ Responsive Touch – In-cell touch ensures smooth and seamless control.
✅ Automotive-Grade Reliability – Operates in –40 °C to +85 °C, resistant to shock and vibration.
✅ High Optical Performance – 1200:1 contrast ratio for excellent visibility in any light.
Automotive infotainment systems
