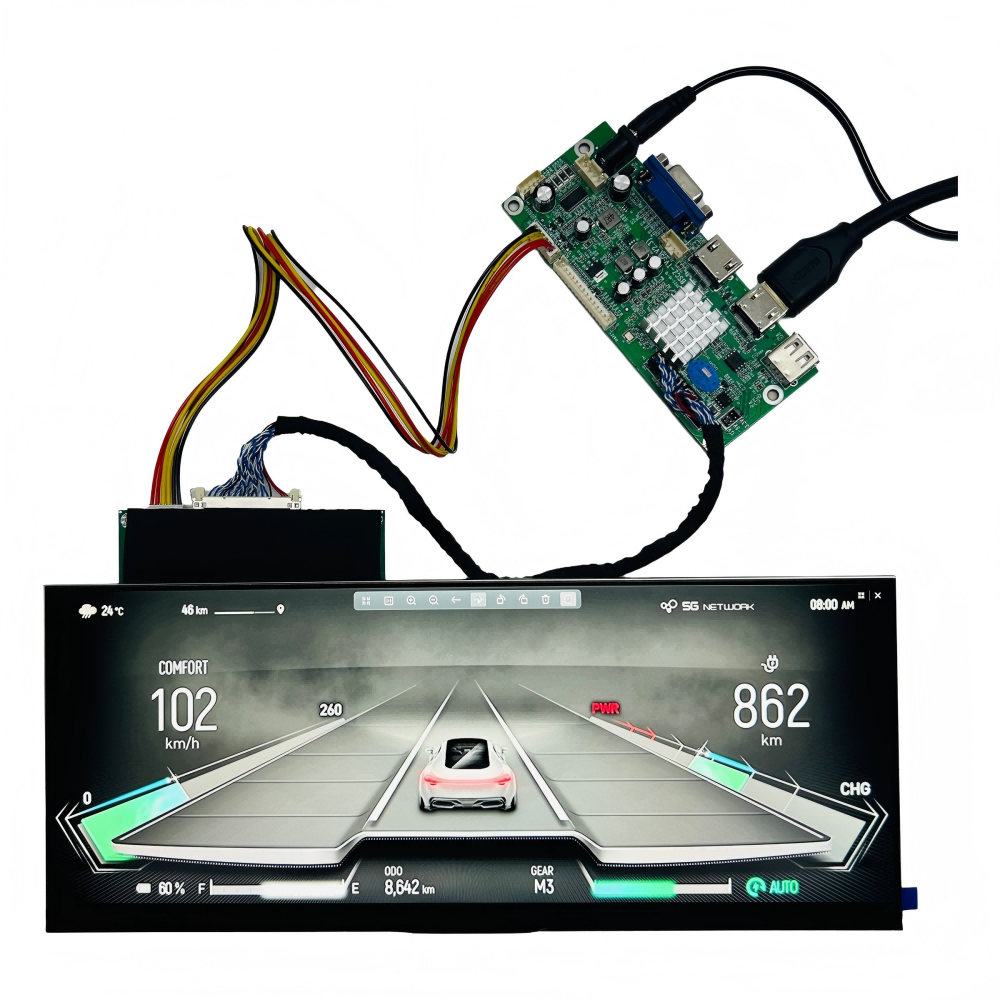

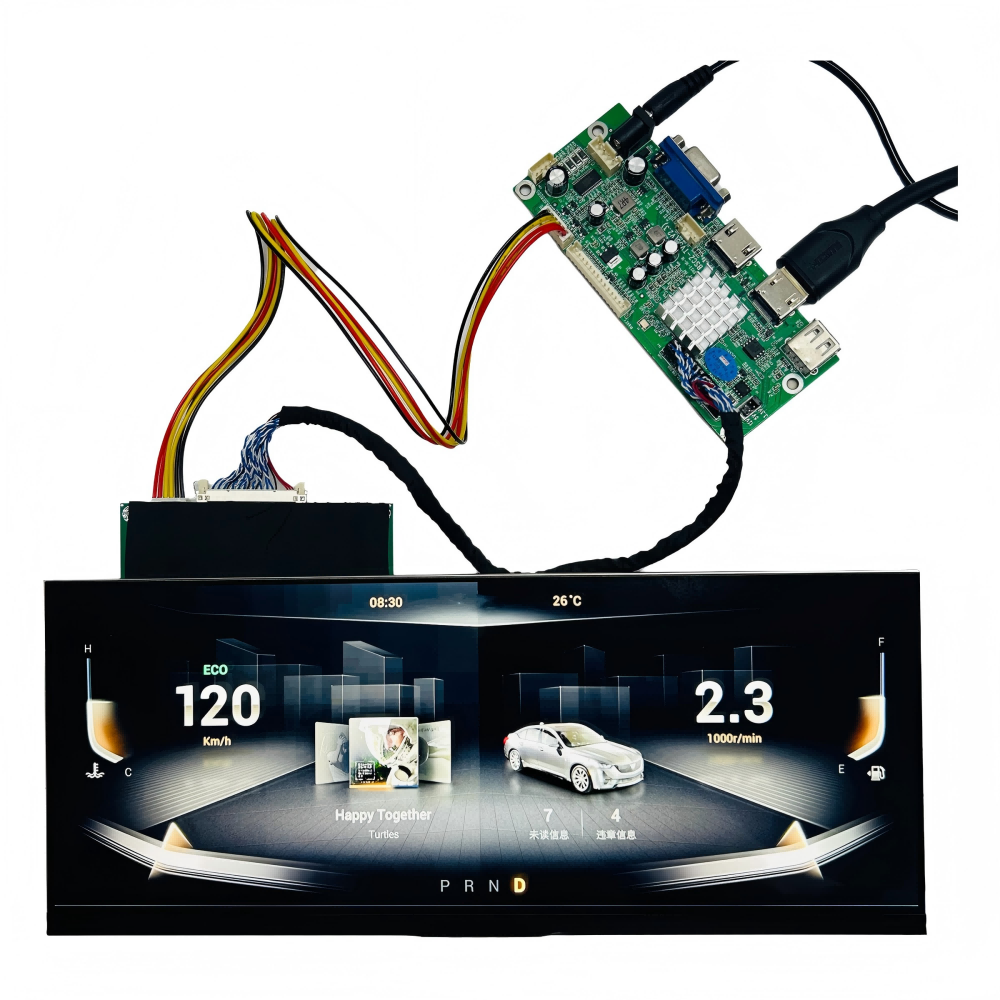

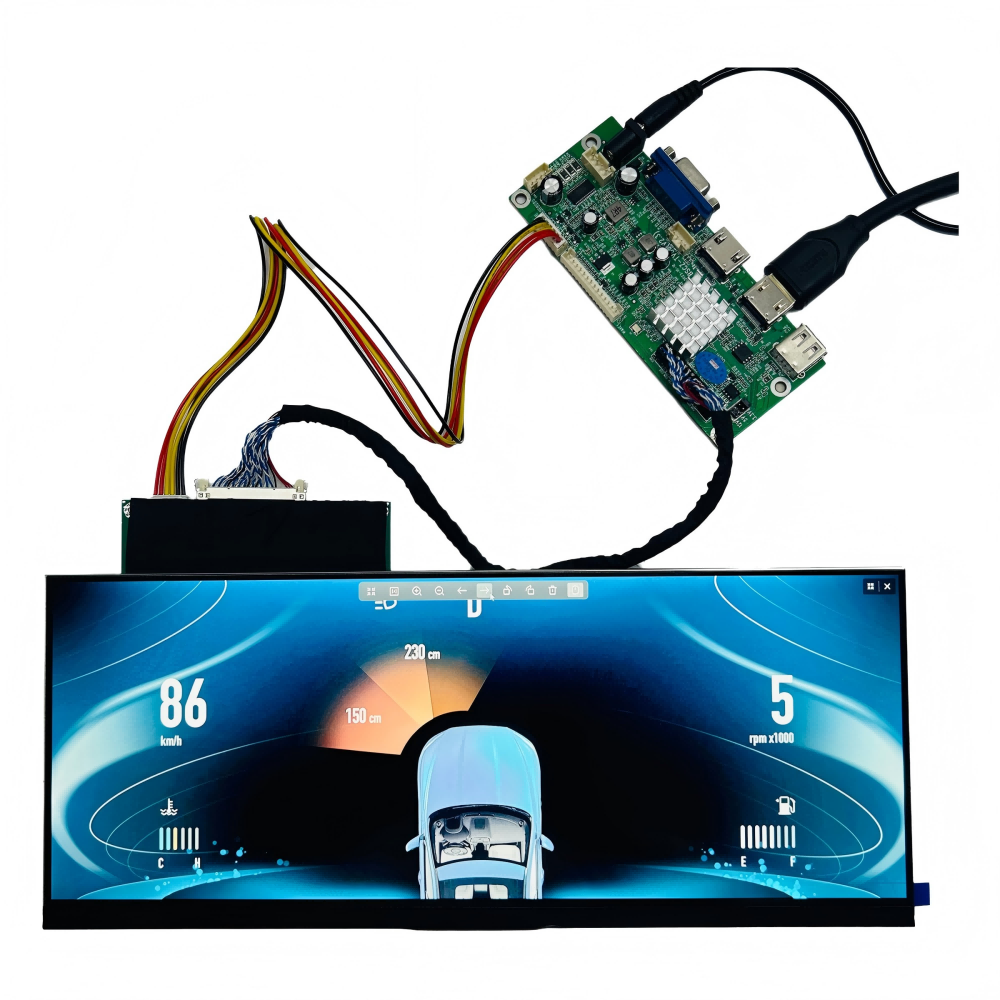

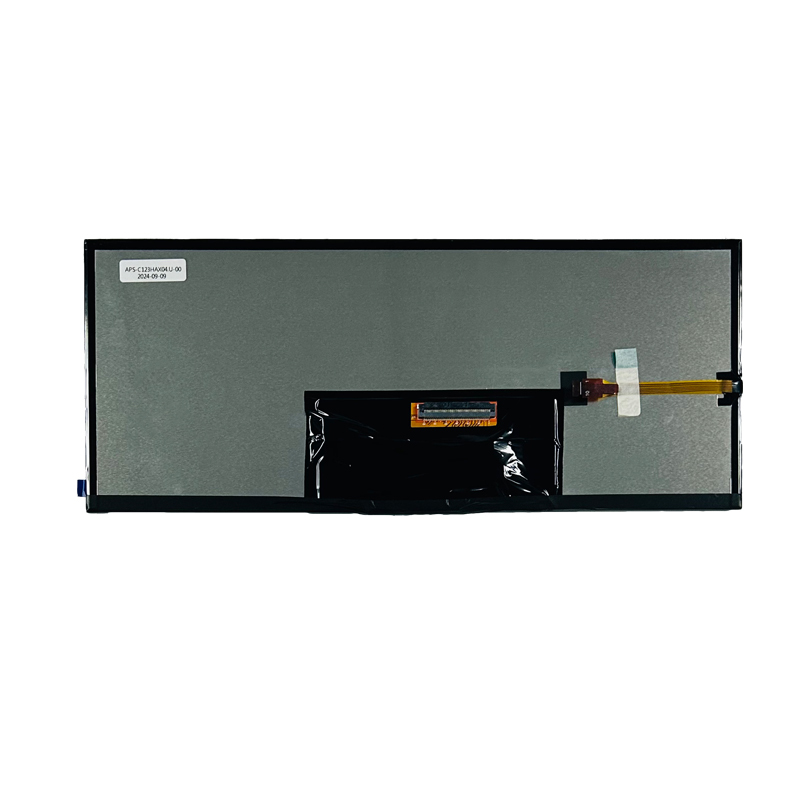

12.3 Inch 1920x720 LVDS IPS Automotive LCD Display

Name: 12.3 Inch 1920x720 LVDS IPS Automotive LCD Display
Brand: Shenzhen Aptus Technology Co.,Ltd
SKU: APS-C123HAX04.U-00
Availability: InStock
Rating: 5 (1 reviews)

No.APS-C123HAX04.U-00

►Size : 12.3 inch

►Resolution : 1920 x 720 dots

►View Direction : IPS

►Interface : LVDS

►operation temperature:-30~+85℃

Introducing Aptus's 12.3-inch 1920x720 LVDS IPS automotive LCD display, designed to deliver superior image quality and reliability for automotive applications. As a leading custom LCD display manufacturer, we offer tailored solutions to meet your specific requirements, ensuring both performance and environmental responsibility.

Get The Latest Quote

SPECIFICATION

Automotive LCD Module - APS-C123HAX04. U-00

Product Name: APTUS Technology CO., LTD. Automotive LCD Module

Overview:
APTUS Technology CO., LTD. is proud to introduce the APS-C123HAX04. U-00, a 12.3-inch automotive LCD module built on the AUO C123HAX04. U FOG display. This module is designed to deliver high-resolution visuals and robust touch capabilities, making it ideal for a variety of in-vehicle applications.

Key Features:
- Display Technology: The APS-C123HAX04. U-00 utilizes LTPS & Transmissive TFT-LCD with AHVA (Advanced Hyper View Angle) technology, ensuring wide viewing angles and vibrant colors for clear visibility under various lighting conditions.
- High Resolution: Boasting a 1920RGB x 720 resolution, the module provides crisp and detailed images, perfect for navigation systems, infotainment displays, and digital instrument clusters.
- In-Cell Touch Sensor: Equipped with an in-cell touch sensor, this module offers intuitive touch control, enhancing user interaction within the vehicle.
- Interface Compatibility: With 2 Port LVDS interface, the module ensures seamless integration with existing automotive systems.
- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this module is an environmentally responsible choice for automotive manufacturers.

Technical Specifications:
- Display Resolution: 1920 RGB(H) x 720 (V) pixels
- Active Area: 292.032 mm (H) x 109.512 mm (V)
- Screen Size: 12.3-inch diagonal
- Dot Pitch: 152.1 μm x 152.1 μm
- Color Configuration: R. G. B. Stripe
- Color Depth: 16.7 million colors
- Overall Dimension: 299.03 mm (H) x 122.89 mm (V) x 10 mm (T)
- Display Mode: Normally Black
- Surface Treatment: Hard Coating

Touch Panel Specifications:
- Sensor Mode: In-cell Self-Capacitance
- Touch Panel Controller: Focal FT7253 TDDI
- TP Channel: 960 channels (48x20)
- Sensor Pitch: 6.084mm x 5.475mm
- Multi-Touch: 10 points
- Accuracy: Center ≤±1, Edge ≤±2.0 @8mm Copper Pillar
- Linearity: Center ≤±1, Edge ≤±2.0 @8mm Copper Pillar
- Jitter: Fixed touch input ±1mm, touch input ±1.5mm
- Report Rate: 120Hz
- Finger Separation: 15 mm (x-y axis), 18mm (diagonal)

Electrical Specifications:
- Power Supply Voltage: VCI 3.0V - 3.6V
- LVDS DC Electrical Characteristics: Operating frequency LVDS mode FLVDS 95 MHz

Optical Performance:
- Response Time: 25 ms (Tr + Tf at θ=0° @25℃)
- Contrast Ratio: 1000:1 (at θ=0°)
- Viewing Angle: 80° to 85° (Top, Bottom, Left, Right) with CR≥10

Reliability and Durability:
- Temperature Range: Withstands storage and operation from -40°C to 95°C, ensuring reliable performance in extreme climates.
- Shock and Vibration Resistance: Designed to endure shocks and vibrations, making it suitable for the dynamic environment of automotive use.

Conclusion:
The APS-C123HAX04. U-00 Automotive LCD Module from APTUS Technology CO., LTD., based on the AUO C123HAX04. U panel, is a high-performance display solution for the automotive industry. Its combination of high resolution, advanced technology, and robust design make it an ideal choice for automotive manufacturers seeking to enhance the in-vehicle experience. For more information or to place an order, contact APTUS Technology CO., LTD. today.

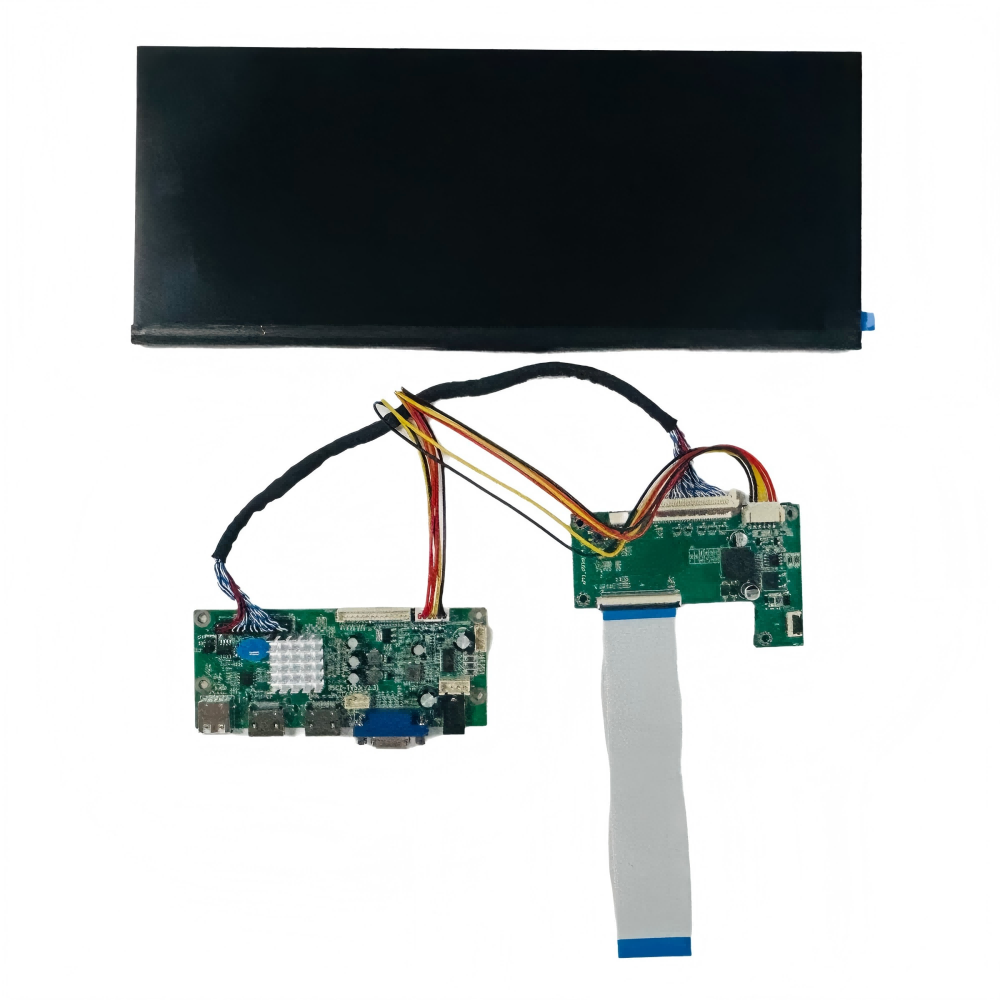

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.

Automotive LCD Display Product List:

Size (inch)	Resolution	Model NO.	Active Area (mm)	Outline Dimensions (mm)	Interface	Brightness	Operation Temperature(℃)	Storage Temperature(℃)
7.0	800*480	C070VAN02.J	152.4*91.44	167.3109.21.25	LVDS	FOG	- 30~85	- 40~95
7.0	1280*720	C070EAN03.1	156.48*80.136	167936	LVDS	FOG	- 30~85	- 40~95
8.8	1280*480	C088VAN03.0	209.28*78.48	213.8888.480.77	LVDS	FOG	- 30~85	- 40~95
10.1	1280*720	C101EAX01.0	223.68*125.82	231136.11.076	LVDS	FOG	- 30~85	- 40~95
10.3	1920*720	C103HAX01.A	243.648*91.368	248.65100.576.7	LVDS	FOG	- 30~85	- 40~95
12.3	1920*720	C123HAX04.U	292.032*109.512	296.032118.8441.056	LVDS	FOG	- 40~85	- 40~95
15.6	1920*1080	C156HAA01.2	344.16*193.59	349.16203.220.25	LVDS	FOG	- 40~85	- 40~95
7.0	1280*720	APS-C070EAN03.1-00	156.48*80.136	167936	LVDS	1000	- 30~85	- 40~95
10.3	1920*720	APS-C103HAX01.A-00	243.648*91.368	250.651066.7	LVDS	1000	- 30~85	- 40~95
12.3	1920*720	APS-C123HAX04.G-00	292.032*109.512	302.06125.466.67	LVDS	1000	- 30~85	- 40~95
12.3	1920*720	APS-C123HAX04.U-00	292.032*109.512	299.03122.8910	LVDS	1000	- 40~85	- 40~95
15.6	1920*1080	C156HAA01.2	344.16*193.59	366.09220.689.5	LVDS	960	- 40~85	- 40~95

Product Detailed Description

High-Resolution Display for Enhanced Visuals
Our 12.3-inch automotive LCD display features a 1920x720 resolution, providing sharp and vibrant images essential for modern vehicle interfaces.

Advanced Hyper Viewing Angle (AHVA) Technology
Equipped with AHVA technology, this display ensures wide viewing angles and consistent color reproduction, enhancing visibility for both drivers and passengers.

In-Cell Touch Technology for Seamless Interaction
The integrated in-cell touch sensor offers a responsive and intuitive user experience, streamlining the interface without additional touch layers.

Eco-Friendly and Energy-Efficient Design
Committed to sustainability, our display is RoHS compliant and designed for low power consumption, reducing environmental impact and promoting energy efficiency.

Customizable Solutions for Automotive Applications
As a leading custom LCD display manufacturer, Aptus provides tailored solutions, including brightness adjustments, interface configurations, and optional touch panels, to meet your specific automotive needs.

Durable and Reliable for Automotive Environments
Built to withstand extreme temperatures and vibrations, this display ensures reliable performance in various automotive conditions.

Looking for a high-quality, customizable, and eco-friendly display solution for your automotive project? Aptus's 12.3-inch 1920x720 LVDS IPS automotive LCD display offers exceptional clarity, durability, and energy efficiency. Contact us today to discuss your bulk order and custom requirements.
