Automotive LCD Display - C123HAX04.U

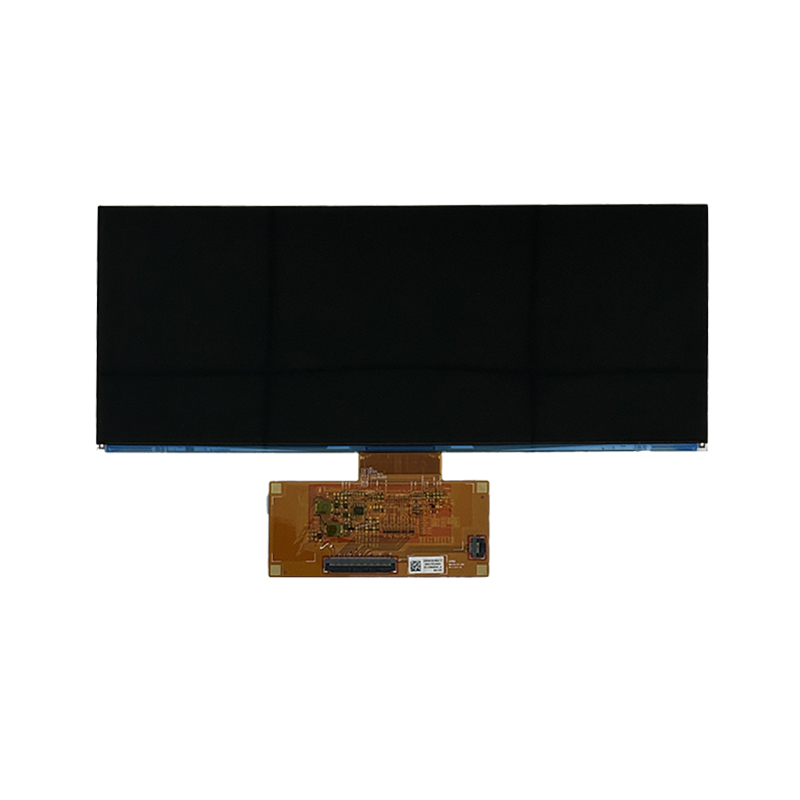

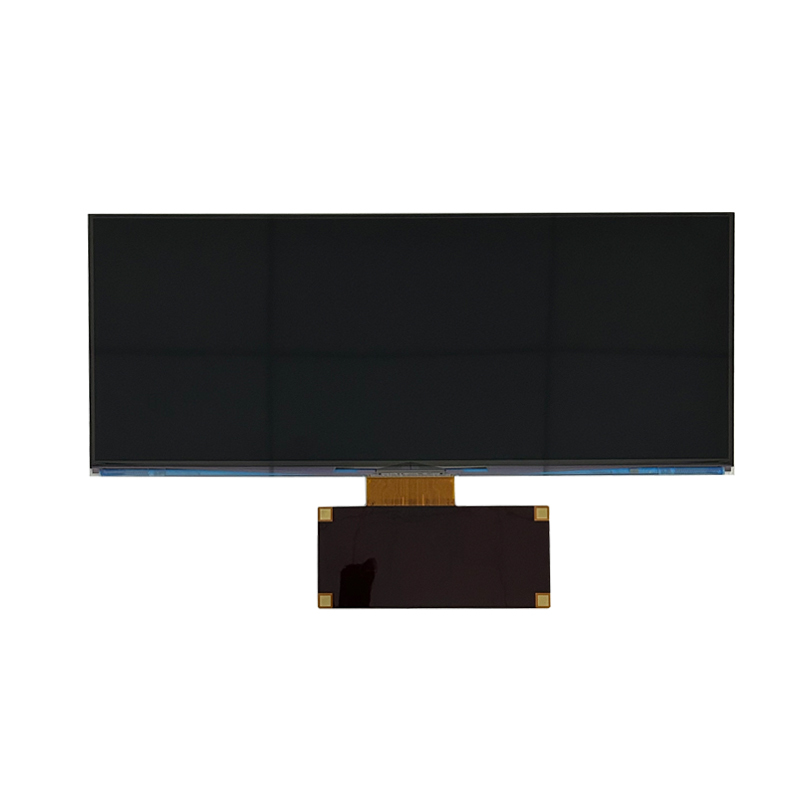

Product Name: AU Optronics C123HAX04.U Automotive LCD Display FOG

Overview:
Aptus, as an authorized agent of AU Optronics, is excited to introduce the C123HAX04.U, a 12.3-inch TFT-LCD module designed for automotive applications. This display features AHVA (Advanced Hyper View Angle) technology and in-cell touch capabilities, providing a high-quality visual experience and interactive control within vehicles.

Key Features:
- Display Specifications: The C123HAX04.U offers a 1920 RGB x 720 resolution in an RGB stripe dot arrangement, ensuring high-definition visuals for navigation, entertainment, and control systems.
- Advanced AHVA Technology: Enjoy wide viewing angles and accurate color reproduction with AU Optronics' AHVA technology, ideal for various lighting conditions in the car.
- Interface Compatibility: With 2 Port LVDS interface, this display module ensures easy integration with a variety of automotive systems.
- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this display is an environmentally conscious choice for automotive manufacturers.
- In-Cell Touch Technology: Equipped with in-cell touch sensor technology, this display simplifies the design and enhances the durability of touch interactions within the vehicle.

Technical Specifications:
- Display Resolution: 1920 RGB(H) x 720 (V) pixels
- Active Area: 292.032 mm (H) x 109.512 mm (V)
- Screen Size: 12.3-inch diagonal
- Dot Pitch: 152.1 x 152.1 μm
- Color Configuration: R. G. B. Stripe
- Color Depth: 16.7 million colors
- Overall Dimension: 296.032 mm (H) x 118.844 mm (V) x 1.056 mm (T) Without FPCA
- Weight: 93.18 +/- 10%
- Display Mode: Normally Black
- Surface Treatment: H Hard Coating

Touch Panel Specifications:
- Sensor Mode: In-cell Self-Capacitance
- Touch Panel Controller: Focal FT7253 TDDI
- TP Channel: 960 channels (48x20)
- Sensor Pitch: 6.084mm x 5.475mm
- Multi-Touch: 10 points
- Accuracy: Center ≤±1, Edge ≤±2.0 @8mm Copper Pillar
- Linearity: Center ≤±1, Edge ≤±2.0 @8mm Copper Pillar
- Jitter: Fixed touch input ±1mm, touch input ±1.5mm
- Report Rate: 120Hz
- Finger Separation: 15 mm (x-y axis), 18mm (diagonal)
- Anti-Water Support: Yes
- Glove Touch: PMMA/Leather<3mm, ≤2 point

Electrical Specifications:
- Power Supply Voltage: VCI 3.0V - 3.6V
- LVDS Interface: 2 Port LVDS

Optical Performance:
- Response Time: 25 ms (at 25°C), 200 ms (at -20°C), 400 ms (at -30°C)
- Contrast Ratio: 1000:1 (at θ=0°)
- Viewing Angle: 80° (Top / Bottom / Left / Right) with CR≥10
- Transmittance: 4.04% (θ=0°)
- Chromaticity: Wx, Wy, Rx, Ry, Gx, Gy, Bx, By (θ=0°) - Values provided based on C-light

Reliability and Durability:
- Temperature Range: Withstands storage and operation from -40°C to 95°C, ensuring reliable performance in extreme climates.
- Shock and Vibration Resistance: Designed to endure shocks and vibrations, making it suitable for the dynamic environment of automotive use.

Conclusion:
The C123HAX04.U Automotive LCD Display FOG from AU Optronics, offered by Aptus, is a high-performance display solution for the automotive industry. Its combination of high resolution, advanced technology, and robust design make it an ideal choice for automotive manufacturers seeking to enhance the in-vehicle experience. For more information or to place an order, contact Aptus today.


Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
