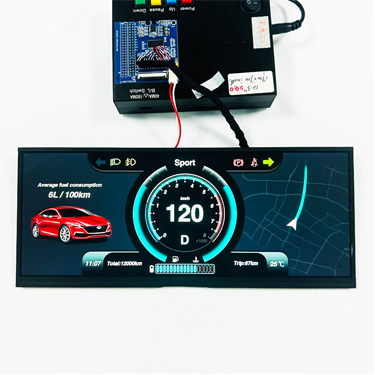

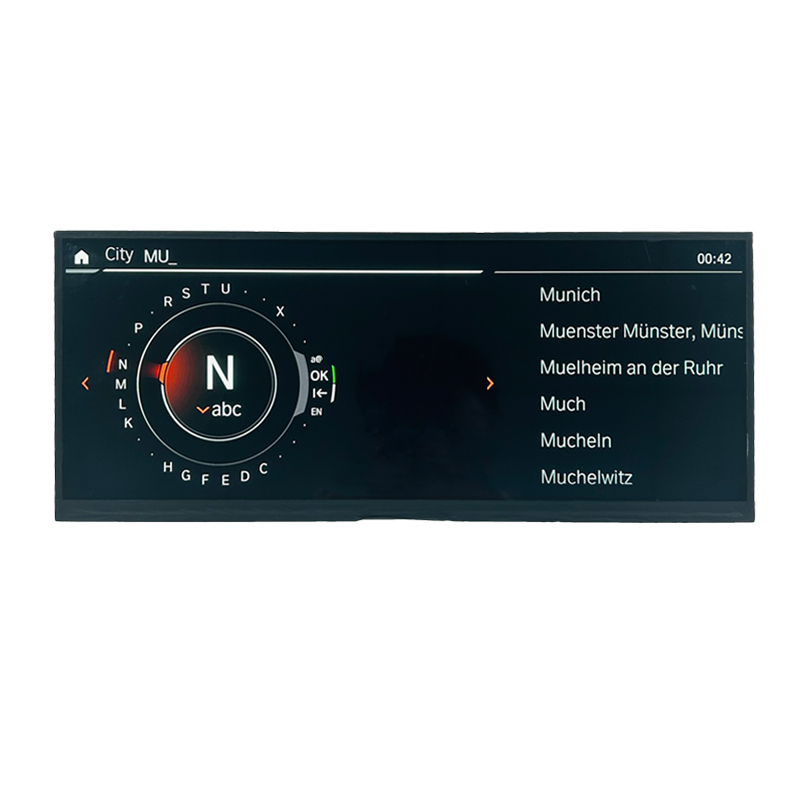

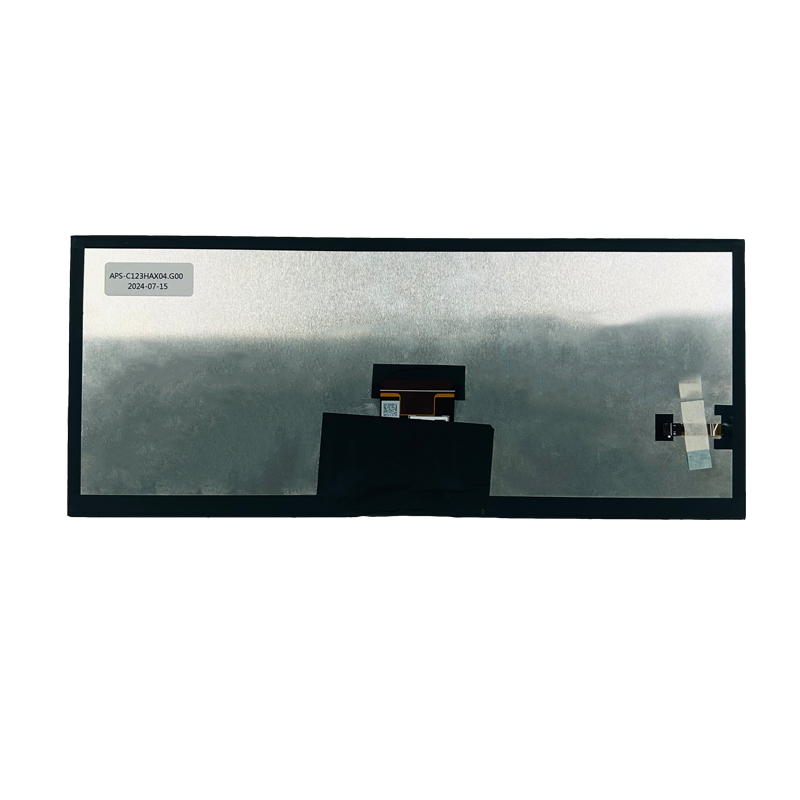

Automotive LCD Module - APS-C123HAX04.  G-00

Product Name: APTUS Technology CO., LTD.   Automotive LCD Module

Overview:
APTUS Technology CO., LTD. presents the APS-C123HAX04.  G-00, a 12.3-inch automotive LCD module built on the AUO C123HAX04.  G FOG display.   This module is designed to meet the stringent requirements of in-vehicle applications, offering a combination of high-resolution display and advanced touch technology for a seamless driving experience.

Key Features:
- Display Technology: The APS-C123HAX04.  G-00 utilizes LTPS & Transmissive TFT-LCD with AHVA (Advanced Hyper View Angle) technology, ensuring wide viewing angles and vibrant colors for clear visibility under various lighting conditions.
- High Resolution: With a 1920RGB x 720 resolution, the module delivers crisp and detailed images, ideal for navigation systems, infotainment displays, and digital instrument clusters.
- In-Cell Touch Sensor: Equipped with an in-cell touch sensor, this module provides intuitive touch control, enhancing user interaction within the vehicle.
- Interface Compatibility: Featuring a 1 Port LVDS interface, the module ensures seamless integration with existing automotive systems.
- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this module is an environmentally responsible choice for automotive manufacturers.

Technical Specifications:
- Display Resolution: 1920 RGB(H) x 720 (V) pixels
- Active Area: 292.032 mm (H) x 109.512 mm (V)
- Screen Size: 12.3-inch diagonal
- Dot Pitch: 152.1 μm x 152.1 μm
- Color Configuration: R. G. B. Stripe
- Color Depth: 16.7 million colors
- Overall Dimension: 296.032 mm (H) x 118.844 mm (V) x 1.024 mm (T)
- Weight: 93.18g +/- 10%
- Display Mode: Normally Black
- Surface Treatment: H Hard Coating

Touch Panel Specifications:
- Sensor Mode: In-cell Self-Capacitance
- Touch Panel Controller: Focal FT7251 TDDI
- TP Channel: 960 channels (48x20)
- Sensor Pitch: 6.084mm x 5.475mm
- Accuracy: Edge area <2.0mm, Center area <1.5mm
- Precision: Edge area <0.4mm, Center area <0.3mm
- Linearity: Edge area <2.0mm, Center area <1.5mm
- Jitter: Edge area <0.3mm, Center area <0.2mm
- Report Rate: 60Hz
- Support Finger Numbers: 10 points
- Finger Separation: X & Y axis min 13mm / Diagonal min 15mm

Electrical Specifications:
- Power Supply Voltage: VCI 3.0V - 3.6V, AVDD 6.5V - 7.5V, AVEE -7.5V - -6.5V
- Gate Driver Voltage: VGH 13.5V - 14.5V, VGL -13.5V - -12.5V

Optical Performance:
- Response Time: 25 ms (Tr + Tf at θ=0°)
- Contrast Ratio: 800:1 (at θ=0°)
- Viewing Angle: 70° to 85° (Top, Bottom, Left, Right) with CR≥10

Reliability and Durability:
- Temperature Range: Withstands storage and operation from -40°C to 95°C, ensuring reliable performance in extreme climates.
- Shock and Vibration Resistance: Designed to endure shocks and vibrations, making it suitable for the dynamic environment of automotive use.

Packaging and Storage:
- Packing Form: Each module is carefully packaged to ensure safe transportation and storage.
- Module/Panel Label Information: Includes a unique serial number for traceability and quality control.

Conclusion:
The APS-C123HAX04.  G-00 Automotive LCD Module from APTUS Technology CO., LTD., based on the AUO C123HAX04.  G panel, is a high-performance display solution for the automotive industry.   Its combination of high resolution, advanced technology, and robust design make it an ideal choice for automotive manufacturers seeking to enhance the in-vehicle experience.   For more information or to place an order, contact APTUS Technology CO., LTD. today.

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
