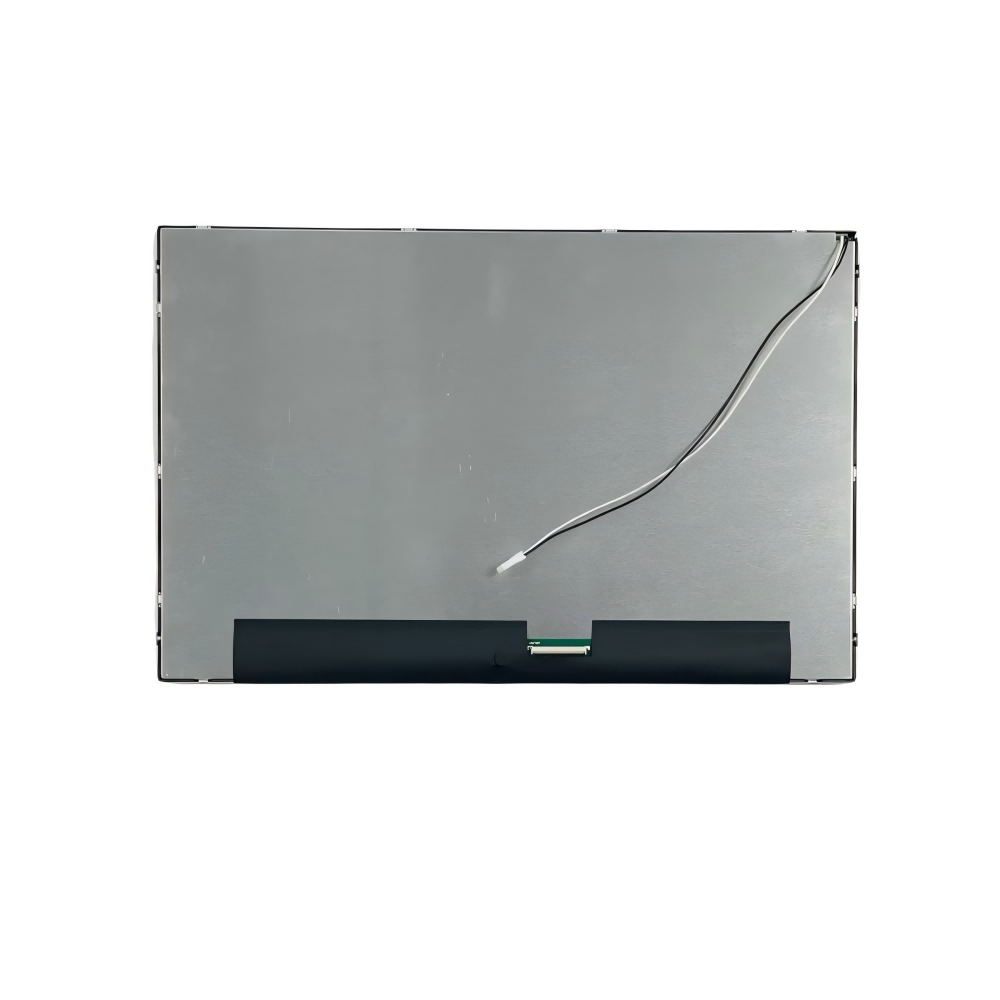

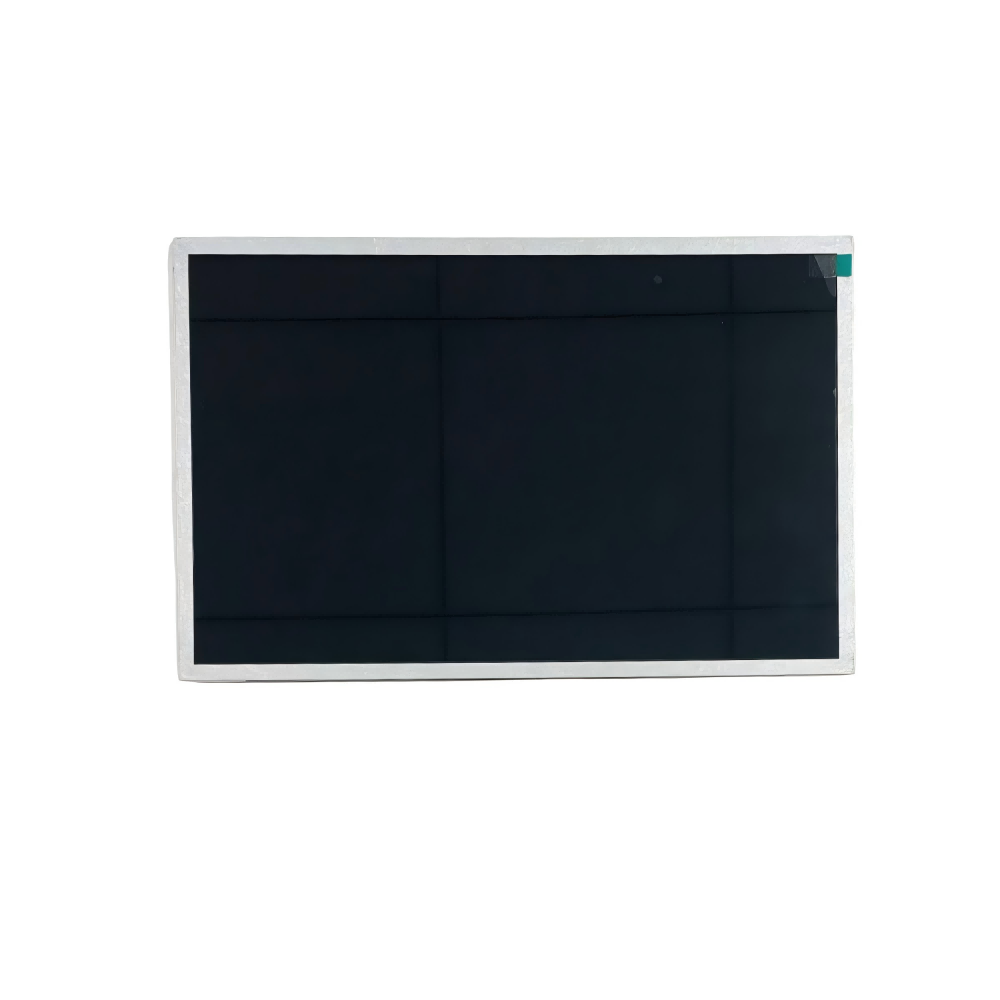

The DBT121BIHA01 is a 12.1-inch TFT LCD module developed for professional equipment rather than typical consumer electronics. Its 1280×800 resolution provides a 16:10 display format that offers additional vertical workspace compared with many conventional 1280×720 displays. This can be useful for industrial HMI interfaces where engineers need to display control buttons, system status, graphs, alarms, parameters, and monitoring information on the same screen.
The module provides an 800 cd/m² high-brightness backlight, helping improve readability in environments with stronger ambient illumination. It is therefore suitable for industrial equipment where the display cannot be installed in a dark office environment.
The display uses a 40-pin LVDS interface, providing a widely adopted connection method for industrial display systems. LVDS can be integrated with compatible industrial motherboards, display controller boards, embedded computers, and customized AD boards.
The module has an active area of 261.12 × 163.20 mm and an overall module size of 277.7 × 180.6 × 6 mm, giving system designers useful flexibility when planning the mechanical structure of their equipment.
One of the major advantages of this industrial LCD module is its 800 cd/m² brightness. Higher brightness can improve image visibility in factory environments, control rooms with strong lighting, equipment cabinets, and other professional applications where conventional 250–400 cd/m² displays may appear too dim.
The 800nits configuration provides additional optical margin for industrial equipment designers. Depending on the final enclosure, cover glass, touch panel, ambient light, and installation position, additional optical optimization may also be considered.
The 1280×800 resolution delivers a good balance between image detail, system performance, and compatibility.
For industrial HMI applications, this resolution can provide enough workspace for graphical interfaces, equipment status panels, parameter menus, trend charts, alarm information, and control functions.
The 16:10 aspect ratio is also useful for applications that require more vertical interface space.
The DBT121BIHA01 uses a 40-pin LVDS interface. LVDS is widely used in industrial display systems because it provides a practical method of transmitting display data between a controller and LCD module.
When selecting a replacement or new industrial LCD module, engineers should verify the complete interface specification rather than relying only on the number of pins. Pin definition, signal format, voltage requirements, timing, connector orientation, and compatible controller-board configuration should all be checked before mass production.
Aptus Display can support engineers in confirming compatibility before ordering.
The specified viewing direction is 85/85/85/85, providing broad viewing characteristics from different directions.
This is particularly useful for industrial HMI equipment where operators may not always look directly at the display from the center position. Equipment installed at an angle or used by multiple operators can benefit from consistent visual performance across a wider viewing area.
The module thickness is approximately 6 mm, helping equipment manufacturers save internal space.
A slim display module can be particularly valuable when designing compact control terminals, embedded HMI systems, automation equipment, and instrument panels where internal components compete for limited enclosure space.
| Parameter | Specification |
|---|---|
| Product Model | DBT121BIHA01 |
| Display Size | 12.1 inch |
| Display Type | TFT LCD Module |
| Resolution | 1280 × 800 pixels |
| Aspect Ratio | 16:10 |
| Active Area | 261.12 × 163.20 mm |
| Module Size | 277.7 × 180.6 × 6 mm |
| Interface | LVDS |
| Connector | 40 PIN |
| Brightness | 800 cd/m² |
| Viewing Direction | 85/85/85/85 |
| Backlight | White LED |
| Application Category | Industrial / Embedded Display |
| Typical Integration | HMI, Automation, Control Systems, Monitoring Equipment |
| Manufacturer | Aptus Display |
Note: Engineers should confirm the latest electrical, optical, mechanical, connector, and timing specifications with Aptus Display before production. Product specifications may be updated according to the applicable LCD panel revision.
Brightness is an important consideration when selecting an industrial display. A display that performs well in a laboratory or office may not provide the same visual experience inside a factory or equipment enclosure.
Industrial equipment may be installed under strong ceiling lighting, close to windows, near production lines, or in locations where ambient illumination changes throughout the day. An 800nits display provides substantially more luminance than standard low-brightness LCD modules.
However, brightness should not be considered independently. Engineers should evaluate brightness together with the display surface, cover glass, touch panel, optical bonding, ambient illumination, viewing angle, enclosure design, and backlight thermal management.
For applications requiring outdoor readability under direct sunlight, a higher-brightness configuration or additional optical design may be required. Aptus Display can evaluate these requirements on a project-by-project basis.

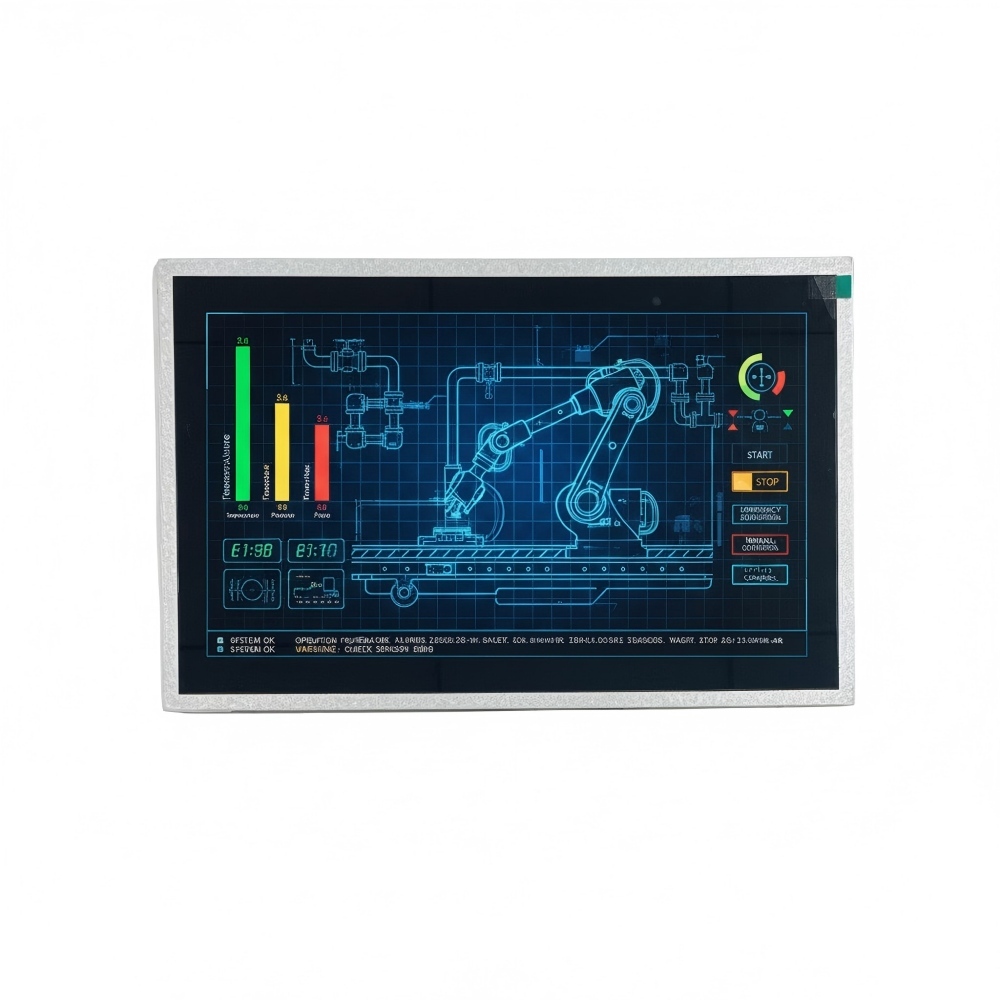

The 12.1-inch format is well suited to Human Machine Interface (HMI) systems. Operators can use the display to monitor production parameters, configure machines, view alarms, and control equipment.
The 1280×800 resolution provides sufficient interface space for graphical dashboards and control menus.
Factory automation equipment often requires a display that can operate continuously and provide stable visual feedback.
This LCD module can be integrated into automation machines, production equipment, inspection systems, PLC-based control systems, and operator terminals.
Control cabinets frequently require embedded displays for machine status, diagnostics, configuration, and maintenance.
The compact dimensions and LVDS interface make this module a candidate for customized cabinet-mounted display solutions.
The module can also be considered for embedded computing systems where a 12.1-inch high-brightness display is required.
Potential applications include industrial PCs, embedded monitoring terminals, data acquisition systems, process-control systems, and customized equipment interfaces.
Professional monitoring equipment often requires a larger display area than small instrument screens while maintaining a compact overall footprint.
The 12.1-inch 1280×800 format provides a useful balance between display area and system size.
Machine vision and inspection systems may use displays to present inspection results, production information, equipment status, or operator instructions.
When combined with a compatible controller and appropriate software, this display module can form part of a customized inspection-system interface.
When integrating the DBT121BIHA01 into a new product, several technical factors should be verified before finalizing the design.
First, confirm that the host controller supports the required LVDS signal configuration and 40-pin connector arrangement.
Second, check the mechanical dimensions. The module size is 277.7 × 180.6 × 6 mm, while the active display area is 261.12 × 163.20 mm. The equipment enclosure should provide sufficient clearance for the LCD, connector, cable routing, mounting structure, and surrounding components.
Third, thermal conditions should be evaluated. Although the display uses an LED backlight, the final system enclosure can affect heat dissipation. High ambient temperatures, sealed enclosures, and continuously operating backlights may require additional thermal design.
Fourth, optical conditions should be considered. If the display will be used behind a touch panel or protective glass, the additional optical layers can influence reflection, contrast, and perceived brightness.

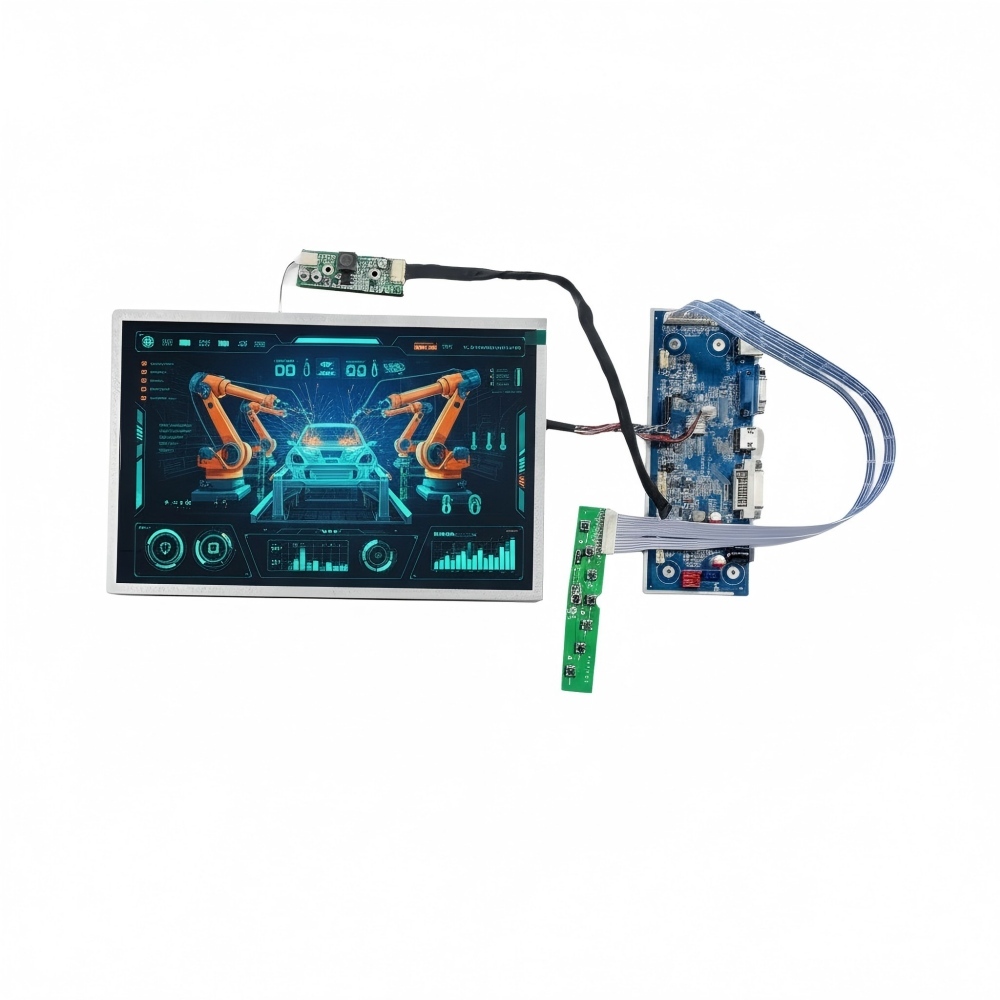

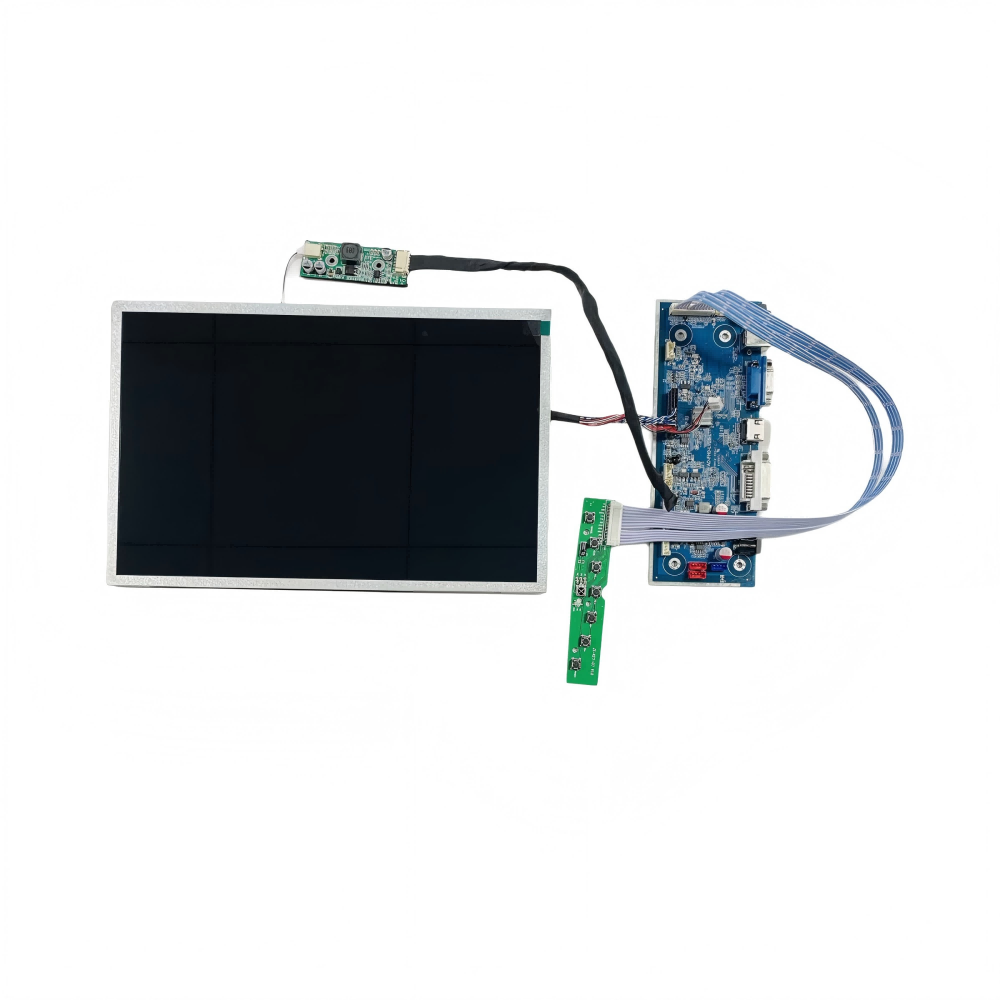

For projects requiring a touch panel, protective glass, customized cable, driver board, or mechanical integration, engineers can discuss the complete display assembly requirements with Aptus Display.
Not every industrial project can use a completely standard LCD module.
Aptus Display provides display customization and integration support for OEM and system-integrator projects. Depending on project requirements, customization may include:
Touch panel integration
Protective glass solutions
Optical optimization
LVDS cable customization
Connector and cable configuration
Driver board matching
Mechanical structure optimization
Display and touch integration
Prototype development
Engineering validation
Batch production support
This approach allows customers to develop a more complete display solution rather than purchasing an LCD panel without considering the complete system architecture.
Industrial display applications often require longer product lifecycles than consumer products. A display used in a machine or control system may remain in operation for many hours each day, sometimes continuously.
For this reason, product consistency, quality inspection, electrical verification, optical inspection, and reliability evaluation are important parts of industrial display supply.
Aptus Display focuses on providing display solutions for industrial and embedded applications, supporting customers from product selection and engineering evaluation through prototype development and volume supply.
For long-term projects, customers are encouraged to confirm lifecycle requirements, expected annual quantity, environmental conditions, and replacement strategy with the supplier at the beginning of the project.
Aptus Display is a professional LCD display supplier focused on industrial, embedded, and specialized display solutions. The company provides TFT LCD modules and related display integration services for international OEMs, system integrators, equipment manufacturers, and distributors.
Rather than treating an LCD module as an isolated component, Aptus Display can support customers with display selection, technical communication, customization, prototype evaluation, volume production, and after-sales assistance.
For projects involving industrial HMI, factory automation, embedded computers, control equipment, or specialized monitoring systems, this engineering-oriented approach can help reduce display integration risks.
The company also provides access to different LCD technologies and display interfaces, allowing customers to evaluate alternative solutions according to size, resolution, brightness, interface, environmental requirements, and mechanical constraints.
Yes. The DBT121BIHA01 is specifically positioned as an industrial TFT LCD module for control systems, automation equipment, industrial HMI, and embedded applications. Its 12.1-inch size, 1280×800 resolution, 800 cd/m² brightness, and LVDS interface make it suitable for many professional HMI designs.
The specified brightness is 800 cd/m² (800nits). This high-brightness configuration is designed to provide improved visibility in brighter industrial environments compared with standard low-brightness LCD modules.
The module uses a 40-pin LVDS interface. Before integration, the host controller, connector, signal configuration, timing, and electrical specifications should be verified for compatibility.
Yes. Aptus Display provides custom display integration services, including touch panel integration and other mechanical and optical customization options. Customers should provide the application, enclosure dimensions, touch requirements, quantity, and target environment so the engineering team can evaluate the appropriate solution.
Sample availability should be confirmed according to the current production status and project requirements. OEMs and system integrators can contact Aptus Display with the required quantity, application, and development schedule for sample and quotation information.
The 800nits brightness provides improved readability in bright environments, but outdoor direct-sunlight applications require a complete optical and thermal evaluation. Factors such as sunlight exposure, reflection, cover glass, touch panel, enclosure temperature, and required operating temperature should be considered before selecting the final configuration.
If you are developing an industrial HMI, automation machine, embedded computer, control terminal, monitoring system, or other professional equipment that requires a 12.1-inch 1280×800 high-brightness LVDS LCD module, the DBT121BIHA01 can be considered as a practical display solution.
