►Size : 11.26 inch
►Resolution : 440*1920 dots
►View Direction : IPS
►Interface : MIPI
►Brightness (cd/m²): 350

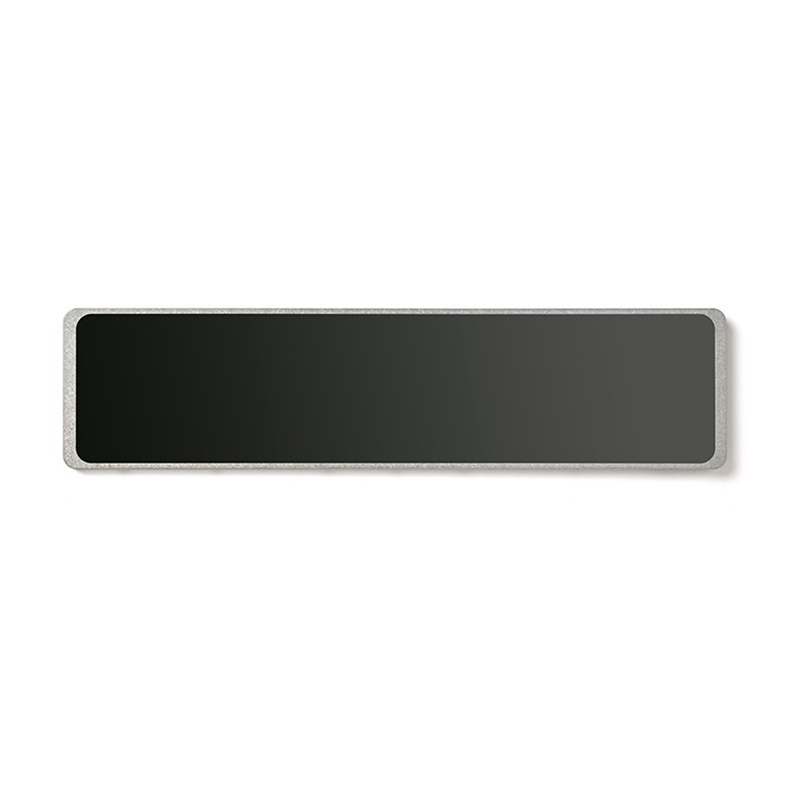

The 11.26-inch 440×1920 MIPI IPS TFT Bar LCD Display is a narrow-format display module designed for products and equipment that require a long, slim screen rather than a conventional rectangular display. Featuring a 440×1920 resolution, IPS viewing technology, MIPI 4-lane interface, 350 cd/m² brightness, and a compact 64.98 × 266.44 × 4.60 mm outline, this bar-type LCD is well suited for smart retail displays, digital signage, shelf-edge displays, commercial equipment, information terminals, and other space-constrained applications.
Traditional 16:9 LCD modules are not always suitable for products with limited installation space or applications requiring vertically oriented content. This 11.26-inch bar LCD uses an elongated 440×1920 pixel format, allowing system designers to integrate a large visual information area into a narrow enclosure.
With an active area of approximately 57.948 × 252.864 mm and an overall thickness of only 4.60 mm, the module provides a practical combination of display area and mechanical efficiency.
The 440×1920 resolution provides 844,800 pixels for displaying text, graphics, product information, advertising content, icons, menus, and other visual information.
The tall aspect ratio is particularly useful when content needs to be arranged vertically. Instead of adapting a conventional landscape LCD to an unusually narrow enclosure, product designers can use a native bar-type display to make better use of available space.
This makes the module especially attractive for smart retail equipment, digital shelf displays, information panels, vending equipment, and specialized commercial devices.
The IPS TFT LCD structure provides consistent image quality across a wide viewing range. The module offers approximately 85° viewing angles horizontally and vertically, helping users view information from different positions.
This characteristic is important for commercial environments where viewers may not always stand directly in front of the display. Retail customers, operators, and visitors can interact with or read the display while approaching it from different angles.
The display uses a MIPI 4-lane interface, providing a high-speed digital interface for compatible embedded systems and display controllers.
MIPI is widely used in compact embedded electronics because it can provide high-speed display data transmission while supporting relatively compact hardware designs. For engineers developing custom equipment, the MIPI interface can help simplify the connection between the LCD module and a compatible processor, SoC, or display controller.
When integrating the display, engineers should confirm MIPI lane configuration, timing parameters, power requirements, initialization commands, connector specifications, and software compatibility before mass production.
The standard brightness of this LCD module is 350 cd/m². This level is suitable for many indoor commercial and embedded applications where the display needs to remain clearly visible under normal ambient lighting.
For projects requiring different optical performance, Aptus Display can discuss customized brightness configurations based on the enclosure, viewing environment, optical stack, power budget, and expected operating conditions.
| Parameter | Specification |
|---|---|
| Product Type | TFT Bar LCD Display |
| Model | DBC112BVN40M035A |
| Display Size | 11.26 inch |
| Resolution | 440 × 1920 pixels |
| Display Technology | IPS TFT LCD |
| Interface | MIPI 4-Lane |
| Brightness | 350 cd/m² |
| Viewing Angle | Approximately 85° / 85° |
| Contrast Ratio | 800–1000 |
| Response Time | 30–35 ms |
| Display Colors | 16.7M colors |
| Active Area | 57.948 × 252.864 mm |
| Outline Dimensions | 64.98 × 266.44 × 4.60 mm |
| Pixel Size | 0.0469 × 0.1317 mm |
| Driver IC | ICNL9707-AC02 |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Humidity | Up to 90% RH at 60°C |

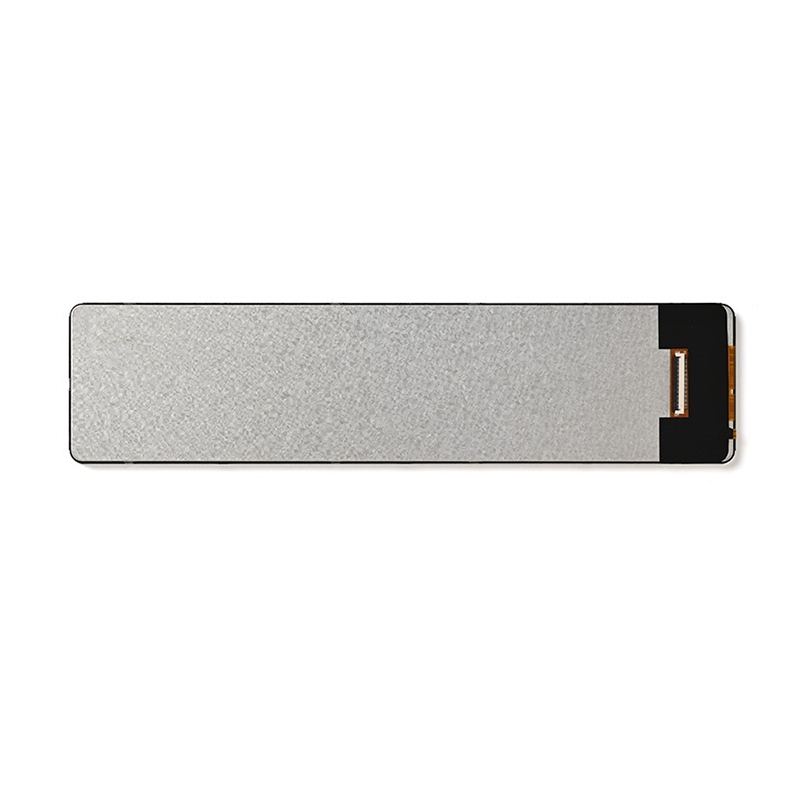

| Connector | FPC / Recommended Hirose connector |
| Custom Options | Brightness, pin definition, cover glass, touch panel, driver board |
Specifications should be confirmed with Aptus Display before final mechanical design or mass production.
The narrow and elongated form factor makes this LCD module a strong candidate for smart retail equipment. It can be installed along shelves, product displays, merchandising structures, or narrow advertising areas where conventional displays cannot fit efficiently.
Retail operators can use the display to present product information, pricing, promotional messages, brand content, or dynamic visual information.
Bar-type LCD displays provide an alternative to conventional digital signage formats. The 440×1920 resolution is particularly suitable for vertical promotional graphics, scrolling information, menu content, brand messaging, and narrow advertising panels.
The display can be integrated into custom signage enclosures where the available installation area has a long and narrow geometry.
Modern vending machines and self-service systems increasingly require dynamic visual interfaces rather than simple segmented displays.
An 11.26-inch bar LCD can provide space for product images, operating instructions, promotional information, status messages, and user guidance. The narrow form factor can also be incorporated into the front structure of customized vending or self-service equipment.
For interactive applications, a compatible capacitive touch panel can be added as part of a customized display solution.
Smart appliances sometimes require a display that fits into a narrow control area rather than a traditional rectangular screen. The bar LCD format can be integrated into appliances with vertically arranged interfaces, narrow control panels, or decorative display sections.
Aptus can evaluate customized cover glass, touch panel, and mechanical integration requirements according to the appliance design.
The display can also be used in commercial equipment that requires a dedicated visual information area. Examples include information terminals, advertising machines, product demonstration equipment, smart retail hardware, and specialized control interfaces.
Its compact 4.60 mm module thickness can help designers optimize enclosure depth, although the final system thickness will depend on the driver electronics, touch solution, cover glass, cables, and mechanical structure.
A standard LCD is generally designed around common landscape or portrait aspect ratios. However, many commercial products have unconventional mechanical structures.
A bar LCD allows the display geometry to follow the product instead of forcing the product enclosure to follow the display.
For example, a conventional 16:9 display may leave unused space when installed inside a narrow shelf, vertical advertising structure, or elongated equipment panel. A 440×1920 bar LCD can use that space more efficiently and provide a visually distinctive user interface.
For OEM and ODM projects, this can also help create a customized product appearance that is difficult to achieve with standard off-the-shelf monitor panels.
Aptus Display focuses on customized LCD modules and display integration for OEM and industrial/commercial applications. In addition to standard TFT LCD modules, Aptus can support customization of display-related components according to project requirements.
For this 11.26-inch bar LCD platform, available customization options can include:
Customized brightness
Customized FPC or pin definition
Customized cover glass
Capacitive touch panel integration
Customized driver board
Display controller solutions
Cable and connector configuration
Mechanical integration support
Customization is especially important when the LCD needs to be integrated into a new enclosure or connected to an existing embedded platform. Engineers should provide the intended application, installation dimensions, interface requirements, operating temperature, brightness requirements, touch requirements, and estimated quantity so that the display configuration can be evaluated accurately.
The module is specified for an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.
The product page also indicates testing covering high- and low-temperature operation, high-humidity storage, and temperature cycling. The module is specified for operation in environments with humidity up to 90% RH at 60°C.
For applications exposed to condensation, direct sunlight, outdoor weather, vibration, shock, or other demanding environmental conditions, the complete system should be evaluated rather than relying solely on the LCD module specification. Housing design, thermal management, sealing, optical treatment, touch construction, and system-level testing should all be considered during product development.
Before integrating the 11.26-inch MIPI bar LCD into a production system, engineers should verify the following:
MIPI compatibility: Confirm that the host processor or display controller supports the required MIPI configuration and 4-lane operation.
Mechanical clearance: The module outline is approximately 64.98 × 266.44 × 4.60 mm. Allow additional space for the FPC, connector, cables, driver electronics, mounting structure, and thermal considerations.
Optical requirements: The standard brightness is 350 cd/m². If the product will operate under strong ambient lighting, discuss whether a higher-brightness configuration or optical enhancement is required.
Touch integration: If users need to interact directly with the screen, a compatible touch panel and cover glass can be evaluated as part of the customized solution.
Thermal design: The LCD should be integrated with consideration for the temperature generated by the backlight, driver board, processor, and other electronics inside the enclosure.
Shenzhen Aptus Technology Co., Ltd. is a professional LCD display solution provider specializing in TFT LCD modules, customized display solutions, touch panel integration, display interfaces, and related accessories.
Aptus works with customers on display projects ranging from standard LCD module supply to customized display development. Its product portfolio includes TFT LCD modules, bar-type LCD displays, touch panel LCD modules, wide-temperature displays, flight simulator displays, gaming display solutions, and other specialized display products.
The company emphasizes customization, engineering support, display quality, and long-term cooperation with customers in international markets.
For OEM and ODM projects, Aptus can work with customers from the initial display specification stage through interface selection, touch integration, mechanical design considerations, sample evaluation, and production planning.
A bar LCD display is a TFT LCD module with an elongated aspect ratio designed for applications where conventional rectangular displays do not fit efficiently. Bar displays are commonly considered for smart retail, digital signage, vending equipment, information displays, and specialized commercial products.
This model uses a 440×1920 pixel resolution. Its tall resolution is designed for narrow-format applications requiring vertically arranged visual content.
Yes. The module uses a MIPI 4-lane interface, making it suitable for compatible embedded systems and display controllers.
Yes. Aptus Display indicates that touch panels and cover glass can be customized for this display platform. The exact touch technology and construction should be evaluated according to the application and mechanical requirements.
Yes. The standard specification is 350 cd/m², while the product page indicates that brightness can be customized. Customers should provide the target operating environment and optical requirements when requesting a customized configuration.
The specified operating temperature is -20°C to +70°C, while the storage temperature range is -30°C to +80°C. System-level environmental requirements should be evaluated separately for demanding applications.
The 350 cd/m² standard brightness is primarily suitable for many indoor applications and controlled commercial environments. For direct-sunlight outdoor applications, higher brightness, optical enhancement, thermal management, and enclosure protection may be required. Aptus can evaluate a customized configuration based on the actual outdoor environment.
If you are developing a smart retail display, narrow digital signage system, vending machine, commercial terminal, smart appliance, or other embedded product that requires a long and narrow LCD, the 11.26-inch 440×1920 MIPI IPS Bar LCD Display provides a practical starting point.
When contacting Aptus Display, provide your required display size, resolution, interface, brightness, operating temperature, touch requirements, mechanical dimensions, estimated quantity, and application. Aptus can then evaluate the appropriate LCD module, touch panel, cover glass, driver board, and interface configuration for your project.
