Automotive LCD Display - C103HAX01. A

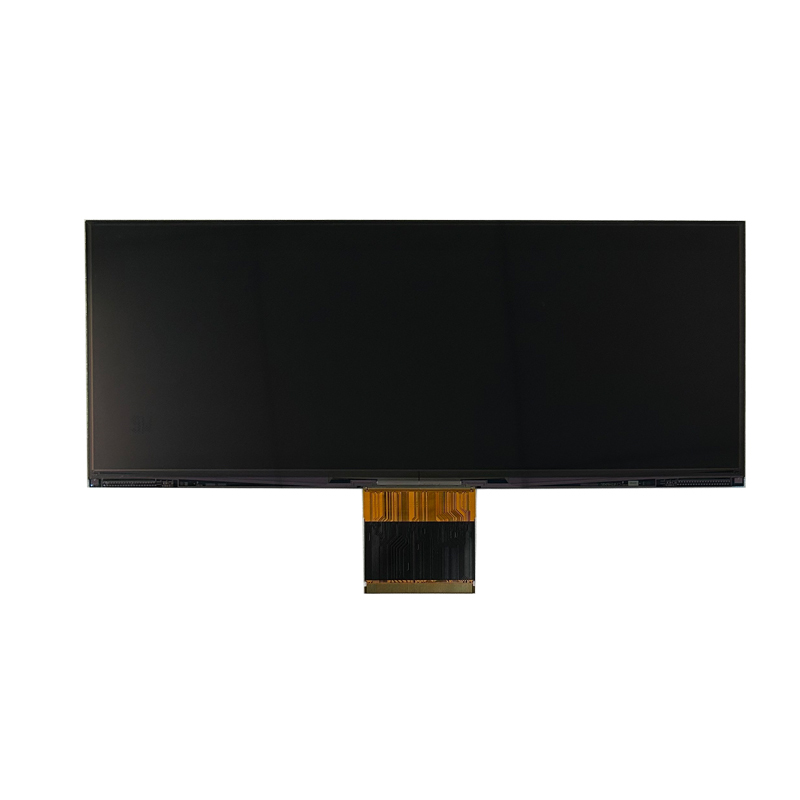

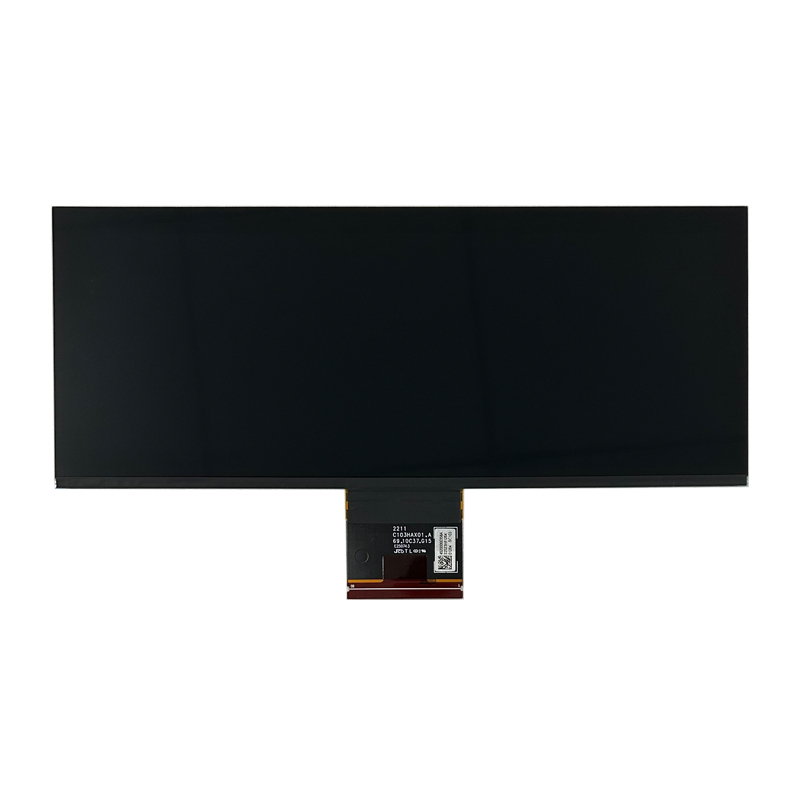

Product Name: AU Optronics C103HAX01. A Automotive LCD Display FOG

Overview:
Aptus, as an authorized agent of AU Optronics, is proud to present the C103HAX01. A, a 10.25-inch TFT-LCD module designed for automotive applications.  This display features AHVA (Advanced Hyper-Viewing Angle) technology and in-cell touch capabilities, providing a high-quality visual experience and interactive control within vehicles.

Key Features:
- Display Specifications: The C103HAX01. A offers a 1920 RGB x 720 resolution in an RGB stripe dot arrangement, ensuring high-definition visuals for navigation, entertainment, and control systems.
- Advanced AHVA Technology: Enjoy wide viewing angles and accurate color reproduction with AU Optronics' AHVA technology, ideal for various lighting conditions in the car.
- Interface Compatibility: With a 1 port LVDS interface, this display module ensures easy integration with a variety of automotive systems.
- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this display is an environmentally conscious choice for automotive manufacturers.
- In-Cell Touch Technology: Equipped with in-cell touch sensor technology, this display simplifies the design and enhances the durability of touch interactions within the vehicle.

Technical Specifications:
- Display Resolution: 1920 RGB(H) x 720(V) pixels
- Active Area: 243.648 mm (H) x 91.368 mm (V)
- Screen Size: 10.25-inch diagonal
- Dot Pitch: 126.9 x 126.9 μm
- Color Configuration: R. G. B. Stripe
- Color Depth: 16.7 million colors
- Overall Dimension: 248.65 mm x 100.57 mm x 0.737 mm (Thickness does not include PCBA)
- Weight: 41g ±10%
- Display Mode: Normally Black
- Surface Treatment: HC (≧3H)

Touch Panel Specifications:
- Screen Size: 10.25 inches
- TP/LCD Active Area: 243.648 mm x 91.368 mm
- Channel Number: X:48, Y:18
- Sensor Pitch: 5.076 mm (H) x 5.076 mm (V)
- Sensor Mode: Capacitance sensor
- Maximum Linear Deviation: Center: ±1 mm, Edge: ±2 mm

Electrical Specifications:
- Power Supply Voltage: VDD 3.0V - 3.6V
- LVDS Interface: 1 Port LVDS

Optical Performance:
- Response Time: 25 ms (at 25°C), 180 ms (at -20°C), 350 ms (at -30°C)
- Brightness: YL θ = 0° (to be measured after production)
- Contrast Ratio: Center Min 1200:1, Typ 1400:1 (based on customer BLU)
- Viewing Angle: L/R/U/D CR≥10 Min 70°, Typ 80°

Reliability and Durability:
- Temperature Range: Withstands storage and operation from -40°C to 95°C, ensuring reliable performance in extreme climates.
- Shock and Vibration Resistance: Designed to endure shocks and vibrations, making it suitable for the dynamic environment of automotive use.

Packaging and Storage:
- Packing Form: Each module is carefully packaged to ensure safe transportation and storage.
- Module/Panel Label Information: Includes a unique serial number for traceability and quality control.

Conclusion:

The C103HAX01. A Automotive LCD Display FOG from AU Optronics, offered by Aptus, is a high-performance display solution for the automotive industry.  Its combination of high resolution, advanced technology, and robust design make it an ideal choice for automotive manufacturers seeking to enhance the in-vehicle experience.  For more information or to place an order, contact Aptus today.

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
