The 10.25-inch 1920×720 LVDS automotive LCD display is a high-brightness TFT-LCD module designed for in-vehicle display applications that require clear image reproduction, stable operation across a wide temperature range, and reliable integration into automotive electronic systems.
Model APS-C103HAX01.A-00 features a 1920 × 720 pixel resolution, IPS display technology, 80-pin LVDS interface, 1000 cd/m² typical brightness, and an operating temperature range from -30°C to +85°C. Its wide-format 10.25-inch size makes it suitable for digital instrument clusters, automotive infotainment systems, navigation displays, and central vehicle control interfaces.
For automotive display manufacturers, Tier suppliers, system integrators, and vehicle electronics developers, this LCD module provides a practical foundation for developing customized vehicle display systems.
The 1920 × 720 resolution provides a wide display area suitable for automotive interfaces where navigation information, vehicle data, media content, and control information need to be presented within a horizontally oriented display.
The resolution can provide clear rendering of digital gauges, maps, menus, icons, vehicle status information, and other graphical interfaces while maintaining a wide-format appearance suitable for modern vehicle interiors.
For applications where the display needs to combine multiple information areas within one interface, the 1920 × 720 format can also provide useful horizontal space for system designers.
Automotive displays can be exposed to significant changes in ambient lighting, including bright daylight entering through the windshield or side windows.
With a typical brightness of 1000 cd/m², this automotive LCD module is designed to provide strong image visibility in bright vehicle environments. High brightness can help improve the readability of navigation information, instrument data, warning messages, and other vehicle interface content.
Brightness requirements should always be evaluated together with the final optical stack, cover glass, anti-reflection treatment, ambient lighting conditions, and viewing environment of the vehicle.
The module uses an IPS display configuration to provide wide viewing characteristics and consistent image presentation.
This is particularly useful for automotive applications because the driver and passengers may view the display from different positions. A wide-format IPS automotive LCD can help maintain consistent image quality when viewed from different angles within the vehicle cabin.
The display uses an 80-pin LVDS interface, providing a high-speed digital connection between the LCD module and the vehicle display control system.
For automotive display developers replacing an existing module or designing a new display system, interface compatibility is an important consideration. The LVDS interface, pin definition, timing requirements, power supply, signal configuration, and connector design should be verified against the target control board before integration.
Aptus Display can also support interface-related customization and engineering assistance for automotive LCD integration projects.
Automotive electronic systems can experience substantial temperature changes during vehicle operation, parking, and seasonal conditions.
This LCD module supports an operating temperature range of -30°C to +85°C, with a storage temperature range of -40°C to +95°C.
This wide temperature capability makes the module suitable for vehicle display environments where temperature stability is an important design consideration.
The final thermal design should consider the complete display assembly, enclosure, backlight system, control electronics, installation location, and actual vehicle operating conditions.
The LCD module uses a hard-coating surface treatment designed to provide additional surface protection against scratches and everyday handling during assembly and use.
For vehicle display products, the final front surface can also be designed together with additional optical components depending on the project requirements, such as cover glass, anti-reflective treatment, and touch-panel integration.
| Parameter | Specification |
|---|---|
| Product Model | APS-C103HAX01.A-00 |
| Display Type | Automotive TFT-LCD Module |
| Display Size | 10.25 inches |
| Resolution | 1920 × 720 pixels |
| Display Technology | IPS |
| Display Mode | Normally Black |
| Brightness | 1000 cd/m² typ. |
| Interface | LVDS |
| Connector | 80-Pin |
| Active Area | 243.648 × 91.368 mm |
| Outline Dimension | 250.65 × 106 × 6.7 mm |
| Color Depth | 16.7 Million Colors |
| Pixel Arrangement | RGB Vertical Stripe |
| Surface Treatment | Hard Coating (HC) |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -40°C to +95°C |
| Application | Automotive / In-Vehicle Display |
This 10.25-inch automotive LCD module is designed specifically for vehicle display applications. Its wide 1920 × 720 format, high brightness, IPS technology, LVDS interface, and wide operating temperature range make it suitable for several types of in-vehicle display systems.

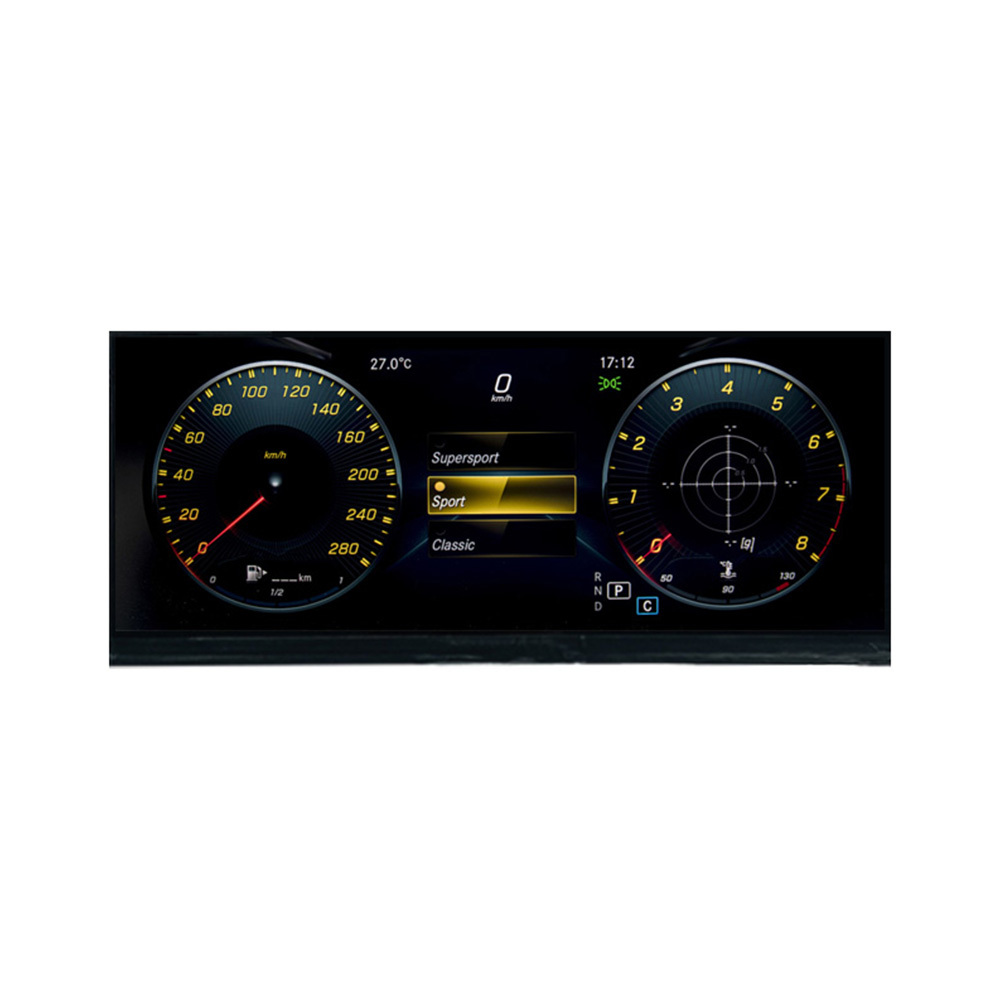

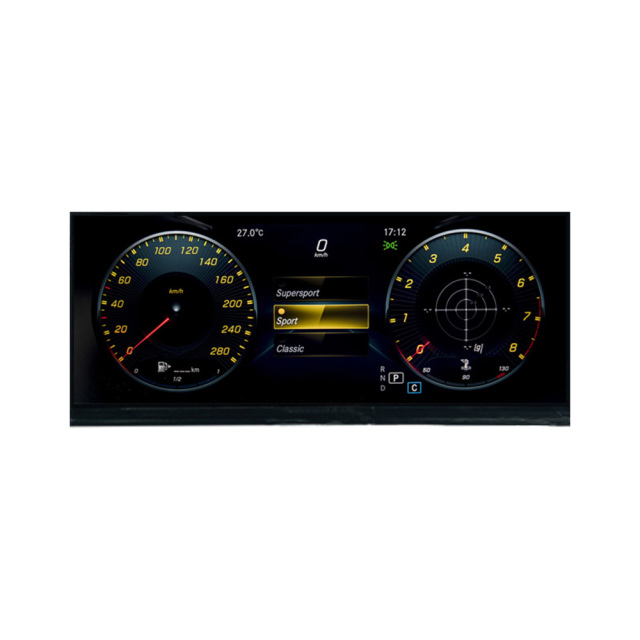

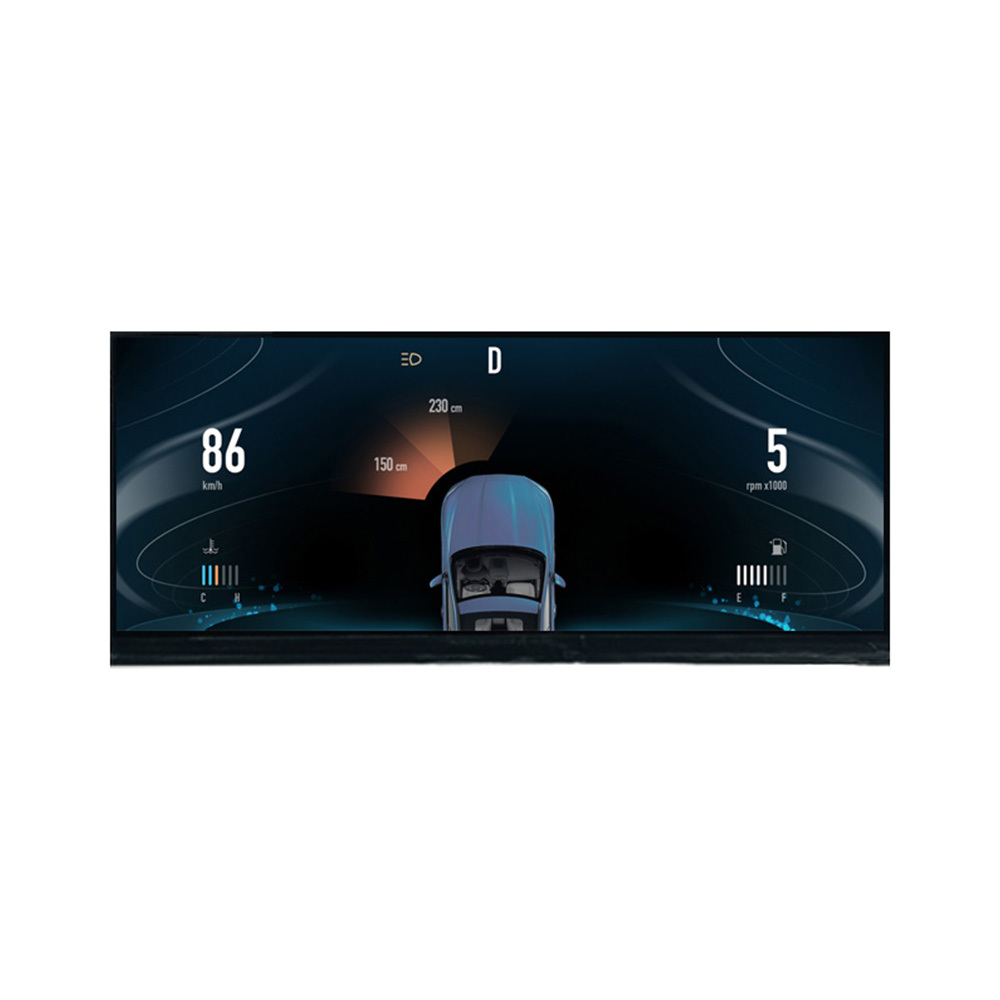

The display can be integrated into digital instrument cluster systems for presenting vehicle speed, driving information, warning indicators, vehicle status, and other instrument information.
The 1920 × 720 resolution provides sufficient horizontal space for combining multiple information areas within one dashboard interface.
The module can be used as the display component of an automotive infotainment system.
Depending on the system architecture, the display can present multimedia interfaces, menus, vehicle information, connectivity functions, and other driver or passenger-facing content.
The 1000 cd/m² brightness is particularly useful when the vehicle is operated in bright daylight conditions.
The wide-format display is suitable for vehicle navigation interfaces where map information, route guidance, road information, and navigation instructions need to be presented clearly.
The high-resolution 1920 × 720 format provides a broad horizontal viewing area for navigation interface design.
The module can also be integrated into central control interfaces used for vehicle settings and functions.
Depending on the customer's system design, the display can be paired with a touch panel or other input technology to create a complete human-machine interface for vehicle control systems.
Automotive display selection requires more than simply matching screen size and resolution. Engineers typically need to evaluate brightness, viewing characteristics, temperature performance, interface compatibility, mechanical dimensions, optical performance, and long-term supply considerations.
This 10.25-inch LCD module combines several important characteristics in one platform:
10.25-inch wide-format display size
1920 × 720 high-resolution format
1000 cd/m² typical brightness
IPS display technology
80-pin LVDS interface
-30°C to +85°C operating temperature
-40°C to +95°C storage temperature
Hard-coating surface treatment
Compact 250.65 × 106 × 6.7 mm outline dimension
16.7 million color display capability
These characteristics make it a strong candidate for automotive display projects where stable performance and system integration are key requirements.
Different vehicle display projects often have different mechanical, optical, electrical, and interface requirements. Aptus Display provides customization and engineering support for customers who need more than a standard LCD module.
Depending on the project, customization can include:
Brightness customization:
Brightness can be evaluated according to the vehicle's actual lighting environment and optical structure.
Interface and pin definition:
For projects requiring a specific connector configuration or pin assignment, Aptus Display can provide engineering support for interface adaptation.
Cover glass and optical integration:
The LCD module can be considered together with customized cover glass and other optical components when the project requires a complete front-display structure.
Touch-panel integration:
For automotive control interfaces requiring touch input, a touch panel can be integrated with the display according to the required mechanical and electrical structure.

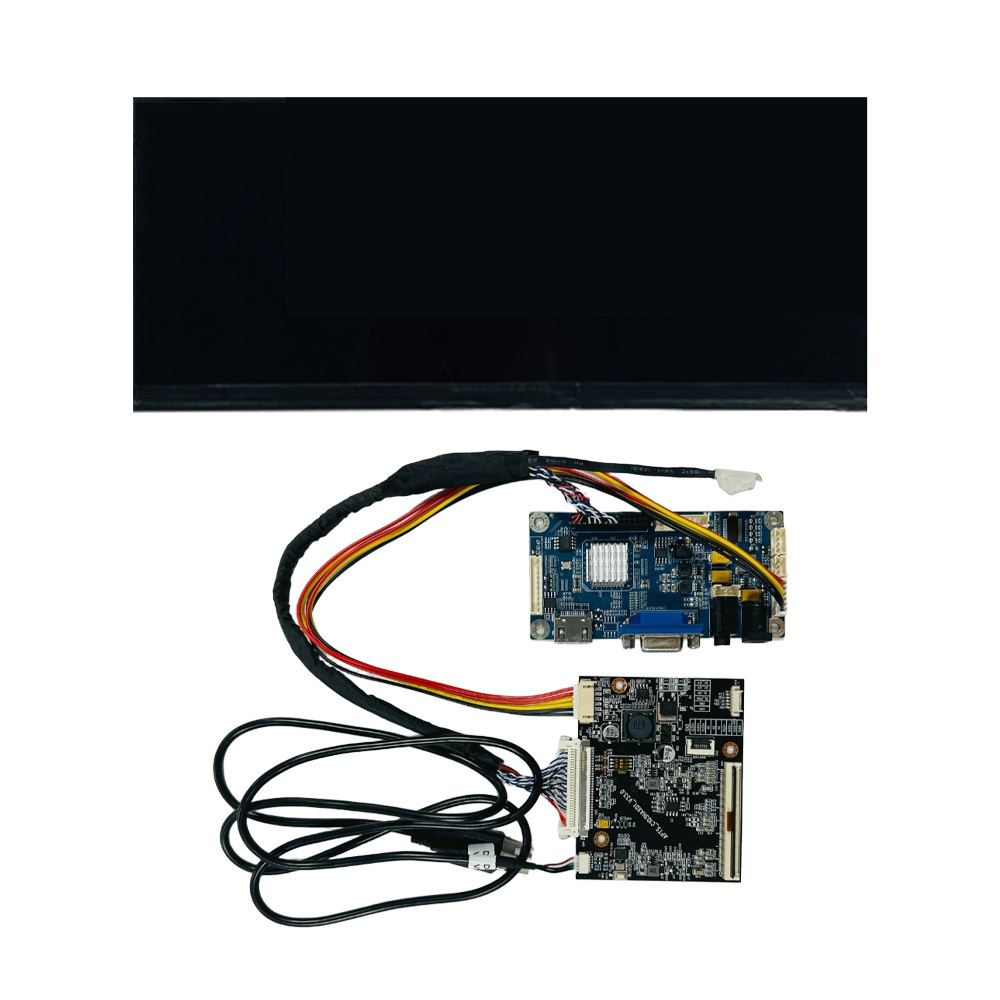

Driver board development:
Aptus Display can support driver-board-related development for projects requiring customized interface, power, backlight, or software functions.
Mechanical customization:
Mechanical dimensions, FPC configuration, connector position, and other integration requirements can be evaluated according to the customer's system design.
Before integrating the 10.25-inch automotive LCD module into a vehicle system, engineers should confirm several key parameters.
First, the LVDS interface configuration should be matched with the target controller, including connector type, pin definition, signal timing, and power requirements.

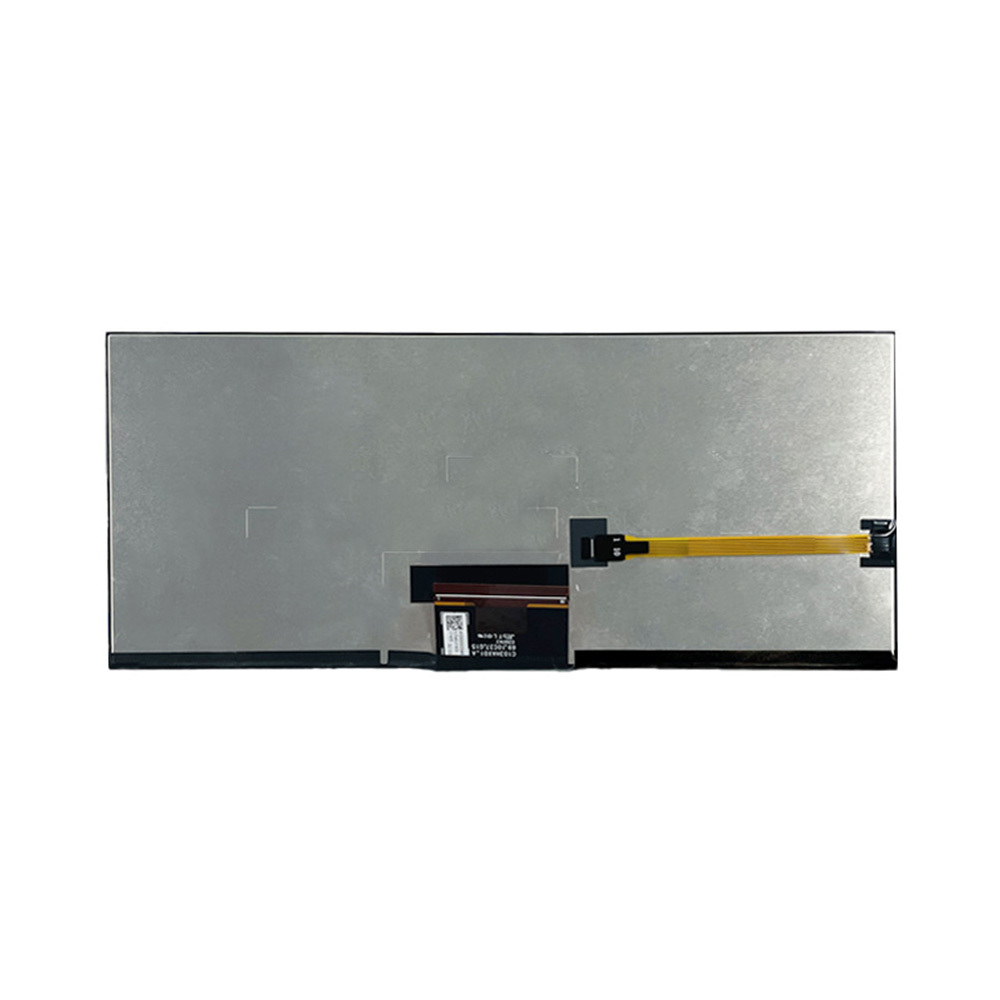

Second, the mechanical dimensions should be checked against the available installation space. The module has an outline dimension of 250.65 × 106 × 6.7 mm and an active area of 243.648 × 91.368 mm.
Third, the thermal environment should be evaluated based on the actual installation position. Although the LCD supports -30°C to +85°C operation, the complete display assembly should be tested under the customer's real operating conditions.
Finally, brightness should be evaluated together with the complete optical structure rather than considering the LCD brightness specification alone.
Aptus Display's engineering team can work with customers during the specification, sample evaluation, integration, and customization stages.
Aptus Display is a professional LCD module manufacturer and custom display supplier based in Shenzhen, China. The company focuses on TFT-LCD modules, automotive LCD modules, industrial display solutions, touch-panel integration, wide-temperature displays, bar-type displays, and other customized display solutions.
Aptus Display has been involved in the LCD industry since 2014, providing display R&D, manufacturing, customization, and technical support for customers in different professional application markets.
As an authorized AU Optronics partner, Aptus Display works with customers that require AUO-based display solutions and supports the development of standard and customized LCD modules.
The company's engineering capabilities cover LCD module selection, brightness optimization, interface adaptation, touch-panel integration, driver-board development, FPC customization, mechanical integration, and other display-related requirements.
For automotive projects, Aptus Display can support customers from initial LCD selection through sample evaluation and customized display development.
Yes. The APS-C103HAX01.A-00 is a 10.25-inch automotive TFT-LCD module designed for in-vehicle applications including digital instrument clusters, infotainment systems, navigation displays, and central vehicle control interfaces.
The display resolution is 1920 × 720 pixels, providing a wide-format display area suitable for automotive dashboards and vehicle information interfaces.
The typical brightness is 1000 cd/m², making the module suitable for applications that require strong visibility under bright vehicle lighting conditions.
The module uses an 80-pin LVDS interface. Customers should confirm the connector, pin definition, signal timing, and electrical requirements when integrating the module with their control system.
Yes. The specified operating temperature range is -30°C to +85°C, while the storage temperature range is -40°C to +95°C.
Yes. Aptus Display supports automotive LCD customization and can evaluate requirements such as brightness, connector and pin configuration, cover glass, touch-panel integration, FPC configuration, driver-board development, and mechanical integration.
Yes. Aptus Display can support sample evaluation for qualified projects. Customers can provide the target application, required quantity, display dimensions, resolution, interface, and other system requirements for evaluation.
Please contact Aptus Display with the product model APS-C103HAX01.A-00, expected quantity, application, and project requirements. Our team can evaluate the requirements and provide product and customization information.
If you are developing a digital instrument cluster, automotive infotainment system, navigation display, or central vehicle control interface, the 10.25-inch 1920 × 720 LVDS automotive LCD module can provide a practical display platform for your project.
