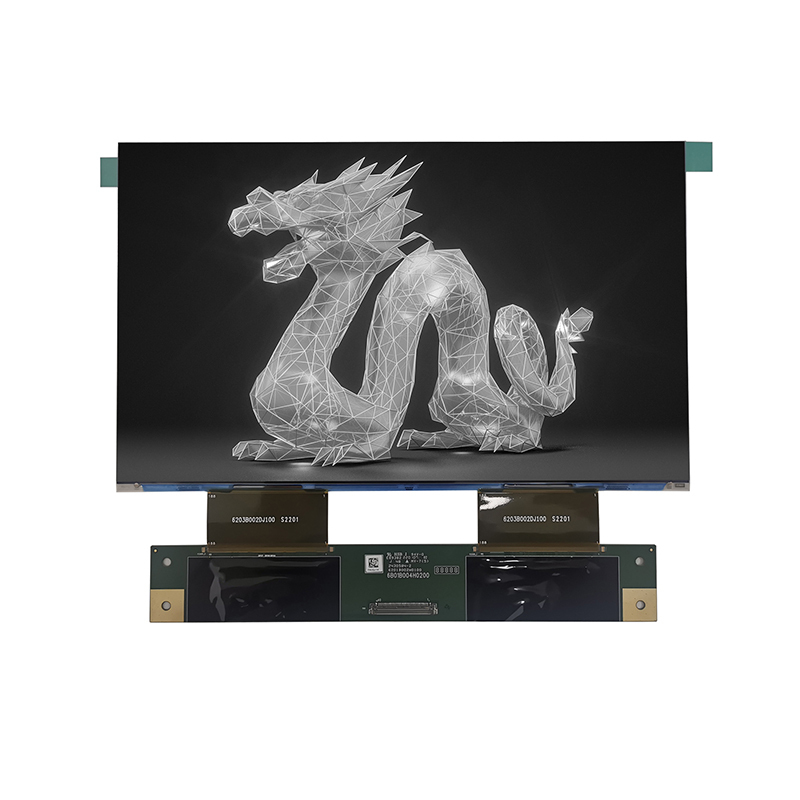

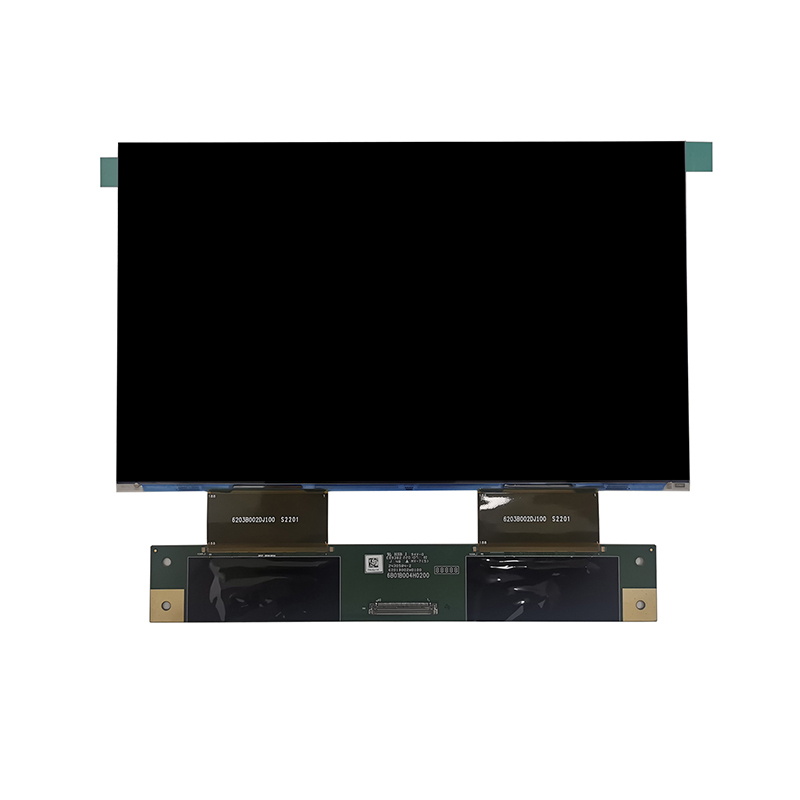

The DBM101E8K01 is a high-performance MONO LCD display module designed specifically for 3D printer applications. With a large 10.1-inch screen and a resolution of 7680 x 4320 pixels, this display offers exceptional clarity and detail, making it ideal for precise control and visualization in 3D printing.
Key Features:
- Large Display Area: Enjoy a spacious viewing experience with a 10.1-inch screen size, perfect for detailed previews and settings adjustments in 3D printing. - High Resolution: The 7680 x 4320 pixel resolution ensures that every detail of your 3D print is visible and accurate. - MONO Technology: Utilizing LTPS (Low-Temperature Polycrystalline Silicon) technology, this display provides consistent color reproduction and wide viewing angles. - Robust Design: Built with a glass panel, this display is designed to withstand the rigors of industrial use, making it a reliable choice for 3D printer applications. - RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this display is an environmentally responsible choice.
Technical Specifications:
- Model Number: DBM101E8K01 - Screen Size: 10.1 inches - Resolution: 7680 x 4320 pixels - Display Format: MONO - Technology: LTPS - Display Mode: Normal Black - Dot Pitch: 0.0285mm (W) x 0.0285mm (H) - Viewing Direction: All - Frame Rate: 25 Hz (max) - Interface: EDP 1.2 - Contrast Ratio: ≥400 - Panel Transmittance (with I POL): ≥5%
Electrical Characteristics:
- Power Voltage: VCCS 3.0V - 3.6V - Current for Power: TBD mA (at 25°C, GND=0V)
- Operation Temperature: 0°C to 70°C - Storage Temperature: -10°C to 80°C
Handling and Storage:
- Safety: The liquid crystal in the LCD is poisonous. Do not put it in your mouth. If the liquid crystal touches your skin or clothes, wash it off immediately using soap and water. - Handling: Handle with care to avoid mechanical shock and static electricity. Do not disassemble the LCD Module. - Storage Conditions: Store in a dark place at 0°C to 40°C with relative humidity ≤80%.
With UV light source

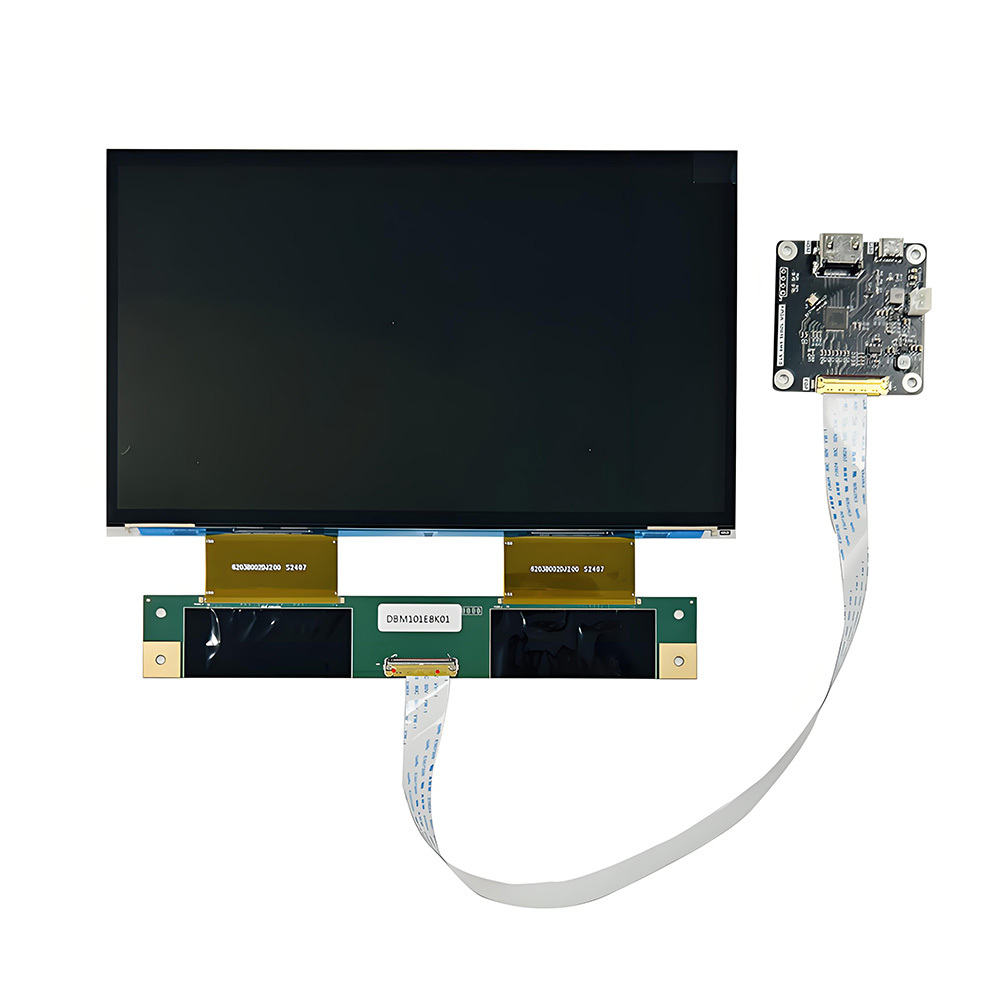

With driver board
3D Printer Screen Product List:
Size (inch)
Resolution
Part No
PIXEL
Active Area (mm)
Outline Dimension (mm)
Interface
Interface PIN
5.96
1620*2560
DBM060M2K10 (RV059FBB-N80)
50*50
81*128
84.6*135.85*1.08
MIPI
30Pin
5.96
1620*2560
DBM060M2K01
50*50
81*128
84.6*135.85*1.1
MIPI
50Pin
6.2
3840*2400
DBM062M4K01
34*34
134.40*84.00
138.56*92.82*1.16
MIPI
50Pin
6.6
4098*2560
DBT066MONO
35*35
143.43*89.6
154.36*99.1*1.22
MIPI
50Pin
6.8
8520*4320
DBM068M9K01
18*18
153.36*77.76
161.36*86.31*1.25
MIPI
51Pin
10.1
7680*4320
DBM101E8K01
28.5*28.5
218.88*123.12
227.43*139.50*1.25
eDP
40Pin
10.1
11520*5120
DBM101M12K01
19*24
218.88*122.88
227.43*139.50*1.25
MIPI
51Pin
10.1
13320*5120
DBM101M14K01
16.8*24.8
223.78*126.98
230*142*1.06
MIPI
51Pin
10.1
15120*6230
DBM101M16K01
14*19
211.68 x 118.37
227.43*139.5*1.25
MIPI
51Pin
10.3
7680*4320
DBM103M8K01
29.7*29.7
228.096*128.304
232.096*138.402*1.24
MIPI
50Pin
13.6
6480*3600
DBM136E7K01
46*46
298.08*165.60
302.36*76.94*1.16
eDP
40Pin
14.0
15120*6230
DBM140M16K01
20*26
302.4*161.98
311.4*184.66*1.25
MIPI
51Pin
16.0
7680*4320
DBM160E8K01
46*46
353.28*198.72
358.28*207.42*1.16
eDP
40Pin
Company Introduction: Aptus Technology Co., Limited
Aptus Technology Co., Limitedis a leading custom LCD display manufacturer, specializing in the development, production, and marketing of high-quality LCD displays and related accessories. Since its inception in 2007, Aptus has established itself as a reliable partner for both domestic and international clients, offering tailored solutions to meet diverse industry needs.
Key Highlights of Aptus' Customization Capabilities:
Professional R&D Team: Aptus boasts a dedicated and highly skilled R&D team that focuses on developing, designing, and customizing LCD/LCM products to meet specific customer requirements. This team ensures that every product is optimized for performance and functionality.
Diverse Industry Experience: With over a decade of experience, Aptus has successfully collaborated with clients across various sectors, including aircraft simulators, automotive central control systems, agriculture, industrial machinery, medical equipment, and 3D printer screen industry. This extensive experience allows Aptus to understand and address the unique challenges of each industry effectively.
Comprehensive Product Range: Aptus offers a wide range of LCD modules and accessories, such as LCD driver boards, LCD cables, touch screens, and inverters. This comprehensive product portfolio enables Aptus to provide one-stop solutions for all display-related needs. In particular, Aptus' expertise in 3D printer screen industry includes the development of specialized LCD driver boards and optimized light sources, ensuring enhanced performance and reliability for 3D printer screens.
Customization Services: Aptus excels in providing customized solutions to meet specific customer requirements. Whether it's a unique display size, resolution, or functionality, Aptus can tailor its products to fit the exact specifications needed. This ability to customize ensures that Aptus can meet the specialized needs of industries like 3D printing, where high-resolution and precise display solutions are critical.
Reliability and Quality Assurance: Aptus is committed to delivering products that meet the highest standards of reliability and quality. The company adheres to strict manufacturing processes and conducts rigorous reliability tests, such as high and low-temperature storage and operation tests, to ensure that its products perform consistently under various conditions.
Direct Agency Rights: In recent years, Aptus has obtained the direct agency rights of AUO, a leading global display manufacturer. This strategic partnership further enhances Aptus' ability to provide high-quality and cutting-edge display solutions to its customers.
Specialized Experience in 3D Printer Screen Industry: Aptus has made significant inroads in the 3D printer screen industry, where high-resolution and precise display solutions are critical. The company's expertise in this field includes:
Custom LCD Panels: Developing custom LCD panels that enhance the user experience and operational efficiency of 3D printers.
Driver Boards: Providing specialized driver boards that ensure optimal performance and compatibility with 3D printer screens.
Light Sources: Offering optimized light sources that improve display quality and reliability, ensuring consistent and accurate printing processes.
Aptus' ability to create tailored display solutions ensures that 3D printer manufacturers can benefit from advanced, reliable, and user-friendly interfaces.
In summary, Aptus Technology Co., Limited stands out in the LCD industry with its strong R&D capabilities, extensive industry experience, and commitment to customization. By offering tailored solutions and maintaining high standards of quality and reliability, Aptus continues to be a trusted partner for customers seeking innovative and effective display solutions across various industries, including the rapidly growing 3D printer screen market.
