The 10.1-inch 800×1280 MIPI TFT LCD module is developed for professional display applications where standard consumer panels may not provide sufficient brightness, temperature tolerance or integration flexibility.
With a resolution of 800×1280 pixels, the display provides a portrait-oriented format that can be useful for vertically arranged interfaces, equipment control screens, information terminals and embedded HMI systems. The 1000 cd/m² brightness level is designed to improve visibility in bright environments compared with conventional indoor LCD modules.
The module uses a 40-PIN MIPI interface with four data lanes, making it suitable for embedded platforms and processor-based systems that support MIPI DSI display output. Its IPS architecture provides consistent image quality over a broad viewing range, while the normally black, transmissive display mode supports strong image contrast and vivid graphical interfaces.
The module's 135.36 × 216.58 mm active area and 143 × 228.6 × 2.6 mm outline dimensions also make it appropriate for applications where installation space is limited.
The display provides a specified brightness of 1000 cd/m², making it a strong candidate for applications exposed to bright ambient lighting. High brightness is particularly valuable for industrial equipment, outdoor terminals, information kiosks and other systems where ordinary 300–500 cd/m² displays may be difficult to read.
For outdoor deployment, brightness should be evaluated together with cover glass, optical bonding, anti-glare treatment, enclosure design and ambient lighting conditions. A 1000-nit panel improves luminance but does not by itself guarantee perfect direct-sunlight readability.
The 800×1280 pixel resolution provides a detailed portrait display format suitable for graphical user interfaces, equipment status screens, menus, monitoring interfaces and embedded applications.
The 0.1695 × 0.1695 mm pixel pitch supports detailed image reproduction within the compact 10.1-inch form factor.
The IPS display architecture is designed to maintain consistent image quality when viewed from different directions. The published specification lists an 85°/85°/85°/85° viewing angle, while the product overview also describes wide-angle viewing performance.
This characteristic is useful for control panels and equipment interfaces where operators may not always view the display directly from the front.
The module uses a 40-PIN MIPI interface with four lanes, providing a compact digital display connection for compatible embedded hardware.
For system designers, MIPI can be attractive where PCB space, cable routing and processor-level display integration are important considerations. However, the host processor, MIPI DSI configuration, timing parameters, FPC pin definition and initialization sequence should always be verified before production integration.
The specified operating temperature range is -30°C to +85°C, while the storage temperature range is -40°C to +90°C. This makes the module appropriate for professional equipment operating across substantially wider temperature conditions than typical consumer-oriented displays.

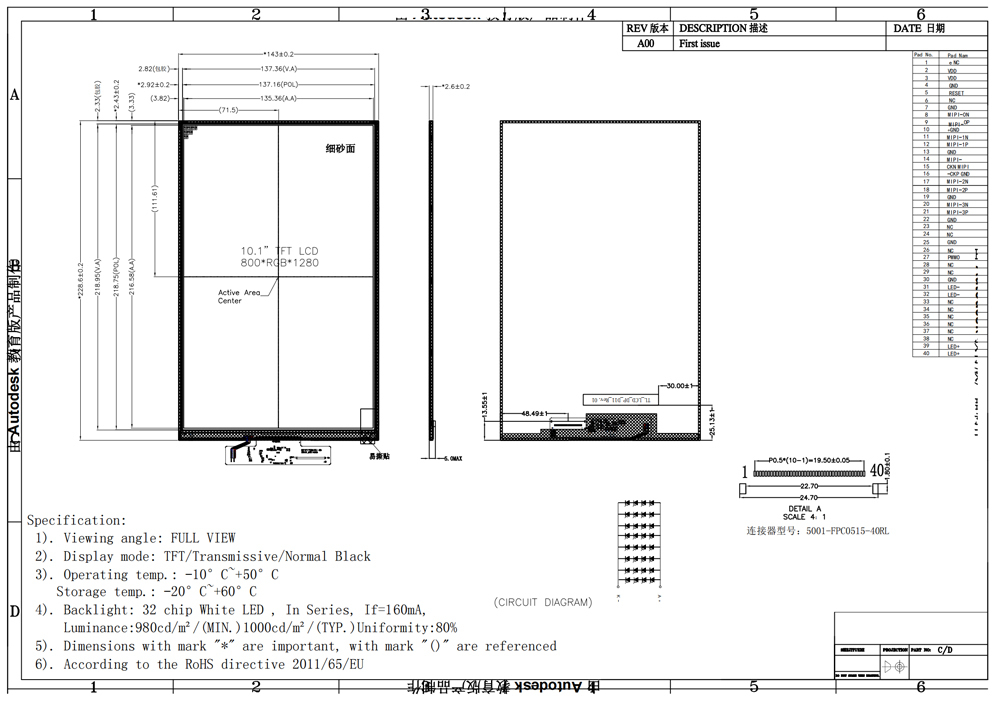

The module measures approximately 143 × 228.6 × 2.6 mm, helping engineers integrate the display into space-constrained equipment.
A thin module can be advantageous when designing compact control panels, handheld industrial terminals, embedded HMI systems and wall-mounted equipment.
| Specification | Details |
|---|---|
| Model Number | DBT101BEN40M100A |
| Display Size | 10.1 inch |
| Resolution | 800 × 1280 pixels |
| Display Type | TFT LCD |
| Display Mode | IPS / Normally Black / Transmissive |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle | 85° / 85° / 85° / 85° |
| Active Area | 135.36 × 216.58 mm |
| Module Dimensions | 143 × 228.6 × 2.6 mm |
| Pixel Pitch | 0.1695 × 0.1695 mm |
| Interface | MIPI, 40-PIN, 4-Lane |
| Display Colors | 16.7M |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -40°C to +90°C |
| Backlight | LED |
| Backlight Lifetime | 50,000 hours |
| Touch Panel | Optional capacitive or resistive touch panel |
The specifications above are based on the current Aptus product listing. For production projects, customers should confirm the latest datasheet, interface pinout, mechanical drawing, electrical parameters and sample configuration with Aptus before finalizing their design.
Selecting an LCD module for an industrial or embedded product involves more than comparing screen size and resolution. Engineers typically need to consider brightness, viewing angle, interface compatibility, temperature range, mechanical dimensions, backlight lifetime and the availability of customization services.
The DBT101BEN40M100A combines these characteristics in a single 10.1-inch module.
Its 1000 cd/m² brightness makes it more suitable for high-ambient-light environments. Its MIPI 4-lane interface is suitable for compatible embedded computing platforms. The IPS viewing characteristics support operator interfaces that may be viewed from different positions. The -30°C to +85°C operating temperature range expands its potential use in demanding professional environments.
For OEMs and system integrators, another important advantage is the possibility of developing the display as part of a broader customized solution rather than treating the LCD as an isolated component.
Aptus states that its technical team supports standard, semi-custom and customized LCD solutions, including touch panels, connectors, FPC/interconnect solutions and control boards.
The 10.1-inch format provides enough space for graphical HMI interfaces while remaining compact enough for machine control panels.
Potential applications include:
The wide operating temperature range and high brightness make this display particularly relevant to equipment that operates outside standard office environments.
A 1000-nit LCD module can improve screen visibility in bright environments and can therefore be considered for outdoor or semi-outdoor terminals.
Possible applications include:
For direct outdoor exposure, system designers should additionally consider anti-glare glass, optical bonding, thermal management, waterproofing and UV protection.
Agricultural machinery frequently operates under strong sunlight and changing environmental conditions. A high-brightness display can improve operator visibility when equipment is being used outdoors.
The module can be evaluated for:
The specified -30°C to +85°C operating range can also support applications exposed to significant environmental temperature variation.
The MIPI interface makes this module relevant to embedded computing platforms where the processor or SoC provides compatible MIPI DSI output.
It can be integrated into customized:
Before hardware development, engineers should verify the host processor's MIPI lane configuration, voltage requirements, display timing, initialization commands and connector/FPC compatibility.
The product listing identifies medical equipment as one potential application category.
For professional medical equipment, however, the display module should be evaluated as part of the complete device qualification process. Regulatory, optical, mechanical, electrical and environmental requirements vary depending on the final medical application.
For projects requiring user interaction, the DBT101BEN40M100A can be specified with an optional capacitive or resistive touch panel according to the current product information.
A touch panel can turn the display into an integrated HMI interface for equipment operators.
Aptus also provides customized display-related solutions including touch panels, LCD driver boards, cables and other accessories. Its engineering team can participate in the process from requirement analysis and feasibility evaluation through sample development, debugging and production optimization.
This approach can reduce integration complexity for OEM customers that need more than a bare LCD panel.
When integrating this 10.1-inch MIPI LCD module, engineers should evaluate several factors before mass production.
MIPI compatibility: Confirm that the host processor supports the required MIPI DSI configuration and four-lane interface.
Mechanical design: Reserve sufficient installation space around the 143 × 228.6 mm module and account for the 2.6 mm thickness as well as FPC/cable routing.
Thermal management: High-brightness backlights can generate additional heat. For outdoor and enclosed products, thermal analysis should be performed at the system level.
Optical design: If the display will be installed outdoors, evaluate cover glass reflection, anti-glare treatment and optical bonding together with panel brightness.
Touch integration: If a touch panel is required, define the touch technology, cover glass thickness, interface and mounting method early in the product-development cycle.
Environmental requirements: For applications approaching the specified temperature limits, conduct system-level validation rather than relying solely on panel specifications.
Aptus is a professional LCD display manufacturer providing TFT LCD modules, touch panels, LCD controller boards and customized display solutions. The company states that it has been engaged in LCD display R&D, manufacturing and marketing for international and domestic customers, with a professional R&D team supporting customized LCD/LCM development.
Aptus's capabilities include standard and semi-custom display development, with options involving touch panels, connectors, FPCs, interconnect solutions and control boards.
For customers developing specialized equipment, Aptus can also provide customized LCD accessories and driver-board development. Its service process can cover feasibility analysis, sample implementation, debugging and optimization for mass production.
The company reports ISO 9001 certification and highlights its professional R&D and manufacturing capabilities. Aptus also works with customers in areas including aircraft simulators, automotive systems, agriculture, industrial equipment and medical machinery.
This engineering-oriented approach makes Aptus suitable for OEMs, ODMs, distributors, system integrators and industrial equipment manufacturers looking for a long-term display supplier.
The display resolution is 800 × 1280 pixels. It uses a portrait-oriented format suitable for embedded HMI, industrial equipment and other applications requiring a vertically oriented display.
The specified brightness is 1000 cd/m², providing significantly higher luminance than many conventional indoor LCD modules. It is suitable for applications requiring improved visibility under bright ambient lighting.
The DBT101BEN40M100A uses a 40-PIN MIPI interface with four lanes. Host-side electrical, timing and connector compatibility should be confirmed before integration.
Yes. The current product information lists optional capacitive or resistive touch panel configurations. The exact touch solution can be discussed according to the mechanical and functional requirements of the final product.
The specified operating temperature is -30°C to +85°C, with a storage temperature range of -40°C to +90°C. System-level thermal validation is recommended for applications operating close to these limits.
The 1000 cd/m² brightness makes the module suitable for consideration in bright-environment and outdoor terminal applications. However, outdoor readability also depends on cover glass reflection, optical bonding, anti-glare treatment, enclosure design and thermal management.
Aptus provides standard, semi-custom and customized LCD solutions. Depending on project requirements, customization can include touch panels, connectors, FPC/interconnect solutions, driver boards and other display accessories.
If you are sourcing a 10.1-inch 800×1280 MIPI LCD module for an industrial, embedded, outdoor or professional display project, the DBT101BEN40M100A offers a combination of 1000 cd/m² brightness, IPS viewing performance, 40-PIN 4-lane MIPI connectivity, wide-temperature operation and a slim mechanical profile.
