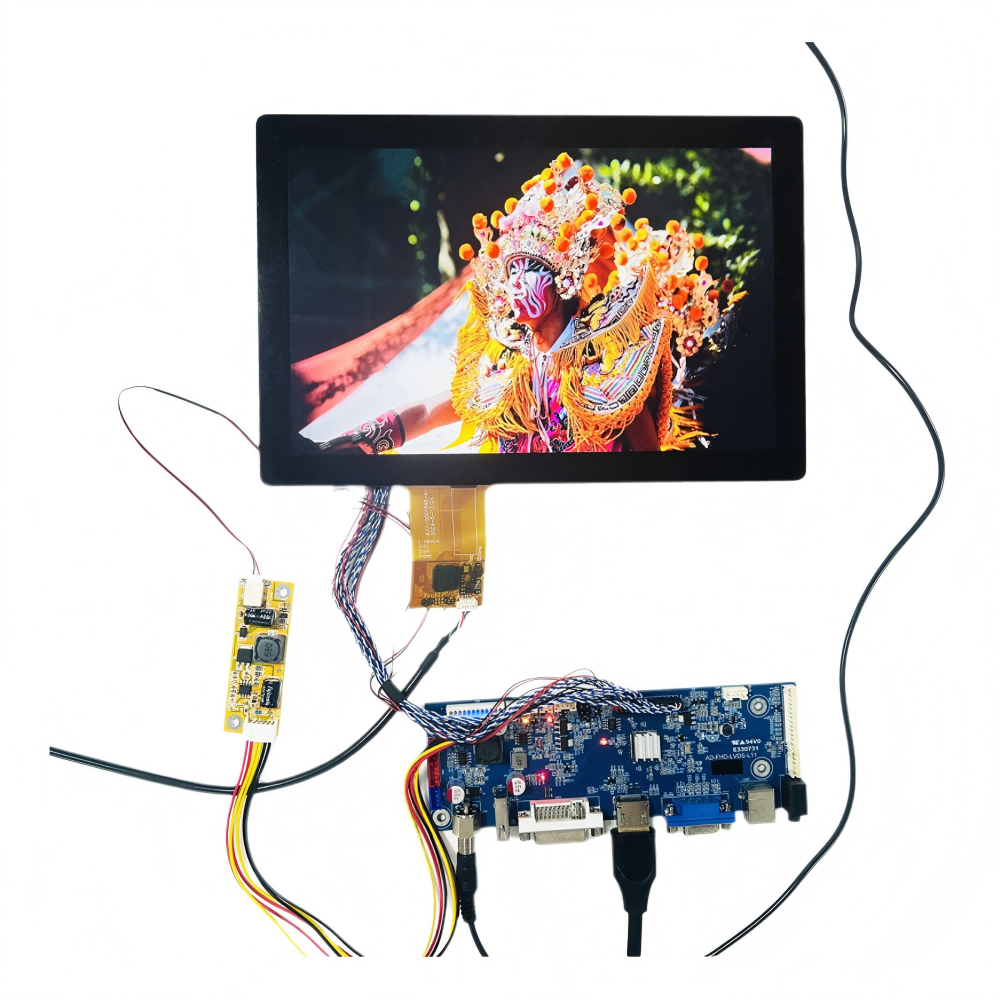

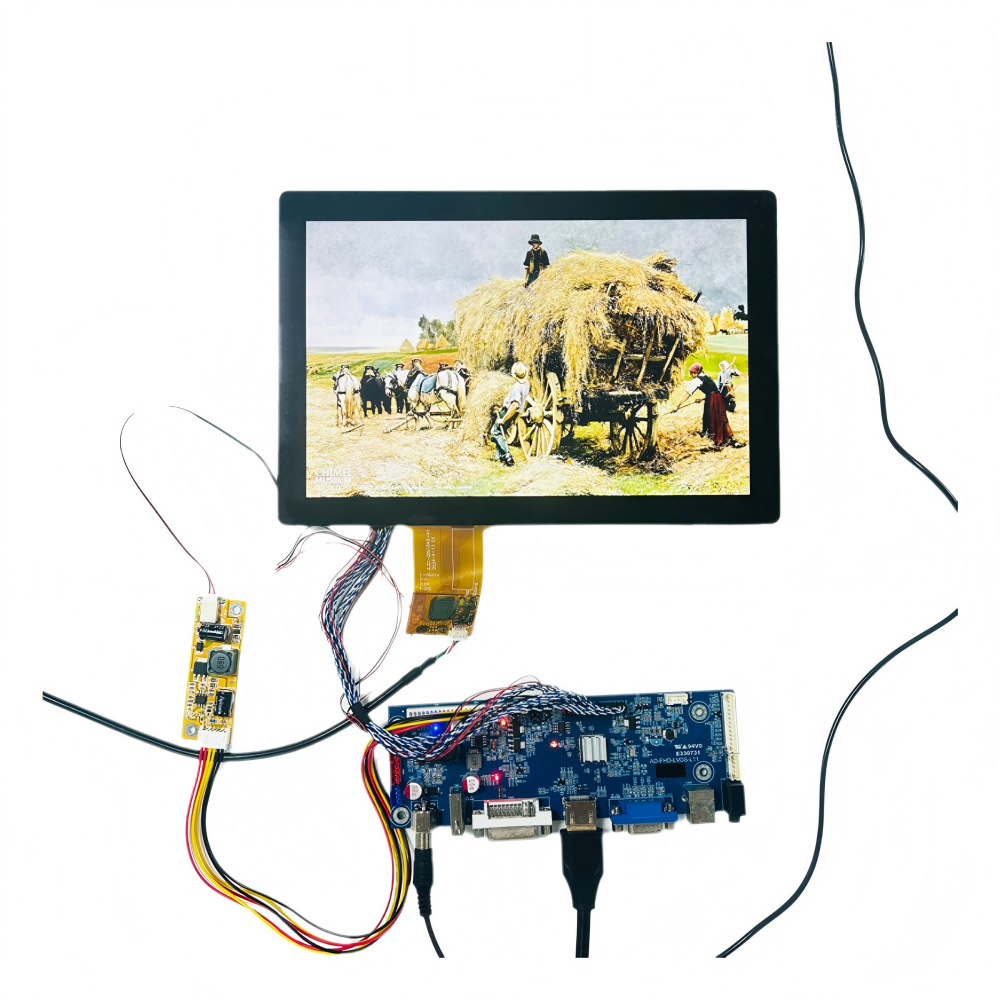

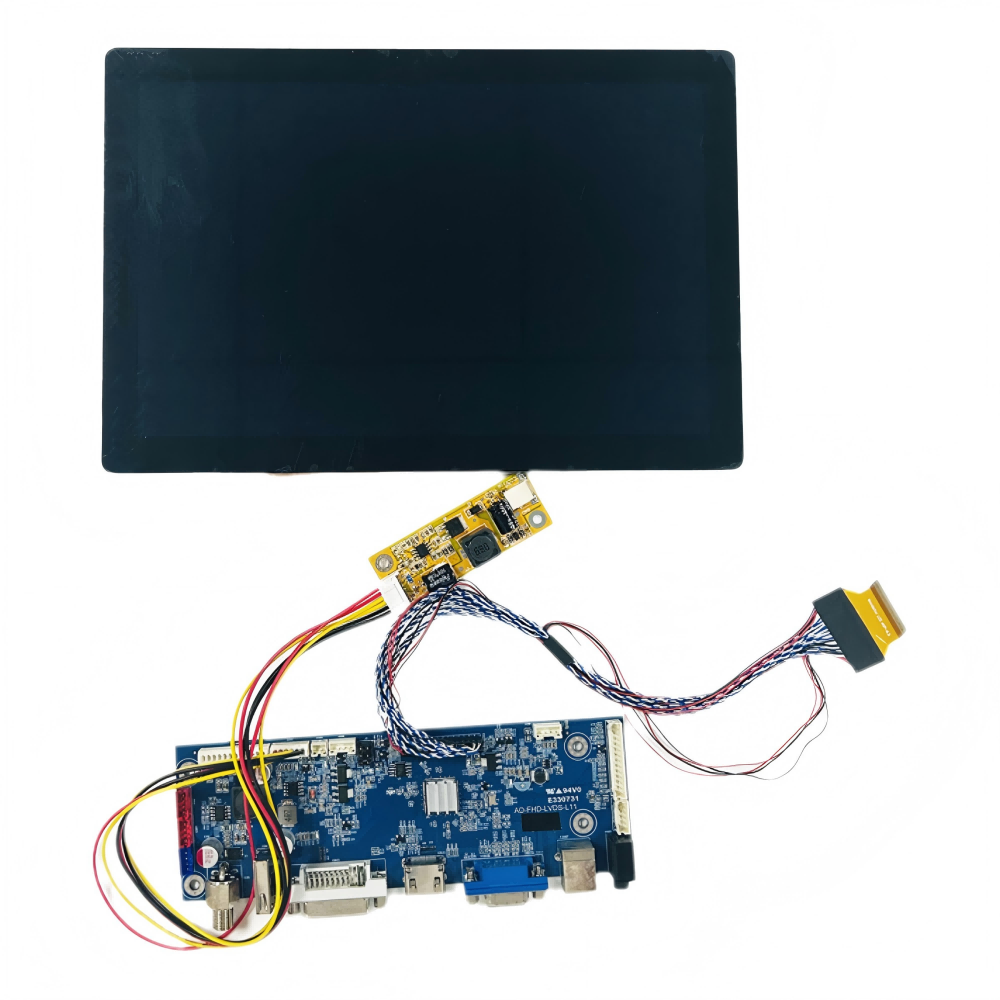

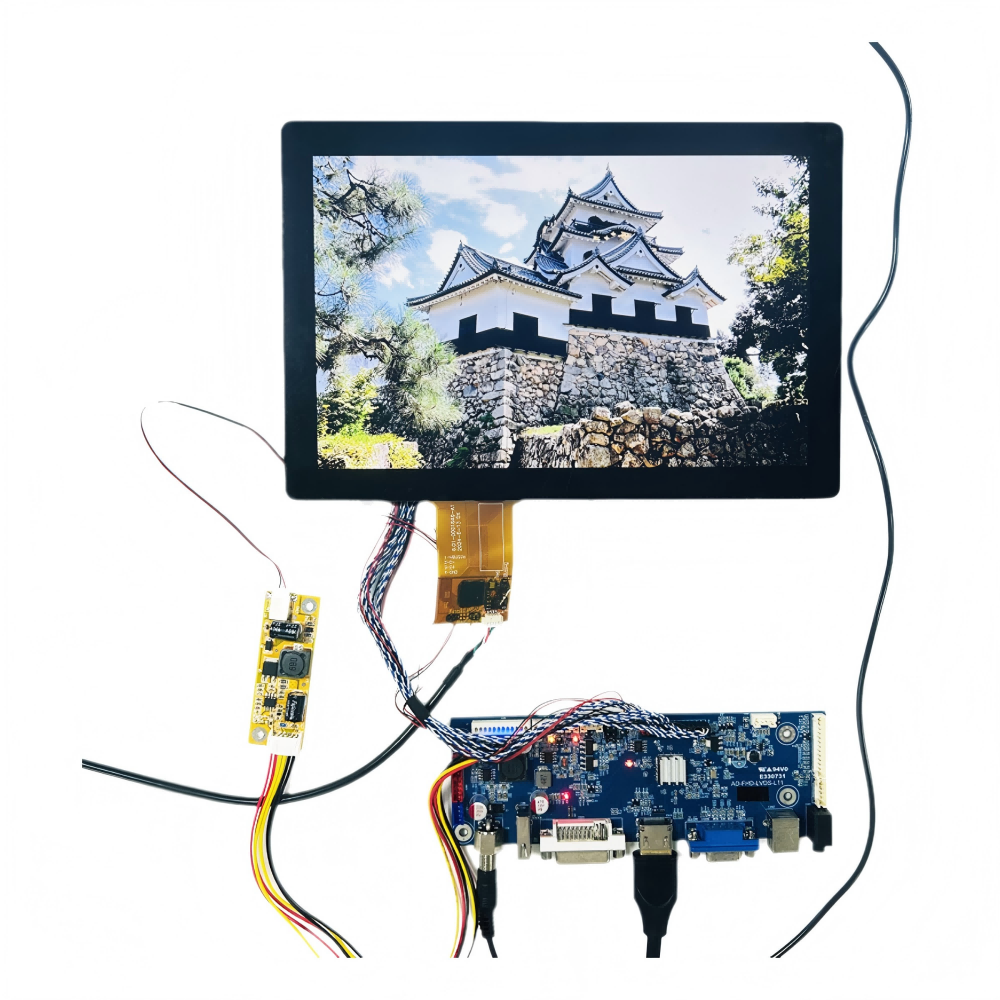

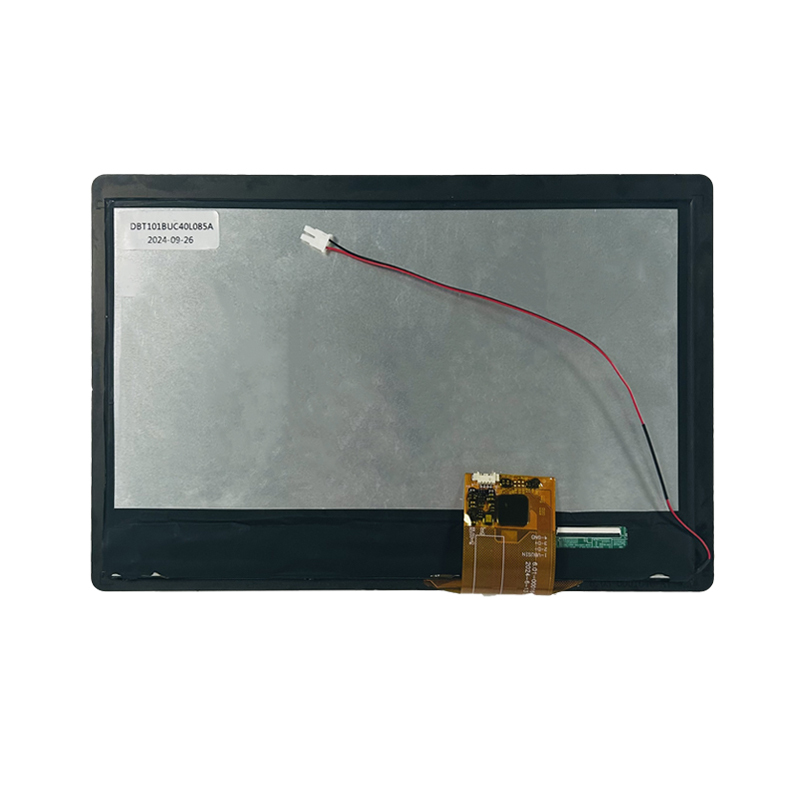

The 10.1-inch 1920×1200 LVDS IPS CG5 Glass CTP Touch Panel TFT LCD Display is a high-resolution industrial-grade display designed for demanding embedded systems, human-machine interfaces (HMI), smart control panels, and high-visibility touchscreen applications. With an ultra-clear 1920×1200 (WUXGA) resolution, an IPS wide-viewing panel, and a robust CG5 cover glass with capacitive touch (CTP), this module delivers exceptional visual clarity, responsive touch experience, and industrial durability.
Equipped with a stable 45-pin LVDS interface and optimized for embedded controller compatibility, the display module is suitable for applications requiring large viewing area, high pixel density, and outstanding touch performance.
The 10.1-inch panel features:
1920 × 1200 WUXGA resolution
Enhanced vertical screen space compared with standard Full HD
Smooth rendering of UI elements, text, and graphics
This resolution is ideal for rich graphical interfaces, detailed dashboards, and high-density content display in industrial control and smart terminals.
The In-Plane Switching (IPS) panel technology ensures:
Consistent color performance across wide angles
Minimal color shift at off-axis viewing
Stable visuals for multiple viewers
Improved readability in collaborative environments
This makes it suitable for multi-operator control panels and shared workstations.
This module integrates a capacitive touch panel (CTP) paired with CG5 cover glass, offering:
Strong surface durability and impact resistance
Excellent touch responsiveness
Anti-glare and anti-fingerprint properties
Clean optical clarity with minimal reflection
The CG5 cover glass provides physical protection and durability in industrial environments.
The LVDS interface delivers:
Stable high-speed transmission
Compatibility with industrial controller boards
Reduced electromagnetic interference (EMI)
Robust signal integrity
LVDS is widely adopted in embedded and industrial systems for its reliability and ease of integration.
| Parameter | Specification |
|---|---|
| Display Size | 10.1 inch |
| Resolution | 1920 × 1200 pixels (WUXGA) |
| Active Area | 216.8064 × 135.504 mm |
| Panel Type | IPS TFT LCD |
| Brightness | 850 cd/m² (typical) |
| Contrast Ratio | 900:1 (typical) |
| Viewing Angle | 80°/80°/80°/80° (L/R/U/D) |
| Colors | 16.7M |
| Parameter | Specification |
|---|---|
| Interface | LVDS (45-pin) |
| Input Voltage | 3.3 V (typical) |
| Backlight | White LED |
| Power Consumption | 8.64 W (typical at 450 cd/m²) |
| Parameter | Specification |
|---|---|
| Module Size | 245.0 × 165.0 × 8.34 mm |
| Operating Temperature | –20 °C ~ +70 °C |
| Storage Temperature | –30 °C ~ +80 °C |
| Cover Glass Type | CG5 Cover Glass |
| Touch Type | Capacitive Touch Panel (CTP) |
Detailed datasheet, pin-out drawings, and mechanical dimension files are available upon request.
Used in factory HMIs, machine dashboards, and control panels requiring responsive touch and high resolution.
Perfect for embedded computing systems, IoT gateways, and smart device UIs with touchscreen interaction.
Applicable for smart kiosks, operator interfaces, POS terminals, and transportation systems.
Integrating industrial LCD modules often requires careful electrical, mechanical, and software coordination. Our engineering support services include:
Interface and controller compatibility consultation
Pin-out and signal mapping guidance
Capacitive touch driver integration assistance
Mechanical mounting recommendations
Optical clarity and anti-glare optimization
This helps reduce integration risk and accelerates product development for OEMs and embedded developers.
This module uses a 45-pin LVDS interface, providing stable high-speed transmission and compatibility with a wide range of industrial controller boards.
The capacitive touch panel (CTP) is integrated and paired with CG5 cover glass, offering excellent touch responsiveness and surface durability.
Yes. It is designed for continuous operation in industrial and embedded environments with operating temperatures from –20 °C to +70 °C.
Yes. With 1920 × 1200 WUXGA resolution, the panel offers enhanced vertical and horizontal screen space, making it suitable for complex interface layouts and detailed graphical information.
The 10.1-inch 1920×1200 LVDS IPS CG5 Glass CTP Touch Panel TFT LCD Display is a high-performance, high-resolution touch display solution tailored for embedded systems, industrial control panels, smart terminals, and specialized instrument interfaces.
Featuring wide viewing angles, robust capacitive touch performance, and reliable LVDS communication, this display module delivers a superior user interface experience while maintaining industrial durability and integration flexibility.
