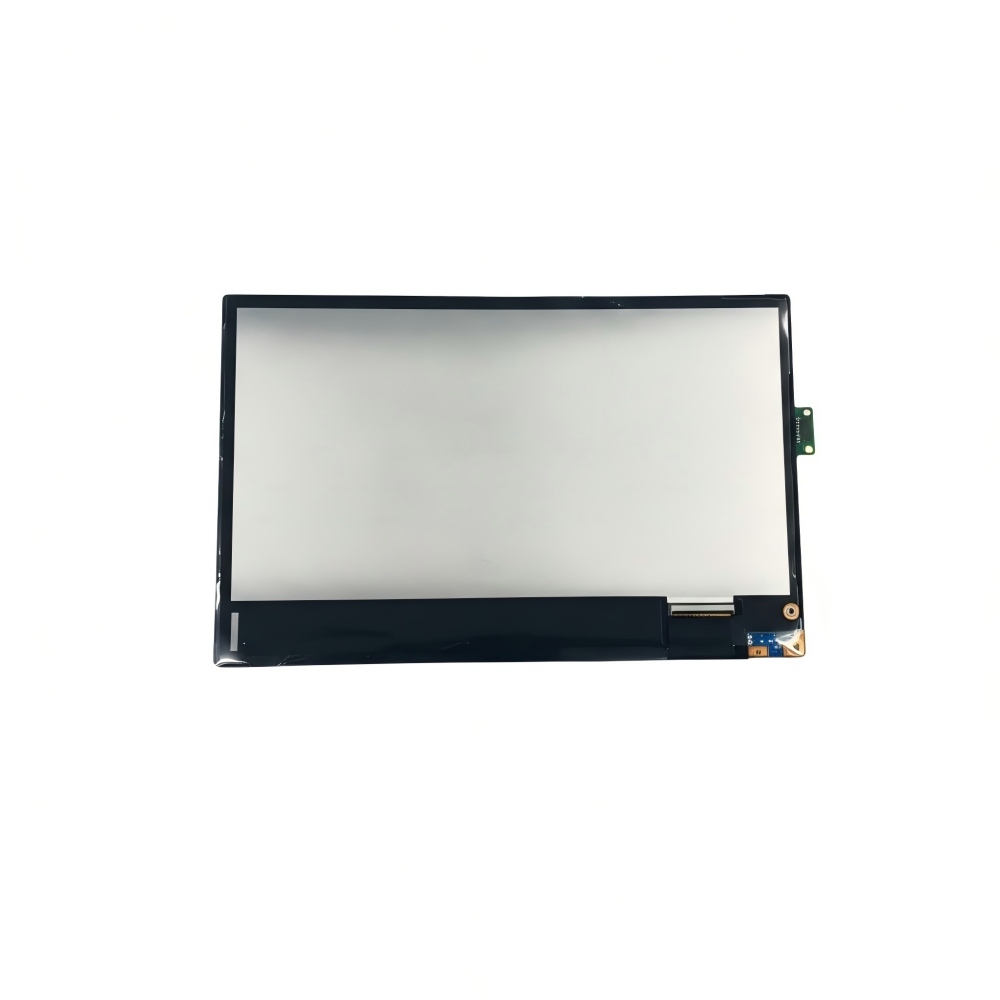

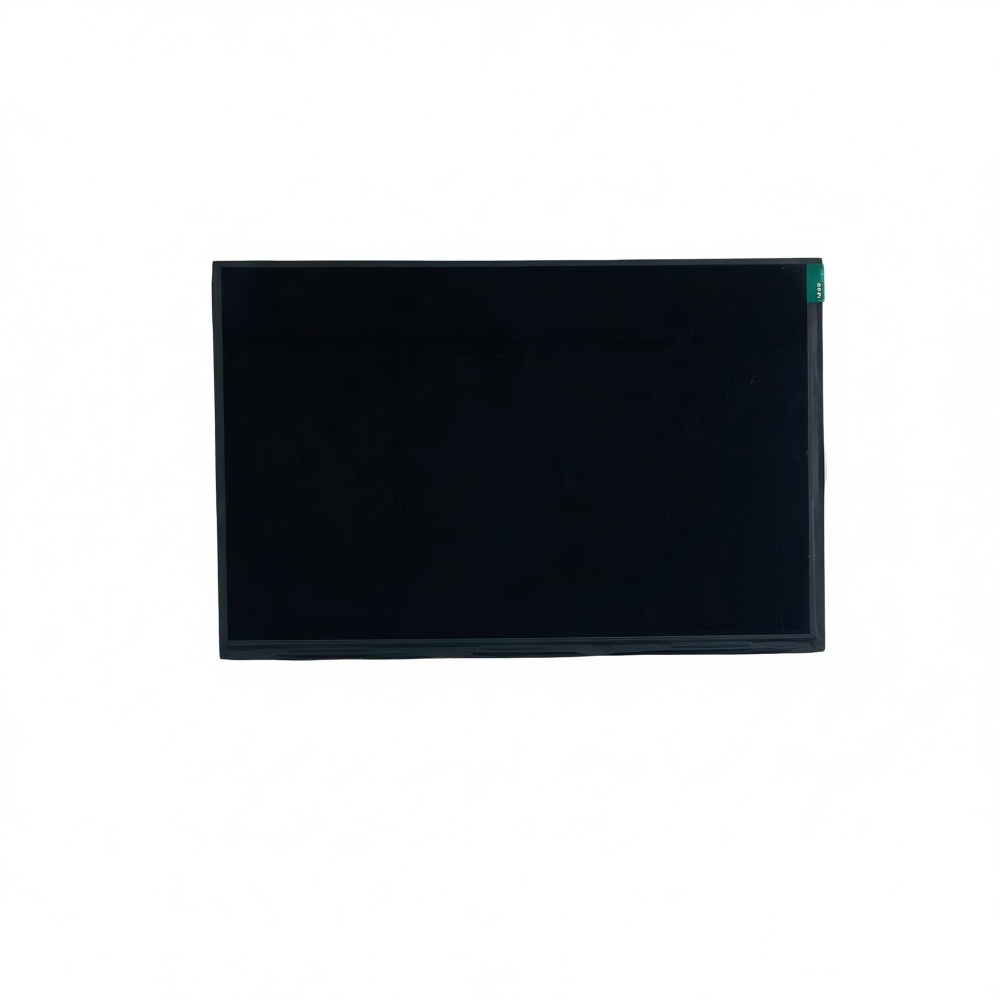

The DBT101BFHA01 10.1-inch TFT LCD module is a high-brightness industrial display featuring 1920×1200 resolution, 1200 cd/m² brightness, a 45-pin LVDS interface, wide viewing angles, and a compact 4.51 mm module thickness. Designed for industrial HMI, automation equipment, embedded systems, machinery displays, and professional control applications, it provides a reliable combination of high-resolution image quality, sunlight-resistant brightness, compact mechanical dimensions, and flexible customization options.
For system integrators and OEM manufacturers looking for a 10.1-inch industrial LCD module, this display provides a practical platform for designing high-performance control interfaces and embedded equipment. Its 1920×1200 resolution provides more vertical pixels than conventional 1280×800 displays, while the 1200 cd/m² backlight improves visibility in bright industrial environments. The LVDS interface also makes it suitable for embedded systems that require a stable high-speed display connection.
10.1-inch TFT LCD module
1920×1200 WUXGA-class resolution
1200 cd/m² high brightness
45-pin LVDS interface
Dual-channel LVDS configuration
Wide viewing direction: 80/80/80/80
16.7M display colors
3.3V power supply
-20°C to +70°C operating temperature
-30°C to +80°C storage temperature
228.72 × 148.36 × 4.51 mm module dimensions
216.91 × 135.50 mm active area
6×6 white LED backlight
700–900 contrast ratio
30 ms typical rise time and 30 ms fall time
Optional touch panel and GG5 cover glass customization
| Parameter | Specification |
|---|---|
| Model | DBT101BFHA01 |
| Display Type | TFT LCD |
| Display Size | 10.1 inch |
| Resolution | 1920 × 1200 pixels |
| Aspect Ratio | 16:10 |
| Active Area | 216.91 × 135.50 mm |
| Module Dimensions | 228.72 × 148.36 × 4.51 mm |
| Display Colors | 16.7M |
| Viewing Direction | 80/80/80/80 |
| Interface | LVDS 45-Pin |
| LVDS Configuration | 2-Channel |
| Brightness | 1200 cd/m² |
| Contrast Ratio | 700–900 |
| Response Time | Tr: 30 ms / Tf: 30 ms |
| Power Supply | 3.3 V |
| Backlight | 6×6 White LEDs |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Application | Industrial HMI, Automation, Embedded Systems, Machinery, Monitoring Equipment |
Specifications should be verified against the latest engineering datasheet before final mass-production design.
Display selection is an important part of industrial equipment design. A suitable LCD module needs to balance resolution, brightness, viewing angle, mechanical dimensions, interface compatibility, power requirements, and environmental conditions.
The DBT101BFHA01 is designed around these practical engineering requirements.
The 1920×1200 resolution provides a large amount of screen information within a compact 10.1-inch form factor. Compared with standard 1280×800 industrial displays, the additional vertical resolution allows engineers to display more information simultaneously.
This can be particularly useful for:
Industrial dashboards
PLC monitoring interfaces
Equipment status screens
Machine parameters
Process-control interfaces
Diagnostic menus
Data visualization
Embedded computer interfaces
Higher pixel density also helps improve the rendering of small text, charts, icons, control buttons, and technical graphics.
For industrial equipment manufacturers, this means the same 10.1-inch physical display area can accommodate a more information-rich user interface without requiring a larger enclosure.
One of the defining characteristics of this LCD module is its 1200 cd/m² brightness.
Standard consumer displays are often designed primarily for controlled indoor environments. Industrial equipment, however, may be installed in locations with strong ambient lighting, near windows, production-floor lighting, or semi-outdoor environments.
A high-brightness backlight provides greater optical output, helping the displayed content remain more visible under challenging lighting conditions.
The 1200 cd/m² configuration is particularly suitable for applications where operators need to read:
Machine status information
Alarm notifications
Production parameters
Measurement data
Graphs and charts
Equipment operating conditions
High brightness does not automatically mean a display is fully sunlight-readable in every outdoor installation. Final outdoor performance depends on the enclosure, cover glass, optical bonding, ambient illumination, viewing angle, and system-level design. For demanding outdoor projects, Aptus can evaluate the complete display configuration according to the customer's installation environment.
The DBT101BFHA01 uses a 45-pin LVDS interface with a 2-channel LVDS configuration.
LVDS is widely used in industrial computers, embedded controllers, HMI systems, and professional display equipment because it supports high-speed differential signaling while providing good resistance to electrical interference.
For system engineers, interface compatibility is one of the most important considerations when selecting an LCD module.
Before integrating this module, engineers should verify:
LVDS signal mapping
Connector specification
Pixel format
Data polarity
Clock configuration
Power sequence
Backlight control
Timing parameters
Host controller compatibility

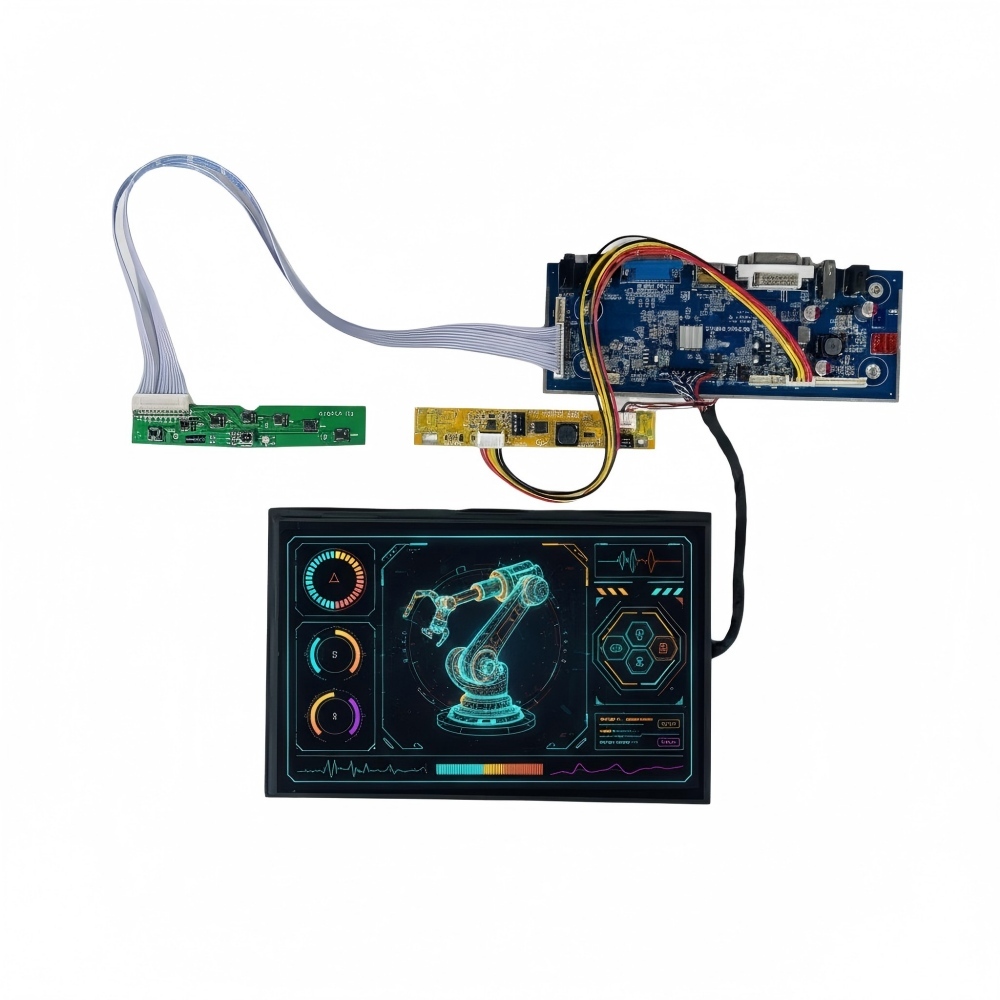

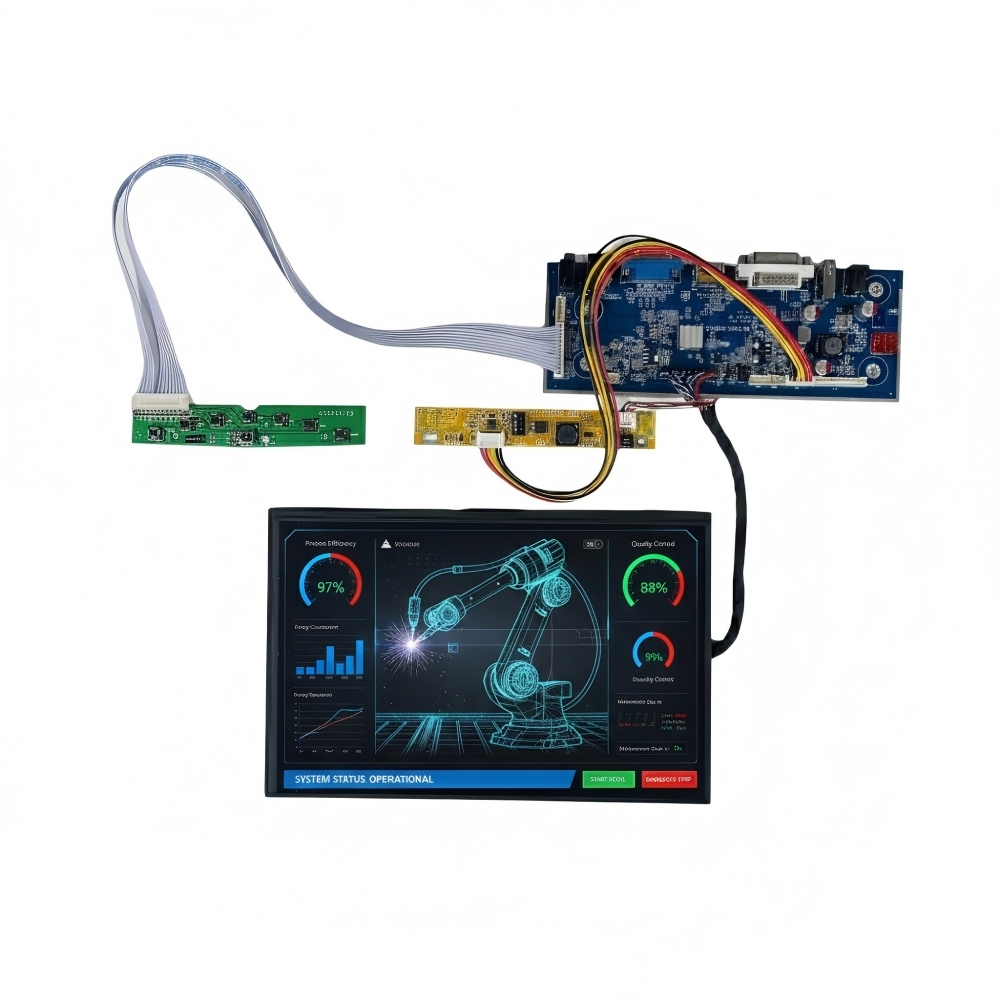

A suitable LVDS interface configuration can simplify the connection between the LCD module and an industrial computing platform.
The module provides a 80/80/80/80 viewing direction specification, supporting visibility from different operator positions.
This characteristic is valuable in industrial environments where the display cannot always be viewed directly from the front.
For example, an HMI mounted on machinery may be observed by operators standing slightly to the left or right of the equipment. A wide viewing configuration helps maintain useful image visibility when the viewing position changes.
This makes the module suitable for control panels, machine interfaces, inspection equipment, and professional monitoring systems where multiple viewing positions may occur.
The module measures approximately 228.72 × 148.36 × 4.51 mm.
Its relatively slim 4.51 mm module thickness provides system designers with greater flexibility when developing compact industrial equipment.
The 10.1-inch form factor can provide a useful balance between:
Display area
Information density
Enclosure size
Installation space
Operator readability
This makes it suitable for equipment where a 7-inch display may be too small but a 12-inch or larger display would require an unnecessarily large enclosure.
The specified operating temperature range is -20°C to +70°C, while the storage temperature range is -30°C to +80°C.
This makes the module suitable for many indoor industrial and controlled semi-outdoor applications where the display may experience temperature variations.
Potential applications include factory equipment, automation systems, control cabinets, inspection equipment, and industrial monitoring terminals.
However, actual system operating temperature should always consider the complete assembly. Enclosure temperature, heat generated by the controller and backlight, airflow, installation orientation, and ambient conditions can all affect the final thermal environment of the LCD.
For projects with more demanding temperature requirements, customers can discuss a customized wide-temperature LCD solution with Aptus.
The DBT101BFHA01 is particularly suitable for industrial human-machine interface applications.
An HMI needs to present information clearly while allowing operators to interact with equipment efficiently. The combination of 1920×1200 resolution, high brightness, wide viewing characteristics, and compact dimensions makes this LCD module a strong candidate for HMI development.
Typical HMI applications include:
Factory automation terminals
PLC control interfaces
Production-line monitoring
Industrial control panels
Machine operation interfaces
Process monitoring equipment
Equipment diagnostic terminals
A touch panel can also be integrated when the project requires direct operator interaction.
This 10.1-inch industrial LCD module can be integrated into a wide variety of professional equipment.
The display can serve as a visual interface for automated production equipment, allowing operators to monitor machine status, production information, alarms, and operating parameters.
CNC machines and other industrial machinery often require compact displays capable of presenting detailed menus, numerical parameters, graphs, and operating information.
High-resolution displays can improve the readability of measurement data, inspection results, graphs, and equipment status information.
The LVDS interface makes the module suitable for embedded computer platforms where an internal display connection is required.
Professional monitoring equipment can use the 10.1-inch form factor to display multiple data fields, charts, system status indicators, and warning information.
The display can also be used as part of specialized control consoles where a compact but high-resolution display is required.
For projects requiring operator interaction, Aptus supports customization of the LCD module with a touch panel.
Depending on project requirements, touch solutions can include:
Capacitive touch panel (CTP)
Resistive touch panel (RTP)
Custom cover glass
GG5 protective glass
Customized mechanical integration
A GG5 cover glass can provide additional surface protection and can be customized according to the final equipment structure.
For HMI applications, integrating the LCD and touch panel as a complete display assembly can simplify mechanical design and reduce integration work for OEM manufacturers.
Every industrial equipment project has different requirements. A standard LCD module may meet the basic display requirements, but mechanical, optical, electrical, and touch-related modifications may be necessary for final integration.
Aptus supports project-level customization based on application requirements.
Possible customization areas include:
Optical customization:
Brightness and backlight configuration can be evaluated according to the intended operating environment.
Mechanical customization:
The display structure can be assessed according to enclosure dimensions and installation requirements.
Interface support:
Engineering teams can evaluate interface compatibility and signal requirements for the customer's host system.
Touch integration:
CTP or RTP touch panels can be integrated for interactive HMI applications.
Cover glass:
GG5 cover glass solutions can be considered where additional surface protection is required.
The goal is not simply to supply an LCD panel, but to help OEM customers develop a display assembly that can be integrated into their final equipment.
For industrial display projects, product quality involves more than brightness and resolution. Long-term reliability also depends on electrical stability, thermal design, mechanical integration, backlight performance, and production consistency.
Aptus focuses on engineering support throughout the display development process, including product selection, customization feasibility, integration assistance, and project supply.
For customers purchasing LCD modules in volume, engineering communication before mass production is particularly important. Host-system timing, connector design, mechanical tolerances, backlight requirements, and operating conditions should be confirmed before the final design is released.
This engineering-oriented approach helps reduce integration risks and supports more stable product development.
Aptus Display, operated by Shenzhen Aptus Technology Co., Ltd., provides LCD display and touch-related solutions for industrial and professional applications.
The company's product portfolio covers TFT LCD modules, industrial displays, touch panel LCD modules, flight simulator display solutions, bar-type LCD modules, wide-temperature display solutions, LCD accessories, and customized display assemblies.
For OEMs, system integrators, distributors, and equipment manufacturers, Aptus provides more than a standard component catalog. The company supports product selection, technical communication, customization evaluation, and long-term project supply.
The engineering-focused service model is especially valuable when a customer needs to adapt an LCD module to a specific enclosure, host controller, touch interface, brightness requirement, or operating environment.
When evaluating a 10.1-inch industrial display, engineers should consider the following factors:
Resolution:
Determine whether 1280×800, 1920×1200, or another resolution provides the required information density.
Brightness:
Select brightness according to ambient lighting conditions rather than choosing the highest specification automatically.
Interface:
Confirm whether the host system supports LVDS, MIPI, eDP, HDMI, or another interface.
Mechanical dimensions:
Verify the active area, outline dimensions, thickness, mounting structure, and cable routing.
Temperature:
Consider both ambient temperature and heat generated inside the final enclosure.
Touch requirements:
Determine whether the application needs a touch panel and whether CTP or RTP is more suitable.
Cover glass:
For applications requiring enhanced surface protection, evaluate a suitable cover glass configuration.
Supply requirements:
For long-term OEM programs, discuss forecast volumes, production planning, quality requirements, and supply continuity with the display supplier.
Yes. The DBT101BFHA01 is a 10.1-inch TFT LCD module designed for industrial control, HMI, embedded systems, machinery, and professional monitoring applications.
The display resolution is 1920×1200 pixels, providing a high-resolution 16:10 display format suitable for detailed industrial interfaces.
The module uses a 45-pin LVDS interface with a 2-channel LVDS configuration. Host-system signal mapping and timing should be verified during integration.
Yes. The module provides 1200 cd/m² brightness, which is significantly brighter than many standard indoor LCD modules and is suitable for bright industrial environments. For direct outdoor sunlight applications, the complete display assembly should be evaluated.
Yes. Aptus supports touch panel integration, including CTP and RTP solutions, depending on project requirements.
Yes. Aptus can evaluate customization requirements such as brightness, backlight configuration, interface compatibility, mechanical integration, GG5 cover glass, and touch panel integration.
The specified operating temperature range is -20°C to +70°C, with a storage temperature range of -30°C to +80°C.
Typical applications include industrial HMI, factory automation, PLC interfaces, machinery displays, CNC equipment, inspection systems, embedded industrial computers, monitoring equipment, and professional control systems.
If you are sourcing a 10.1-inch 1920×1200 high-brightness LCD module, the DBT101BFHA01 provides a strong combination of resolution, brightness, LVDS connectivity, wide viewing characteristics, compact dimensions, and industrial-oriented operating capability.
Aptus Display can support OEMs, system integrators, distributors, and equipment manufacturers with product selection, customization evaluation, touch panel integration, and volume supply.
