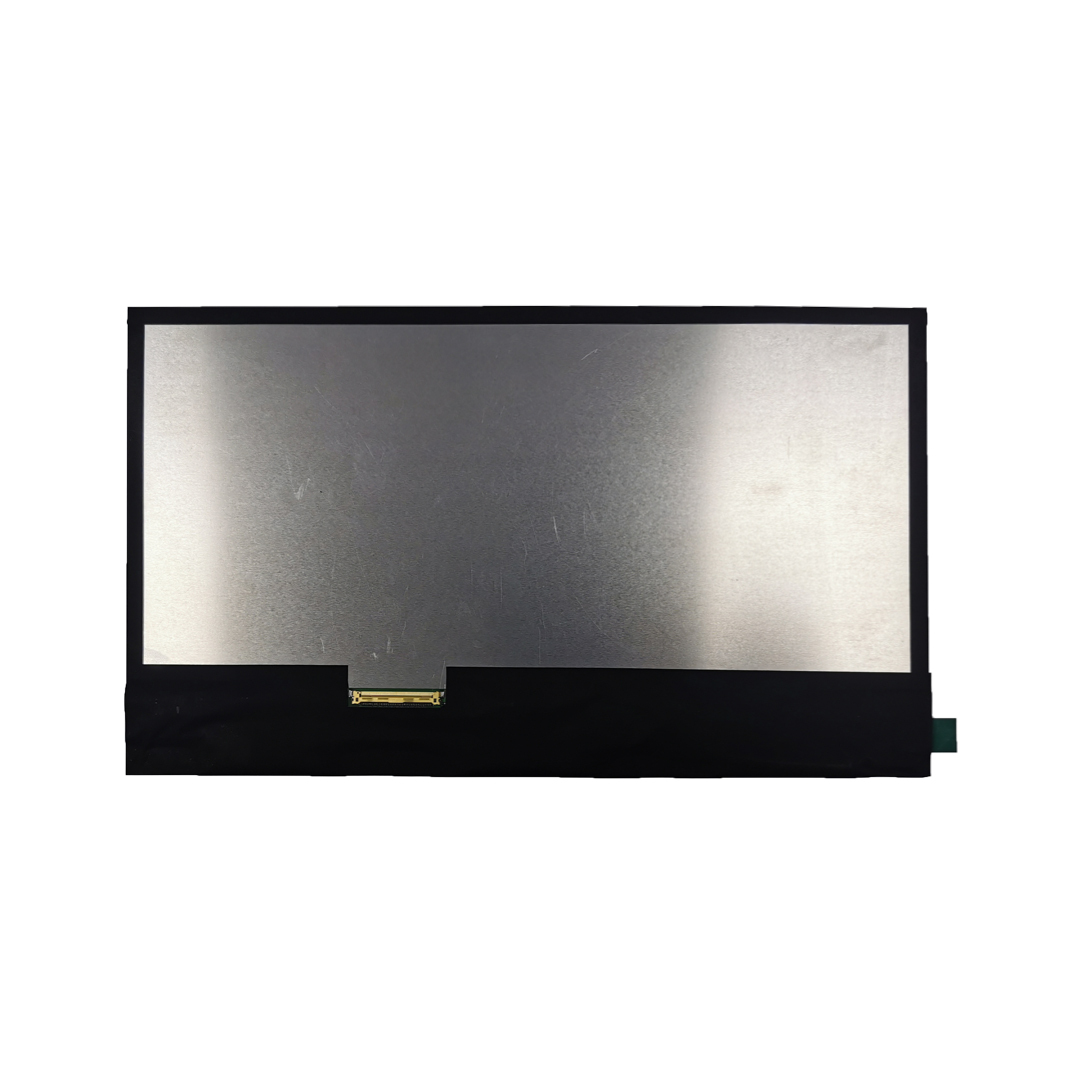

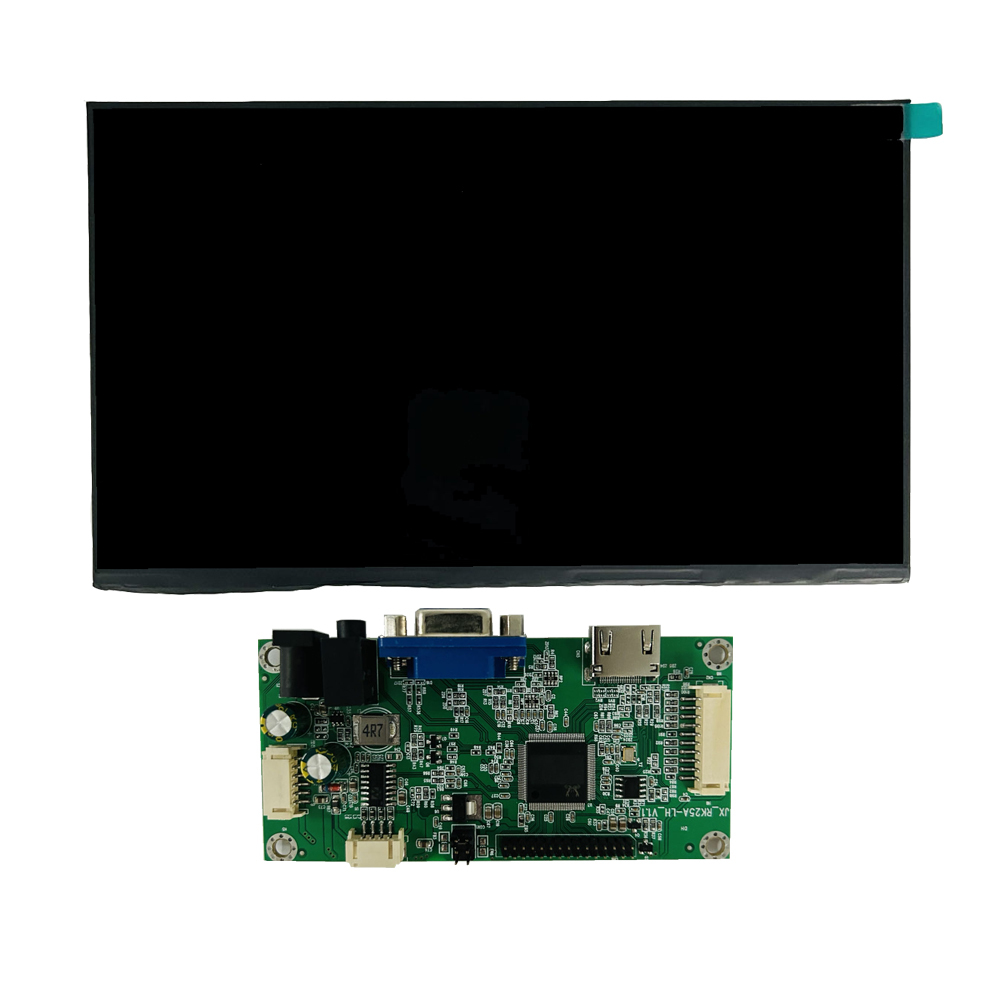

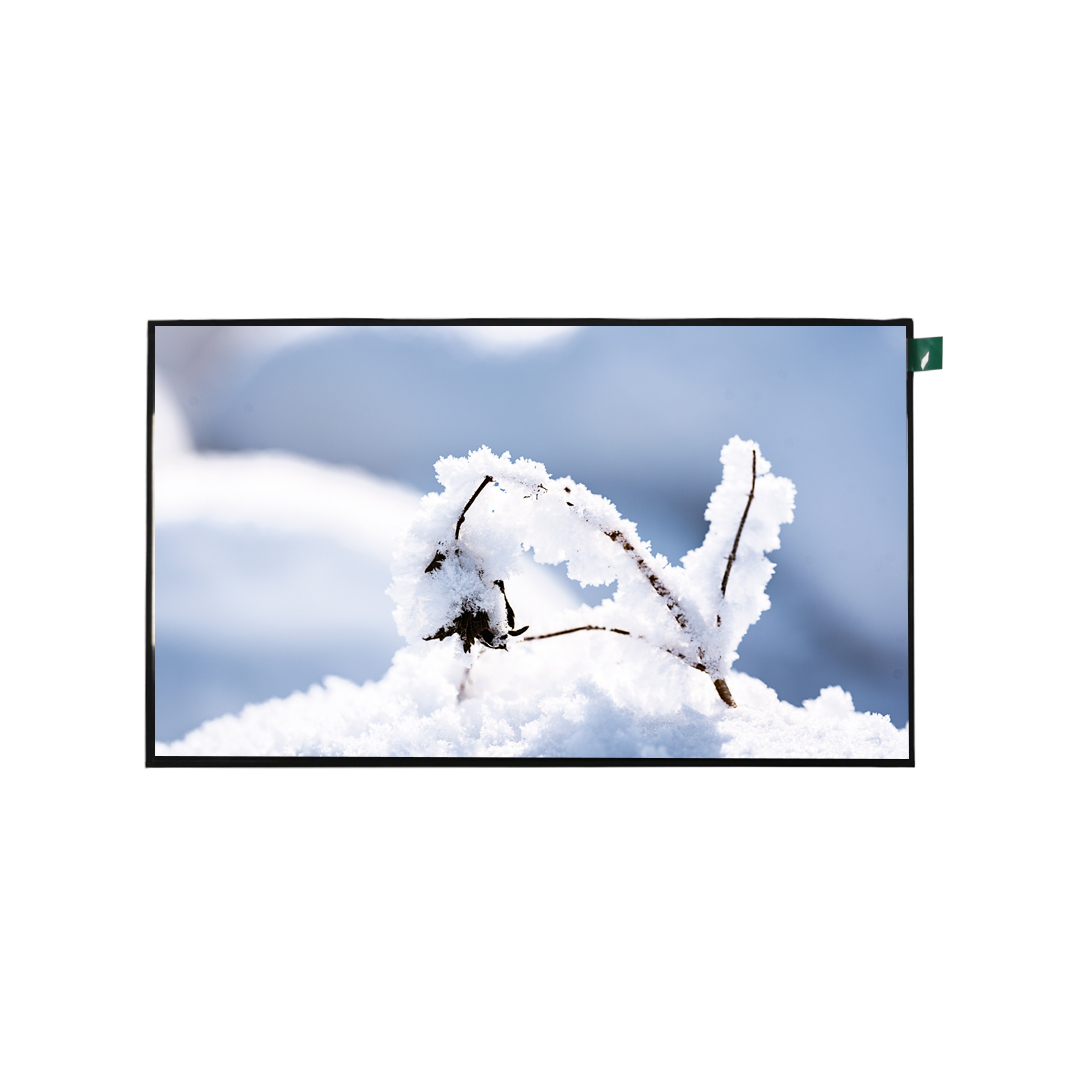

The DBT101BHN40L080A is a 10.1-inch Full HD IPS TFT LCD module featuring 1920×1080 resolution, 800 cd/m² brightness, a 40-pin LVDS interface, wide viewing angles, and a slim 2.8 mm module profile. Designed for equipment manufacturers, OEMs, ODMs, and system integrators, this high-resolution LCD module provides a practical display solution for industrial equipment, HMI systems, self-service terminals, POS equipment, digital signage, and other embedded display applications.
With its Full HD resolution, the module delivers significantly more image detail than conventional 1024×600 or 1280×800 10.1-inch LCD displays. The IPS panel architecture also provides stable image quality and wide viewing performance, making it suitable for interfaces where operators or users may view the display from different positions.
The 800 cd/m² high-brightness backlight provides improved visibility compared with standard-brightness TFT LCD modules, particularly in bright indoor environments and applications exposed to strong ambient lighting. For customers developing a customized display assembly, Aptus Display can also evaluate touch panel, cover glass, optical bonding, cable, and controller-board requirements according to the project.
One of the primary advantages of the DBT101BHN40L080A is its 1920×1080 Full HD resolution.
For a 10.1-inch display, Full HD provides a high pixel density that allows equipment designers to present detailed graphics, text, control menus, charts, images, and video content within a relatively compact display area.
Compared with lower-resolution 10.1-inch panels, 1920×1080 can provide additional screen detail and more flexible interface layouts. This can be particularly useful for industrial HMI systems where multiple data fields, equipment status indicators, graphs, and controls need to appear simultaneously.
The module provides a specified brightness of 800 cd/m².
This high-brightness configuration is designed to improve display visibility in environments with relatively strong ambient illumination. It can be particularly useful for indoor industrial equipment, kiosks, POS terminals, information terminals, and other embedded products installed under bright lighting.
It is important to distinguish high brightness from direct-sunlight readability. For demanding outdoor applications, final readability depends on the entire display assembly, including cover glass, surface treatment, optical bonding, polarizer, enclosure, and reflected ambient light. Aptus Display can evaluate these factors when developing a complete display solution.
The DBT101BHN40L080A uses an IPS TFT LCD architecture and specifies a viewing angle of 80° in the horizontal and vertical directions.
Wide viewing performance helps maintain image visibility when users are not positioned directly in front of the display. This is useful for control panels, self-service terminals, industrial equipment, and public-facing information systems.
For equipment with multiple possible viewing positions, IPS technology can help provide a more consistent visual experience across different viewing angles.

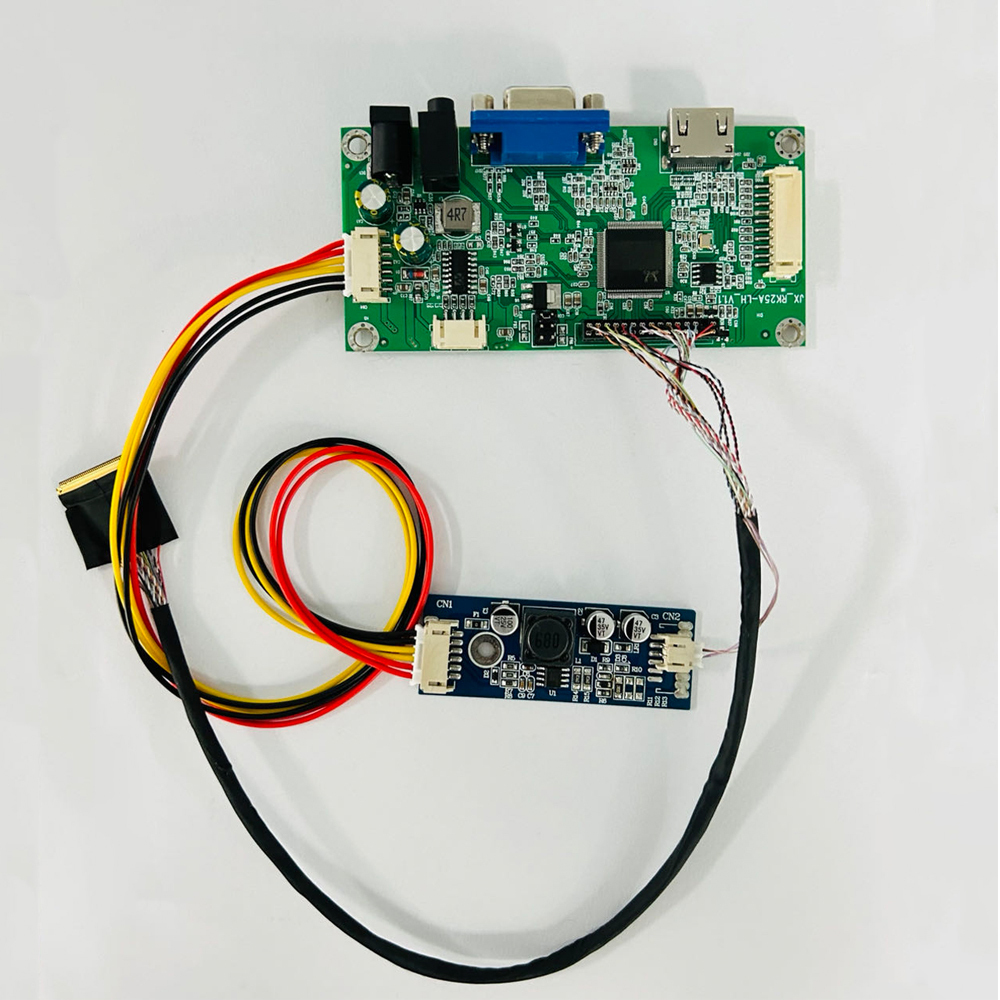

The module uses a 40-pin LVDS interface, providing a digital display interface commonly used in embedded computing and industrial display systems.
LVDS can be integrated with compatible industrial PCs, embedded computing platforms, controller boards, and customized electronics. Engineers should verify the host platform's LVDS signal configuration, connector definition, timing requirements, power supply, and backlight control before final integration.
Aptus Display can assist customers in checking interface compatibility during the sample and engineering evaluation stage.
The module has an outline dimension of approximately 229.91 × 135.74 × 2.8 mm.
Its slim profile can help equipment designers reduce the depth of the display assembly, which is useful when the finished product has limited internal space.
The compact module format is suitable for embedded equipment where display dimensions, enclosure depth, and internal component arrangement must be carefully controlled.
| Parameter | Specification |
|---|---|
| Product Model | DBT101BHN40L080A |
| Display Type | IPS TFT LCD Module |
| Screen Size | 10.1 inch |
| Resolution | 1920 × 1080 pixels |
| Resolution Type | Full HD |
| Interface | 40-Pin LVDS |
| Brightness | 800 cd/m² |
| Color Depth | 16.7 million colors |
| Contrast Ratio | 1000:1 typical |
| Response Time | 35 ms typical |
| Viewing Angle | 80° / 80° / 80° / 80° |
| Pixel Pitch | 0.0376 × 0.1128 mm |
| Active Area | 222.72 × 125.28 mm |
| Product Page Active Area | 223.488 × 125.712 mm |
| Module Dimensions | 229.91 × 135.74 × 2.8 mm |
| Operating Voltage | 3.3V ± 0.3V |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -30°C to +80°C |
| Display Application | Industrial and Embedded Display Systems |
The specifications above are based on the product information published on the Aptus Display product page. Because LCD specifications can vary by production revision, customers should request the latest approved datasheet before final hardware design and mass production.
The 10.1-inch format provides sufficient display area for industrial operator interfaces while remaining compact enough for embedded machinery.
The 1920×1080 resolution allows designers to create detailed HMI interfaces containing equipment parameters, alarm information, graphical controls, production data, charts, and status indicators.
Typical applications include:
Industrial HMI terminals
Machine control panels
Factory automation equipment
Production machinery
Process monitoring systems
Industrial operator interfaces
Automation control equipment
The 800 cd/m² brightness can also provide additional visibility when industrial equipment is installed in brightly illuminated production areas.
Industrial equipment increasingly requires graphical interfaces rather than simple numerical indicators. A Full HD 10.1-inch display gives system designers more space for sophisticated graphical interfaces.
The DBT101BHN40L080A can be considered for CNC machines, inspection equipment, packaging machinery, robotics interfaces, automated production equipment, and other embedded industrial systems.
The 40-pin LVDS interface is particularly useful when the host electronics already provide compatible LVDS output.
The module's combination of Full HD resolution, IPS viewing performance, and 800 cd/m² brightness makes it suitable for various self-service terminals.
Potential applications include:
Self-service kiosks
Information terminals
Ticketing equipment
Check-in terminals
Queue management systems
Access control terminals
Interactive information systems
If touch functionality is required, the LCD module can be evaluated as part of a customized touch panel display assembly.
The 10.1-inch Full HD format is also suitable for POS terminals and retail equipment where clear graphical information and a compact form factor are required.
Retail system designers can use the display for menus, product information, transaction interfaces, payment status, inventory information, and customer-facing content.
For projects requiring touch operation, Aptus Display can discuss the integration of a capacitive touch panel and protective cover glass.
The Full HD resolution makes the module suitable for embedded digital signage and information display applications where detailed images, promotional content, icons, and text need to be displayed clearly.
Potential applications include:
Indoor advertising terminals
Information boards
Digital menu systems
Retail displays
Corporate information terminals
Public information equipment
The 800 cd/m² brightness provides additional luminance for bright indoor environments.
Selecting a TFT LCD module requires more than matching the screen size and resolution. Engineers should evaluate the electrical interface, mechanical dimensions, brightness, temperature range, optical environment, and host controller before beginning mass production.
Because this display uses a 40-pin LVDS interface, the host system must be compatible with the module's LVDS configuration.
During integration, engineers should verify:
LVDS signal mapping
Connector pin assignment
Pixel clock and timing
Supply voltage
Backlight power
Backlight control
Ground configuration
Cable length and routing
Aptus Display can provide technical information for customers evaluating the module with their existing controller hardware.
The module outline is approximately 229.91 × 135.74 × 2.8 mm.
The final enclosure should provide adequate clearance for the LCD, FPC/cable routing, connector area, mounting structure, controller electronics, and thermal considerations.
Mechanical tolerance should also be considered when designing the front bezel and display opening.
Although the module has an operating temperature specification of -10°C to +60°C, the actual operating environment of the finished product depends on the complete system.
For equipment installed inside an enclosed housing, heat from the LCD backlight, processor, controller board, power supply, and other components can increase the internal temperature.
For continuous-use equipment, engineers should evaluate:
Internal enclosure temperature
Heat generated by the backlight
Controller-board temperature
Airflow
Installation orientation
Ambient temperature
Continuous operating conditions
A system-level thermal test is recommended before production.
For bright indoor environments, 800 cd/m² provides a useful high-brightness configuration. However, display readability is also affected by reflections.
Depending on the application, customers may consider:
Anti-glare treatment
Anti-reflective treatment
Optical bonding
Cover glass
Touch panel integration
Polarizer selection
Enclosure design
Aptus Display can evaluate these requirements as part of a customized display project.
Standard LCD modules are often sufficient for initial product development, but commercial and industrial OEM projects may require modifications to meet specific mechanical, electrical, optical, or functional requirements.
Aptus Display provides customized display solutions for customers requiring more than a standard LCD module.
Depending on project requirements, customization may include:
Touch panel integration
Capacitive touch panel solutions
Protective cover glass
Optical bonding
FPC or cable customization
Connector solutions
LVDS interface integration
Driver and controller boards
Backlight optimization
Mechanical integration
Customized display assemblies
For projects with a specific enclosure or front-panel design, customers can provide the required display opening, mechanical dimensions, interface, brightness, temperature range, and expected quantity. The Aptus Display team can then evaluate the most suitable display configuration.
A reliable LCD supplier should provide more than a product catalog. For OEM and system-integrator projects, engineering support, customization capability, quality control, and communication throughout the development cycle are equally important.
Aptus Display focuses on LCD display modules and display integration solutions for industrial, embedded, commercial, and specialized applications.
The company provides support covering product selection, customization, technical assistance, quality assurance, global shipping, and after-sales service. Its product portfolio includes TFT LCD modules, touch panel LCD modules, wide-temperature LCD displays, bar-type LCD modules, flight simulator displays, gaming display solutions, automotive LCD products, LCD accessories, and other specialized display solutions.
For OEM customers, the benefit of working with a display solution provider is the ability to evaluate the display as part of the complete system rather than selecting a panel based only on screen size.
Aptus Display can work with customers to evaluate display specifications against the actual application, including resolution, brightness, interface, temperature, mechanical constraints, touch requirements, and projected quantity.
The DBT101BHN40L080A has a 1920×1080 Full HD resolution. This provides detailed image reproduction for HMI interfaces, industrial equipment, kiosks, POS systems, and embedded display applications.
The display has a specified brightness of 800 cd/m². This makes it a high-brightness LCD solution for applications where standard-brightness displays may not provide sufficient visibility.
Yes. The DBT101BHN40L080A uses a 40-pin LVDS interface. Customers should confirm the exact LVDS pin assignment and timing requirements with the latest technical documentation before integration.
The specified operating temperature range is -10°C to +60°C, while the storage temperature range is -30°C to +80°C. The final system's temperature performance will also depend on enclosure design, electronics, airflow, and installation conditions.
Yes. Aptus Display provides customized display solutions and can evaluate touch panel integration, cover glass, optical bonding, cables, controller boards, and other project-specific requirements depending on the application.
If you are sourcing a 10.1-inch Full HD IPS TFT LCD module with 800 cd/m² brightness and a 40-pin LVDS interface, the DBT101BHN40L080A is a strong candidate for industrial HMI, automation equipment, kiosks, POS terminals, digital signage, and other embedded display systems.
