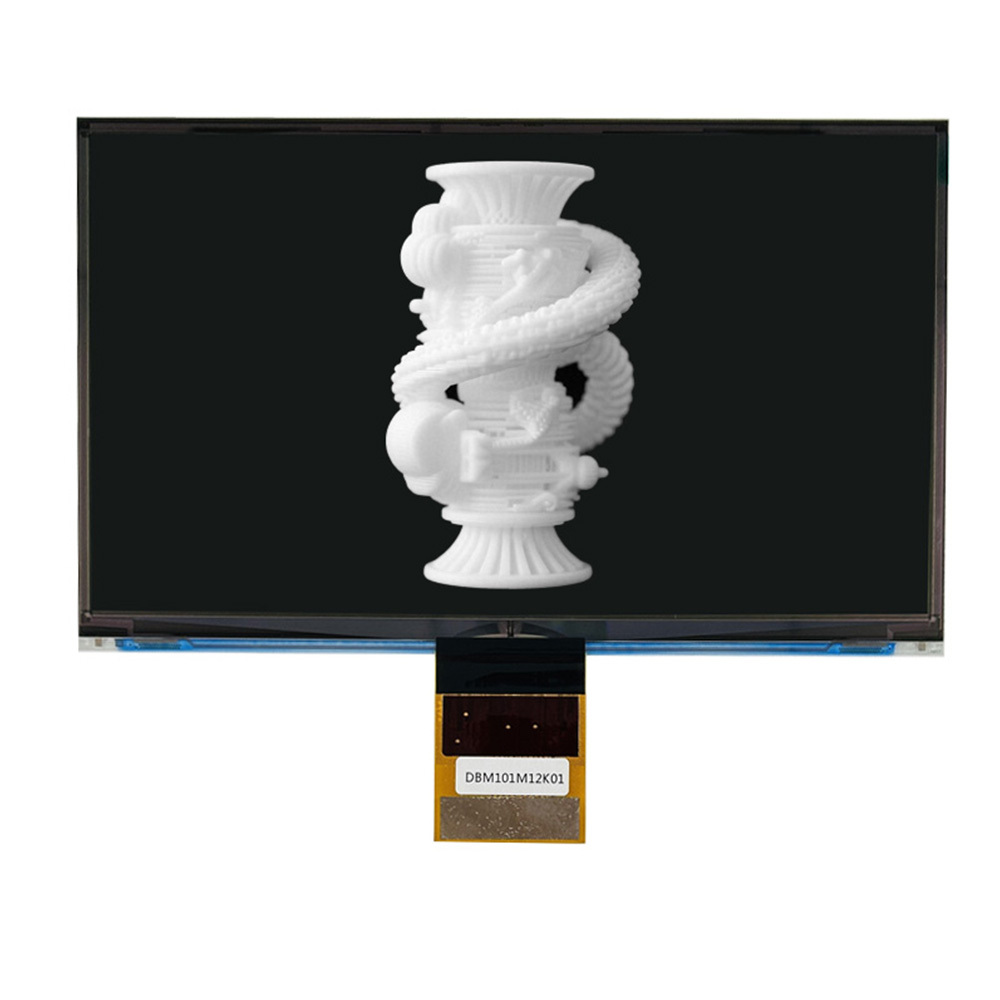

MONO LCD Display for 3D Printers - DBM101M12K01

Product Name: APTUS Technology CO., LTD.  DBM101M12K01 MONO LCD Display

Overview:
The DBM101M12K01 is a high-resolution MONO LCD display module designed for 3D printer applications.  With a large 10.1-inch screen and a resolution of 11520 x 5120 pixels, this display offers exceptional clarity and detail, making it ideal for precise control and visualization in 3D printing.

Key Features:
- Large Display Area: Enjoy a spacious viewing experience with a 10.1-inch screen size, perfect for detailed previews and settings adjustments in 3D printing.
- High Resolution: The 11520 x 5120 pixel resolution ensures that every detail of your 3D print is visible and accurate.
- MONO Technology: Utilizing LTPS (Low-Temperature Polycrystalline Silicon) technology, this display provides consistent color reproduction and wide viewing angles.
- Robust Design: Built with a glass panel, this display is designed to withstand the rigors of industrial use, making it a reliable choice for 3D printer applications.
- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this display is an environmentally responsible choice.

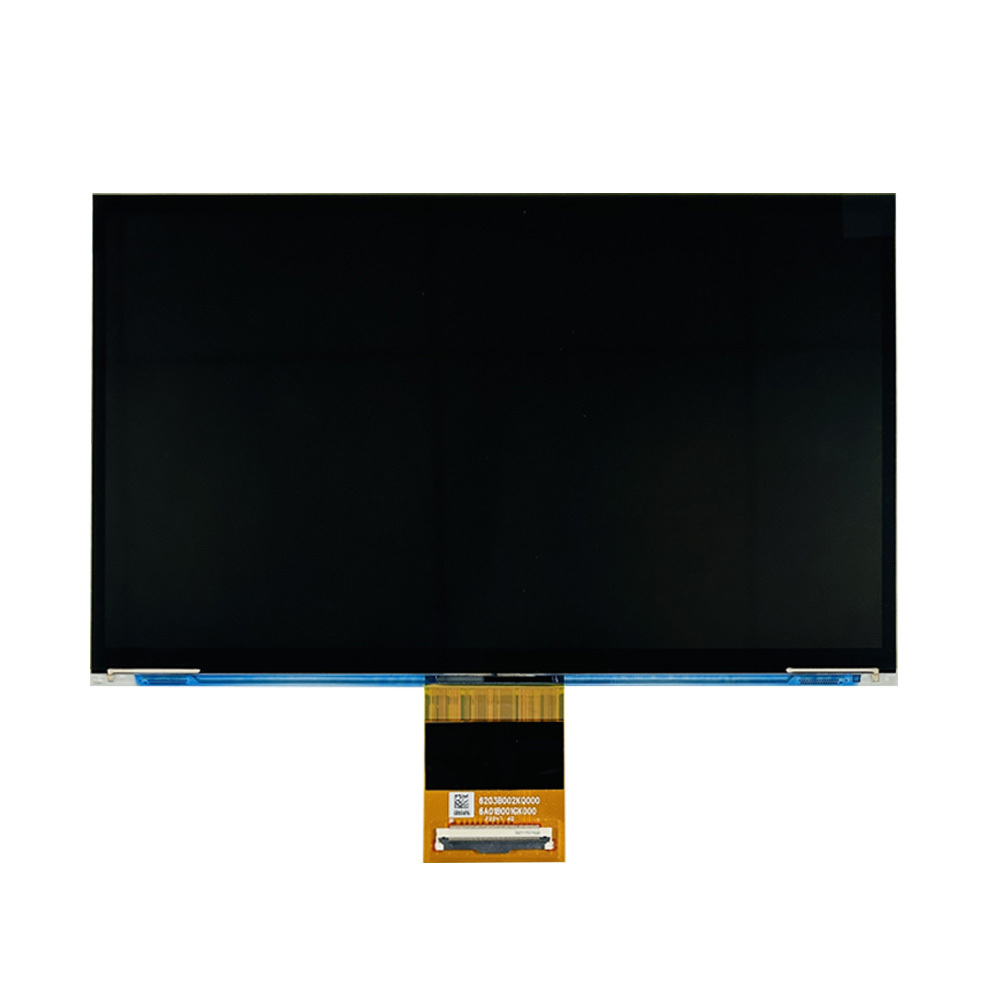

Technical Specifications:
- Model Number: DBM101M12K01
- Screen Size: 10.1 inches
- Resolution: 11520 x 5120 pixels
- Dot Pitch: 19 x 24 μm
- Color Pixel Arrangement: Mono
- Shipment Type: FOG
- Technology: LTPS
- Display Mode: Normal Black
- Active Area: 218.88mm (W) x 122.88mm (H)
- Outline Dimensions: 227.43mm (W) x 135.93mm (H) (CF), 227.43mm (W) x 139.50mm (H) (Panel)
- Border Dimension: U/D/L/R: 5.62/11/4.275/4.275 mm
- Weight: 93.3g (Typ)

Optical Characteristics:
- Contrast Ratio: 300 (min) @ INX 405nm BLU
- Panel Transmittance (with I POL): 5% (Typ) @ INX 405nm BLU

Electrical Interface:
- Frame Rate: Typ. 20Hz
- Interface: MIPI

Reliability:
- Operation Temperature: 0℃ to 70℃
- Storage Temperature: -10℃ to 80℃

Handling and Storage:
- Safety: The liquid crystal in the LCD is poisonous.  Do not put it in your mouth.  If the liquid crystal touches your skin or clothes, wash it off immediately using soap and water.
- Handling: Handle with care to avoid mechanical shock and static electricity.  Do not disassemble the LCD Module.
- Storage Conditions: Store in a dark place at +25℃±10℃ with low humidity (65%RH or less).


With UV light source

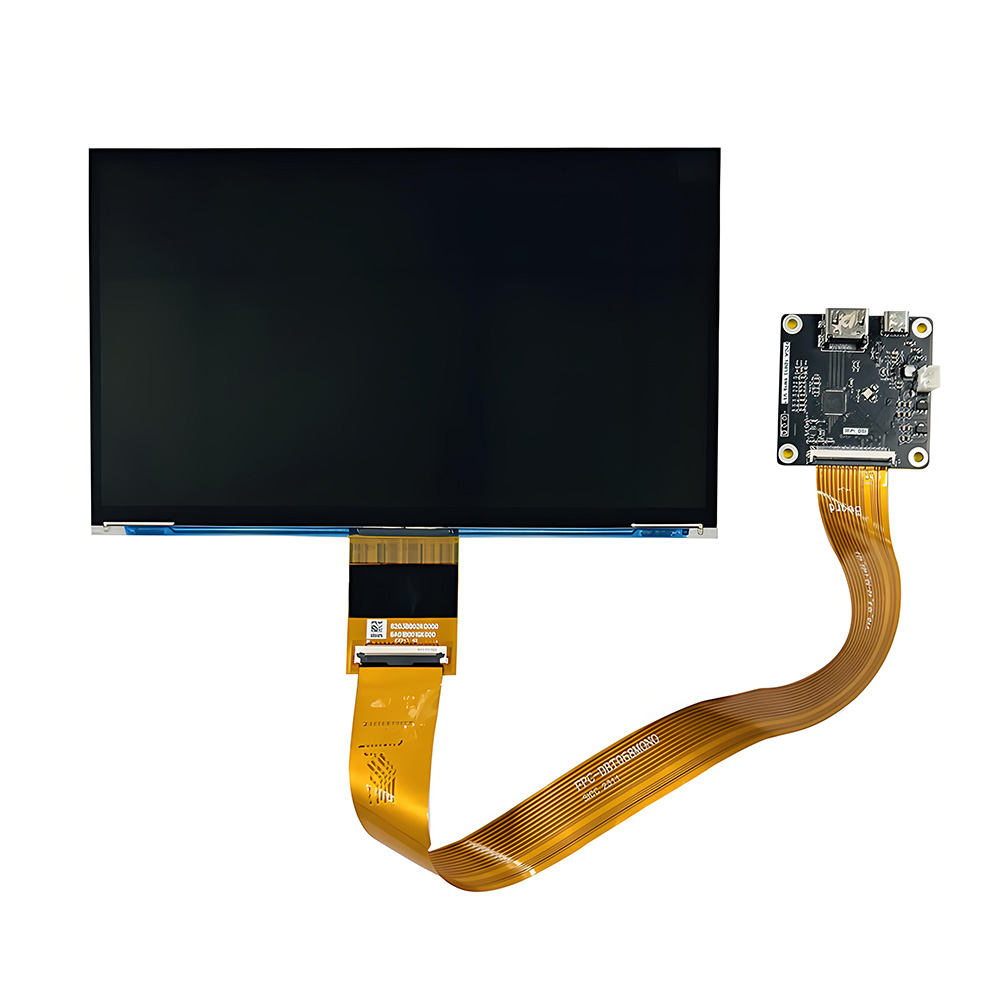

With driver board
