The 10.1-inch 1280×800 LVDS TFT LCD module combines a practical WXGA resolution with a compact 10.1-inch form factor. With an active area of 135.6 × 216.96 mm and overall module dimensions of approximately 148.66 × 229.02 × 2.4 mm, the display is designed to fit into equipment where both viewing area and installation space are important considerations.
The 40-pin LVDS interface provides a digital connection for compatible embedded systems, industrial computers and display controller boards. For OEM development, LVDS remains useful when the host system has an LVDS display output and the design requires stable digital image transmission.
The panel provides 16.7 million colors, an 800:1 contrast ratio and a typical 25 ms response time, allowing it to display graphical interfaces, equipment status information, charts, menus, control buttons and other visual content required by professional systems.
A 500 cd/m² brightness level offers improved visibility compared with many standard indoor LCD modules, while the anti-glare surface with 3H hard coating can help reduce distracting reflections and improve durability during daily operation.
The DBT101IEN40L050A provides a 1280×800 pixel resolution, offering a useful balance between image detail, system performance and display cost.
This resolution is particularly practical for embedded applications where the interface needs to display more information than a basic 800×480 panel while avoiding the additional processing requirements of Full HD.
The 1280×800 format can accommodate equipment dashboards, operating menus, graphical controls, monitoring information and multiple interface elements without requiring an excessively large display.
The module provides 500 cd/m² brightness, which is suitable for many indoor professional environments and controlled bright-light applications.
For industrial equipment installed near windows, production areas or locations with relatively strong ambient lighting, 500 cd/m² can provide better readability than standard low-brightness panels.
For direct outdoor sunlight applications, however, brightness should be evaluated together with cover glass reflection, optical bonding, anti-glare treatment and enclosure design rather than considering brightness alone.
The display uses a 40-pin LVDS interface, making it suitable for compatible industrial computers, embedded boards, controller boards and existing LVDS-based display architectures.
For system engineers, interface compatibility should be confirmed at the beginning of a project, including:
This helps reduce integration risks during prototype development.
The specified viewing angle is 85°/85°/85°/85°, with the specification measured at CR ≥ 10.
This wide viewing performance is beneficial for industrial HMI applications because operators may view the screen from different positions rather than always looking directly at the center of the display.
The display incorporates an anti-glare, 3H hard-coated surface treatment.
This is particularly useful for professional equipment because reflections from overhead lighting or surrounding equipment can make interface information difficult to read. The hard coating also provides additional surface protection for applications involving regular operator interaction.
The module thickness is approximately 2.4 mm, supporting integration into space-constrained equipment.
A slim display module can simplify mechanical design when manufacturers need to create compact control panels, embedded terminals or equipment with limited internal clearance.
| Parameter | Specification |
|---|---|
| Model | DBT101IEN40L050A |
| Display Size | 10.1 inch |
| Display Type | TFT-LCD |
| Resolution | 1280 × 800 pixels |
| Pixel Arrangement | RGB Vertical Stripe |
| Interface | 40-PIN LVDS |
| Brightness | 500 cd/m² |
| Contrast Ratio | 800:1 |
| Color Depth | 16.7M colors |
| Response Time | 25 ms typical |
| Viewing Angle | 85° / 85° / 85° / 85° |
| Active Area | 135.6 × 216.96 mm |
| Module Dimensions | 148.66 × 229.02 × 2.4 mm |
| Backlight | 39 White LEDs, 3S13P |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Surface Treatment | Anti-glare, 3H hard coating |

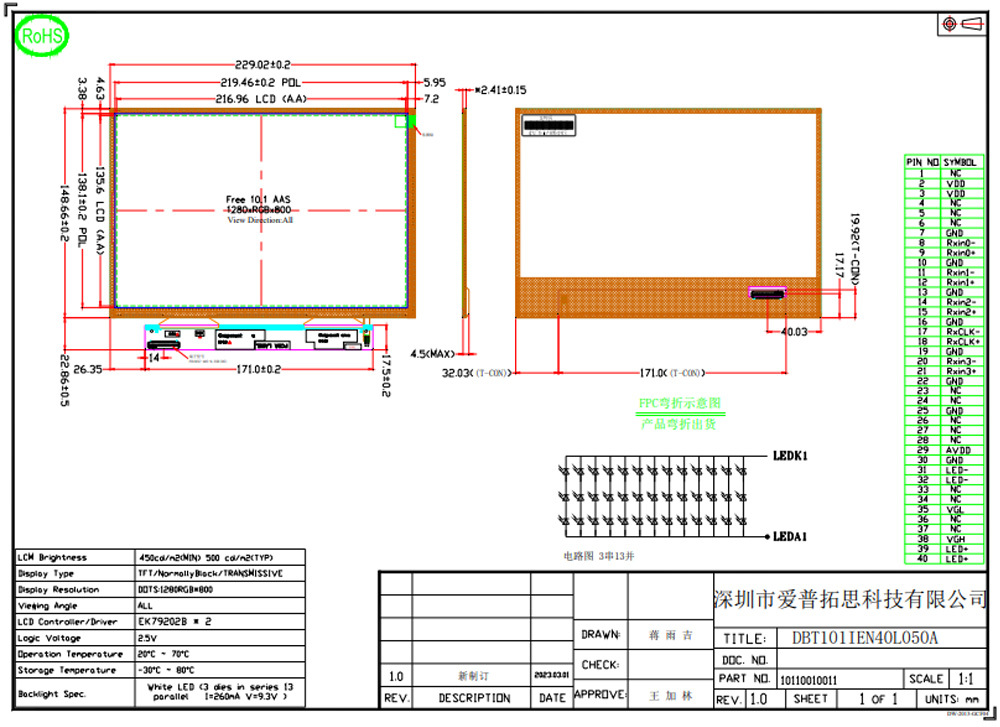

These specifications are based on the current Aptus Display product listing. For production projects, customers should confirm the latest datasheet, electrical specifications, mechanical drawing and interface pinout with Aptus before finalizing the hardware design.
Choosing an embedded LCD is not simply a matter of selecting the largest available screen. Engineers need to balance resolution, interface compatibility, brightness, dimensions, viewing angle, environmental conditions and system cost.
The 10.1-inch 1280×800 LVDS display occupies a useful position between smaller 7-inch displays and larger 12-inch-plus industrial panels. It provides enough screen space for detailed HMI interfaces while remaining compact enough for embedded equipment.
The 40-pin LVDS interface is another practical advantage for projects based on LVDS-compatible controller hardware. Instead of redesigning the entire system around a new interface, manufacturers can evaluate the module as part of an existing LVDS architecture.
The 500 cd/m² brightness and anti-glare treatment make the display suitable for many professional indoor environments, while the -20°C to +70°C operating temperature range supports applications exposed to temperature variation.
Industrial HMI is one of the most suitable application areas for this display.
The 10.1-inch size provides sufficient space for:
The 1280×800 resolution enables engineers to present graphical buttons, status indicators, process diagrams and equipment parameters on a single interface.
Many industrial machines require a display that can be integrated directly into a customized enclosure rather than using a complete commercial monitor.
The DBT101IEN40L050A can be evaluated for customized control panels where the display, controller board and user interface are integrated into a larger machine.
Its compact 148.66 × 229.02 mm outline provides a practical foundation for mechanical integration.
The current Aptus product page identifies medical devices among the potential applications for this LCD module.
Potential examples include professional monitoring equipment, diagnostic interfaces and specialized equipment control panels.
For medical-device projects, the complete system must still undergo the applicable regulatory, electrical, mechanical and environmental qualification required for the final device. The LCD module itself should therefore be treated as one component within the overall compliance process.
The module can also be considered for indoor public information terminals and self-service equipment.
The 10.1-inch screen size is suitable for displaying:
For outdoor kiosks exposed to direct sunlight, system designers should consider a higher-brightness version and optical treatments if necessary.
Because this is a module rather than a complete monitor, it can be incorporated into customized embedded computing products.
Possible applications include:
The host system must support the required LVDS configuration and electrical characteristics.
When integrating the DBT101IEN40L050A into a new product, engineers should evaluate the complete display system rather than only the LCD panel.
Confirm that the controller or processor board supports the required 40-pin LVDS configuration. Pin mapping should be checked against the latest product documentation before PCB production.
The module measures approximately 148.66 × 229.02 × 2.4 mm. Engineers should also reserve space for the FPC, connector, backlight connection and mounting structure.
The standard version provides 500 cd/m². If the final product will be used in strong ambient light or outdoor conditions, Aptus can evaluate alternative high-brightness LCD solutions from its product portfolio.
The anti-glare 3H coating is beneficial for professional applications, but the final optical performance depends on the entire stack, including cover glass, touch panel, bonding method and enclosure.
The specified operating range is -20°C to +70°C. Applications operating close to the upper or lower limits should be validated at the complete-system level.
Aptus Display provides TFT LCD modules and customized display solutions for OEM, ODM, industrial and professional applications.
The Aptus product portfolio includes different display sizes, resolutions, brightness levels and interfaces, including LVDS, MIPI and other display configurations. Its TFT LCD product collection includes multiple 7-inch, 8-inch, 10.1-inch and larger display options, allowing customers to compare different specifications according to application requirements.
Aptus also provides customization services covering areas such as touch panels, brightness, interface, display size and driver boards. Technical support can include display integration, troubleshooting and project optimization.
For OEM customers, this is particularly valuable when the standard LCD module does not completely match the mechanical, optical or electrical requirements of the final product.
Instead of selecting a display only by size, customers can provide their application requirements to Aptus and work with the engineering team to evaluate the most appropriate configuration.
Aptus Display positions itself as a professional LCD Display & Touch Bonding Manufacturer & Design Solution provider. The company supplies TFT LCD modules and supports display customization for different professional applications.
Key capabilities include:
Display selection: Assistance in selecting LCD size, resolution, brightness and interface according to project requirements.
Customization: Support for touch panels, brightness changes, interfaces, sizes and driver boards.
Engineering support: Technical assistance for display integration, troubleshooting and optimization.
Quality assurance: Product testing and quality-control processes for professional applications.
Project consultation: Support during product selection, prototype development and implementation.
For B2B customers, these capabilities can be especially useful when a display is a critical component of a larger OEM product.
The DBT101IEN40L050A has a 1280×800 pixel resolution, providing a WXGA-format display suitable for industrial HMIs, embedded systems and professional equipment.
This LCD module uses a 40-pin LVDS interface. Engineers should verify the exact pin assignment, electrical specifications and controller compatibility before integrating it into a production PCB.
The specified brightness is 500 cd/m². This level is suitable for many indoor industrial and professional environments. Applications requiring direct-sunlight readability may require a higher-brightness configuration.
The specified operating temperature is -20°C to +70°C, while the storage temperature range is -30°C to +80°C.
Yes. The specification lists 85°/85°/85°/85° viewing angles, with the viewing-angle measurement specified at CR ≥ 10.
Yes. The surface specification is anti-glare with a 3H hard coating, helping reduce distracting reflections and improve surface durability.
Aptus states that it supports customization involving touch panels, brightness, interface, size and driver boards, depending on project requirements.
The 500 cd/m² version is primarily suitable for indoor and controlled bright-light environments. For direct outdoor sunlight, a higher-brightness version should be considered. Aptus offers other 10.1-inch 1280×800 LVDS configurations, including a 1200 cd/m² version, which can be evaluated when higher optical performance is required.
If you are sourcing a 10.1-inch 1280×800 LVDS LCD module for an industrial HMI, embedded computer, control panel, kiosk or professional equipment project, the DBT101IEN40L050A provides a practical combination of WXGA resolution, 500 cd/m² brightness, 40-pin LVDS connectivity, wide viewing angles, anti-glare treatment and a slim 2.4 mm profile.
