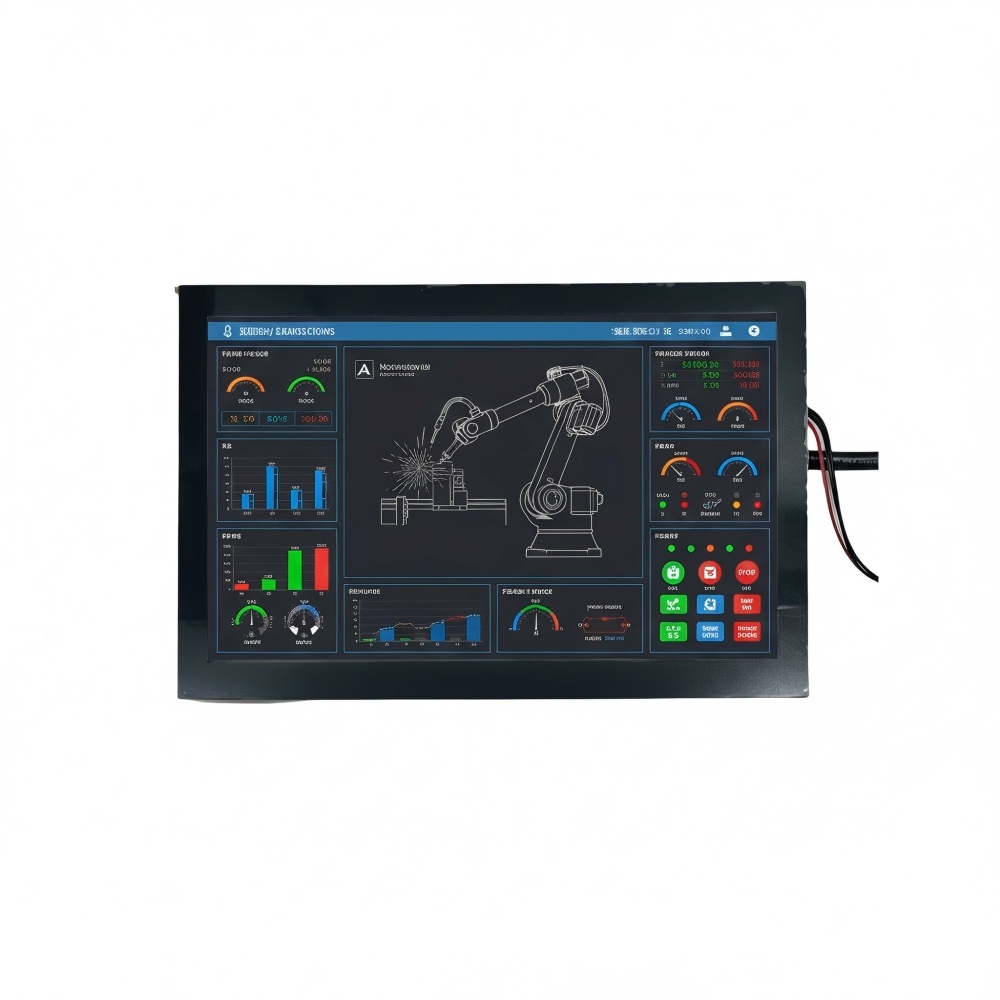

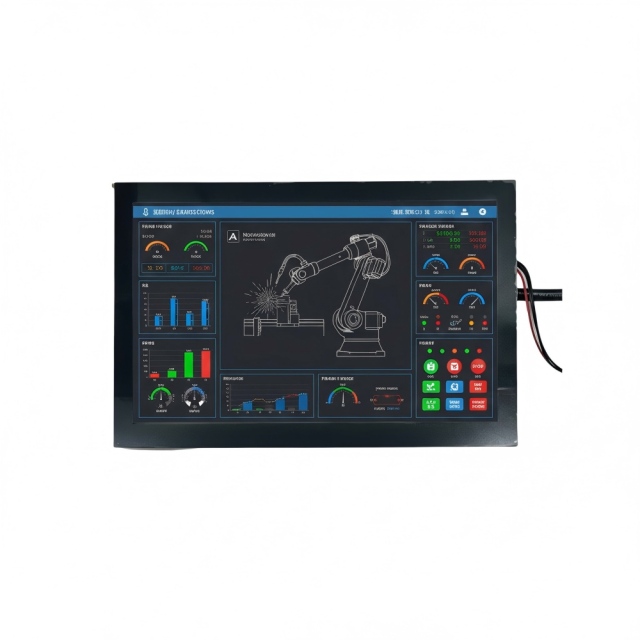

Industrial equipment requires a display that can provide clear information while remaining practical to integrate into the overall machine architecture. The DBT101QIHA01CAB has been designed around this requirement.
The 10.1-inch display size and 1280×800 resolution provide sufficient screen space for machine controls, equipment status, graphical dashboards, menus, alarms, parameter settings and monitoring information. The resolution offers a useful balance between interface detail and system resource requirements, making it suitable for many industrial HMI designs.
The module uses a 19-pin HD-MI interface, allowing connection to compatible industrial PCs, embedded computers, controllers and other host systems with suitable HD-MI output. The product page specifically positions the display for control systems, automation equipment, industrial HMI and embedded applications.
For interactive equipment, the module integrates a projected capacitive touch panel (CTP) supporting 10-point multi-touch. The touch interface uses USB connectivity, enabling interaction with compatible industrial operating systems and HMI software platforms.
This combination makes the product more than a basic LCD panel. It can serve as a complete visual and interactive interface within a larger industrial control system.

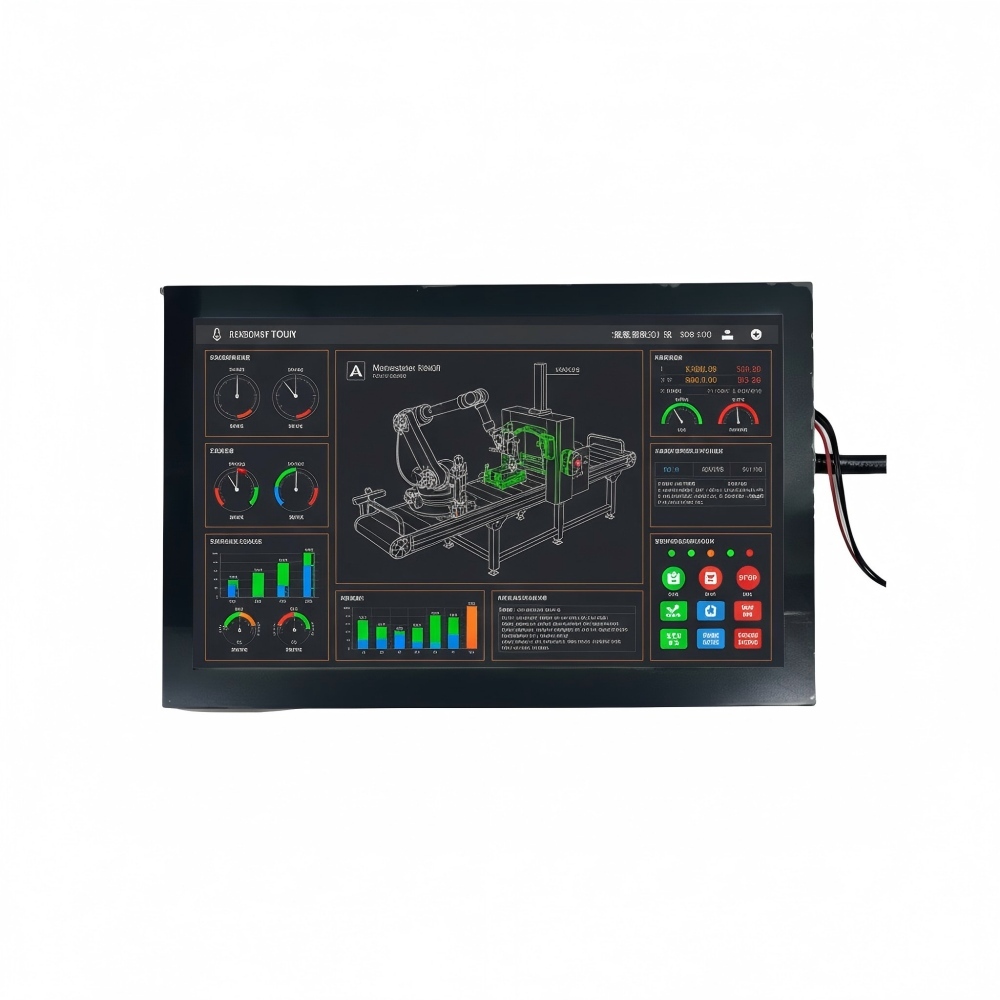

The DBT101QIHA01CAB provides a 1280×800 pixel resolution on a 10.1-inch display.
This WXGA resolution is particularly practical for industrial control interfaces where operators need to view multiple types of information simultaneously.
A well-designed 1280×800 HMI can display:
Compared with smaller industrial panels, the 10.1-inch form factor gives designers additional interface space without requiring the enclosure dimensions of a much larger display.
The display provides a specified brightness of 350 cd/m².
This brightness level is appropriate for many indoor industrial environments, including factories, control cabinets, automation equipment and machine operating areas with controlled or moderate ambient lighting.
For applications exposed to direct sunlight, brightness should be evaluated together with optical bonding, anti-glare treatment, cover glass reflection, enclosure design and ambient-light conditions. A standard 350 cd/m² module should not automatically be considered sunlight-readable simply because it is classified as an industrial display.
This transparent specification is important for engineering teams because it allows them to select the display according to the actual environment rather than over-specifying brightness where it is unnecessary.

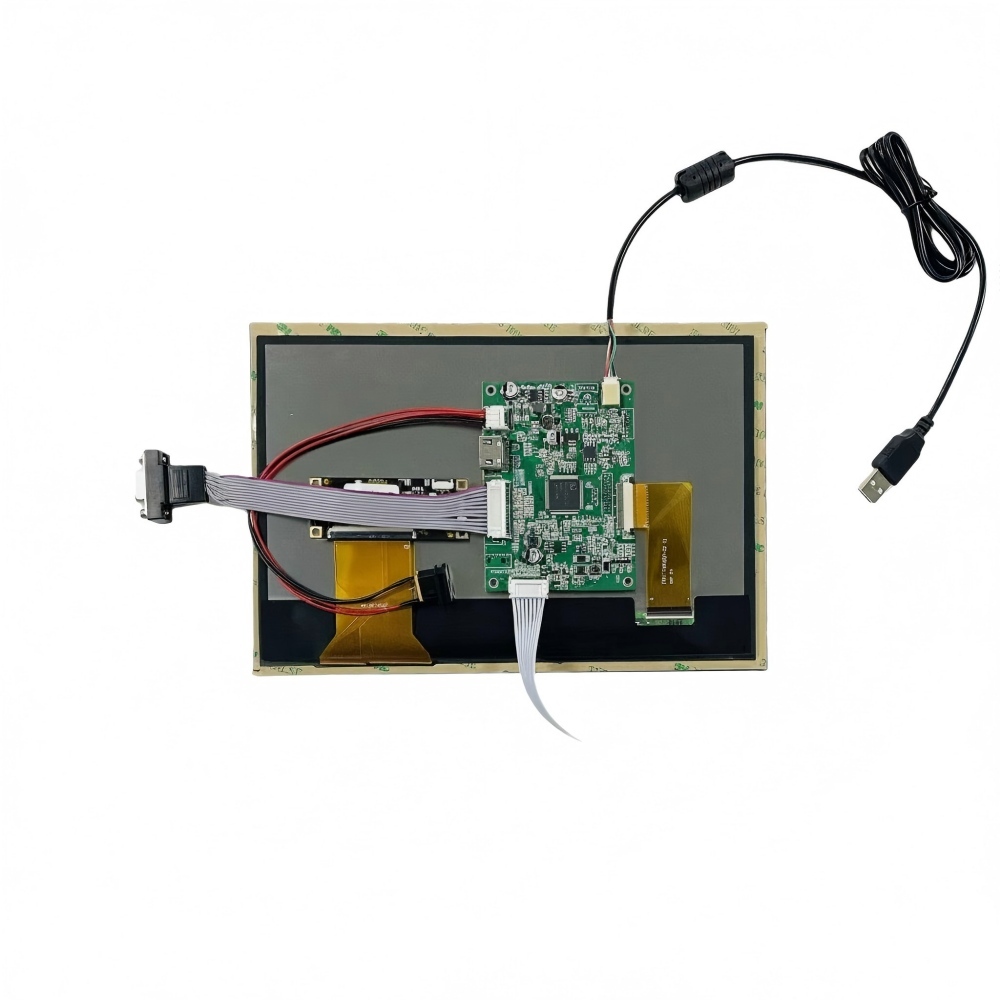

One of the defining characteristics of this model is its 19-pin HD-MI interface.
This interface makes the module suitable for systems where the host device provides a compatible HD-MI video output.
Potential host platforms include:
Before integration, engineers should verify the host output, signal compatibility, connector configuration, power requirements and cable arrangement against the latest Aptus documentation.
Using an interface familiar to the system architecture can simplify display integration and allow engineers to focus on the HMI software and mechanical design.
The DBT101QIHA01CAB integrates a projected capacitive touch panel supporting 10-point multi-touch. The touch panel uses a USB interface.
This configuration is well suited to modern HMI applications where operators interact directly with the equipment rather than using physical buttons for every function.
Multi-touch functionality can support operations such as:
The USB touch interface also provides a practical connection method for compatible industrial computers and operating systems.
For customers requiring different touch characteristics, Aptus states that touch behavior and structure can be adjusted through its custom display development capabilities.
The product specification lists a viewing direction of 80°/80°/80°/80°.
Wide viewing performance is valuable for industrial HMI systems because operators do not always stand directly in front of a machine display.
A control panel may be:
Maintaining consistent image visibility from different positions helps improve usability in these environments.

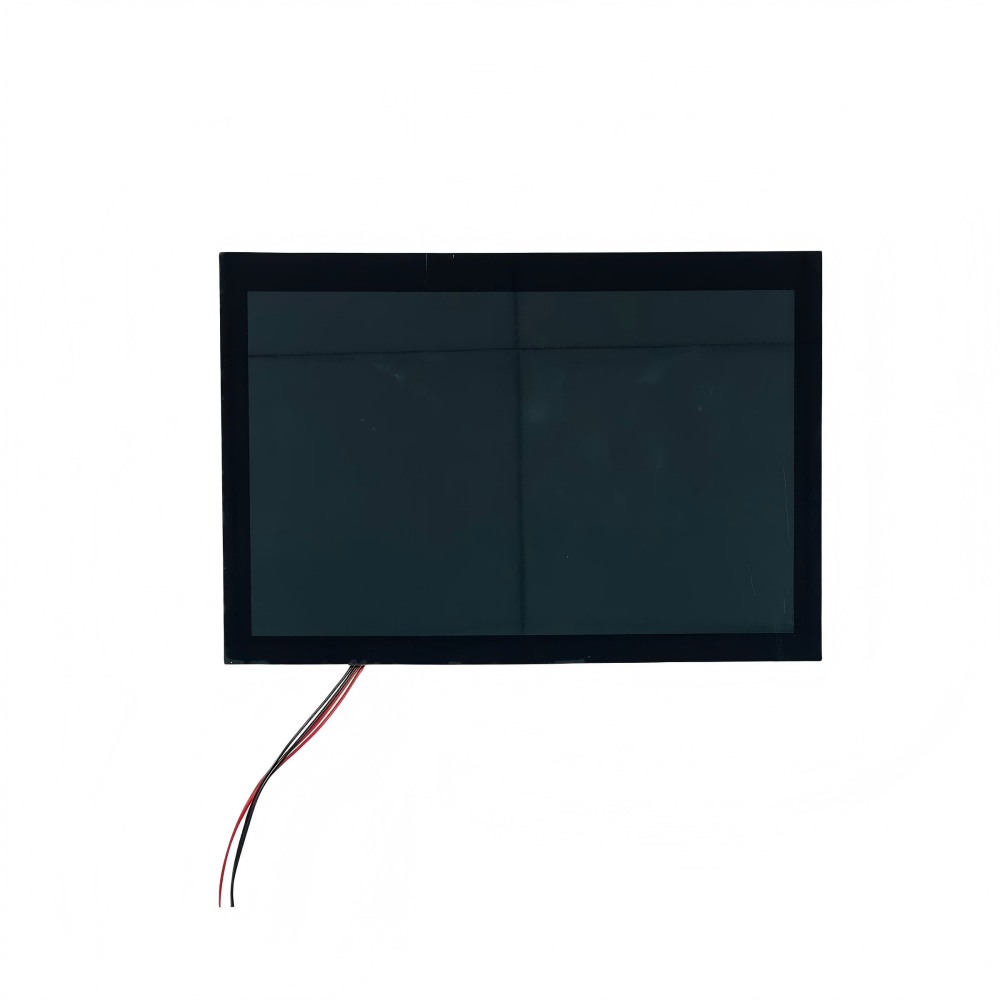

The module has a specified overall size of approximately 240 × 163.5 × 5 mm. The active area is approximately 216.96 × 135.60 mm.
The 5 mm overall module thickness gives engineers a practical mechanical reference when designing an enclosure, mounting bracket or front panel.
For OEM development, mechanical integration should consider not only the LCD dimensions but also:
Aptus can also support mechanical structure optimization for customized industrial display projects.
| Specification | Details |
|---|---|
| Model Number | DBT101QIHA01CAB |
| Display Size | 10.1 inch |
| Display Type | TFT LCD |
| Resolution | 1280 × 800 pixels |
| Active Area | 216.96 × 135.60 mm |
| Module Dimensions | 240 × 163.5 × 5 mm |
| Viewing Direction | 80° / 80° / 80° / 80° |
| Video Interface | HD-MI 19PIN |
| Brightness | 350 cd/m² |
| Touch Technology | Projected Capacitive Touch Panel |
| Touch Points | 10-point multi-touch |
| Touch Interface | USB |
| Display Colors | 16.7M |
| Application Focus | Industrial Control, HMI, Automation, Embedded Systems |
| Customization | Interface, mechanical structure, optical and touch customization |
The above specifications are based on the current Aptus Display product page. For production deployment, customers should confirm the latest electrical specifications, pin definitions, drawings, cable configuration and environmental parameters with Aptus before mass production.

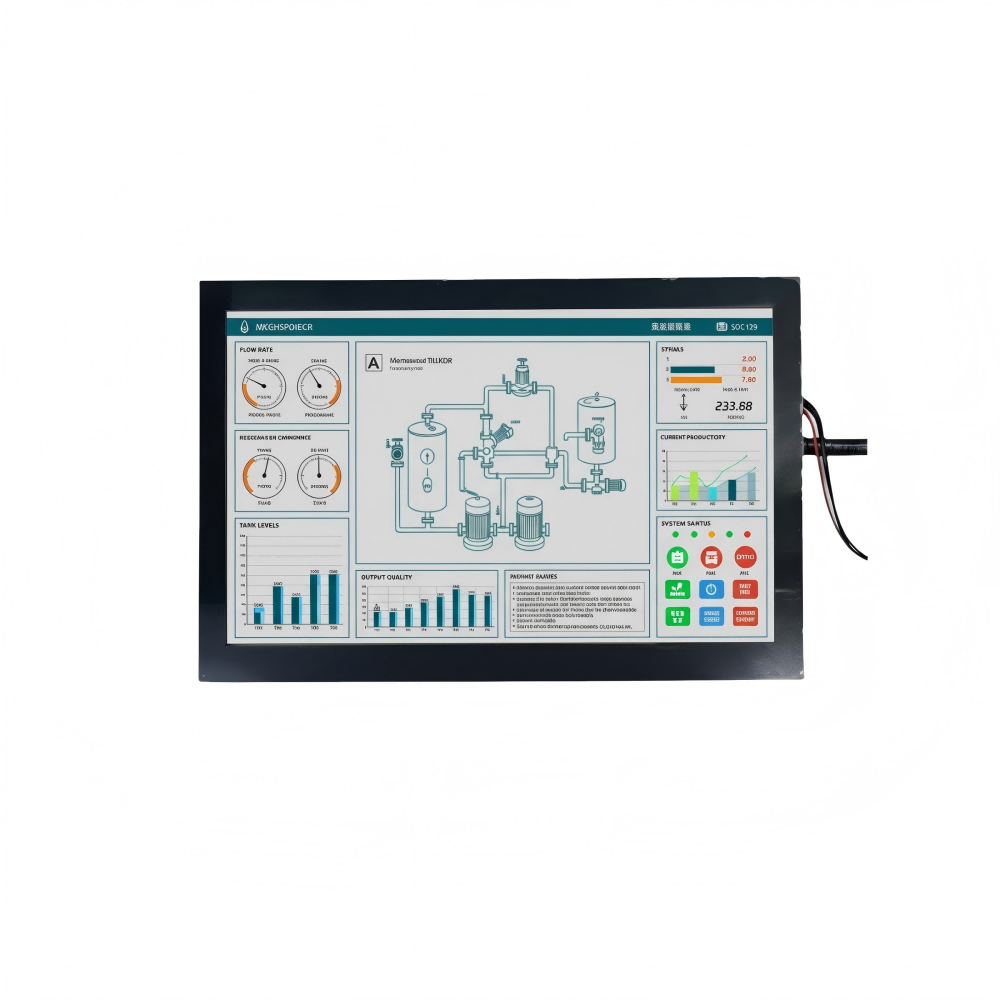

The combination of a 10.1-inch display, 1280×800 resolution, HD-MI input and capacitive touch makes this module suitable for industrial HMI terminals.
It can provide a centralized interface for:
The touch interface allows operators to interact directly with software-based controls.
Automation systems often require displays that can be integrated directly into machinery.
This 10.1-inch industrial LCD can be used in:
The 1280×800 resolution gives designers enough interface space to organize controls, process information and status indicators.
The HD-MI interface makes the display suitable for compatible industrial PCs and embedded computing platforms.
Potential applications include:
The integrated USB capacitive touch interface can provide a straightforward operator input method where supported by the host operating system.
The module can also be integrated into localized monitoring stations where operators need continuous access to system information.
Examples include:
The 10.1-inch form factor offers a practical balance between information density and installation space.
Modern industrial machines increasingly use software-driven interfaces rather than large numbers of physical buttons.
A touch-enabled LCD module can help equipment manufacturers create cleaner and more flexible user interfaces.
Software can be used to change screen layouts according to:
This flexibility can be especially useful for OEM equipment manufacturers developing multiple machine configurations from a common hardware platform.
For many industrial projects, the ideal display is not necessarily the highest-resolution or highest-brightness panel available. Instead, engineers need a combination of appropriate specifications, compatibility and integration efficiency.
The DBT101QIHA01CAB focuses on this balance.
The 10.1-inch 1280×800 format provides a practical interface size. The 350 cd/m² brightness is suitable for many indoor industrial environments. The 19-pin HD-MI interface supports compatible video sources, while the integrated 10-point capacitive touch panel with USB interface provides direct operator interaction.
For industrial OEMs, another advantage is the ability to work with a display supplier that can support customization rather than simply supplying a standard panel.
Industrial products frequently have requirements that cannot be satisfied by an off-the-shelf display.
Aptus states that it supports standard, semi-custom and fully customized LCD module solutions, including connectors, ZIF/FPC, touch panels, interconnect solutions, control boards and system-integrated solutions.
For this 10.1-inch industrial LCD, customization can potentially involve:
Different host platforms may require different interface or connector arrangements. Aptus can evaluate interface adaptation according to project requirements.
The mounting structure, enclosure integration and overall mechanical arrangement can be optimized for a customer's equipment.
For applications with different ambient-light conditions, customers can discuss brightness and optical requirements with the engineering team.
Touch-panel structure and characteristics can be adapted according to the application and user-interface requirements.
Early engineering communication is recommended because mechanical, optical and electrical requirements can affect the final display configuration.
Industrial display projects often require consistent performance across production batches and long-term product availability.
According to the current product page, Aptus describes quality-control and reliability procedures including:
These processes are intended to support consistent display performance for industrial deployments.
For OEM customers, product qualification should still be performed within the final equipment because the actual operating environment depends on enclosure design, power architecture, thermal management, vibration, installation method and other system-level factors.
Shenzhen Aptus Technology Co., Ltd. is a professional LCD display supplier focused on industrial and embedded display technologies. Aptus's product portfolio includes TFT LCD modules, touch display solutions and customized industrial displays for automation and control applications.
The company serves customers in international markets, including Europe and North America, with an emphasis on technical cooperation, product reliability and long-term customer relationships.
Aptus's broader TFT LCD portfolio includes different display sizes, resolutions, brightness levels and interface configurations. The company also provides categories covering industrial LCD modules, wide-temperature displays, touch-panel LCD modules, flight simulator displays, bar-type LCD displays and LCD accessories.
For customers developing professional equipment, Aptus provides support across the product lifecycle, including:
This makes Aptus a suitable partner for companies that need more than a standalone LCD panel and require engineering cooperation during product development.
The DBT101QIHA01CAB provides a 1280×800 pixel resolution on a 10.1-inch TFT LCD panel.
The display uses a 19-pin HD-MI interface for video input. Host-system compatibility should be verified before integration.
The specified brightness is 350 cd/m². This makes it suitable for many indoor industrial environments. For direct sunlight applications, a higher-brightness solution should be considered.
Yes. The product integrates a projected capacitive touch panel supporting 10-point multi-touch. The touch interface uses USB.
The specified module dimensions are approximately 240 × 163.5 × 5 mm, with an active area of 216.96 × 135.60 mm.
The product is designed for industrial control, automation equipment, HMI terminals, embedded industrial systems and monitoring/control stations.
Yes. Aptus supports customization involving interfaces, mechanical structures, optical characteristics and touch-panel requirements, depending on project feasibility.
Yes. Aptus provides volume manufacturing and LCD display wholesale support for industrial projects, including technical documentation and production planning.
If you are looking for a 10.1-inch 1280×800 industrial LCD module with HD-MI input and capacitive touch, the DBT101QIHA01CAB provides a practical solution for industrial HMI, automation equipment, embedded computers and control systems.
