Automotive LCD Display - C101EAX01.0

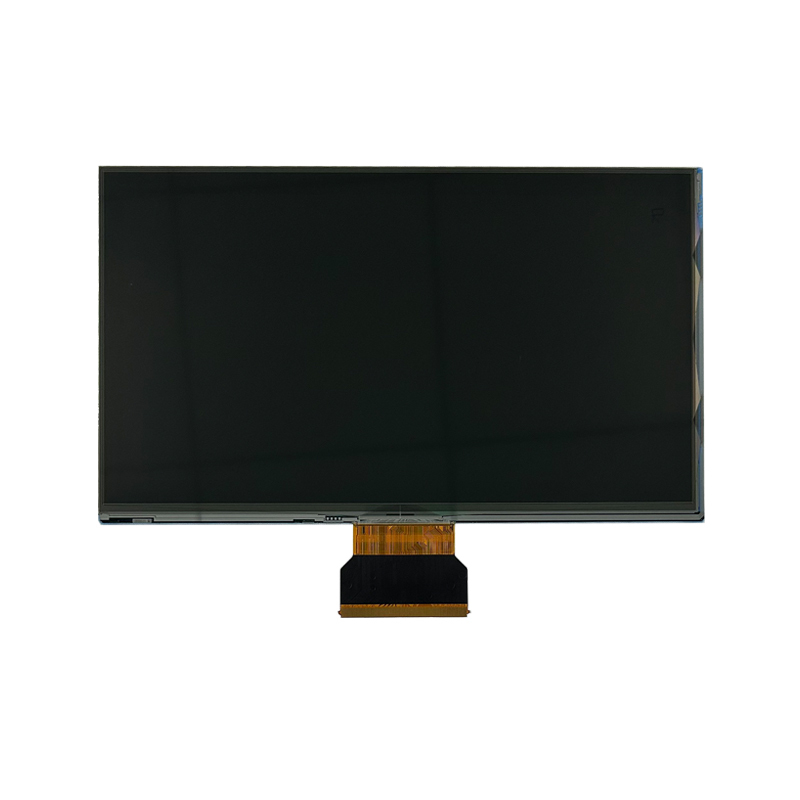

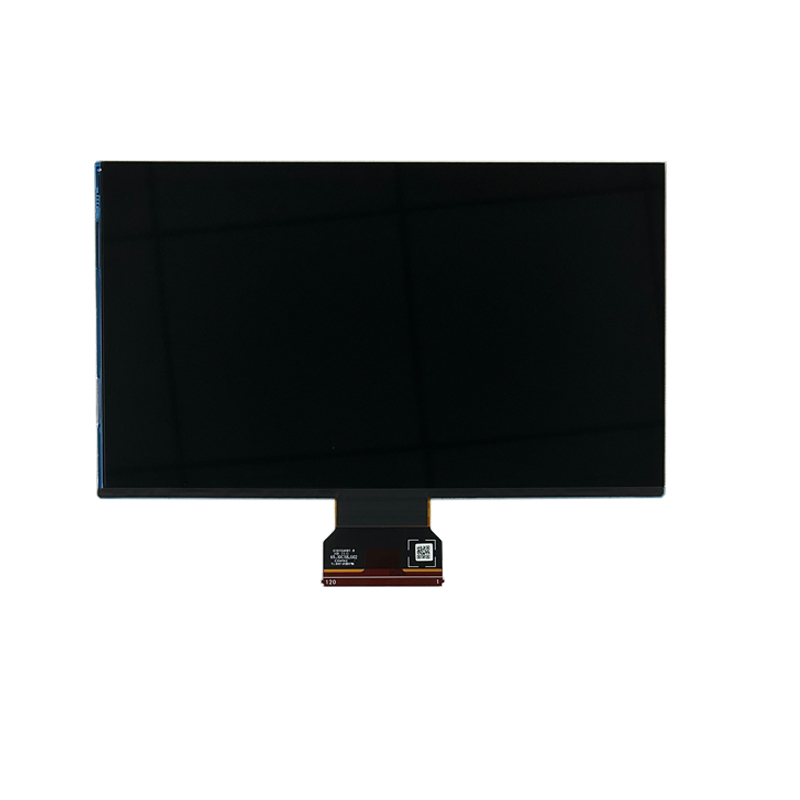

Product Name: AU Optronics C101EAX01.0 Automotive LCD Display FOG

Overview:
Aptus, as an authorized agent of AU Optronics, is proud to present the C101EAX01.0, a 10.1-inch TFT-LCD module designed for automotive applications. This display incorporates advanced AHVA (Advanced Hyper View Angle) technology and in-cell touch capabilities, providing a seamless user experience in vehicles.

Key Features:
- Display Specifications: The C101EAX01.0 offers a 1280 x 720 RGB resolution in an RGB stripe dot arrangement, ensuring high-definition visuals for navigation, entertainment, and control systems.
- In-Cell Touch Technology: Equipped with an in-cell touch sensor, this display simplifies the design and enhances the durability of touch interactions within the vehicle.
- Advanced AHVA Technology: Experience wide viewing angles and accurate color reproduction with AU Optronics' AHVA technology, ideal for various lighting conditions in the car.
- Interface Compatibility: With a 1 Port LVDS interface, this display module ensures easy integration with a variety of automotive systems.
- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this display is an environmentally conscious choice for automotive manufacturers.

Technical Specifications:
- Display Resolution: 1280(H) x 720RGB(V) pixels
- Active Area: 223.68 mm (H) x 125.82 mm (V)
- Screen Size: 10.1-inch diagonal
- Dot Pitch: 174.75 x 174.75 μm
- Color Configuration: R. G. B. Horizontal Stripe
- Color Depth: 16.7 million colors
- Overall Dimension: 231 mm (H) x 136.1 mm (V) x 1.076 mm (T)
- Weight: 68 ± 10 g
- Display Mode: Normally Black
- Surface Treatment: Hard Coating (H)

Touch Panel Specifications:
- Sensor Mode: In-cell Self-Capacitance
- Touch Panel Controller: RM5T60A TDDI
- TP Channel: 960 channels (40*24)
- Sensor Pitch: X: 5.592mm, Y: 5.24mm
- Multi-Touch Points: 10 points
- Finger Separation: 12.2mm
- Accuracy: +/-1mm for center area, +/-1.5mm for border area
- Glove Touch: Supported (2mm PMMA)

Electrical Specifications:
- Power Supply Voltage: VDD 3.0V - 3.6V
- LVDS Interface: 1 Port LVDS

Optical Performance:
- Response Time: 30 ms (at 25°C), 200 ms (at -20°C), 400 ms (at -30°C)
- Contrast Ratio: 800:1 (at θ=0°)
- Viewing Angle: 80° (Top / Bottom / Left / Right) with CR≥50

Reliability and Durability:
- Temperature Range: Withstands storage and operation from -40°C to 90°C, ensuring reliable performance in extreme climates.
- Shock and Vibration Resistance: Designed to endure shocks and vibrations, making it suitable for the dynamic environment of automotive use.

Packaging and Storage:
- Packing Form: Each module is carefully packaged to ensure safe transportation and storage.
- Module/Panel Label Information: Includes a unique serial number for traceability and quality control.

Conclusion:
The C101EAX01.0 Automotive LCD Display FOG from AU Optronics, offered by Aptus, is a high-performance display solution for the automotive industry. Its combination of high resolution, advanced technology, and robust design make it an ideal choice for automotive manufacturers seeking to enhance the in-vehicle experience. For more information or to place an order, contact Aptus today.

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
