Designing an effective industrial HMI begins with selecting the right display. While software, connectivity, and control logic receive significant attention, the display remains the primary point of interaction between operators and machines.
In embedded industrial systems, display selection must balance reliability, integration simplicity, and long-term availability. Among various options, compact TFT LCD modules—particularly in the 7-inch 800×480 category—continue to be widely adopted.

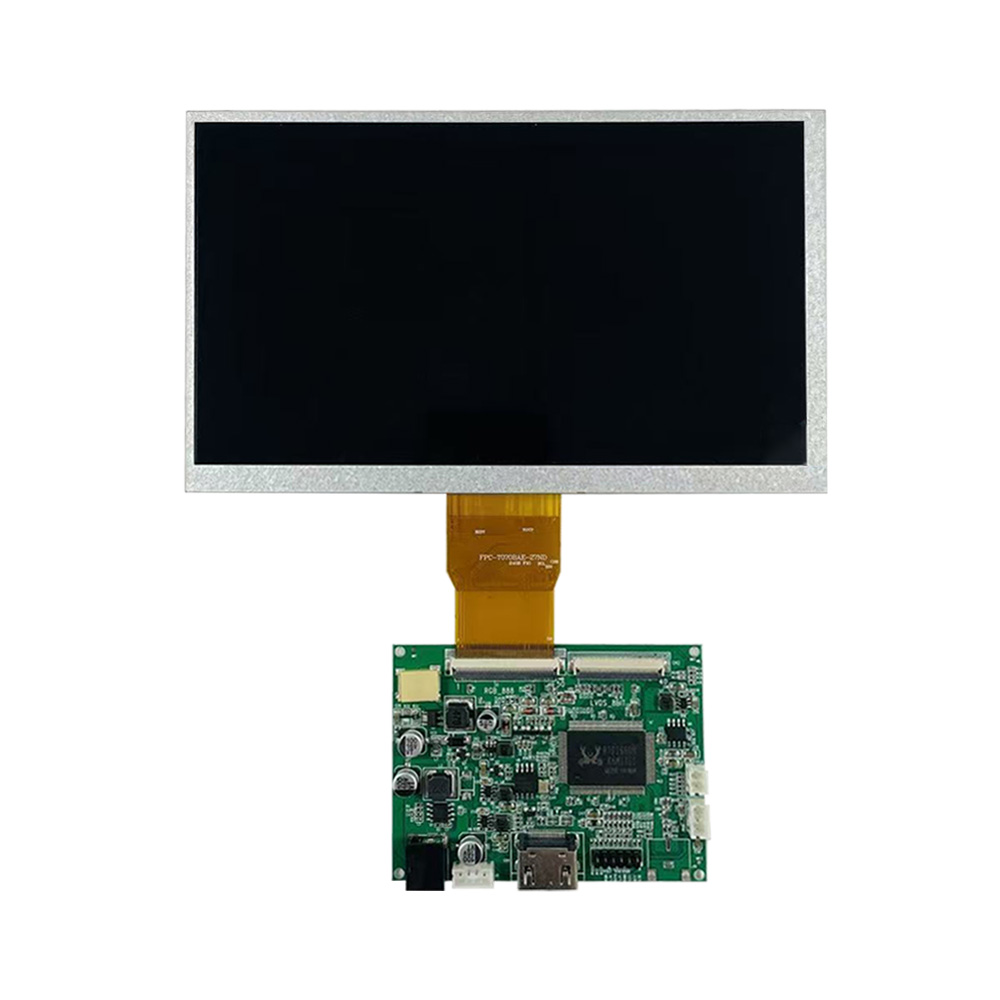

An example frequently referenced by system designers is this 7-inch 800×480 industrial control LCD module, which represents a class of displays optimized for embedded industrial HMIs.
This article examines display selection strategies for industrial control systems, with a focus on reliability-driven design.
Unlike consumer products, industrial HMIs operate under demanding conditions and strict design constraints.
Key requirements include:
Stable visual output during continuous operation
Compatibility with industrial controllers
Predictable lifecycle and long-term supply
Clear readability in factory lighting conditions
Display selection directly impacts system uptime and operator efficiency.
Display size influences both user experience and system architecture.
Smaller displays simplify enclosure design and reduce mechanical complexity. A 7-inch LCD fits easily into:
Wall-mounted control panels
Embedded terminals
Compact industrial enclosures
This allows designers to maintain clean layouts while meeting functional requirements.
A standardized display size enables consistent UI design across product lines. This simplifies training and reduces operator errors.
Higher resolutions increase graphical capability but also introduce challenges in embedded systems.
An 800×480 display:
Reduces GPU and memory requirements
Simplifies UI scaling
Improves system responsiveness
These factors are critical for embedded industrial controllers with limited resources.
Standardized interfaces such as RGB or LVDS offer robust performance in electrically noisy environments, ensuring reliable data transmission between controller and display.
Industrial HMIs must be designed for real-world deployment.
Secure mounting prevents vibration-related failures
Proper spacing improves airflow and thermal stability
Consistent enclosure fit reduces mechanical stress on the display
A well-integrated display contributes significantly to overall system durability.
Industrial systems often remain in operation for many years. Choosing a display with a proven track record helps:
Minimize redesigns
Ensure spare part availability
Reduce total cost of ownership
Standard display formats like 7-inch 800×480 modules offer predictable sourcing and support.
Industrial HMIs built around compact displays are commonly used in:
Automation control stations
Industrial monitoring terminals
Equipment configuration interfaces
Process control panels
Each application benefits from clear visuals, stable operation, and efficient integration.
Effective industrial HMI design depends on practical, reliability-focused decisions. Display selection should prioritize proven formats, stable interfaces, and long-term availability.
For embedded industrial systems, the 7-inch 800×480 industrial control LCD module exemplifies a display solution aligned with these principles, supporting reliable human–machine interaction in demanding environments.
