►Size : 8.8 inch
►Resolution : 1280 x 480 dots
►Active Area：209.28×78.48mm
►View Direction : IPS
►Interface : LVDS
►operation temperature:-30~+85℃
Discover the 8.8-inch 1280x480 AUO TFT LCD with AHVA technology for automotive applications. Wide temperature range, LVDS interface, and authorized AUO distributor support.
Model: C088VAN03.0

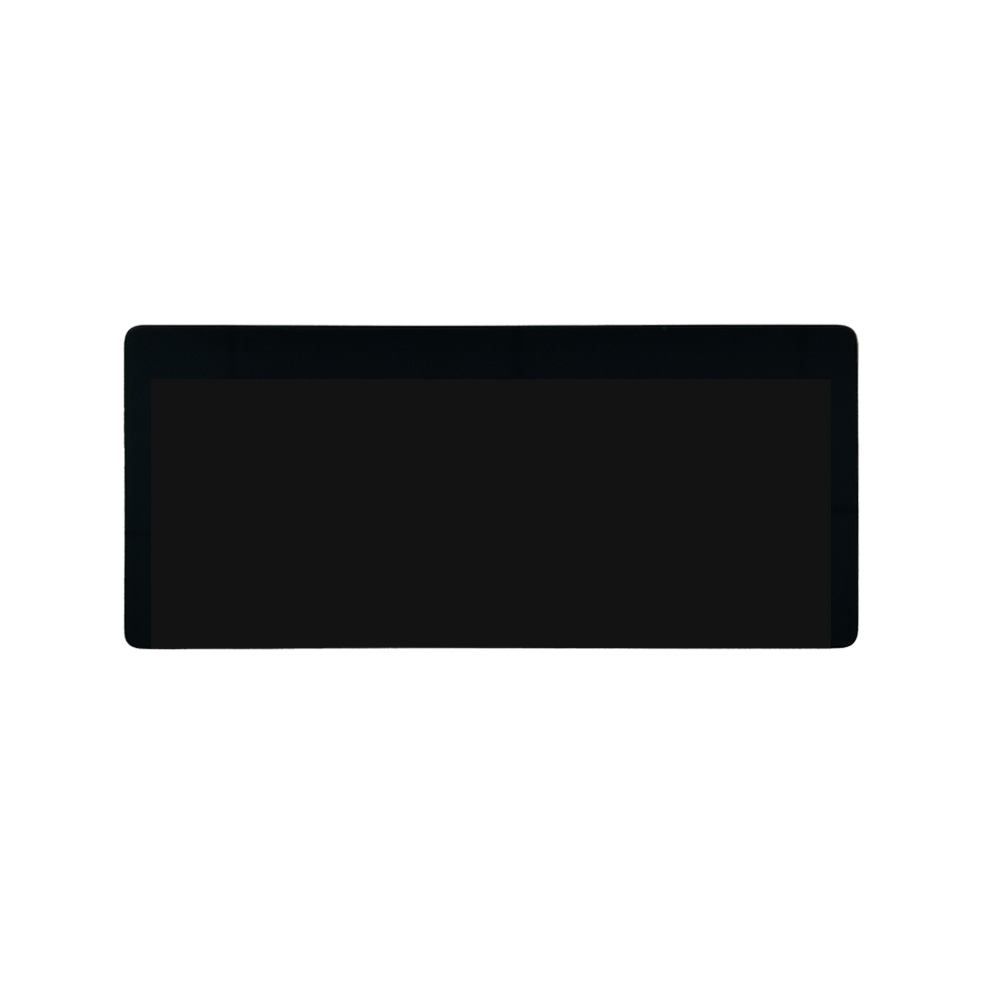

The 8.8-inch 1280x480 LCD display module, model C088VAN03.0, is a high-quality automotive-grade screen developed by AUO, equipped with AHVA (Advanced Hyper-Viewing Angle) technology. As a FOG (Film On Glass) structure, it ensures excellent optical performance and durability, making it ideal for in-vehicle infotainment systems, dashboards, and control panels.
This display module offers a wide operating temperature range, robust viewing angles, and RoHS compliance, ensuring stable and reliable performance in demanding automotive environments.
| Specification | Value |
|---|---|
| Display Size | 8.8 inch (diagonal) |
| Resolution | 1280 (H) × 480 (V) pixels |
| Display Type | TFT LCD with AHVA technology |
| Viewing Angle | 85° (U/D/L/R, CR≧10) |
| Display Mode | Normally Black |
| Interface | LVDS |
| Brightness | Typically 500 nits (TBC, refer spec) |
| Contrast Ratio | 1000:1 typical |
| Operating Temp | -30°C to +85°C |
| Storage Temp | -40°C to +95°C |
| Color Depth | 24-bit (16.7M colors) |
| Outline Dimensions | 209.28(H) x 78.48(V) mm |
| Input Voltage | VDD: 3.3V, AVDD: 6V, AVEE: -6V |
| Connector Type | LVDS 60-pin FPC |
Infotainment Systems
Digital Instrument Clusters
Rear Seat Entertainment Displays
Navigation and Control Panels
With excellent thermal reliability and strong contrast under sunlight, this model is perfectly suited for both passenger and commercial vehicle displays.
