►Size : 7 inch
►Resolution : 800 x 480 dots
►View Direction : IPS
►Interface : TTL
►Control-Board : Yes
►Brightness (cd/m²): 350
Introducing Aptus's 7-inch 800x480 TFT LCD Display, designed for seamless integration into industrial and commercial applications. This high-resolution display offers exceptional clarity and reliability, with customizable options to meet your specific requirements.
7-Inch TFT LCD Module - High-Resolution Display for Industrial Applications

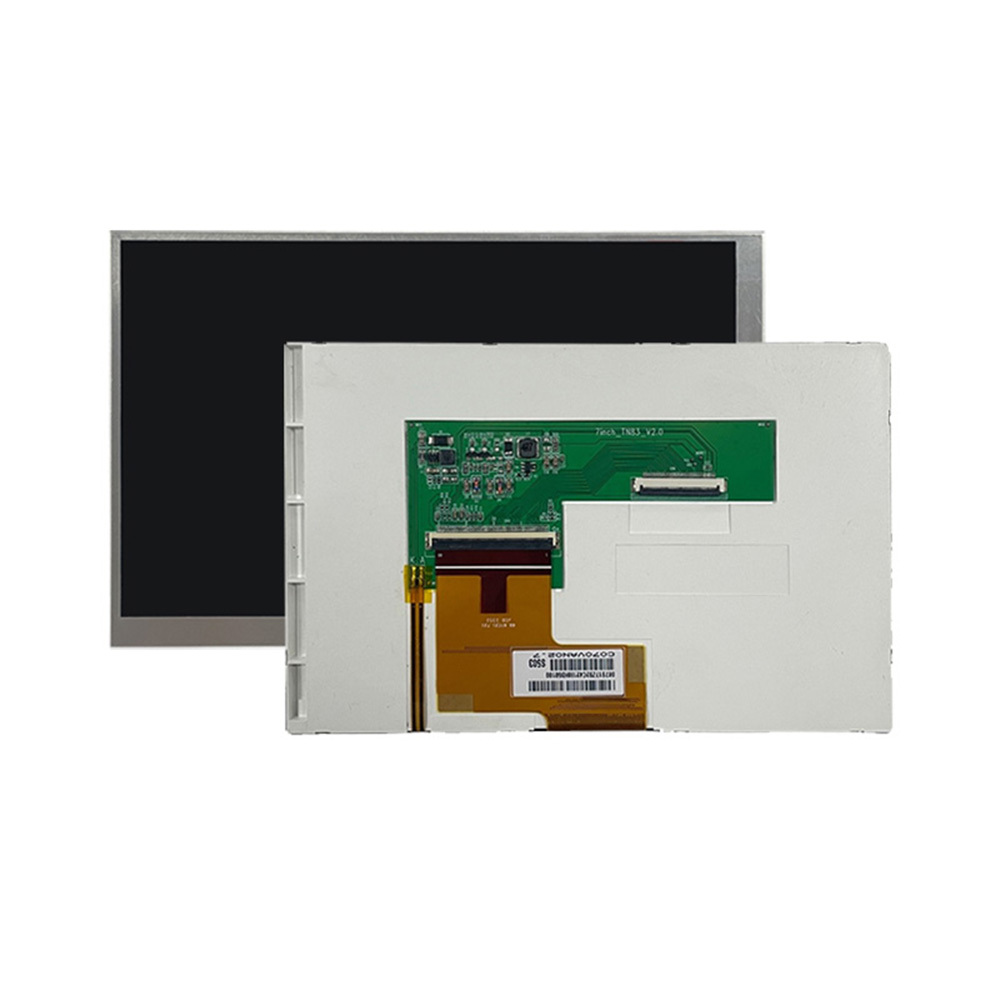

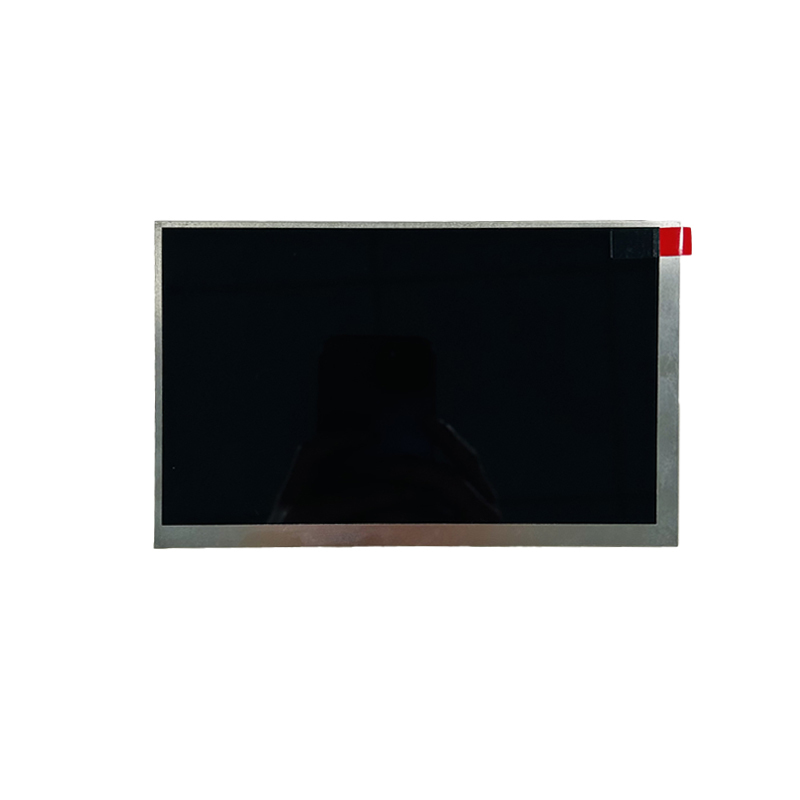

Shenzhen Aptus Technology Co., Ltd. presents the 7-inch TFT LCD module (Model: DBT070AVN40R035C), designed to deliver high-resolution display performance in industrial and commercial environments. Featuring advanced TFT technology, this module offers crisp and clear visuals with excellent durability, making it ideal for a wide range of display applications.
Key Features:
Display Size: 7 inches
Resolution: High-quality display with sharp detail
Technology: TFT LCD for superior image clarity and durability
Contrast Ratio: Excellent contrast for clear and sharp visuals
Viewing Angle: All-angle viewing for versatile display use
Interface: eDP (Embedded DisplayPort) for smooth data transmission
Mechanical Specifications:
Panel Dimensions: 165 mm x 104 mm
Active Area: 152 mm x 91 mm
Frame Design: Slim profile with a robust build for long-lasting performance
Perfect for Industrial Use:
This LCD module is engineered for reliability in demanding industrial applications, from control panels to high-end equipment displays. It supports a wide operating temperature range from -20°C to 70°C, ensuring dependable performance even in challenging environments.

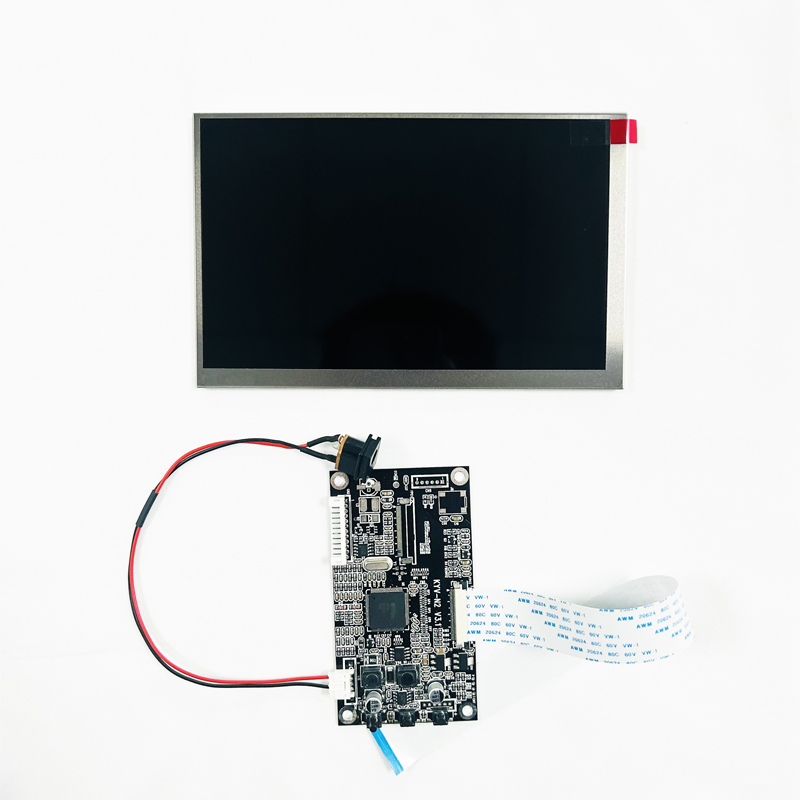

Brightness, PIN defination, Coverglass,Touch Panel, Driver board, etc can be also customized.
LCD Module Product List:
| NO. | Size (inch) | Resolution | Active Area (mm) | Outline Dimensions (mm) | Touch Panel | Interface PIN | Interface | Brightness (cd/m²) | Operation Temperature (℃) | Storage Temperature (℃) |
|---|---|---|---|---|---|---|---|---|---|---|
| DBT020BQN40R060A | 2.0 | 320*240 | 40.80(H) * 30.60(V) | 46.00(W) * 41.00(H) * 2.00(T) | No | 40PIN | RGB | 600 | -20～60 | -30～70 |
| DBT024QV181S | 2.4 | 320*240 | 48.96(H) * 36.72(V) | 60.26(W) * 42.72(H) * 2.25(T)MAX | No | 10PIN | IPS | 220 | -20～70 | -30～80 |
| DBT035BQR14S030A | 3.5 | 320*480 | 48.96(W) * 73.44(H) | 55.26(W) * 84.55(H) * 3.5(T) | RTP | 14PIN+6PIN | 4SPI | 300 | -20～70 | -30～80 |
| DBT035GEC20M043A | 3.5 | 720*1280 | 43.2(H) * 78.72(V) | 51.32(H) * 87.01(V) * 3.37(T) | CTP | 20PIN | MIPI | 430 | -20～70 | -30～80 |
| DBT039BVC31M035A | 3.97 | 480*800 | 52.24(H) * 86.80(V) | 59.79(H) * 101.78(V) * 3.36(D) | incell | 31PIN | MIPI | 350 | -20～60 | -30～70 |
| DBT043BFC40C030A | 4.3 | 480*272 | 95.04(W) * 53.86(H) | 105.42(W) * 67.07(H) * 2.95(T) | CTP | 40PIN | 16 bit RGB | 300 | -20～70 | -30～80 |
| DBT043BVC51R020A | 4.3 | 480*800 | 56.16(H) * 93.60(V) | 70.6 * 122.1 * 3.35 | CTP | 51PIN | RGB | 200 | -20～70 | -30～80 |
| DBT050CVC30M020A | 5.0 | 480*854 | 61.78(H) * 109.91(V) | 64.70(H) * 118.70(V) * 2.22(D) | incell | 30PIN | MIPI | 200 | -20～70 | -30～80 |
| DBT050BAN40R080A | 5.0 | 1024×600 | 108.03*64.8 | 120.7*75.8*2.9 | No | 40PIN | RGB | 800 | -20～70 | -30～80 |
| DBT051BAN40L050A | 5.1 | 1024*600 | 108.03*64.8 | 120.7*75.8*2.9 | No | 40PIN | LVDS | 500 | -30～80 | -35～85 |
| DBT055IEN32M030A | 5.46 | 720*1280 | 68.04(W)*120.96(H) | 70.44(W)*128.36(H)*1.56(T) | No | 32PIN | MIPI4 | 300 | -20～70 | -30～80 |
| DBT055BHC40M040A | 5.5 | 1080*1920 | 68.04(H) * 120.96(V) | 79.74(H) * 164.54(V) * 3.01(D) | CTP | 40PIN | MIPI | 430 | -20～70 | -30～80 |
| DBT068BEN40M100A | 6.86 | 480*1280 | 60.02(H) * 160.59(V) | 66.60(H) * 181.00(V) * 7.15(B) | No | 40PIN | MIPI | 1000 | -20～70 | -30～80 |
| DBT070KVN50R055A | 7.0 | 800*480 | 153.84(W)*85.632(H) | 164.00(W)*100.00(H)*3.50(T) | No | 50PIN | RGB | 550 | -20～70 | -30～80 |
| DBT070AVN20L050A | 7.0 | 800*480 | 152.4*91.44 | 165*104*5.3 | No | 20PIN | LVDS | 500 | -40～85 | -40～95 |
| APS-C070EAN03.1-00 | 7.0 | 1280*720 | 156.48×80.136 | 167×93×6 | Yes | 50PIN | LVDS | 1000 | -40～85 | -40～95 |
| DBT070BXN50R100A | 7.0 | 1024*600 | 85.92(W) * 154.21(H) | 100(W)*164.8(H)*5.5(T) | No | 50PIN | RGB | 1000 | -20～70 | -30～80 |
| DBT070THC40M060A | 7.0 | 1080*1920 | 86.83(H)*154.37(V) | 89.33(H)*160.07(V)*1.39(T) | Yes | 40PIN | MIPI | 600 | -20～70 | -30～80 |
| DBT078VEN40M080A | 7.84 | 400*1280 | 67.80(H)*205.78(V)*7.25(B) | 67.80(H)*205.78(V)*7.25(B) | No | 40PIN | 4-Lane MIPI | 800 | -20～70 | -30～80 |
| DBT080IXN40L050A | 8.0 | 1024*768 | 162.05(W)*121.54(H) | 183.0(W)*141.0(H)*5.5(D) | No | 40PIN | LVDS | 500 | -30～85 | -40-90 |
| DBT084XXN20L100A | 8.4 | 1024*768 | 170.496*127.872 | 199.50*149.00*9.7 | No | 20PIN | LVDS | 1000 | -30～80 | -30～80 |
| DBT080IXN40L070A | 8.8 | 1024*768 | 162.05(W) 121.54(H) | 183*141*6.3 | No | 40PIN | LVDS | 700 | -10～50 | -20～60 |
| DBT101HAN40L045A | 10.1 | 1024*600 | 222.72(H) * 125.28(V) | 235.0 * 143.0 * 4.55 | No | 40PIN | LVDS | 450 | -20～70 | -30～80 |
| DBT101BUN45L035A | 10.1 | 1280*800 | 216.8064(H)*135.504(V) | 229.4（H) *149.04(V)*4.7 | No | 45PIN | LVDS | 500 | -20～70 | -30～80 |
| DBT101BHN40L040A | 10.1 | 1920*1080 | 125.712(H)*223.488(V) | 229.91(W)*135.74(H)*2.8(D) | No | 40PIN | LVDS | 400 | -20～70 | -30～80 |
| DBT101BUC45L085A | 10.1 | 1920*1200 | 216.8064(H)*135.504(V) | 229.4 (H)*149.04(V)*4.7（B） | CTP | 45PIN | LVDS | 800 | -20～70 | -30～80 |
| DBT116BHN30E100A | 11.6 | 1920*1080 | 256.320(H)* 144.180(V) | 267.72*164.42*5.85 | No | 30PIN | eDP | 1000 | -20～70 | -30～80 |
| APS-C123HAX04.G-00 | 12.3 | 1920*720 | 292.032(H)*109.512(V) | 296.032(H)*118.844(V)*1.024(T) | No | 60PIN | LVDS | 1000 | -30～85 | -40～90 |
| DBT133BHN30E080A | 13.3 | 1920*1080 | 293.76 (H) * 165.24 (V) | 307.6 (H)*183.05(V)*5.5 (D) | No | 30PIN | eDP | 800 | -20～70 | -30～80 |
| AS156ME02 | 15.6 | 1920*1080 | 344.16 * 193.59 | 363.8*215.9*11.9 | No | 30PIN | LVDS | 1000 | -40～85 | -40～85 |
| DBT185BHN30L100A | 18.5 | 1920*1080 | 408.96 (H) * 230.04 (V) | 430.4(H)*254.6(V)*12(D) | No | 30PIN | LVDS | 1000 | -30～80 | -30～80 |
| DBT215BHN30L100A | 21.5 | 1920*1080 | 476.64(H)*268.11(V) | 495.6(H)*292.2(V)*8.04(D) | No | 30PIN | LVDS | 1500 | -20～80 | -30～85 |
| DBT270BHN30L150A | 27.0 | 1920*1080 | 597.9 (H)*336.3(V) | 626.2(H) *364.6(V)*17.7(D) | No | 30PIN | LVDS | 1500 | -20～80 | -30～80 |
