As vehicles continue to evolve toward digital cockpits and intelligent human–machine interfaces (HMI), automotive LCD modules have become a critical component in modern in-vehicle systems. From infotainment displays and climate control panels to instrument clusters and auxiliary monitoring screens, stable and reliable LCD modules are now expected to perform consistently under complex automotive environments.

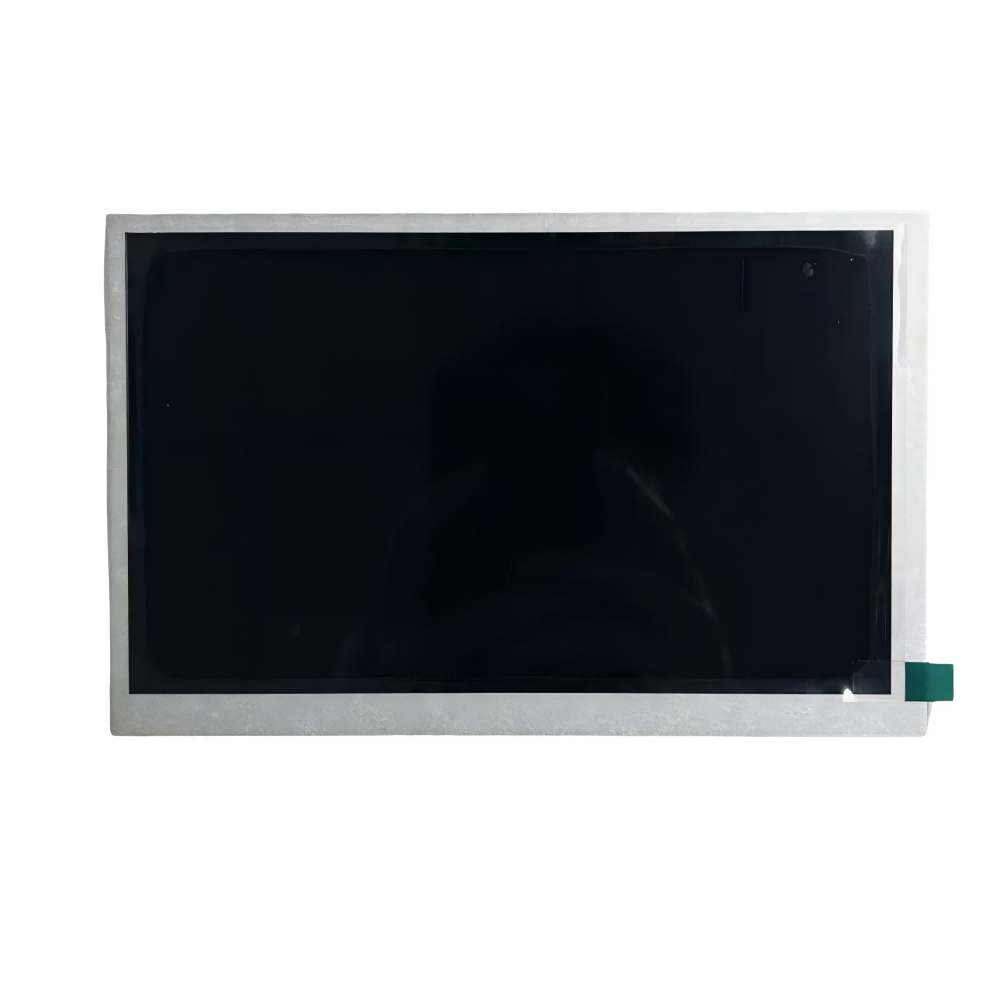

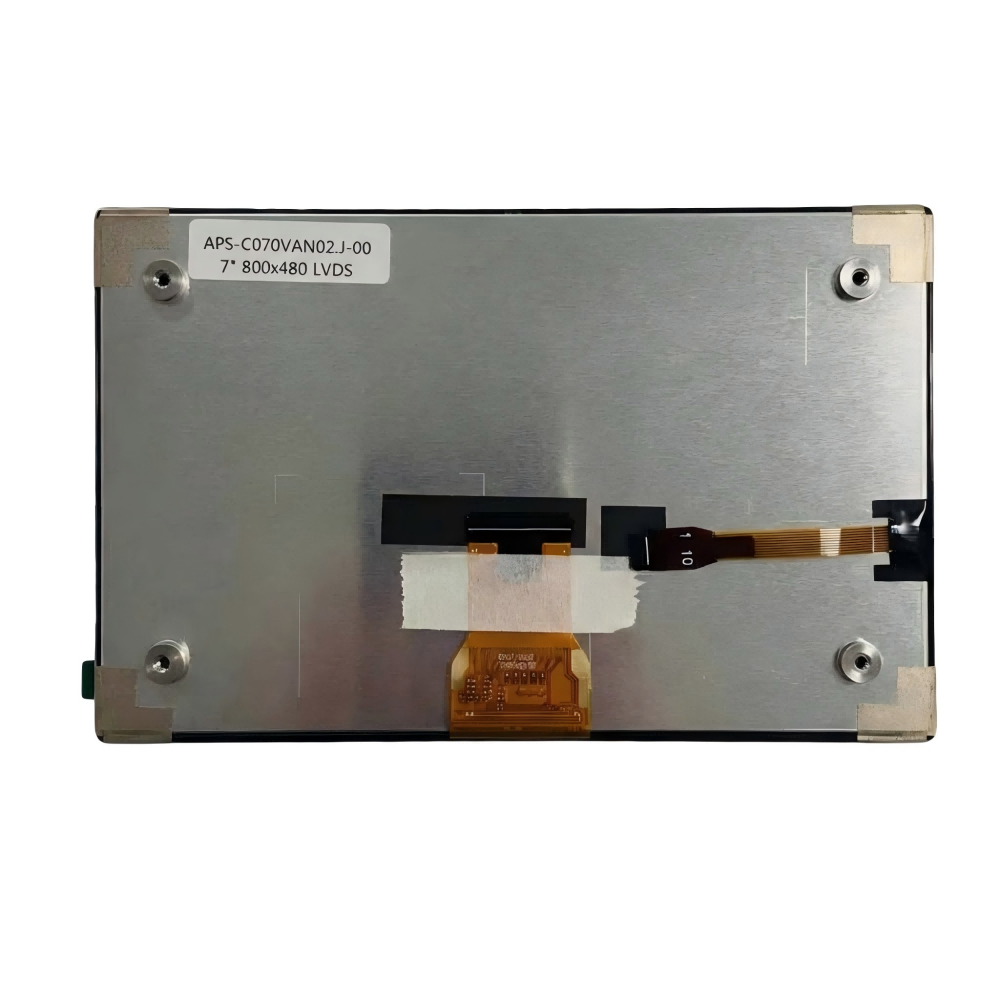

This article introduces a 7-inch automotive-grade TFT LCD module based on AUO panel technology, focusing not only on its technical foundation but also on how it is applied in real-world vehicle scenarios. Rather than presenting a simple specification sheet, this content is designed to help engineers, product managers, and system integrators understand why this type of display is widely adopted in automotive applications and how it fits into modern vehicle display architectures.
Before discussing applications and system-level considerations, the core specifications of the LCD module are summarized below for quick reference.
| Parameter | Specification |
|---|---|
| Display Size | 7.0 inch (diagonal) |
| Resolution | 800 × 480 (RGB horizontal stripe) |
| Display Technology | a-Si TFT-LCD with AHVA wide viewing angle |
| Display Mode | Normally Black |
| Interface | LVDS |
| Color Depth | 16.7 million colors |
| Active Area | 152.4 × 91.44 mm |
| Overall Dimensions | 167.3 × 109.2 × 1.25 mm |
| Viewing Angle (CR ≥ 10) | 80° (Top/Bottom/Left/Right) |
| Typical Contrast Ratio | 1000:1 |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -40°C to +95°C |
| Compliance | RoHS |
These specifications reflect the requirements commonly associated with automotive-grade LCD modules, especially where temperature tolerance, viewing stability, and interface reliability are critical.
Unlike consumer-grade displays used in tablets or handheld devices, in-vehicle LCD modules must operate under far more demanding conditions. Automotive interiors are exposed to wide temperature fluctuations, long operating hours, vibration, and electrical noise from vehicle systems.
This 7-inch LCD module is designed to address these challenges through:
Wide operating temperature range suitable for both cold starts and high-temperature cabin environments
LVDS interface, which is commonly used in automotive systems for its noise immunity and stable signal transmission
Normally Black display mode, offering improved contrast and better readability under varying lighting conditions
AHVA wide viewing angle technology, ensuring consistent color and contrast even when viewed from off-axis positions
These characteristics make the module suitable for long-term deployment in vehicles where reliability is more important than ultra-thin consumer aesthetics.
One of the most common applications for a 7-inch LCD module is the in-vehicle infotainment system. This size strikes a balance between compact dashboard integration and sufficient screen area for navigation, media playback, and system settings.
In IVI systems, the display is often required to present:
Navigation maps and route guidance
Media controls and multimedia information
Vehicle settings and driver assistance menus
The 800×480 resolution provides clear graphical representation while keeping system resource requirements manageable, which is especially important for embedded automotive processors.
Many vehicles use a dedicated LCD display for HVAC and central control interfaces. These displays remain active for extended periods and must maintain stable brightness and color performance.
The wide viewing angle and consistent contrast of this module allow information to remain readable from different seating positions, while the LVDS interface supports stable integration with automotive control units.
In some vehicle architectures, especially commercial vehicles and special-purpose vehicles, a 7-inch LCD is used as:
A secondary instrument display
A driver information screen
An auxiliary monitoring display for system status or warnings
The normally black display mode enhances contrast, making critical information easier to distinguish at a glance.
For passenger-facing applications such as rear-seat entertainment or information displays, the module’s wide viewing angle ensures that content remains visible even when viewed from non-centered positions. The color depth supports video playback and graphical interfaces without excessive processing overhead.
The module adopts an LVDS interface, which is widely used in automotive display systems due to its resistance to electromagnetic interference and stable high-speed data transmission.
From a system integration perspective, LVDS offers:
Reduced signal noise in electrically complex environments
Longer cable runs compared to parallel RGB interfaces
Improved reliability for continuous operation
Power supply requirements and sequencing are clearly defined, which helps system designers implement safe power-on and power-off procedures to protect the display during vehicle startup and shutdown.
Optical performance plays a key role in automotive safety and usability. This module provides:
Typical contrast ratio of 1000:1, improving readability in both daytime and nighttime conditions
Wide viewing angles (80° in all directions), reducing color shift and brightness loss
Fast response time, supporting smooth transitions for dynamic UI elements
These characteristics ensure that displayed information remains legible under varying ambient light conditions, including direct sunlight and low-light driving environments.
Automotive displays are expected to function reliably over many years. This module has undergone reliability testing that includes:
High-temperature and low-temperature storage tests
Thermal shock and humidity exposure
Vibration and drop tests aligned with industry standards
Electrostatic discharge (ESD) resistance testing
Such testing reflects real-world automotive conditions and helps ensure stable performance throughout the vehicle’s service life.
Shenzhen Aptus Technology Co., Ltd. is a professional supplier of LCD modules and display solutions, serving customers in Europe, North America, and other global markets. With experience in industrial, automotive, and embedded display applications, Aptus focuses on delivering stable, well-documented display modules that can be smoothly integrated into customer systems.
Rather than offering generic off-the-shelf products, Aptus works closely with customers to support:
Long-term supply planning
Interface and compatibility consultation
Technical documentation and engineering support
Customization options based on project requirements
This approach helps reduce integration risks and shortens development cycles for automotive projects.
For automotive display projects, selecting the right LCD module is only part of the process. Aptus provides additional services to support customers throughout the product lifecycle, including:
Interface compatibility verification
Power and signal integration guidance
Mechanical fit and mounting consultation
Long-term availability and lifecycle management
These services are particularly valuable for automotive applications where consistency and continuity are critical.
If you are developing or upgrading an automotive display system and require a stable 7-inch LCD module with automotive-grade performance, our engineering team is ready to assist.
Whether your project involves infotainment systems, control panels, or vehicle information displays, Aptus Technology can provide professional support and reliable display solutions tailored to your needs.
