The Aptus Display 7-inch 1080×1920 40PIN MIPI 1200nit In-Cell Touch Panel LCD Module is a compact, high-resolution display solution designed for embedded products, industrial interfaces, smart handheld equipment, outdoor control systems, and other applications that require excellent image clarity and responsive touch interaction. With Full HD 1080×1920 resolution, 1200-nit high brightness, a 40-pin MIPI interface, and integrated In-Cell capacitive touch, this LCD module provides a strong balance between visual performance, integration efficiency, and product design flexibility.
The model DBT070THC40M120A combines the display and touch sensing layer into an integrated In-Cell structure. This helps reduce the overall display stack thickness while providing a clean optical appearance and responsive user interaction. Its high brightness makes it particularly suitable for equipment used in bright indoor environments and applications where conventional LCD brightness may not provide sufficient readability.
Aptus Display supplies standard and customized LCD module solutions for OEM and ODM projects, supporting customers that need specific display sizes, interfaces, brightness levels, touch configurations, mechanical structures, and integration requirements.
Brightness is an important consideration when an LCD module is installed close to windows, under strong indoor lighting, or in partially outdoor environments. This 7-inch LCD module provides 1200 cd/m² brightness, giving system designers substantially more optical headroom than conventional standard-brightness TFT displays.
For applications exposed to strong ambient light, brightness should be evaluated together with cover glass, surface treatment, optical bonding, ambient reflections, and the final enclosure design. The 1200-nit configuration provides a strong foundation for developing a more readable display system.
The 1080×1920 Full HD resolution delivers high pixel density in a compact 7-inch form factor. It is particularly suitable for interfaces that contain detailed graphics, small fonts, icons, charts, control menus, and image-based information.
The portrait-oriented 1080×1920 configuration also gives product designers flexibility when creating vertical user interfaces. It can be used in handheld terminals, smart control equipment, access interfaces, embedded HMI systems, and other compact devices where screen space is limited but high image definition is required.
The In-Cell touch configuration integrates the touch sensing function within the LCD structure rather than relying on a separate external touch panel layer.
This design can provide several integration advantages:
Slimmer overall display construction
Reduced optical layers
Clean and modern product appearance
Responsive capacitive touch interaction
Better suitability for compact embedded equipment
Simplified mechanical integration compared with some separate touch-panel structures
For OEM designers, reducing the number of display layers can be particularly valuable when enclosure thickness and internal space are tightly constrained.
The module uses a 40-pin MIPI interface, making it suitable for embedded platforms and processors with compatible MIPI DSI display interfaces.
MIPI is widely adopted in compact embedded electronics because it supports high-speed display data transmission while helping system designers maintain compact PCB layouts and flexible product architectures. Before hardware integration, the host processor, MIPI lane configuration, timing parameters, voltage requirements, FPC connection, and software driver should be verified against the final display specification.
| Parameter | Specification |
|---|---|
| Model | DBT070THC40M120A |
| Display Size | 7.0 inch |
| Resolution | 1080 × 1920 pixels |
| Display Type | TFT LCD |
| Touch Technology | In-Cell Capacitive Touch |
| Brightness | 1200 nits typical |
| Interface | 40-Pin MIPI |
| MIPI Configuration | 4-Lane MIPI |
| Display Mode | Normally Black, Transmissive |
| Contrast Ratio | 1000:1 |
| Color Depth | 16.7M colors |
| Viewing Direction | IPS / Wide Viewing Angle |

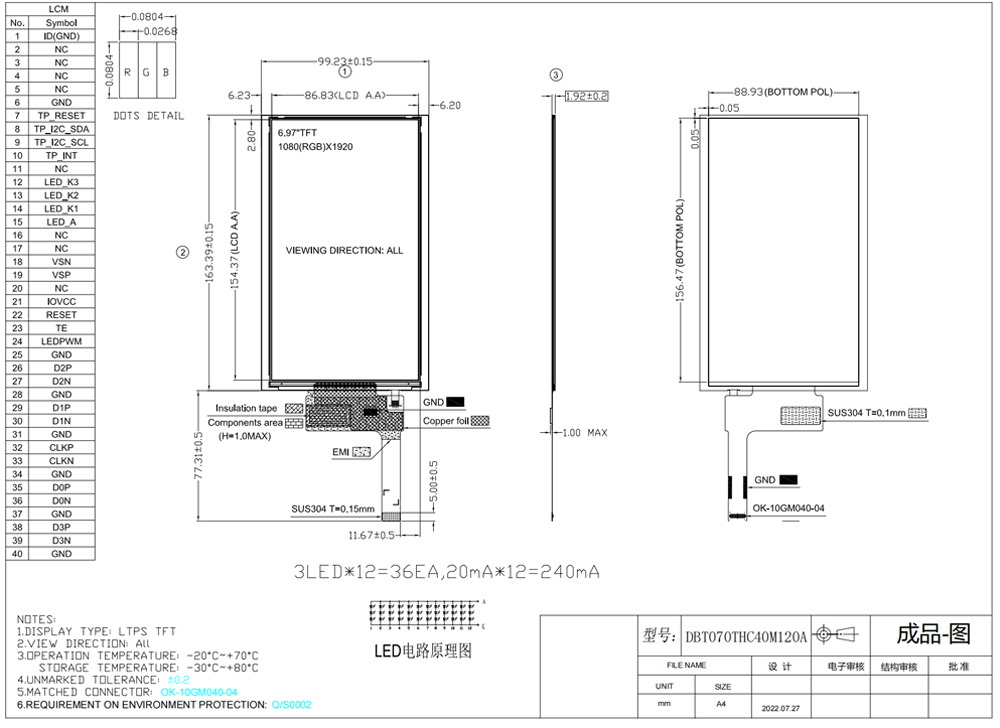

| Outline Dimension | Approx. 98.9 × 163.8 × 1.75 mm |
| Active Area | Refer to final approved mechanical drawing |
| Backlight | LED |
| Logic Voltage | 3.3V |
| Backlight Voltage | 5.0V |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Touch Structure | Integrated In-Cell |
| Application Type | Embedded, Industrial, Smart Device, Outdoor-Oriented |
The specifications above are based on the current Aptus Display product information. Mechanical dimensions, pin definition, electrical timing, touch parameters, and other integration-critical values should be confirmed against the latest engineering datasheet before mass production.
The combination of Full HD resolution, high brightness, compact size, and touch functionality makes this module suitable for embedded industrial HMI applications. It can be integrated into control terminals, automation equipment, monitoring systems, machine interfaces, and compact operator panels.
The portrait-oriented resolution can also be useful where the graphical interface is designed around vertical menus, status indicators, equipment parameters, or workflow instructions.
The 1200-nit brightness makes this display a strong candidate for smart equipment exposed to elevated ambient illumination. Potential applications include outdoor control interfaces, EV charging equipment, smart access terminals, public information equipment, and other semi-outdoor devices.
However, a 1200-nit LCD should not automatically be described as a complete sunlight-readable solution. Outdoor readability depends on the entire optical system, including cover glass reflectance, anti-glare treatment, optical bonding, backlight design, thermal management, and enclosure geometry.
A 7-inch display provides considerably more interface space than smaller handheld panels while remaining compact enough for portable equipment. The integrated In-Cell touch structure can help manufacturers develop thinner handheld terminals with a clean front surface.
Possible applications include industrial handheld controllers, inspection terminals, portable data terminals, inventory equipment, scanners, and specialized smart devices.
The 1080×1920 portrait format is particularly suitable for vertical user interfaces. It can display access information, QR codes, menus, instructions, status notifications, and touch controls in a compact enclosure.
For smart terminals installed in public environments, the high-brightness configuration can also help improve interface visibility under strong ambient lighting.
The display can also be considered for selected healthcare and medical electronic interfaces where the system requirements match the module's specifications. Possible applications include portable diagnostic equipment, monitoring interfaces, compact control terminals, and other specialized equipment.
For regulated medical devices, however, the complete system—not just the LCD module—must meet the applicable regulatory, reliability, and validation requirements.
Modern IoT equipment increasingly requires graphical interfaces rather than simple indicator LEDs. A 7-inch Full HD touch display can provide enough screen area for dashboards, device controls, status information, charts, and configuration menus.
The MIPI interface also makes the module suitable for embedded computing platforms that already provide native MIPI DSI support.
When selecting a 7-inch high-brightness MIPI LCD module, engineers should evaluate the complete display system rather than focusing only on resolution and brightness.
First, verify MIPI compatibility. The host processor must support the required MIPI DSI configuration and display timing. Connector pinout and FPC orientation should also be checked during PCB design.
Second, evaluate thermal management. A 1200-nit backlight requires more power than a standard-brightness display. The final enclosure should provide an appropriate thermal path, particularly when the product operates continuously.
Third, consider optical design. If the product is intended for outdoor or high-ambient-light use, anti-glare treatment, cover lens reflectivity, optical bonding, and surface coatings can have a significant effect on perceived readability.
Fourth, validate touch performance. The touch controller, cover material, firmware, grounding, noise environment, and enclosure construction can all affect touch performance. These factors should be evaluated together during prototype testing.
Every embedded product has different mechanical and electrical requirements. A standard LCD module may provide the correct screen size and resolution but still require modifications before it can be integrated into a finished product.
Aptus Display provides customization options for LCD module projects, including:
Custom brightness configurations
MIPI, LVDS, eDP and other interface solutions
In-Cell and other touch-panel configurations
Custom FPC and connector arrangements
Anti-glare and optical treatment options
Optical bonding solutions
Waterproof touch-panel requirements
Custom frame and mounting structures
Housing and mechanical integration
Display and touch optimization
Prototype and mass-production support
These capabilities allow OEM and ODM customers to develop display assemblies around their actual product architecture rather than adapting the entire product to a generic display.
Aptus Display is a Shenzhen-based LCD display supplier providing TFT LCD modules, touch-panel LCD solutions, custom display assemblies, and related integration services. The company works with customers across industrial, commercial, smart-device, IoT, and other embedded applications.
Rather than treating an LCD module as an isolated component, Aptus Display supports customers throughout the development process, from initial display selection and sample evaluation to customization and production.
For projects requiring special brightness, touch structures, interfaces, FPC configurations, mechanical dimensions, or optical treatments, working directly with a display supplier with customization capabilities can reduce integration challenges and help engineers move from prototype to production more efficiently.
The module provides 1200-nit high brightness, making it suitable for many bright-environment and semi-outdoor applications. For direct sunlight applications, the final product should also consider optical bonding, anti-glare treatment, cover glass reflectivity, thermal management, and enclosure design.
Yes. The DBT070THC40M120A uses an In-Cell capacitive touch structure, integrating touch functionality into the LCD construction for a slimmer and cleaner display assembly.
The module uses a 40-pin MIPI interface with a 4-lane MIPI configuration according to the current product specification. Host processor compatibility and detailed pin definitions should be confirmed before hardware development.
Yes. Aptus Display provides custom LCD module services covering brightness, interface, touch configuration, FPC, mechanical structure, optical treatment, bonding, and other integration requirements.
The current product specification lists an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C. The final project specification should be confirmed with Aptus Display before production.
It can be considered for embedded platforms with compatible MIPI DSI output. However, compatibility depends on the processor, MIPI configuration, timing, driver support, FPC connection, and power architecture. Engineers should confirm the complete interface specification before selecting the host platform.
If you are looking for a 7-inch 1080×1920 high-brightness LCD module, this 40-pin MIPI In-Cell touch solution provides a practical combination of Full HD image quality, 1200-nit brightness, compact mechanical design, and integrated touch functionality.
Aptus Display can support both standard-module sourcing and customized LCD development. When requesting a quotation, customers are encouraged to provide the target application, required quantity, host processor or controller, mechanical constraints, operating temperature, brightness requirements, touch requirements, and expected production schedule.
For samples, technical specifications, customization, or OEM/ODM cooperation, contact Aptus Display to discuss your project requirements.
