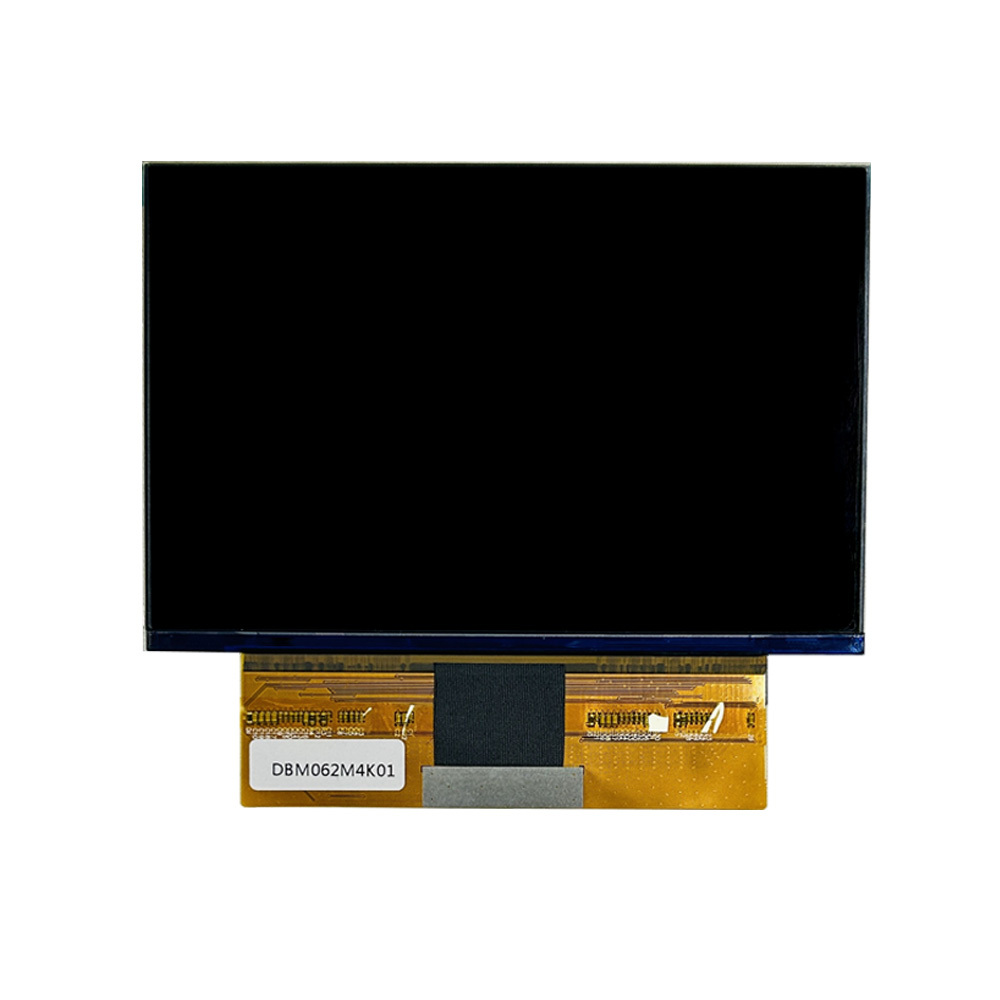

MONO LCD Display for 3D Printers - DBM062M4K01

Product Name: APTUS Technology CO., LTD.   DBM062M4K01 MONO LCD Display

Overview:

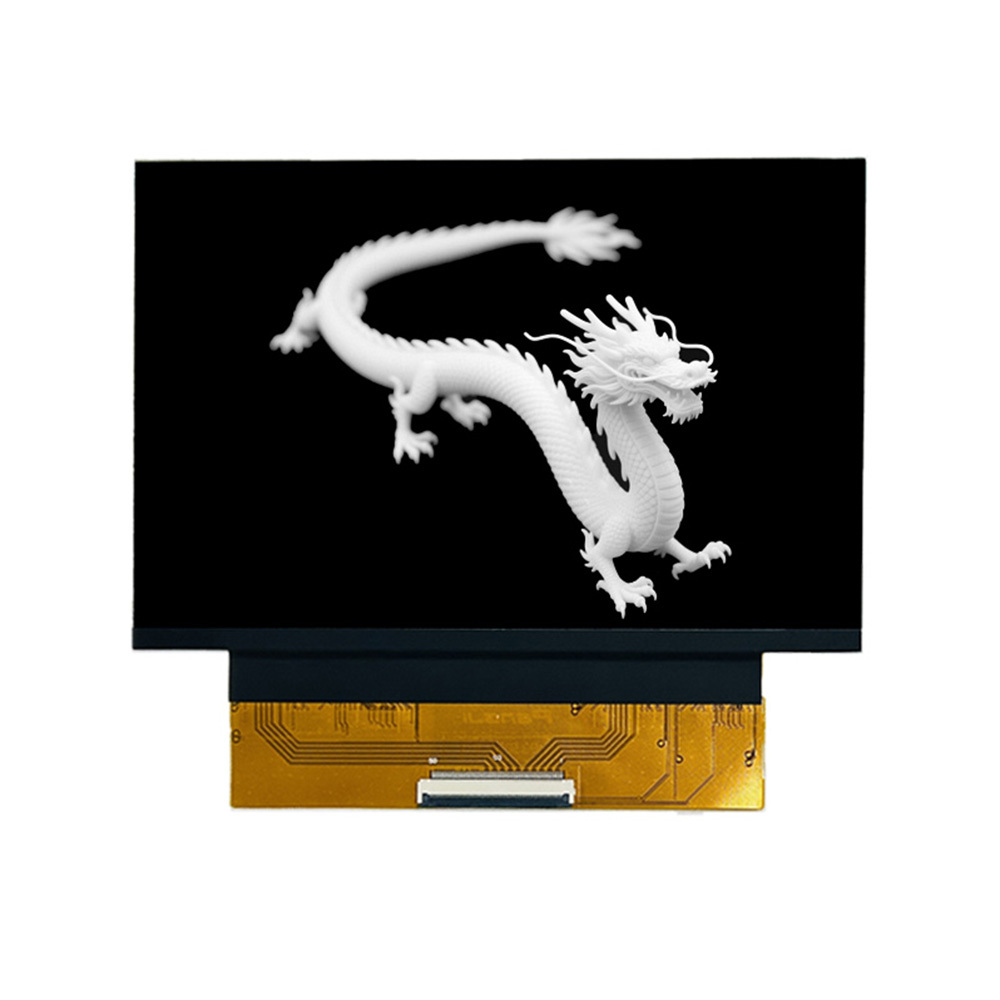

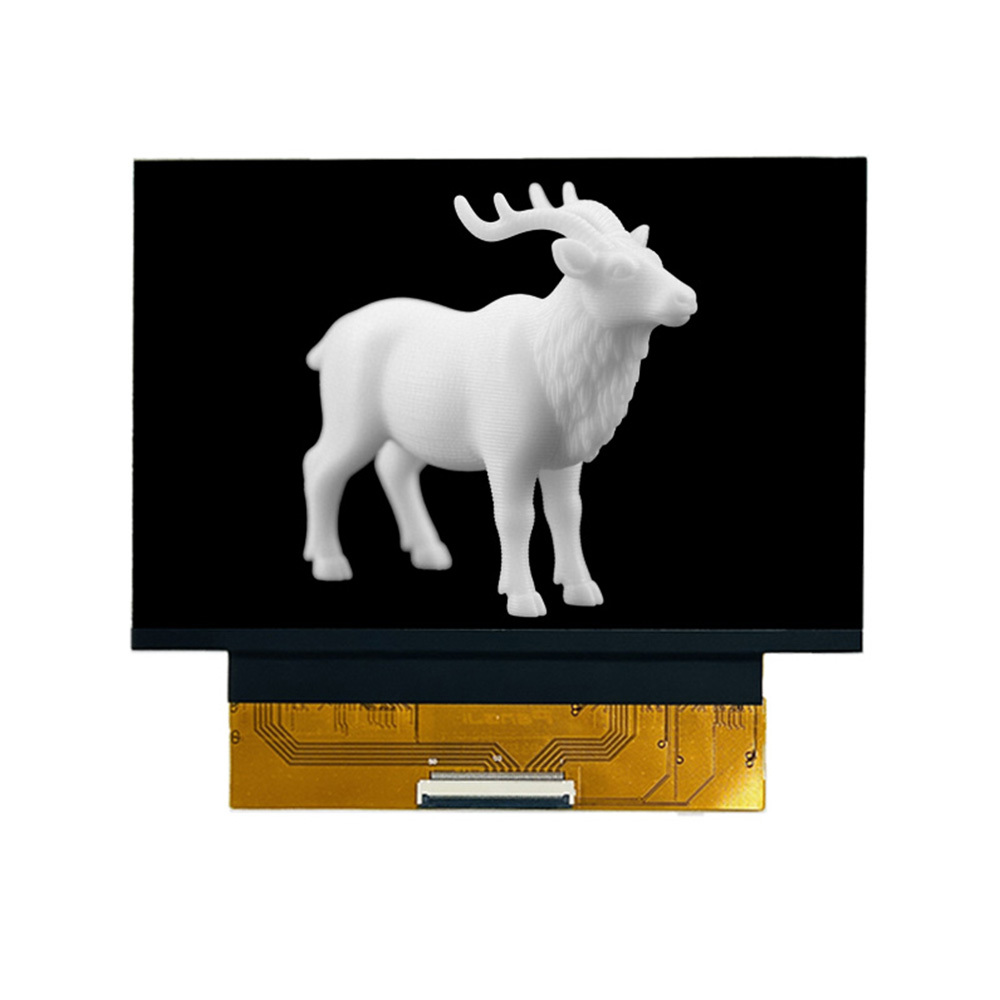

The DBM062M4K01 is a high-resolution 6.2-inch MONO LCD display module designed specifically for 3D printer applications.   With its 3840 x 2400 pixel resolution, this TFT-LCD module offers exceptional clarity and detail, making it ideal for precise control and visualization in 3D printing.

Key Features:
- High Resolution: Experience crisp images and sharp text with a 3840 x 2400 pixel resolution, ensuring every detail of your 3D print is accurately represented.
- Transmissive MONO Technology: Utilizing MONO TFT technology, this display provides a clear and consistent viewing experience, essential for accurate settings and monitoring in 3D printing.
- Wide Viewing Angles: With a viewing angle of 80° to 85° (C/R>10), the DBM062M4K01 ensures that the display remains visible from various angles, enhancing the user experience.
- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances (RoHS) directive, this display is an environmentally responsible choice for your 3D printer.

Technical Specifications:
- Display Resolution: 3840 x 2400 Pixels
- Active Area: 134.40mm (W) x 84.00mm (H)
- Pixel Size: 0.034mm x 0.034mm
- LCD Type: TFT (MONO) / Transmissive
- Viewing Angle: 80° to 85° (C/R>10)
- Interface Type: 8 LANE MIPI
- Outline Size: 138.56mm (W) x 92.82mm (H) x 1.16mm (T)

Electrical Specifications:
- Logical Voltage: VDD, IOVCC 1.7V - 1.9V, VSN -5.5V, VSP +5.5V
- Current Consumption: 150 mA

Optical Performance:
- Transmittance Rate (405): 6% - 7%
- Contrast Ratio (405): 300:1 - 350:1
- Response Time: 25ms

Reliability and Durability:
- High Temperature Operating: 70°C, 168 Hours
- Low Temperature Operating: -20°C, 168 Hours
- High Temperature Storage: 80°C, 168 Hours
- Low Temperature Storage: -30°C, 168 Hours
- High Temperature & Humidity Storage: 60°C, 90%RH, 168 Hours
- Thermal Shock: -20°C to 70°C, 10 Cycles

Handling and Storage:
- Handling: The display must be handled with care to avoid static damage and mechanical stress.   Use finger cots and soft gloves during inspection and assembly.
- Storage: Store the display in a dark place with a temperature between 0 to 35°C and relative humidity less than 70%.

Conclusion:
The DBM062M4K01 MONO LCD Display from APTUS Technology CO., LTD. is designed to meet the demanding requirements of 3D printer applications.   With its high resolution, reliable performance, and precise control, it's the perfect choice for enhancing your 3D printing experience.   For more information or to place an order, contact APTUS Technology CO., LTD. today.

With UV light source

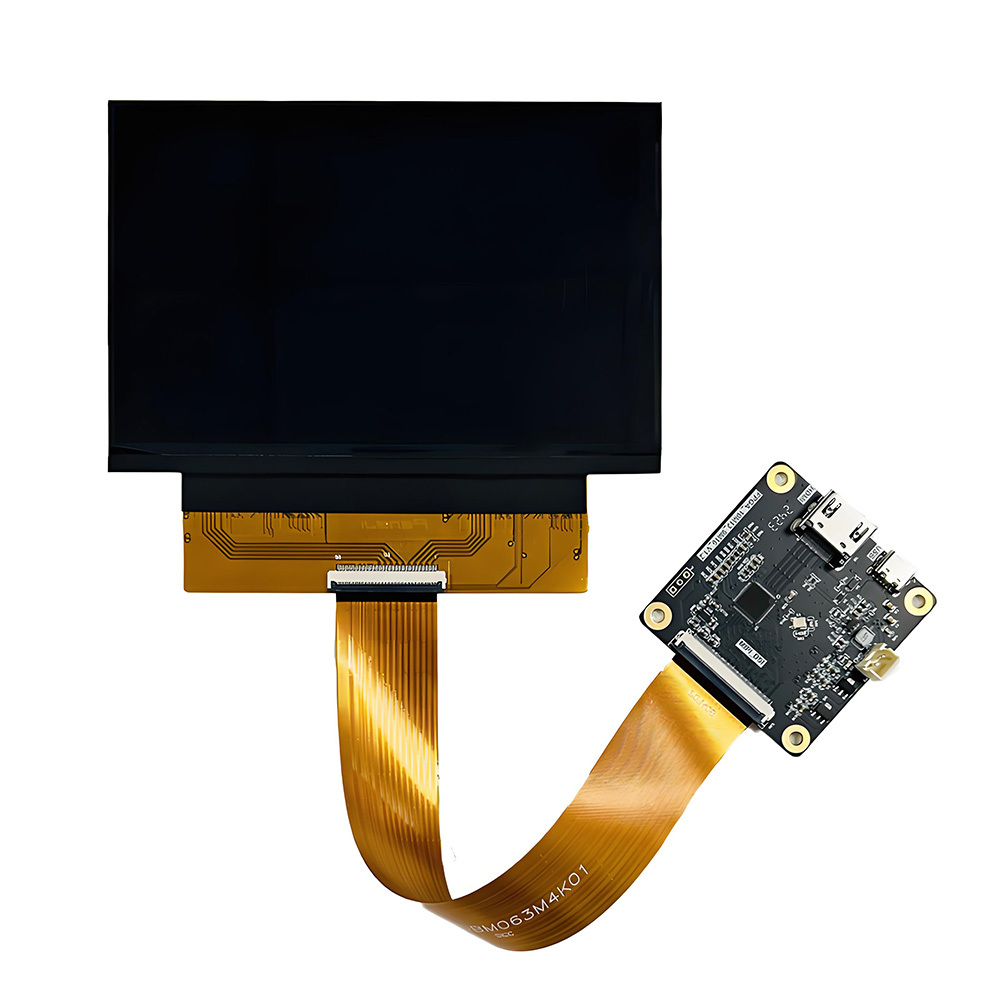

With driver board
