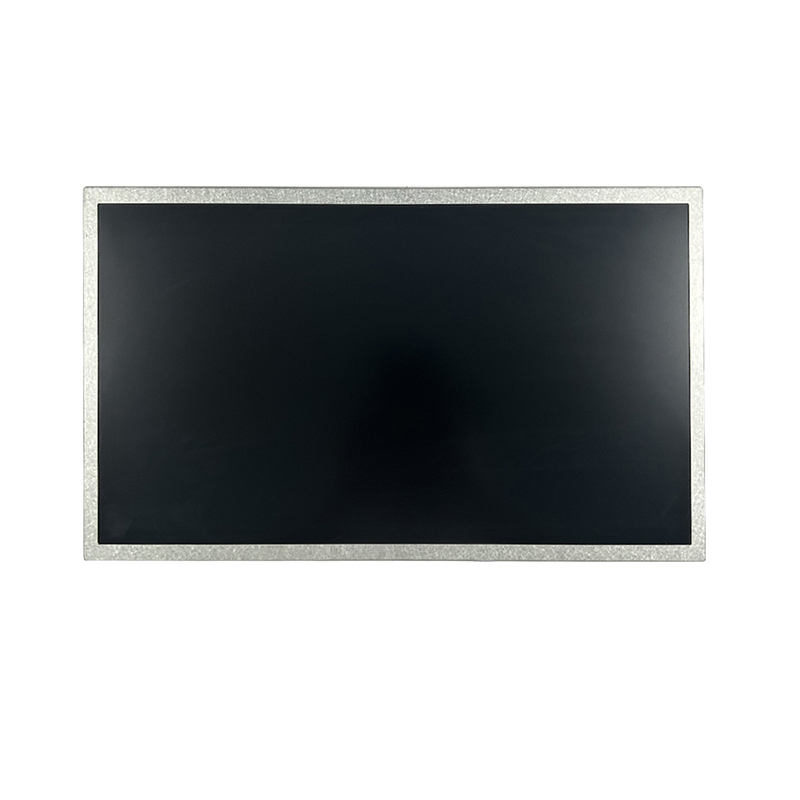

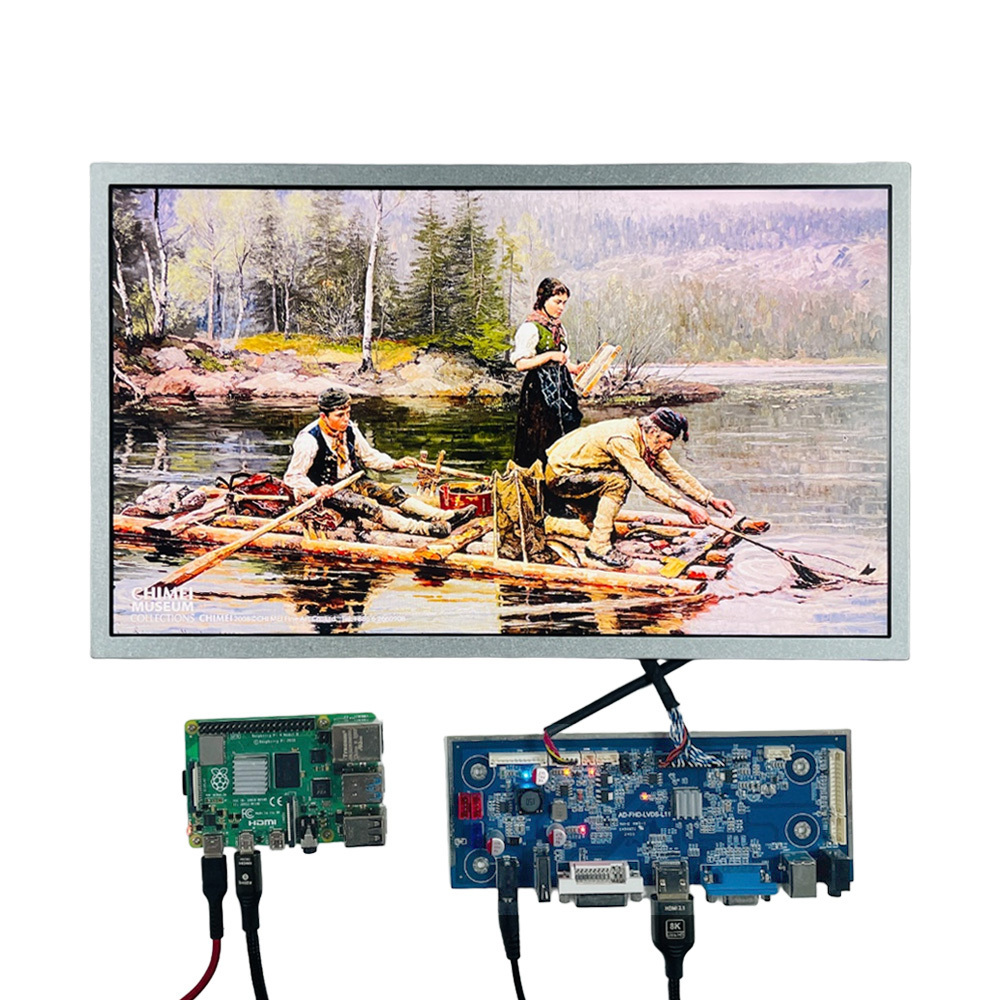

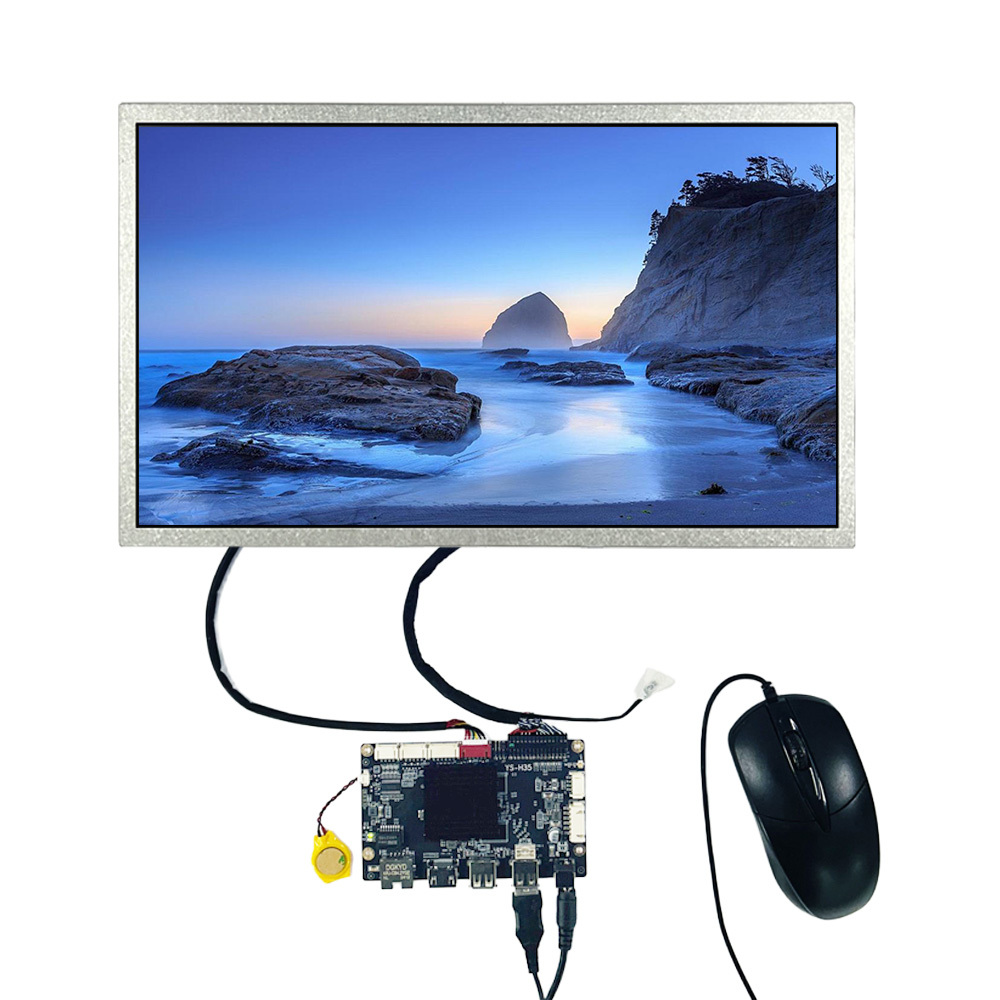

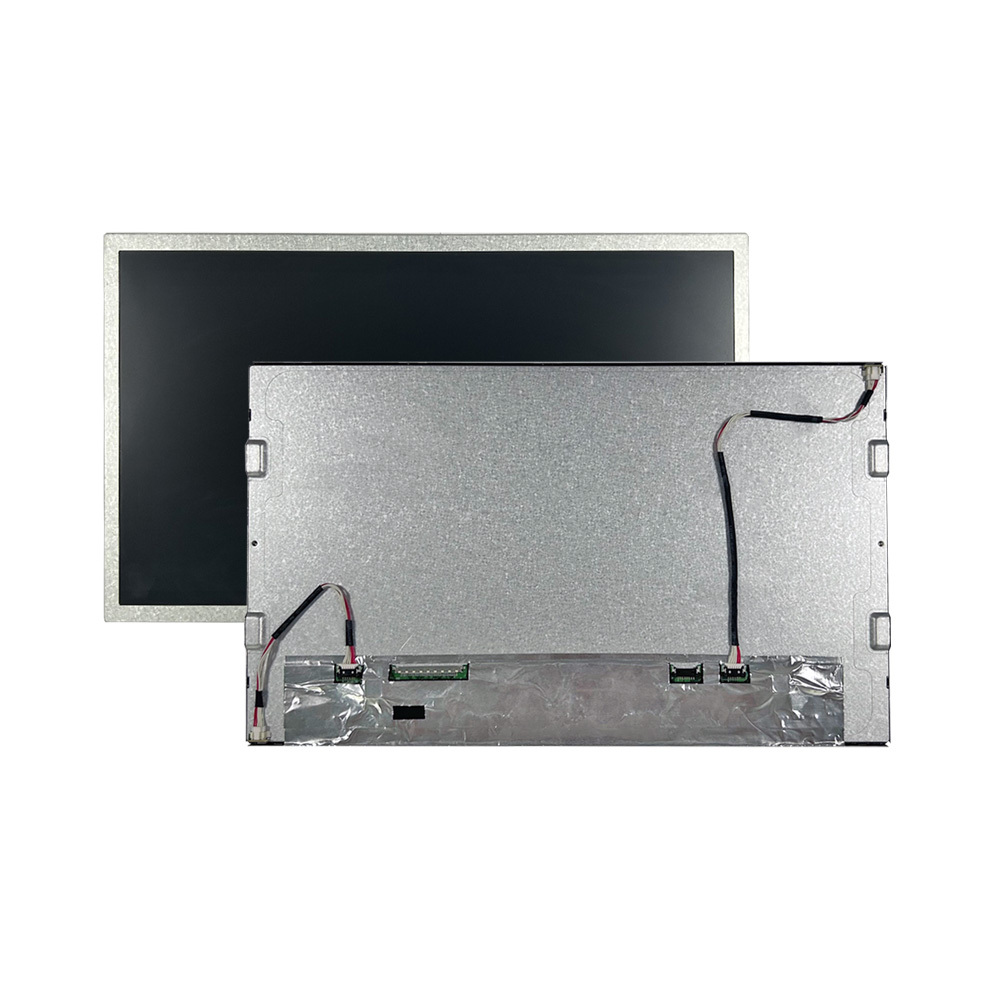

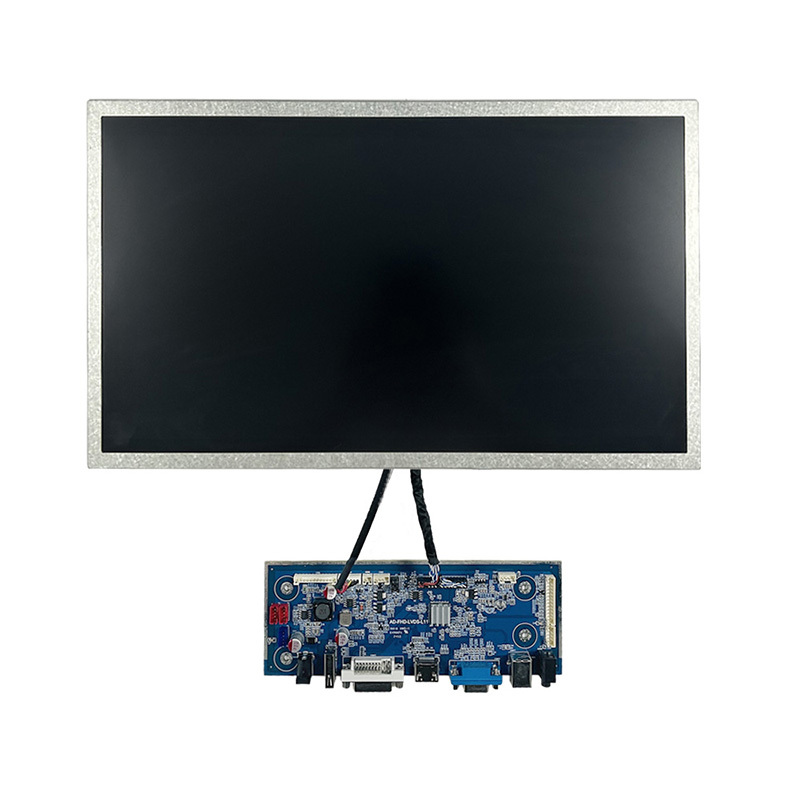

The 15.6-inch 1920×1080 Wide Temperature -40~+85℃ LVDS IPS LCD display module (Model No. AS156ME02) is a high-performance industrial-grade FHD panel designed for rugged applications that demand extreme environmental adaptability, high brightness, and wide viewing angles.
Engineered with a full HD (1920×1080) IPS panel and an LVDS interface, this display delivers crisp visuals, wide viewing angles, and reliable performance across a wide operating temperature range of -40°C to +85°C. Its high brightness and contrast ratio ensure excellent visibility in both indoor and outdoor industrial environments, making this module ideal for automation, signage, transportation, and embedded systems where environmental extremes are expected.
The 15.6-inch display’s 1920×1080 (Full HD) resolution offers precise detail for text, graphics, and video. Combined with IPS technology, this module achieves:
Wide horizontal and vertical viewing angles for multi-operator work areas
Stable color performance and minimal color shift
Clear interface rendering at various distances
This makes it well suited for operator dashboards, monitoring panels, and rich graphical interfaces.
Designed for mission-critical installations that operate under extreme climate conditions, this display supports:
Reliable performance in freezing cold environments
Continuous operation in high heat
Reduced thermal stress failures over long service lifecycles
The wide temperature range is particularly valuable for outdoor signage, transportation control systems, industrial automation, and energy system displays.
The module features 1000 cd/m² brightness, delivering:
Strong visibility in bright ambient lighting
Better readability in sunlight or bright indoor factory floors
Enhanced contrast for interface elements and application graphics
Such high brightness levels provide a practical advantage over standard industrial panels with lower luminance.
The 30-pin LVDS interface ensures:
Stable high-speed signal transmission with low noise
Compatibility with a broad range of industrial controller boards
Simplified wiring and integration in embedded designs
LVDS remains a reliable interface choice for industrial applications requiring robust signal integrity.
| Parameter | Specification |
|---|---|
| Display Size | 15.6 inch |
| Resolution | 1920 × 1080 (Full HD) |
| Active Area | 344.16 × 193.59 mm |
| Panel Type | IPS TFT LCD |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 (typical) |
| Viewing Angle | 85°/85°/85°/85° (L/R/U/D) |
| Parameter | Specification |
|---|---|
| Interface | LVDS (30-pin) |
| Input Voltage | 3.3 V (typical) |
| Pixel Configuration | RGB Vertical Stripe |
| Parameter | Specification |
|---|---|
| Outline Size | 363.80 × 215.90 × 11.9 mm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Surface Treatment | Anti-glare with hard coating |
| Weight | Up to 990 g |
Detailed mechanical drawings, pin-out assignments, and performance reports are available upon request.
Used for operator HMIs, production monitoring screens, and factory dashboard displays.
Perfect for rugged signage, kiosk interfaces, and control panels exposed to temperature extremes.
Suitable for embedded computing interfaces requiring wide temperature resilience and stable long-term performance.
Successful implementation of an industrial display involves hardware, firmware, and mechanical alignment. Engineering services include:
LVDS interface compatibility consultation
Pin-out mapping and signal validation
Mechanical mounting guidance
Thermal management support
Optical clarity optimization
These services help reduce development risk and shorten the product development timeline for OEM customers.
Yes. With an operating range of -40°C to +85°C, this module performs reliably in harsh thermal environments.
It uses a 30-pin LVDS interface, offering stable signal transmission and compatibility with industrial controller boards.
Yes. The 1000 cd/m² high brightness enables good readability even in strong ambient light conditions.
Absolutely. The LVDS interface and standardized panel structure make it suitable for embedded computing, machine control, and industrial automation designs.
The 15.6-inch 1920×1080 Wide Temperature LVDS IPS LCD Display Module (AS156ME02) is a rugged, high-brightness FHD display designed to excel in industrial and extreme-environment applications.
With wide temperature tolerance, high luminance, and wide viewing angles, it delivers excellent performance for HMIs, embedded systems, outdoor signage, and transportation interfaces.
