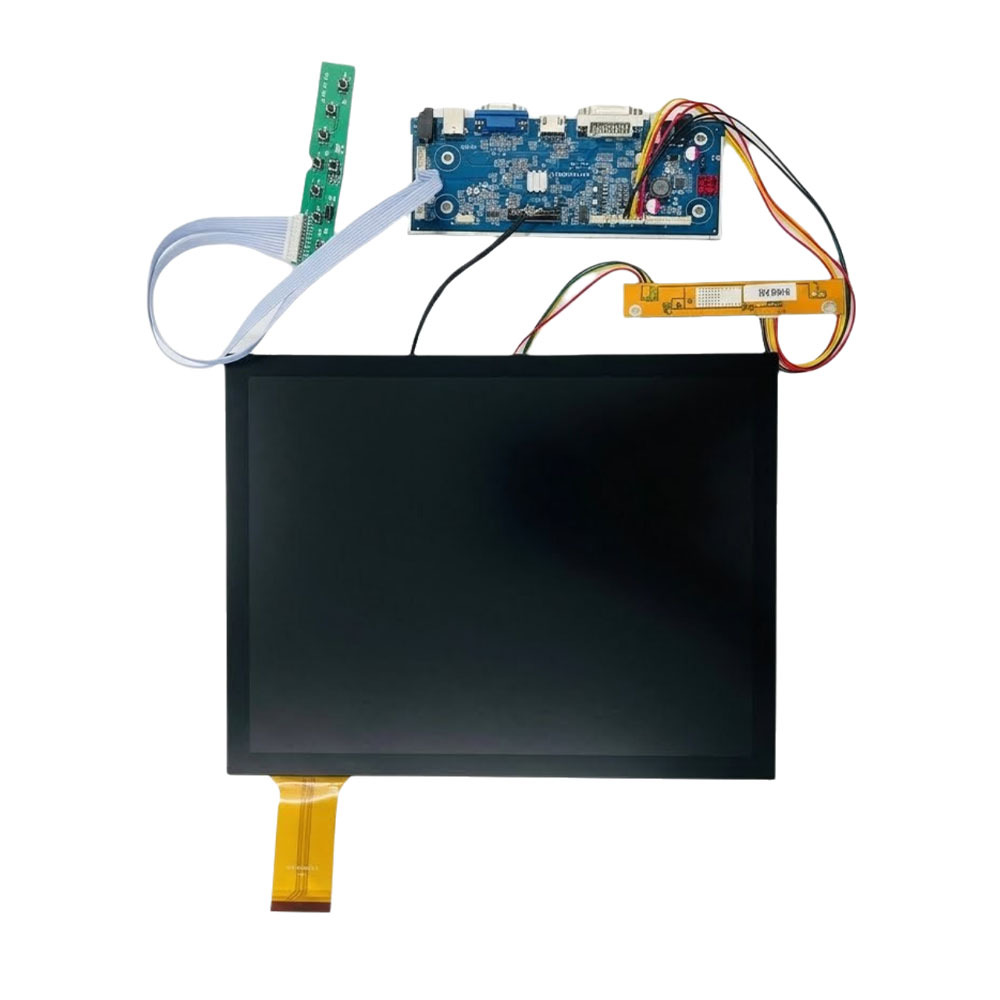

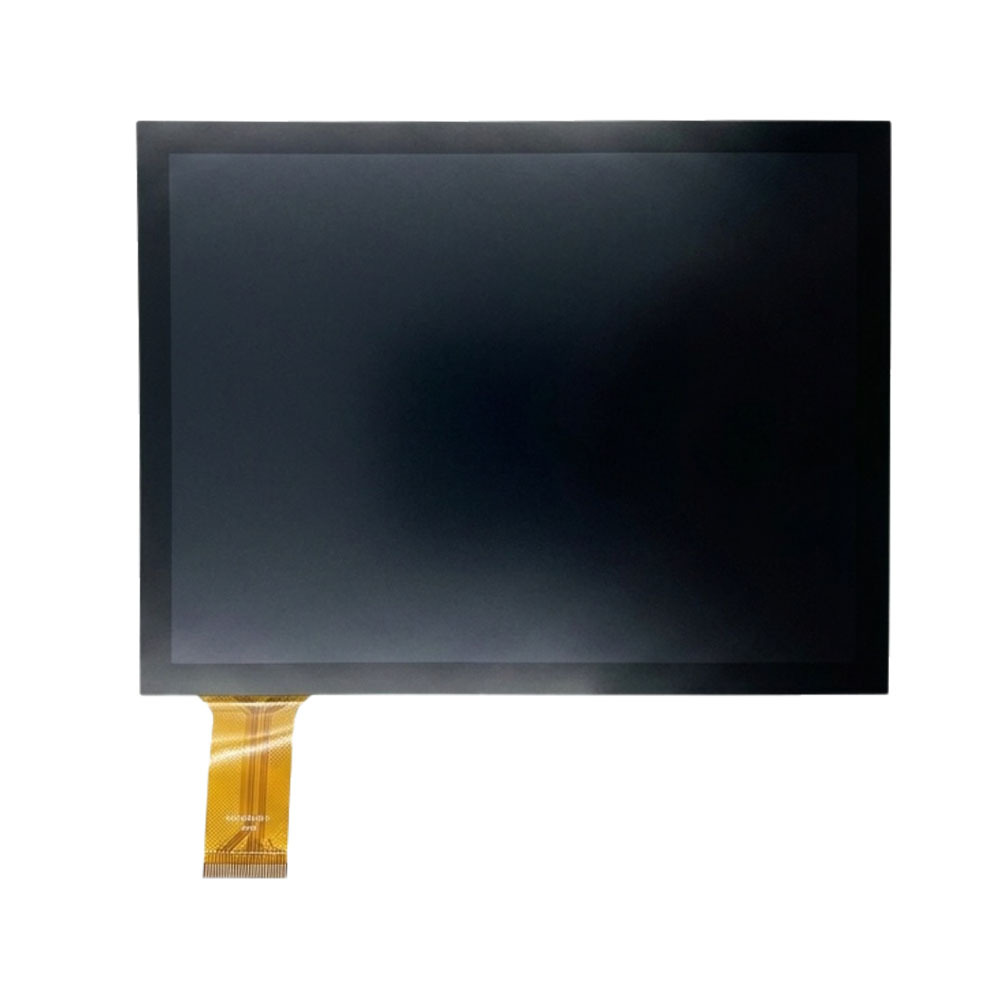

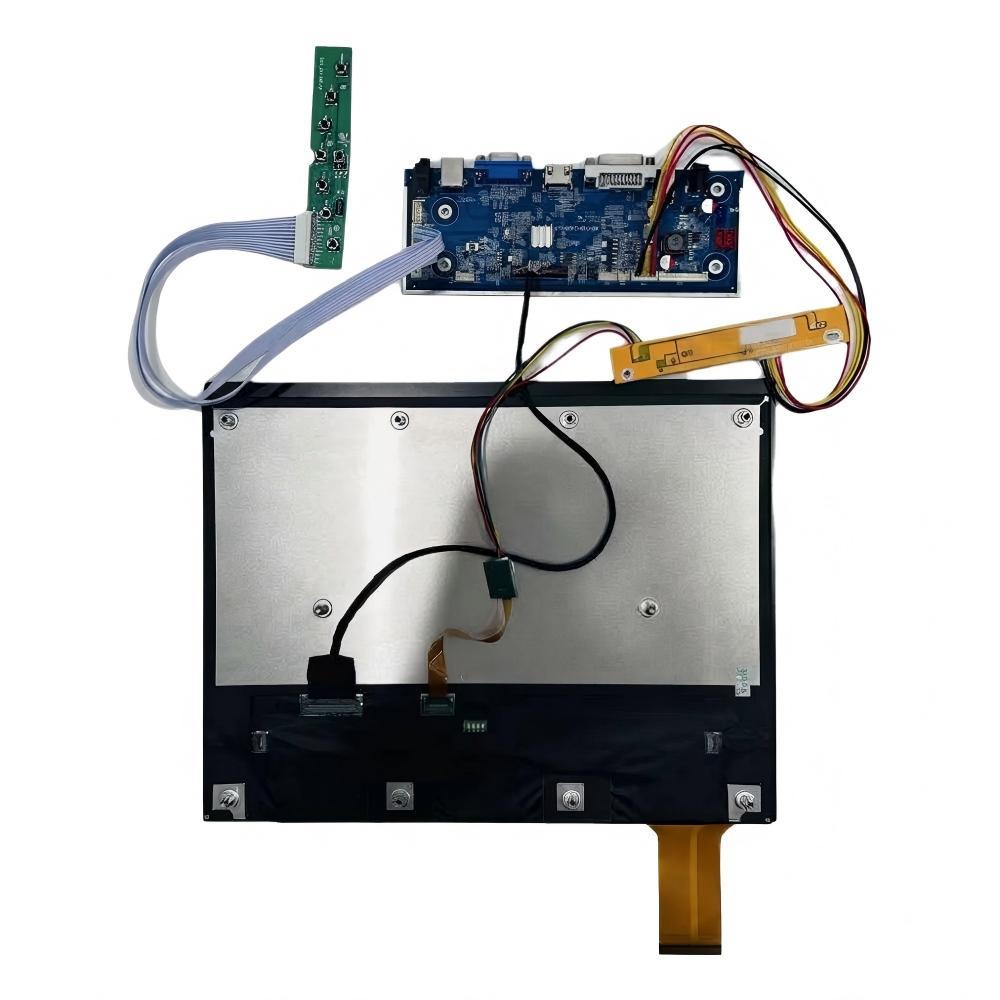

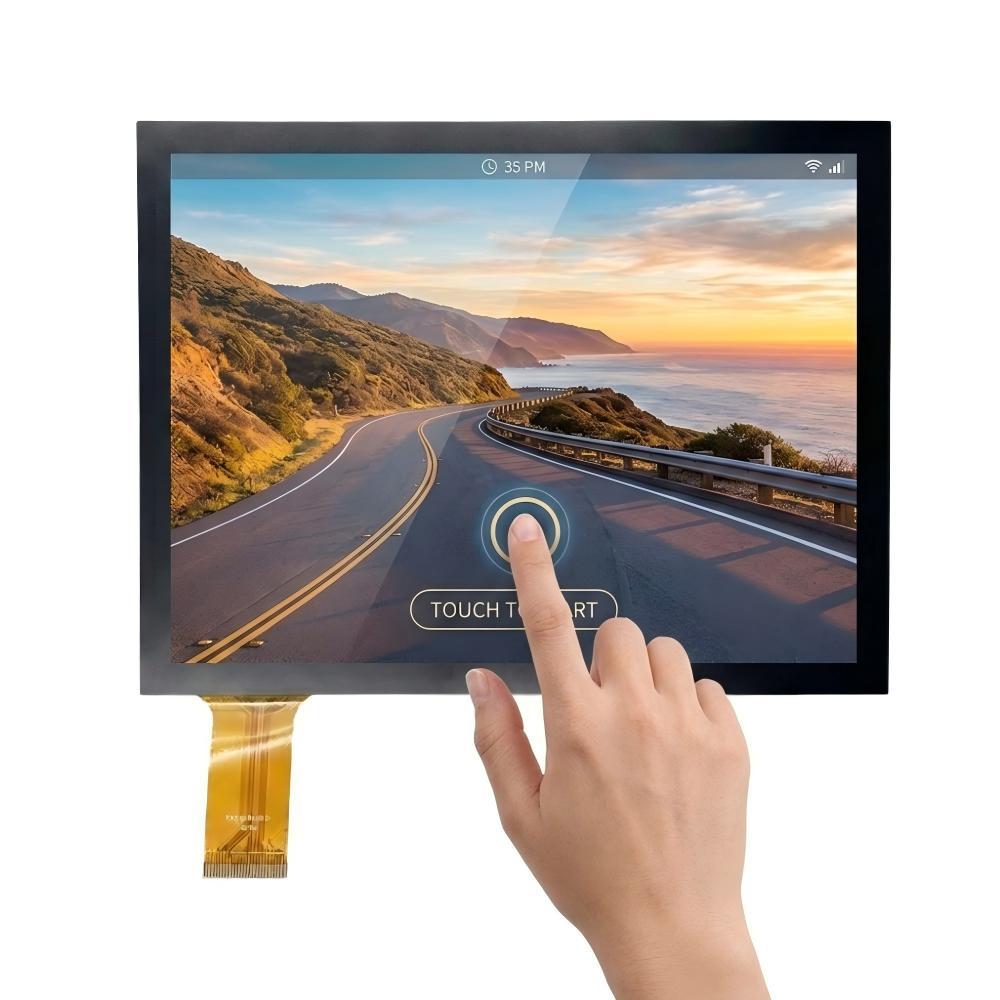

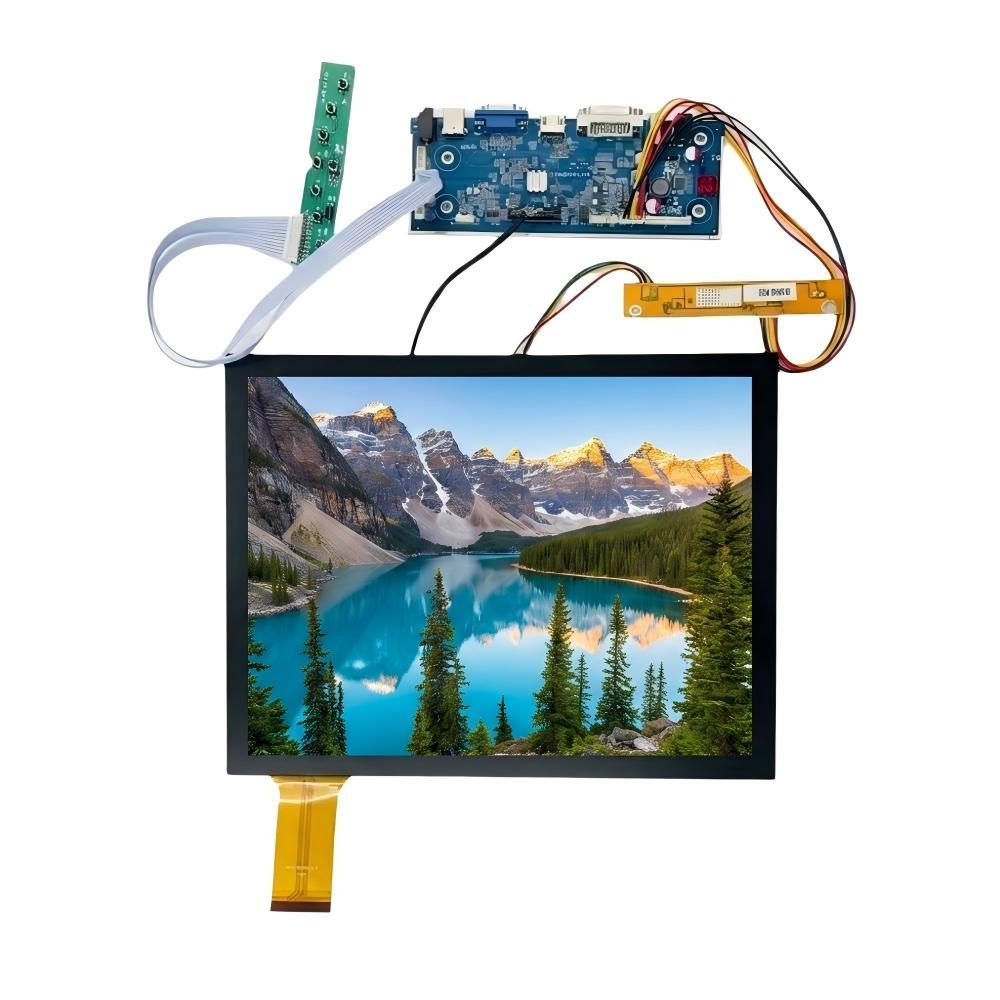

14 Inch 1600×1200 50PIN LVDS 650nits CTP Touch Panel LCD Module
The 14 Inch 1600×1200 50PIN LVDS 650nits CTP Touch Panel LCD Module is a high-performance display solution developed for professional equipment requiring reliable touch interaction, excellent image quality, and long-term operational stability. Based on a 14-inch IPS TFT LCD panel integrated with a projected capacitive (PCAP/CTP) touch panel, this module combines high resolution, wide viewing angles, industrial-grade reliability, and responsive touch performance into one complete display solution.
With a 1600 × 1200 SXGA resolution, the module delivers sharp images, detailed graphics, and crisp text, making it suitable for HMI interfaces, industrial automation equipment, medical systems, laboratory instruments, marine control consoles, energy management terminals, and self-service equipment. The integrated capacitive touch panel provides smooth and accurate multi-touch operation while maintaining outstanding optical performance.
The display adopts a 2-channel 50-pin LVDS interface, allowing stable high-speed data transmission and easy integration with a wide variety of embedded computing platforms and industrial controllers. A 650-nit high-brightness design ensures excellent readability in brightly lit indoor environments and semi-outdoor installations, while the IPS panel provides an ultra-wide 85° viewing angle in all directions, ensuring consistent image quality regardless of the viewing position.
Designed for demanding environments, the LCD module supports an operating temperature range of -40°C to +85°C, making it suitable for equipment exposed to challenging industrial conditions. The anti-glare surface treatment minimizes reflections, improving visibility under strong ambient lighting. Combined with a long-life LED backlight rated for approximately 30,000 hours, the module delivers dependable performance throughout long product life cycles.
Unlike standard consumer displays, this touch LCD module is engineered for continuous operation, long-term availability, and OEM customization. Customers can request customized cover glass, optical bonding, touch sensitivity adjustment, interface modifications, driver boards, cable assemblies, and mechanical integration services according to their project requirements.
Whether your application requires reliable human-machine interaction, high-resolution monitoring, or a robust industrial display platform, this 14-inch capacitive touch LCD module offers an excellent balance of image quality, durability, customization flexibility, and long-term supply support.
| Item | Specification |
|---|---|
| Product Name | 14 Inch 1600×1200 CTP Touch Panel LCD Module |
| Display Size | 14.0 Inch |
| LCD Technology | TFT IPS LCD |
| Resolution | 1600 × 1200 |
| Aspect Ratio | 4:3 |
| Display Mode | Normally Black, Transmissive |
| Touch Technology | Projected Capacitive Touch Panel (CTP) |
| Touch Type | Multi-touch Capacitive |
| Interface | 50-Pin Dual Channel LVDS |
| Input Signal | 2-Channel LVDS (8-bit) |
| Brightness | 650 nits |
| Contrast Ratio | 1100:1 (Typical) |
| Viewing Direction | Full Viewing |
| Viewing Angle | 85°/85°/85°/85° |
| Number of Colors | 16.7 Million |
| Pixel Arrangement | RGB Vertical Stripe |
| Pixel Pitch | 0.1776 × 0.1776 mm |
| Active Area | 284.16x213.12 mm |
| Module Outline | 311.6x240.4x12.3 mm |
| Surface Treatment | Anti-Glare |
| Logic Voltage | 3.3V |
| Frame Rate | 60Hz |
| Backlight Type | White LED |
| LED Lifetime | 30,000 Hours |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +85°C |
| Mounting Structure | OEM Customization Available |
Featuring a native 1600 × 1200 resolution, this 14-inch LCD module delivers exceptional image clarity for applications that require precise graphical representation, fine text rendering, and detailed interface visualization. Compared with lower-resolution displays, the SXGA format provides increased pixel density, allowing more information to be displayed simultaneously without sacrificing readability.
The IPS technology further enhances image quality by maintaining consistent brightness and color reproduction across ultra-wide viewing angles. Operators can view the screen from different positions without experiencing noticeable color shift or contrast degradation, making the display particularly suitable for shared workstations and collaborative industrial environments.
Unlike separate LCD and touch components that require additional integration work, this module combines the TFT LCD with a high-quality projected capacitive touch panel into a complete display solution.
The capacitive touch technology supports fast response, excellent touch accuracy, smooth gesture recognition, and long-term durability. The glass surface is resistant to daily wear and provides a premium user experience suitable for modern industrial equipment.
Optional customization services include:
These options enable customers to tailor the display according to their application environment.
The module utilizes a 50-pin dual-channel LVDS interface, a mature and widely adopted industrial display interface known for its high transmission stability, low electromagnetic interference, and reliable long-distance signal integrity.
LVDS technology makes integration straightforward for embedded PCs, industrial computers, ARM platforms, FPGA systems, and customized controller boards, reducing development complexity while ensuring dependable long-term performance.
Unlike consumer-grade displays, the 14 Inch 1600×1200 650nits CTP Touch Panel LCD Module is engineered for professional equipment that demands long-term reliability, accurate touch interaction, and stable performance in challenging operating environments. Its industrial-grade design, wide operating temperature range, and high-resolution IPS display make it an ideal solution for a broad range of embedded applications.
Modern industrial automation systems require responsive and reliable operator interfaces. This 14-inch touch display provides operators with an intuitive graphical interface for machine monitoring, production management, equipment diagnostics, and parameter configuration. The high-resolution IPS panel ensures excellent readability, while the capacitive touch screen enables smooth interaction even during continuous operation.
Professional self-service systems used in industrial facilities, logistics centers, hospitals, government offices, and commercial service environments require dependable touch displays with long product life cycles. This capacitive touch module delivers smooth interaction while supporting continuous operation throughout the day.
Every project has unique mechanical, electrical, and optical requirements. Aptus Display provides comprehensive OEM and ODM customization services to help customers shorten development cycles and reduce engineering costs.
Our projected capacitive touch panels can be customized according to different application requirements, including:
Multi-touch support
Waterproof touch tuning
Glove touch operation
Thick cover glass support
Different controller solutions
USB or I2C touch interfaces
Customers may select different cover glass options, including:
Chemically strengthened glass
AG (Anti-Glare)
AR (Anti-Reflection)
AF (Anti-Fingerprint)
Silk-screen printing
Custom logos
Various glass thicknesses
Special edge finishing
Optical bonding technology improves overall display performance by eliminating the air gap between the LCD and touch panel. Benefits include:
Reduced internal reflections
Improved sunlight readability
Enhanced display contrast
Better impact resistance
Increased reliability
Improved dust and moisture protection
Different projects require different brightness levels. We provide customized backlight solutions including:
400 nits
650 nits
800 nits
1000 nits
Higher brightness options upon request
To simplify system integration, Aptus Display supports customized electronic solutions such as:
HD-MI Driver Boards
DisplayPort Solutions
eDP Conversion
LVDS Cable Customization
Embedded Driver Boards
Power Board Design
Controller Board Integration
Our engineering team can modify the mechanical structure according to customer requirements, including:
Metal frames
Mounting brackets
Customized bezels
Protective housings
Waterproof front panels
IP-rated mechanical structures
Aptus Display is a professional manufacturer specializing in TFT LCD modules, touch screen integration, and customized display solutions. With years of experience serving global OEM customers, we provide reliable display products designed for long product life cycles and demanding industrial applications.
Our engineering team supports customers from concept development through mass production, helping reduce development risks while improving overall project efficiency.
Our experienced engineers assist customers throughout every stage of product development, including display selection, interface evaluation, mechanical integration, touch optimization, optical bonding, and firmware support.
We understand that every customer has unique requirements. Therefore, we provide flexible OEM and ODM services covering hardware customization, mechanical design, electronic integration, firmware modification, and complete display assemblies.
Industrial projects often require product availability for many years. We maintain long-term supply strategies to minimize redesign risks caused by component discontinuation and help customers maintain stable production.
Every LCD module undergoes comprehensive quality inspection before shipment, including:
Optical inspection
Functional testing
Touch performance verification
Brightness testing
Uniformity inspection
Interface verification
Reliability evaluation
Packaging inspection
This quality control process helps ensure consistent product performance and dependable field operation.
We serve customers worldwide across industrial automation, medical systems, laboratory equipment, marine electronics, building automation, and professional embedded display markets. Our technical support team works closely with customers throughout development, sampling, pilot production, and mass manufacturing.
Yes. The integrated projected capacitive touch panel supports multi-touch functionality. Different touch controllers and interface options can be selected according to your operating system and project requirements.
Yes. Although the standard module provides approximately 650 nits, higher brightness versions including 800 nits, 1000 nits, and customized sunlight-readable solutions can be developed based on customer requirements.
Yes. Optical bonding is available as an optional service. It improves display contrast, reduces reflections, enhances outdoor readability, and increases overall durability by eliminating the air gap between the LCD and touch panel.
Absolutely. In addition to the standard 50-pin LVDS interface, Aptus Display can provide customized interface solutions, HDMI controller boards, DisplayPort conversion, eDP solutions, LVDS cable customization, and complete embedded display integration services.
This display is widely used in industrial HMI systems, factory automation equipment, laboratory instruments, medical diagnostic devices, marine control systems, building automation, smart energy management platforms, professional testing equipment, and various embedded control terminals requiring reliable touch interaction and long-term operational stability.
Looking for a reliable 14 Inch 1600×1200 CTP Touch Panel LCD Module for your next project?
Our engineering team is ready to help you select the most suitable display solution based on your application requirements. Whether you need standard products or fully customized solutions, Aptus Display provides professional technical support from prototype development to mass production.
Contact us today for:
Product Datasheets
Sample Requests
Custom LCD Solutions
Touch Panel Customization
Optical Bonding Services
Driver Board Development
OEM & ODM Manufacturing
Volume Quotations
Technical Consultation
Long-Term Supply Programs
Partner with Aptus Display to build reliable, high-performance display solutions for your industrial and professional equipment.
