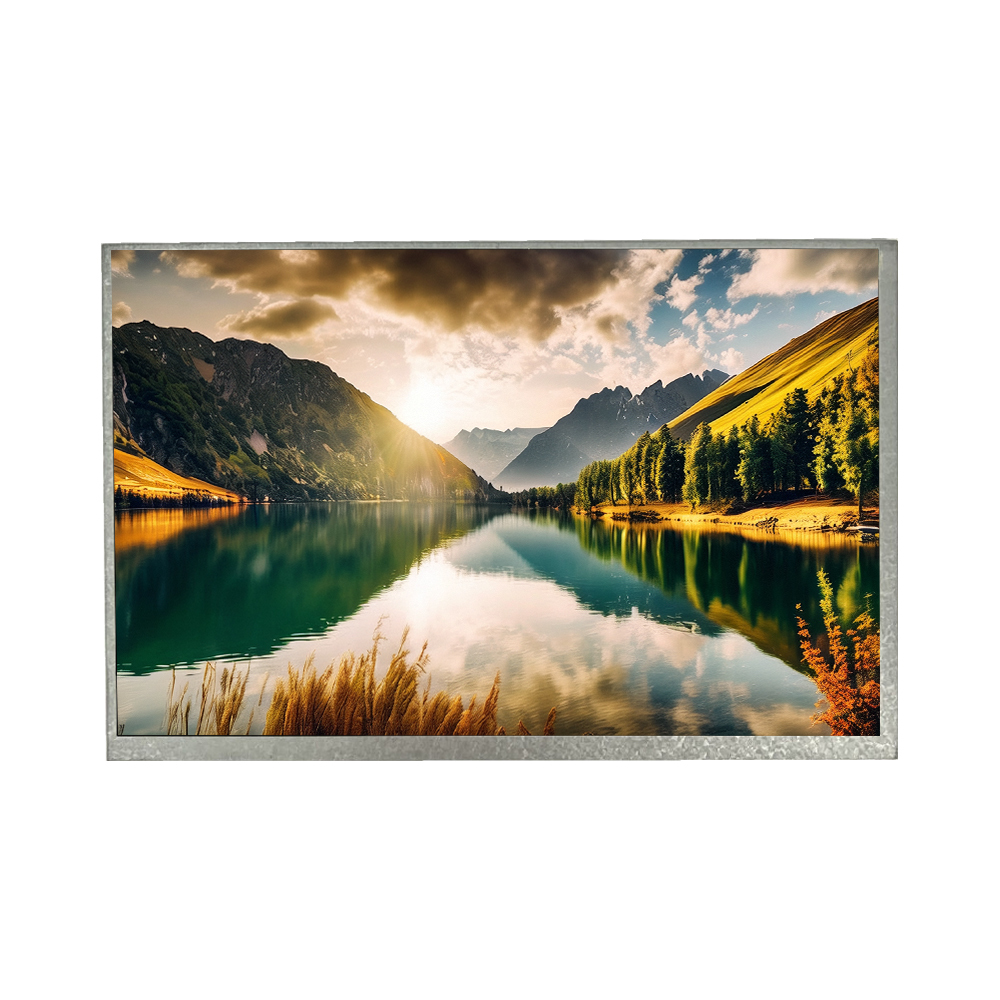

The DBT101IEN40L120A is a 10.1-inch TFT IPS LCD module with a 1280×800 pixel resolution and a 1200-nit brightness level. Its IPS architecture is designed to maintain consistent image quality across a broad viewing range, while the high-brightness LED backlight improves readability in high-ambient-light environments.
With an active area of 216.96 × 135.6 mm and a module outline of 229.46 × 149.1 × 4.8 mm, the display provides a useful balance between screen size, resolution, and installation space.
The module uses a 40-pin LVDS interface, a widely used display interface for industrial and embedded systems. This makes it a practical choice for equipment manufacturers developing custom display assemblies, control interfaces, monitoring systems, and embedded visual interfaces.
The 1200 cd/m² brightness is particularly useful when the display needs to remain readable in environments with strong ambient lighting. Combined with the anti-glare surface treatment, the display can help reduce distracting reflections and improve the usability of graphical interfaces.
The most important characteristic of this LCD module is its 1200 cd/m² brightness. Compared with standard LCD modules designed primarily for indoor environments, a 1200-nit panel provides significantly higher luminance for applications exposed to bright ambient light.
This makes the display suitable for equipment installed near windows, in semi-outdoor environments, industrial workshops, transportation-related equipment, and outdoor-accessible terminals.
High brightness should not be considered a substitute for complete sunlight readability engineering. For direct-sunlight applications, system designers should also consider optical bonding, cover glass, anti-reflective treatment, enclosure design, thermal management, and installation angle.
The IPS display structure provides stable color and image performance across a broad viewing range. The specified viewing angle is 85°/85°/85°/85°, supporting applications where operators may view the display from different positions.
This is especially valuable for control panels and HMIs where more than one operator may need to see information on the display.
The 1280×800 resolution provides a 16:10 display format that works well for graphical interfaces, monitoring dashboards, industrial controls, equipment status information, and embedded software interfaces.
The resolution offers sufficient pixel density for displaying text, icons, charts, control buttons, and system information while avoiding the additional processing requirements associated with higher-resolution panels.
The DBT101IEN40L120A uses a 40-pin LVDS interface. LVDS is commonly used in industrial and embedded display systems because it supports reliable high-speed differential signaling.
For engineers, using an LVDS display can simplify integration when the host system, controller board, or existing display architecture already supports LVDS output.
Before mass production, the electrical interface, timing parameters, pin definition, power requirements, backlight driving method, and connector configuration should be verified against the customer's controller board.
The LCD module features an anti-glare surface treatment, helping reduce distracting reflections from ambient lighting.
This can improve visual comfort and interface readability in industrial environments where overhead lighting, windows, or other light sources can reflect from the display surface.
The specified operating temperature range is -30°C to +80°C, making the module suitable for equipment that must operate across a relatively broad temperature range.
This characteristic can be valuable for industrial control equipment, outdoor-accessible terminals, monitoring equipment, and embedded systems exposed to changing environmental conditions.
System-level thermal design remains important, particularly when the display is installed inside a sealed enclosure or exposed to direct sunlight.
| Parameter | Specification |
|---|---|
| Product Model | DBT101IEN40L120A |
| Display Size | 10.1 inch |
| Display Type | TFT IPS LCD |
| Resolution | 1280 × 800 pixels |
| Aspect Ratio | 16:10 |
| Display Technology | IPS |
| Brightness | 1200 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Depth | 16.7 million colors |
| Response Time | 25 ms typical |
| Viewing Angle | 85°/85°/85°/85° |
| Backlight | LED |
| Interface | LVDS |
| Connector | 40-pin |
| Active Area | 216.96 × 135.6 mm |
| Module Dimensions | 229.46 × 149.1 × 4.8 mm |
| Surface Treatment | Anti-glare |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +80°C |
| Model Number | DBT101IEN40L120A |
Choosing a display for professional equipment involves more than selecting a screen size and resolution. Engineers need to consider brightness, viewing angle, interface compatibility, temperature range, mechanical dimensions, optical performance, and long-term supply requirements.
The DBT101IEN40L120A is positioned as a professional high-brightness 10.1-inch LCD module for customers who require more visibility than conventional 300–500 cd/m² displays can provide.
Its combination of 1200 cd/m² brightness and IPS technology is particularly useful for applications where operators need to read information quickly and accurately.
The 1280×800 resolution also provides a practical format for embedded graphical user interfaces without requiring the processing performance of a 1920×1200 or 4K panel.
For OEM and ODM projects, the module can also serve as a starting point for a customized display solution. Depending on project requirements, customers can discuss mechanical, optical, interface, touch panel, cable, and driver-board requirements with Aptus Display.
The display is well suited for industrial human-machine interfaces, control panels, automation equipment, and monitoring systems.
The 1200-nit brightness improves visibility in bright production environments, while the 1280×800 resolution provides enough space for control buttons, machine status information, charts, alarms, and operating parameters.
High-brightness LCD modules are commonly considered for kiosks, information terminals, access-control equipment, self-service machines, and other installations where ambient light can affect display readability.
For outdoor deployment, system designers should evaluate the complete optical and thermal system rather than relying on brightness alone.
The display can be integrated into monitoring equipment that presents real-time data, equipment status, graphs, measurements, and warning information.
The IPS viewing characteristics are useful when operators need to view the interface from different angles.
For embedded system manufacturers, the 40-pin LVDS interface provides a practical connection option for compatible controller platforms.
The compact 10.1-inch form factor can be integrated into equipment housings where a larger commercial monitor would be impractical.
The wide operating temperature specification makes the module a potential option for professional equipment operating across changing environmental conditions.
For transportation-related projects, however, engineers should verify all project-specific environmental, vibration, EMC, electrical, and certification requirements before selecting the module.
Before integrating the DBT101IEN40L120A into a new product, several technical factors should be reviewed.
First, confirm that the host processor or display controller supports the required LVDS interface and timing configuration. The 40-pin connector should also be matched to the correct pinout and cable configuration.
Second, the backlight power and driving requirements should be considered. High-brightness LCD modules generally require appropriate LED backlight power management and thermal design.
Third, mechanical clearance should be checked using the module dimensions of 229.46 × 149.1 × 4.8 mm. Engineers should allow sufficient space for the connector, cable routing, mounting structure, and thermal management.
For outdoor or high-ambient-light installations, optical design is equally important. Anti-glare treatment, cover glass, optical bonding, enclosure design, and viewing angle should be evaluated together.
Aptus Display can support customers in evaluating these integration requirements during the development process.
Different equipment manufacturers often require different display configurations. A standard LCD module may not always meet the mechanical, optical, electrical, or user-interface requirements of a finished product.
Aptus Display provides display customization and integration support for professional applications. Depending on project requirements, customers can discuss options such as:
Custom display dimensions
High-brightness configurations
Touch panel integration
Capacitive touch panel solutions
Protective glass
Anti-glare and optical solutions
LVDS, MIPI, and eDP display interfaces
Customized cables and connectors
Driver board solutions
Mechanical integration
Display testing and validation
For projects requiring a complete display assembly rather than a bare LCD module, customers can provide the target enclosure dimensions, controller specification, application environment, quantity, and required functions for engineering evaluation.
Aptus Display, operated by Shenzhen Aptus Technology Co., Ltd., specializes in professional LCD display modules and customized display solutions.
The company focuses on the development, manufacturing, supply, and integration of display products for industrial, embedded, commercial, transportation, and other professional applications.
Aptus Display's product portfolio includes TFT LCD modules, high-brightness LCD modules, wide-temperature displays, touch panel LCD modules, bar-type LCD modules, flight simulator displays, automotive LCD solutions, and related LCD accessories.
The company's engineering-oriented approach allows customers to evaluate display specifications based on the complete application rather than simply selecting a panel according to screen size.
For OEM, ODM, and project-based procurement, Aptus Display can support customers from initial product selection and sample evaluation through display integration and production supply.
The 1200 cd/m² brightness makes the module suitable for high-ambient-light and certain outdoor or semi-outdoor applications. However, direct sunlight readability depends on the complete optical system. For demanding outdoor projects, optical bonding, cover glass, anti-reflective treatment, thermal management, and enclosure design should also be evaluated.
The DBT101IEN40L120A uses a 40-pin LVDS interface. Customers should confirm the required LVDS timing, pinout, connector, cable, and controller compatibility before integration.
The display resolution is 1280×800 pixels, providing a 16:10 WXGA format suitable for industrial HMIs, monitoring interfaces, control panels, and embedded equipment.
Aptus Display provides customized display solutions and can evaluate touch panel integration according to project requirements. Customers should provide the required touch technology, cover glass dimensions, interface, operating environment, and mechanical requirements.
The specified operating temperature range is -30°C to +80°C, while the storage temperature range is also -30°C to +80°C. The actual system operating temperature should be evaluated together with the enclosure, controller, backlight, and thermal design.
If you are sourcing a 10.1-inch 1280×800 high-brightness LCD module, the DBT101IEN40L120A provides a strong combination of 1200 cd/m² brightness, IPS technology, 40-pin LVDS connectivity, wide viewing angles, anti-glare treatment, and a -30°C to +80°C operating temperature range.
