Revolutionize 3D Printing: High-Precision LCD & UV Light Solution

Introducing Our Cutting-Edge 3D Printer LCD Screen and UV Light Source Solution
This advanced display is not just a screen; it's a gateway to precision, reliability, and enhanced performance in your 3D printing projects.

Precision Engineered for Excellence

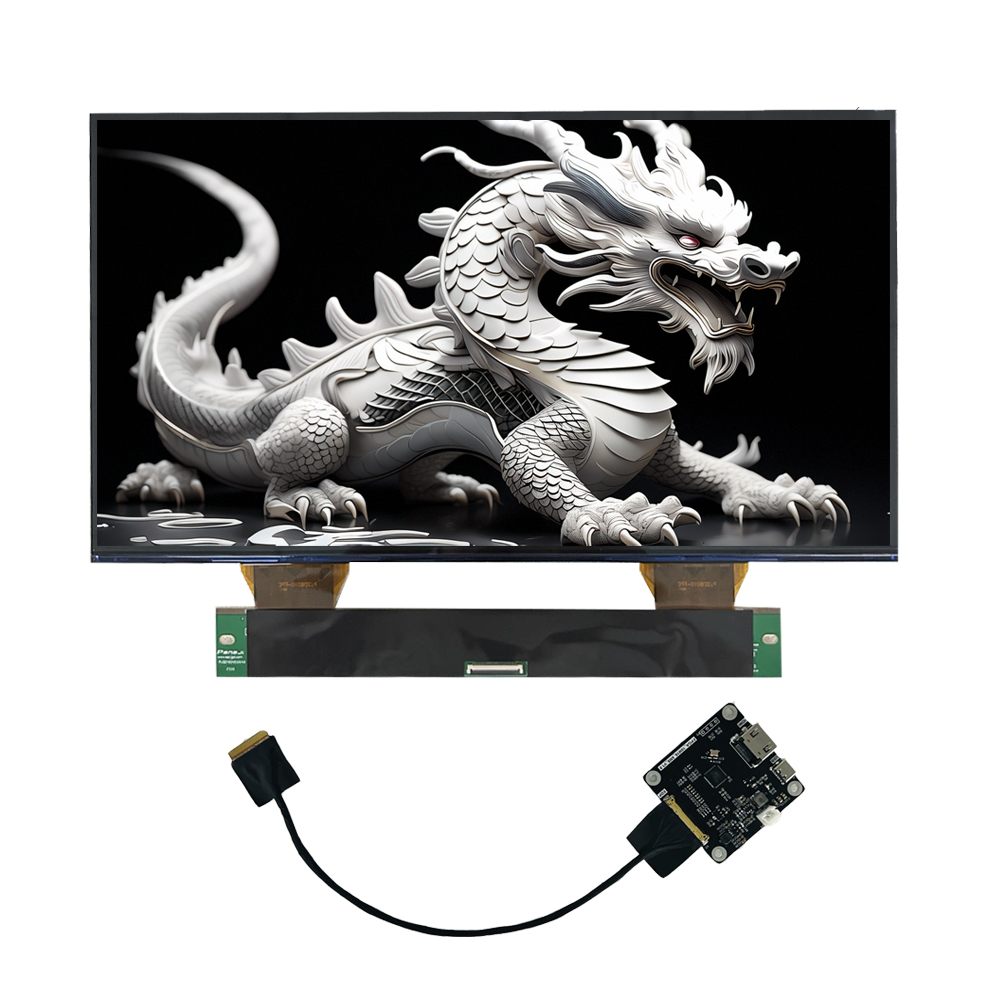

The DBM160E8K01 LCD Screen boasts a impressive resolution of 7680 x 4320 pixels, ensuring every detail of your 3D model is rendered with unmatched clarity.      With a pixel size of 0.046 x 0.046 mm, this screen delivers the high-definition output required for intricate designs and complex structures.      The viewing size of 353.28(W) x 198.72(H) mm provides ample space for your creations, making it ideal for both professional and hobbyist applications.

Built for Durability and Reliability
We understand the demanding environment of 3D printing, which is why the DBM160E8K01 is designed to withstand rigorous use. The operating temperature range of -20°C to 70°C and storage temperature range of -30°C to 80°C ensure optimal performance in various conditions. The screen has undergone rigorous reliability testing, including high and low-temperature operation and storage tests, thermal shock, ESD, vibration, and drop tests, guaranteeing its robustness and longevity.

Optical Performance That Speaks for Itself
The optical specifications of the DBM160E8K01 are engineered to deliver superior visual fidelity.      With a transmittance rate of 7-8% at 405nm, a contrast ratio of 300-400, and a response time of 45ms, this screen ensures accurate color reproduction and sharp imagery. The viewing angles of 80-85 degrees in all directions provide flexibility and consistency, no matter the perspective from which you view your prints.

A Complete Solution for Your 3D Printer
Beyond the exceptional LCD screen, we offer a comprehensive solution for your 3D printer.      Our company provides a compatible driver board, ensuring seamless integration and optimal performance of the DBM160E8K01 within your existing setup.  Additionally, we introduce the UV light source, a critical component for 3D printers.

The UV light source is meticulously designed to complement our LCD screen.      It features a powerful array of 576 LEDs, delivering a light intensity of over 150mW/cm², ensuring efficient curing of your resin prints.   The AA area uniformity of ≥85% guarantees consistent exposure across the entire print surface, eliminating uneven curing and enhancing print quality.      With a dual-input design, each input supporting a voltage of 36-46V and a current of 12.5A (Typ.), this light source is built for reliability and longevity.

Installation and Safety Considerations

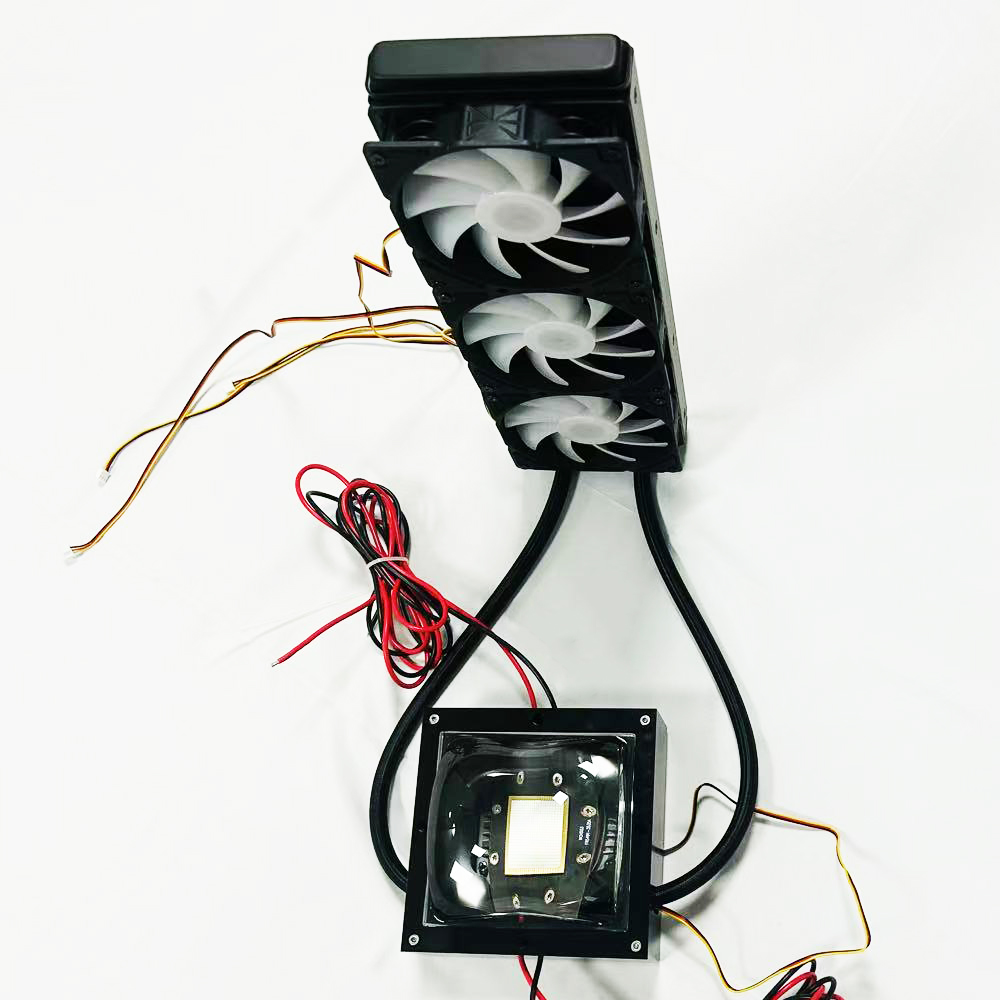

We prioritize your safety and the longevity of our products. The UV light source is equipped with a water-cooled system, featuring a UVA360 integral heat sink with a pump and fan.Before operating the light source, ensure the pump and fan are functioning correctly to prevent overheating.The system includes a temperature-sensitive thermistor that monitors the core temperature, helping maintain optimal operating conditions.

Elevate Your 3D Printing Experience
The DBM160E8K01 3D Printer LCD Screen, combined with our driver board and UV light source, represents a complete and advanced solution for modern 3D printing needs. Whether you're a professional seeking precision and reliability or an enthusiast pushing the boundaries of creativity, our products are designed to empower your vision.

Join us in exploring the possibilities of enhanced 3D printing technology. Experience the difference that precision engineering,robust design, and comprehensive solutions can make in your projects.
