10.1 inch 800x1280 IPS TFT LCD Module

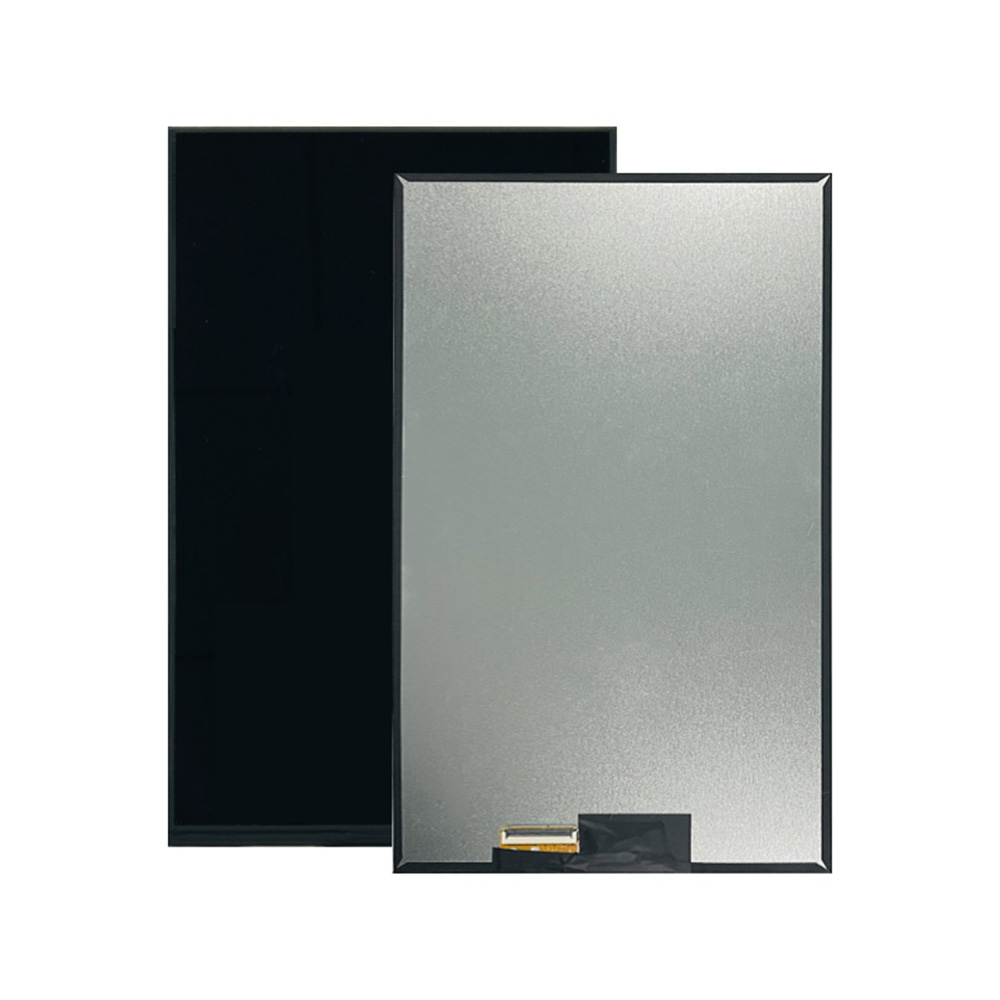

10.1" 800x1280 IPS TFT-LCD Module (Model: DBT101BEN40M045A)

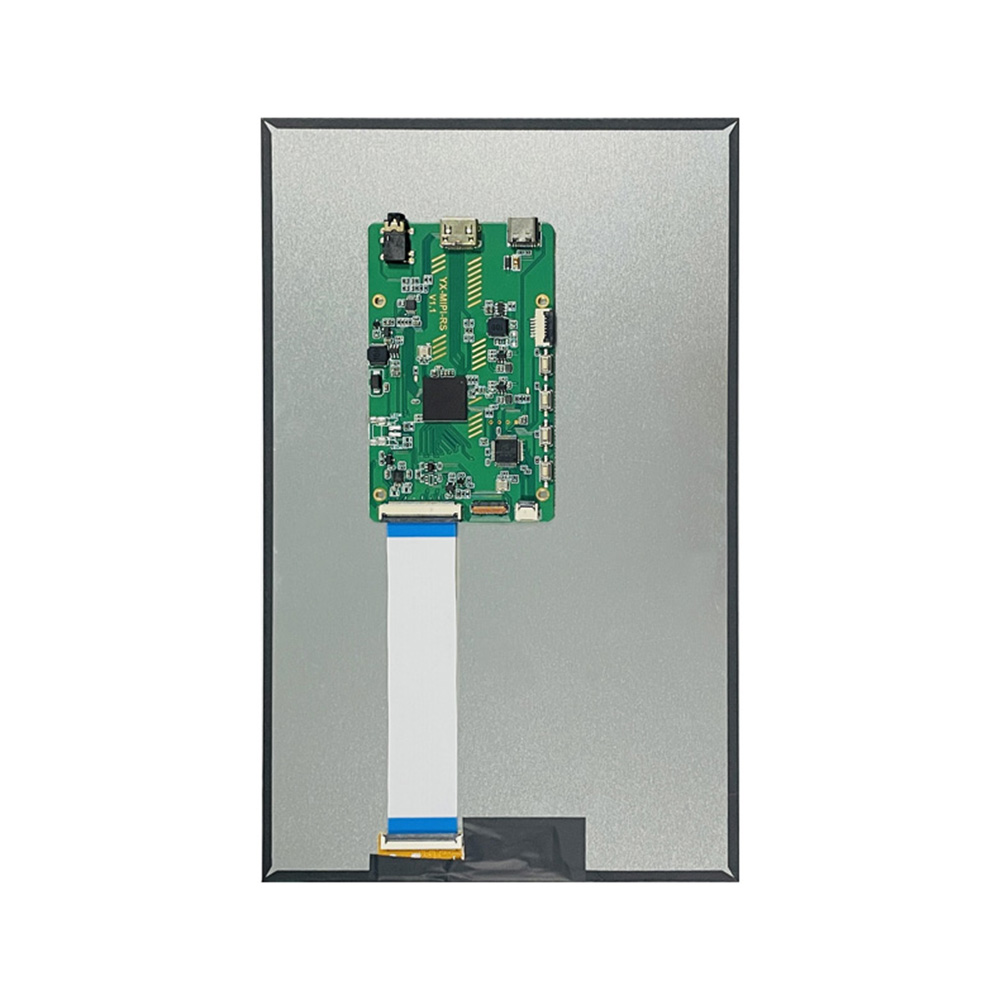

Experience vibrant visuals with our 10.1-inch Color TFT-LCD Module, model DBT101BEN40M045A. This high-quality display utilizes amorphous silicon TFT as a switching device and is composed of a TFT LCD panel and a driving circuit. Perfect for a wide range of applications, it offers excellent image quality and reliable performance.

Key Features:
Display Type: 10.1-inch Color Active Matrix Thin Film Transistor (TFT) Liquid Crystal Display (LCD)
Resolution: 800 horizontal by 1280 vertical pixels
Aspect Ratio: 16:9 diagonal active display area
High Brightness: Typical luminance of 450 nits
Wide Viewing Angle: IPS (Normal Black) display mode provides excellent viewing angles :Horizontal and vertical viewing angles are typically 89 degreesImage Reversion: Supports UP/DOWN and LEFT/RIGHT image reversion.
Interface:MIPI
ROHS Design: Compliant with ROHS standards.
Contrast Ratio: Typical contrast ratio of 800:1
Fast Response Time: Typical response time of 25 ms.

Product Specifications:
Outline Dimension:143.0(H) \times 228.6(V) \times 2.65(D) mm
Display Area:135.36(H) \times 216.58(V) mm
Pixel Pitch:0.1175(H) \times 3(RGB) \times 0.1088(V) mm
Pixel Arrangement: RGB Vertical Stripe
Operating Temperature: -10 to 50 degrees Celsius
Storage Temperature: -20 to 60 degrees Celsius
LED Backlight: White

Customization Options:
We understand that every project has unique requirements. That's why we offer comprehensive customization services to tailor this display to your exact needs. We can customize your display according to your needs, such as:
Customizing the frame
Touch panel integration
Backlight brightness adjustment
FPC shape and interface definition modifications
Silk-screening your Logo

Contact us today to discuss your specific project requirements and how we can help you create the perfect display solution.
