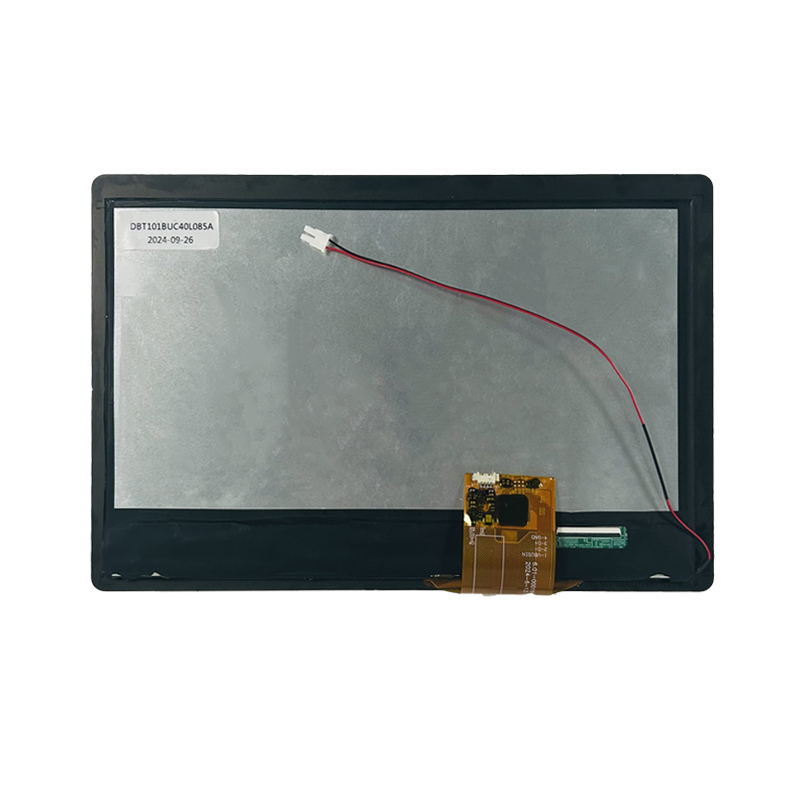

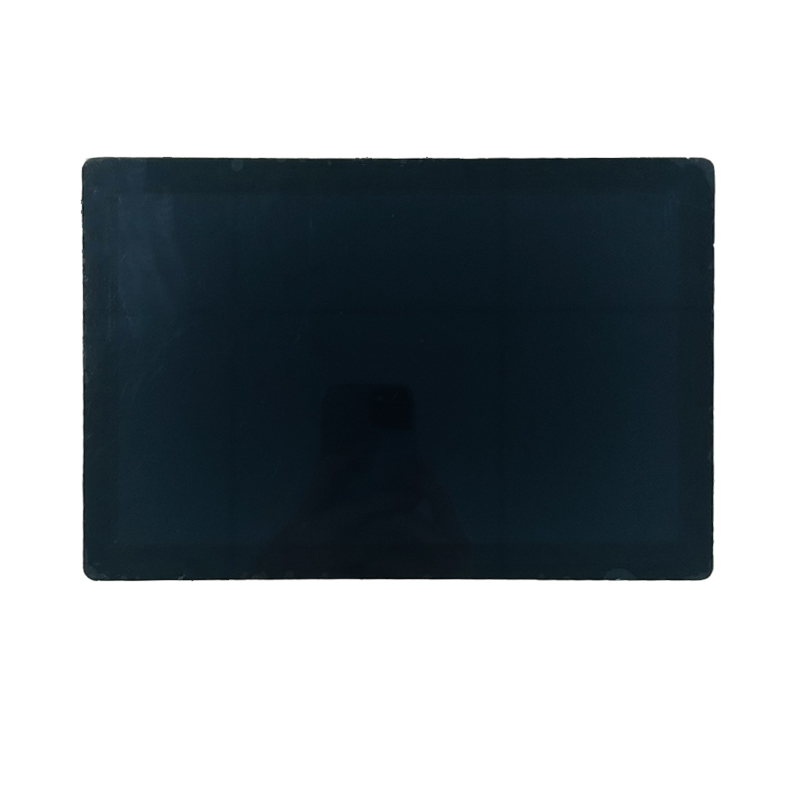

Aptus International's DBT101BUC45L085A is a 10.1-inch TFT-LCD module with a capacitive touch panel. It offers a WUXGA resolution of 1920×1200, 850 cd/m² brightness, and a 1000:1 contrast ratio. The module provides wide viewing angles and a fast 30 ms response time, ensuring vibrant and clear displays. Ideal for industrial devices and HMIs, it combines high performance with a user-friendly design.
Aptus International Co., Ltd. Unveils DBT101BUC45L085A: A High Performance 10.1-inch 1920×1200 Touch Panel LCD ModuleAptus International Co., Ltd., a leader in innovative display solutions, is excited to introduce the DBT101BUC45L085A—a cutting-edge 10.1-inch color TFT-LCD module with a capacitive touch panel. Specifically designed for applications demanding superior visual quality and interactive capabilities, this advanced module incorporates BOE's original opencell technology and sets new standards in display performance.
Exceptional Display PerformanceThe DBT101BUC45L085A boasts a high-resolution WUXGA display (1920×1200 pixels) with a diagonal active area of 216.8064 mm (H) × 135.504 mm (V). This provides users with sharp and clear images, making it perfect for intricate visual tasks. Each pixel is composed of RED, GREEN, and BLUE dots arranged in a vertical stripe pattern, enabling the display of 16.7 million colors. With a high brightness of 850 cd/m² and a brightness uniformity of 85%, the module ensures consistent and vibrant color reproduction across the screen.
Advanced Optical CharacteristicsThis module delivers a high contrast ratio of 1000:1, providing deeper blacks and more detailed images. Its wide viewing angles of 80/80/80/80 degrees (CR>10) ensure that the display remains clear and visible from various angles, making it suitable for diverse environments and applications. The fast response time of 30 ms typical and 35 ms maximum guarantees smooth motion display for dynamic content.
Robust Electrical SpecificationsThe DBT101BUC45L085A features an LVDS interface with 2 clock signals, supporting an 8-bit color depth for displaying 16.7 million colors. The power supply voltage ranges from 3.0 V to 3.6 V, with a typical power consumption of 1.7 W for the LCD and 6.72 W for the backlight unit, resulting in a total power consumption of 8.32 W. The backlight unit operates at 27 V to 28 V, ensuring stable and reliable data transmission.
Versatile ApplicationsThis advanced module is suitable for a wide range of applications, including industrial devices and human-machine interfaces (HMIs). Its high brightness, wide viewing angles, and excellent color reproduction make it an ideal choice for applications such as medical equipment, industrial automation, and outdoor displays.
User-Centric DesignThe DBT101BUC45L085A incorporates a capacitive touch panel that is optically bonded for enhanced touch sensitivity and accuracy. The touch panel offers a smooth and responsive user experience, allowing easy interaction with the display. With dimensions of 245.0 mm (H) × 165.0 mm (V) × 8.34 mm (D), the module is lightweight and easy to integrate into various systems and devices.
Aptus International Co., Ltd. is dedicated to providing innovative and high-quality display solutions to meet the evolving needs of customers. The DBT101BUC45L085A exemplifies this commitment, offering exceptional performance, reliability, and versatility. Its advanced features and robust specifications make it a superior choice for applications that demand the highest quality visual output. Whether you are developing industrial equipment, medical devices, or commercial displays, the DBT101BUC45L085A provides the perfect solution to enhance your user interface and improve operational efficiency.
