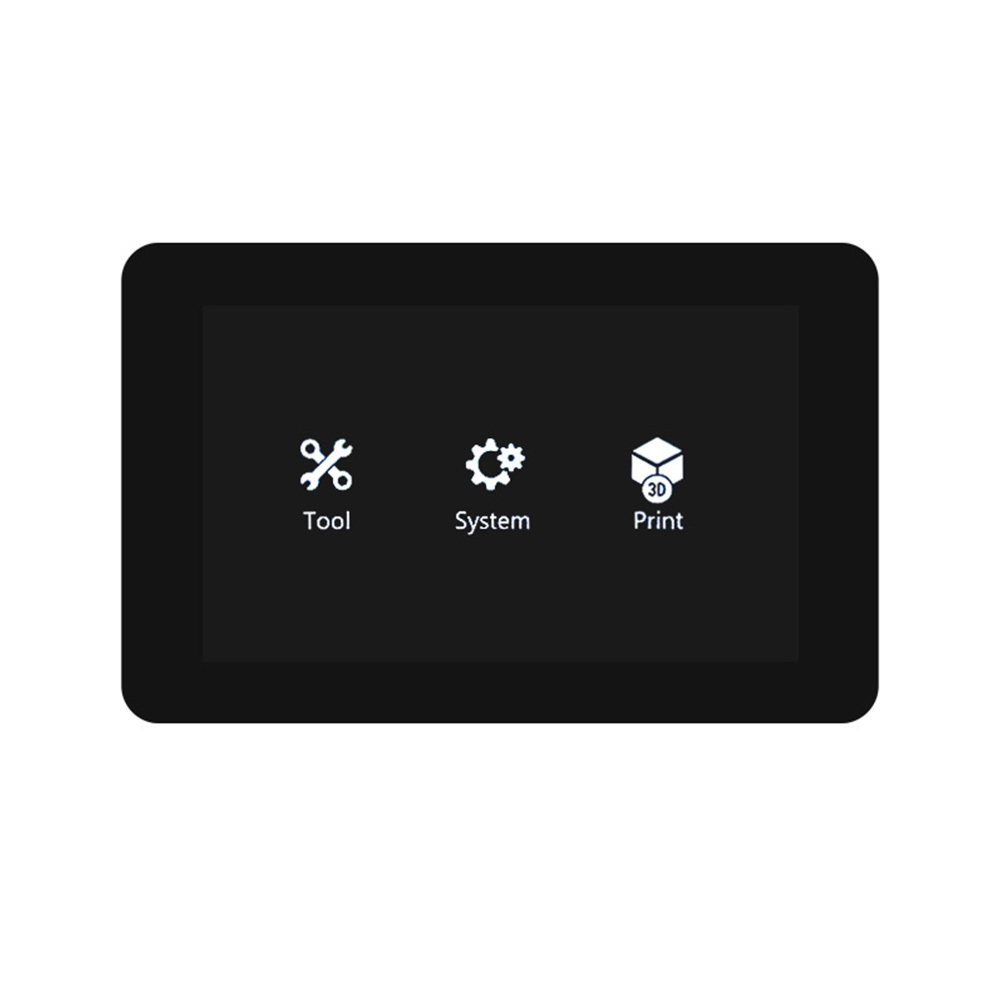

This 7-inch touch module for 3D printer applications is engineered to provide a stable, responsive, and efficient human-machine interface for embedded systems. It integrates a high-performance capacitive touch panel with a high-speed FSMC interface, making it an ideal solution for real-time control environments.
With a resolution of 800×480, the display delivers clear visual output and smooth interaction, enabling users to easily navigate menus, adjust parameters, and monitor printing status. Compared to conventional serial interface solutions, the FSMC interface significantly improves communication speed and reduces latency, which is especially valuable in dynamic 3D printing workflows.
The module is designed with a compact structure and standardized interface, allowing seamless integration into a wide range of 3D printer systems and industrial control devices.
The FSMC interface supports parallel data transmission through a 16-bit data bus, providing faster communication between the display and the main controller. This results in improved screen refresh rates, reduced lag, and a smoother user experience. It is particularly suitable for microcontrollers such as STM32, which are widely used in embedded systems and 3D printer controllers.
The integrated capacitive touchscreen offers precise and responsive touch interaction. Compared to resistive touch solutions, it provides better durability, higher sensitivity, and a more modern user experience. The module supports single-point touch, which is sufficient for most control interface operations in 3D printers.
This touch module is designed to meet the functional requirements of 3D printer control panels. It enables efficient operation of core functions such as parameter adjustment, file selection, temperature control, and real-time monitoring. The combination of display clarity and fast response enhances operational efficiency and user experience.
The module operates reliably within a temperature range of 0°C to 70°C and uses a stable 5V power input. Its robust FFC connection ensures consistent signal transmission, making it suitable for long-term use in industrial environments.
The compact dimensions and standardized pin layout allow easy integration into embedded systems. Engineers can quickly connect the module to their control boards and implement custom UI solutions without complex hardware modifications.
| Parameter | Specification |
|---|---|
| Product Type | Touch Module for 3D Printer |
| Screen Size | 7 Inch |
| Resolution | 800 × 480 |
| Touch Type | Capacitive Touch (Single Point) |
| Touch Controller | 1963 |
| Interface | FSMC (D0–D15 parallel) |
| Operating Voltage | +5V |
| Operating Temperature | 0°C to 70°C |
| Connector Type | FFC (1mm pitch) |
| Outline Dimensions | 194 × 122 mm |
| Control Signals | NOE, NWE, A18, NE1 |
| Additional Pins | RESET, INT, SPI Touch Signals |
The FSMC interface enhances performance by enabling parallel communication between the display and the controller. This significantly increases data throughput and reduces response time compared to serial interfaces such as SPI.
In 3D printer applications, where real-time feedback and control are critical, this improvement allows smoother graphical interfaces, faster command execution, and more responsive touch interaction. It also supports more complex UI designs without compromising performance.
This module functions as the main user interface in 3D printers, allowing operators to manage print jobs, adjust parameters, and monitor system status in real time.

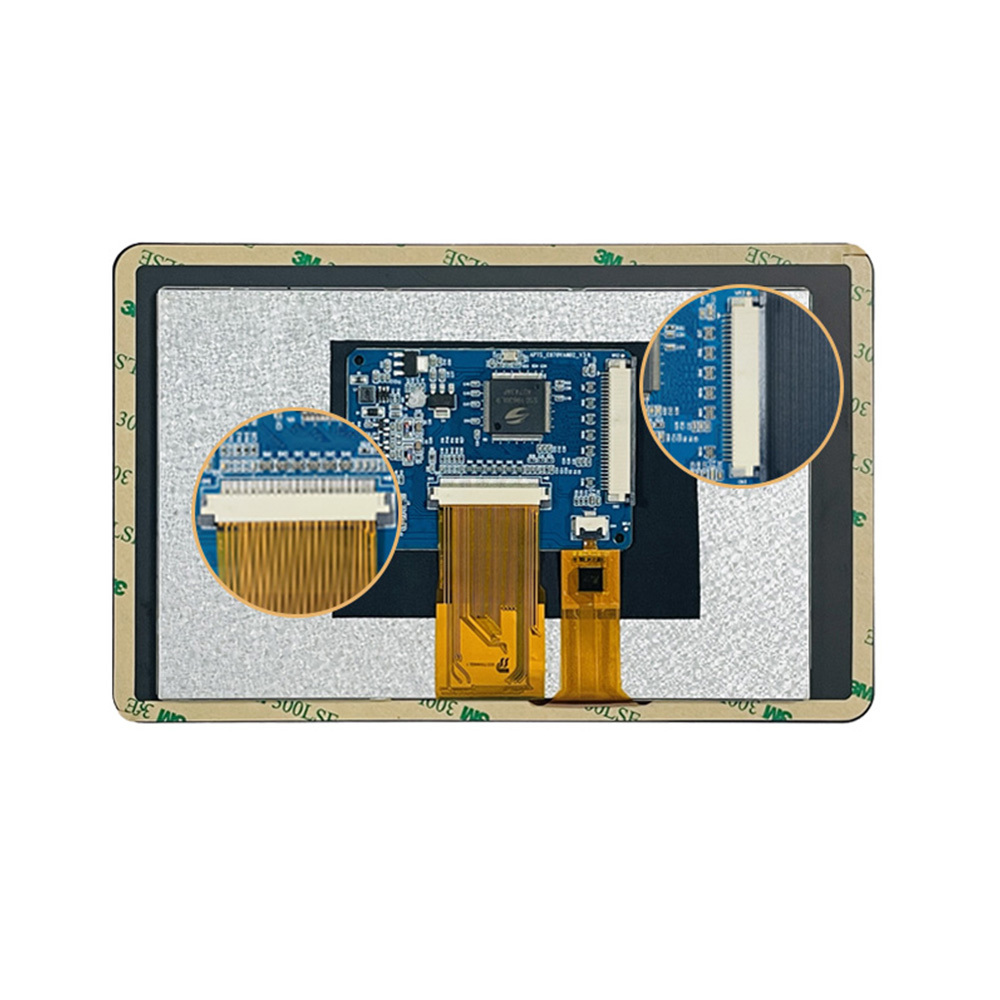

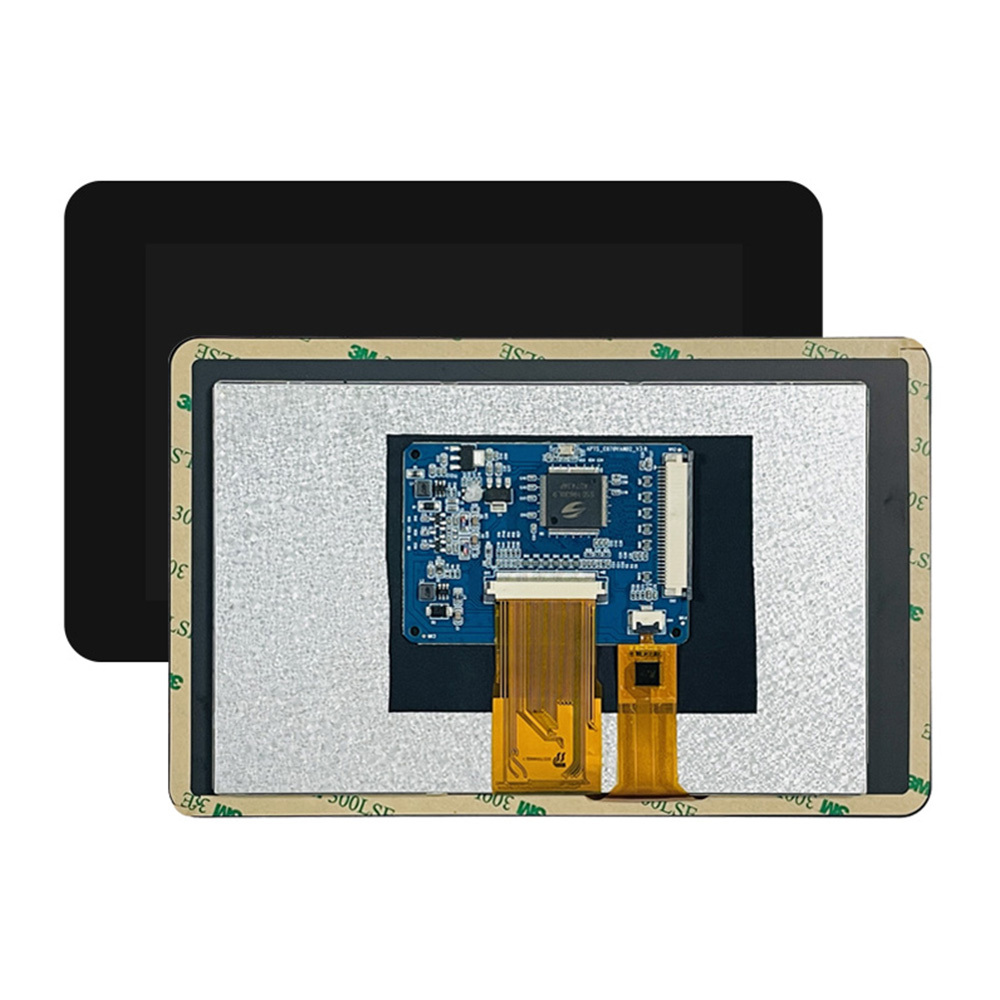

The module uses a standard FFC connector with a 1mm pitch, ensuring compatibility with a wide range of embedded hardware platforms. Its pin configuration includes FSMC data lines, control signals, and touch interface connections, enabling efficient integration of both display and touch functions.
The presence of interrupt and reset pins further simplifies system design and enhances reliability in embedded applications.
This touch module is designed with performance, reliability, and integration efficiency in mind. The FSMC interface provides a clear advantage in speed and responsiveness, making it suitable for advanced control systems.
Its balanced design ensures cost-effectiveness without compromising functionality, making it a practical choice for both small-scale and large-scale production.
The standardized interface and clear pin definition reduce development complexity, allowing engineers to focus on system optimization and user interface design.
FSMC uses parallel data transmission, which significantly increases speed compared to SPI. This results in faster screen updates and smoother UI performance, especially important for real-time control.
Yes, this module is well-suited for STM32 platforms that support FSMC interfaces, making integration straightforward.
No, the module supports single-point capacitive touch, which is sufficient for most control panel applications.
It is designed for indoor use with a working temperature range of 0°C to 70°C. Outdoor applications may require additional protection.
Customization options may include interface adjustments, structural modifications, and firmware support depending on project requirements.
The module operates on a standard 5V power supply, making it compatible with most embedded systems.
This FSMC-based 7-inch touch module for 3D printer systems provides a reliable and efficient solution for modern embedded interfaces.
