In industrial control and embedded visualization systems, display modules serve as critical interfaces between machines and human operators. The 27-inch 1920×1080 high performance LCD module delivers exceptional clarity, robust signal stability, and flexible integration options tailored for industrial environments. With its Full HD resolution and engineered reliability, this module is ideal for operator control panels, factory automation screens, HMI (Human-Machine Interface) terminals, embedded control consoles, and industrial monitoring systems.
Designed to meet the rigorous demands of industrial applications, this 27-inch display combines visual precision with dependable performance, ensuring accurate real-time monitoring and control feedback even in electrically harsh conditions.
Industrial control systems rely heavily on visual feedback. From production monitoring to embedded control systems, industrial displays must be rugged, readable, and highly reliable. Unlike consumer panels that prioritize aesthetics, industrial LCD modules are engineered for:
Consistent visual performance under bright ambient light
Stable operation in electrically noisy environments
Long duty cycles in continuous use systems
Seamless integration with embedded controllers and industrial PCs
The 27-inch 1920×1080 LCD module meets these criteria and is optimized for applications where clarity, system reliability, and ease of integration matter most.
This industrial LCD module offers a native 1920×1080 Full HD resolution, providing:
Sharp and detailed graphics for control dashboards
Clear visualization of process parameters and machine metrics
High pixel density for accurate text and value rendering
Support for complex graphical user interfaces
The Full HD panel ensures operators and engineers can view multiple data streams, alarms, and graphs simultaneously without compromising readability.
The module supports industrial-standard interfaces that ensure stable and noise-resistant signal transmission. Depending on system design, the display can be configured with interfaces such as LVDS (Low-Voltage Differential Signaling) or eDP (Embedded DisplayPort) — both of which are widely adopted in industrial embedded systems for:
High-speed signal transmission
Reduced electromagnetic interference (EMI)
Compatibility with industrial controllers and embedded processors
Simplified cabling and design flexibility
These interfaces enable reliable high-resolution performance across industrial environments, even in the presence of motors, relays, and machinery that generate electrical noise.
Industrial environments often feature high ambient light conditions, such as factory floors with overhead lighting or near outdoor windows. To ensure visibility in such conditions, this 27-inch industrial LCD module offers high brightness performance and wide viewing angles.
Key Advantages:
Enhanced contrast for better readability in varying light
Wide viewing angles suitable for group monitoring or multi-operator stations
Stable brightness uniformity across the entire screen
Effective performance in control rooms and embedded enclosures
This results in improved operator visibility and reduced eye strain during extended use.
The mechanical design of this LCD module supports integration into control cabinets, embedded housings, and flat panel installations. Industrial applications often involve vibration, temperature fluctuations, and prolonged operation, so the panel incorporates:
Rigid frame construction
Reliable backlight system with long life
Stable electrical performance under voltage fluctuations
Compatibility with industrial cooling and enclosure designs
These design choices ensure durability and consistent function over long operational lifetimes.

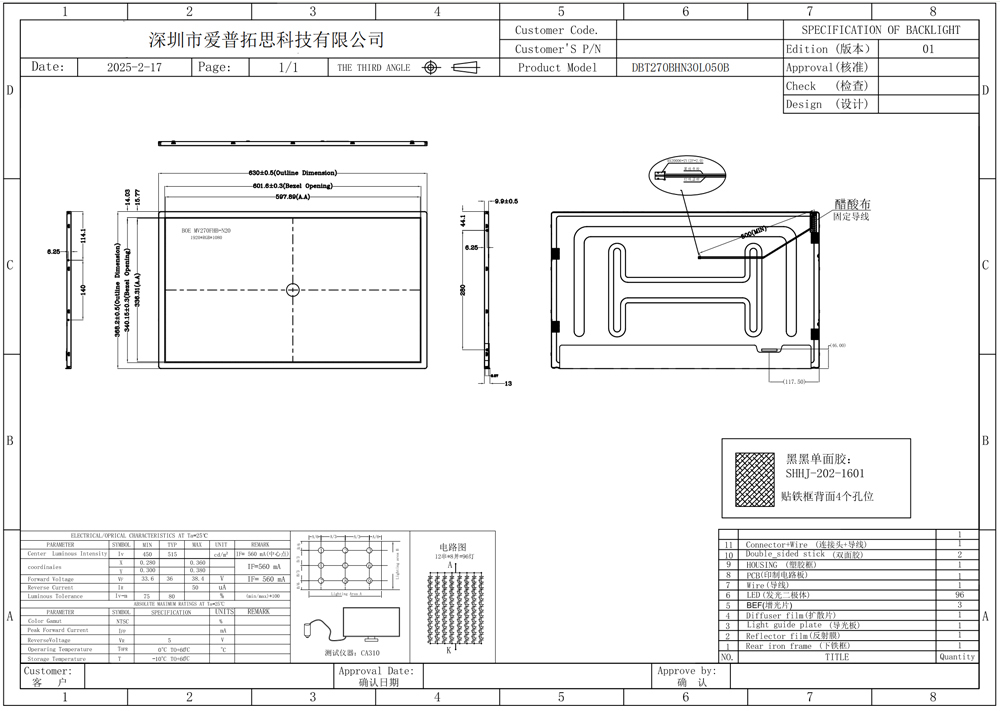

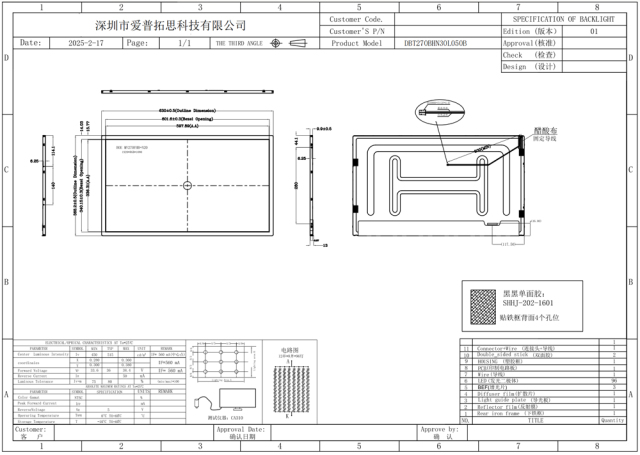

Below is the detailed specification summary for the 27-inch 1920×1080 industrial LCD module:
| Specification | Details |
|---|---|
| Panel Size | 27 inches |
| Resolution | 1920 × 1080 (Full HD) |
| Interface | LVDS / eDP (configurable per project) |
| Active Area | 597.9 × 336.3 mm |
| Pixel Pitch | 0.3114 × 0.3114 mm |
| Display Colors | 16.7M (8-bit) |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 89/89/89/89 (L/R/U/D) |
| Backlight | LED backlight |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
Notes: Brightness, interface type, and mechanical brackets can be customized based on specific project requirements.
When deploying the 27-inch LCD module in industrial control solutions, engineering teams should consider:
Select enclosures or panel frames that support secure installation and vibration resistance. Mechanical design should allow for heat dissipation and easy maintenance access.
Use regulated power systems and shielded signal cables to preserve signal integrity and maintain stable function, especially in environments with heavy electrical equipment.
Adding touch panel overlays such as resistive or capacitive touch solutions enhances interactivity for operator panels. These can be integrated based on system requirements.
Consider additional environmental protections such as seals or covers if the display is exposed to dust, moisture, or temperature extremes outside normal industrial ranges.
These considerations help ensure reliable long-term performance of the display in industrial systems.
The 27-inch 1920×1080 industrial LCD module is well suited for:
Factory automation operator panels
Embedded embedded monitoring displays
Production line status boards
Control room visualization screens
HMI terminals with multi-data displays
In these applications, the combination of resolution, screen size, and interface stability enhances operational feedback, situational awareness, and data visualization efficiency.
Aptus Display is a trusted provider of industrial LCD modules and tailored display solutions for automation, embedded systems, and control panel applications. We specialize in designing and supplying visual interfaces that meet the performance, reliability, and longevity requirements of industrial environments.
With extensive experience in display technologies, we offer products ranging from compact embedded displays to large industrial panels, suitable for a wide array of system integration needs.
Our focus is on dependable performance, interface compatibility, and ongoing technical support — ensuring that your display solutions operate effectively throughout the life of your system.
To support your industrial display integration projects, Aptus Display offers a full suite of professional services:
We provide customization services including mechanical modifications, interface adaptations, brightness tuning, touch panel options, and optical enhancements based on application needs.
Our engineering team offers guidance on electrical interfacing, mechanical design, system compatibility, signal optimization, and product performance evaluation to facilitate smooth deployment.
Whether you require display design support or full OEM/ODM services, we collaborate closely with customers to meet project specifications, volume requirements, and timeline constraints.
We ensure predictable product availability and lifecycle management strategies to support long-term industrial deployments without supply chain disruptions.
These services help reduce integration risks, shorten development cycles, and enhance system reliability.
For high performance 27-inch industrial LCD modules and tailored display solutions for automation panels, embedded control interfaces, and visualization systems, Aptus Display provides expert guidance, custom options, and reliable supply support.
Contact our sales and engineering team today to discuss your requirements, explore customization possibilities, and get professional support for your industrial display project.
