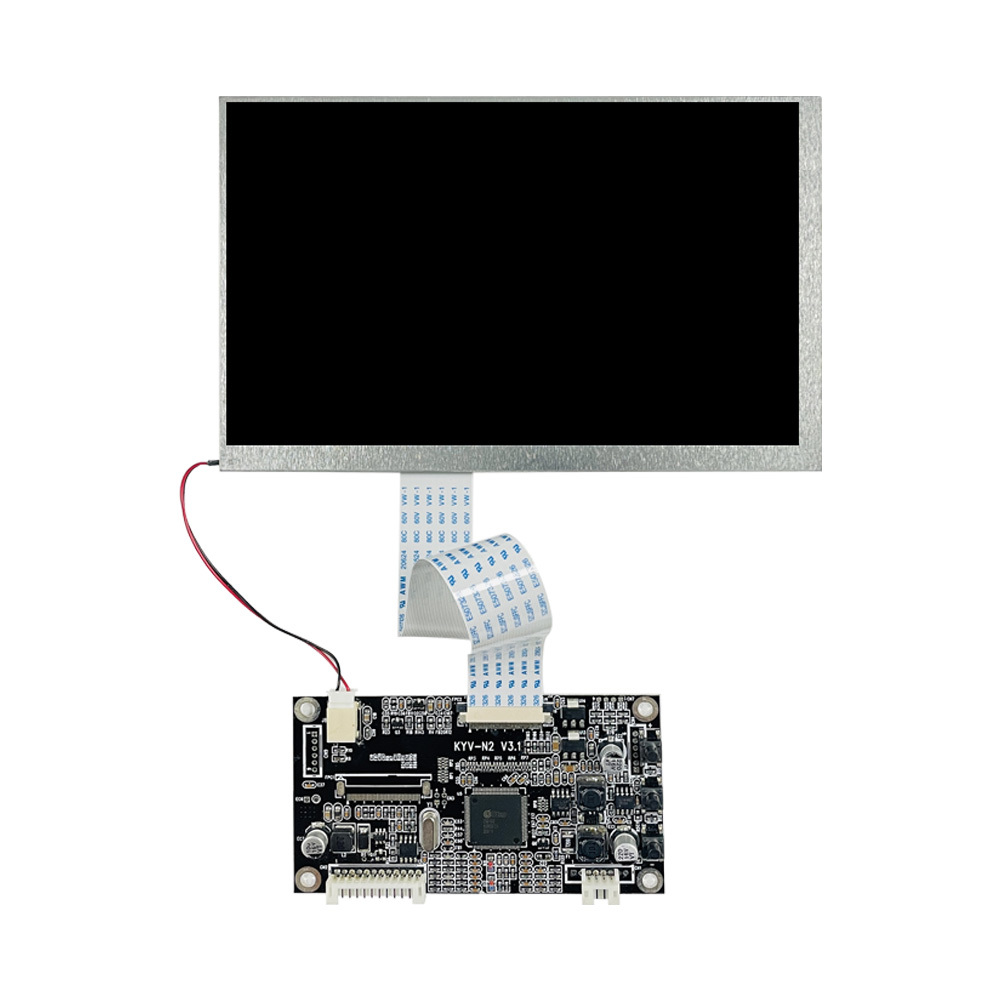

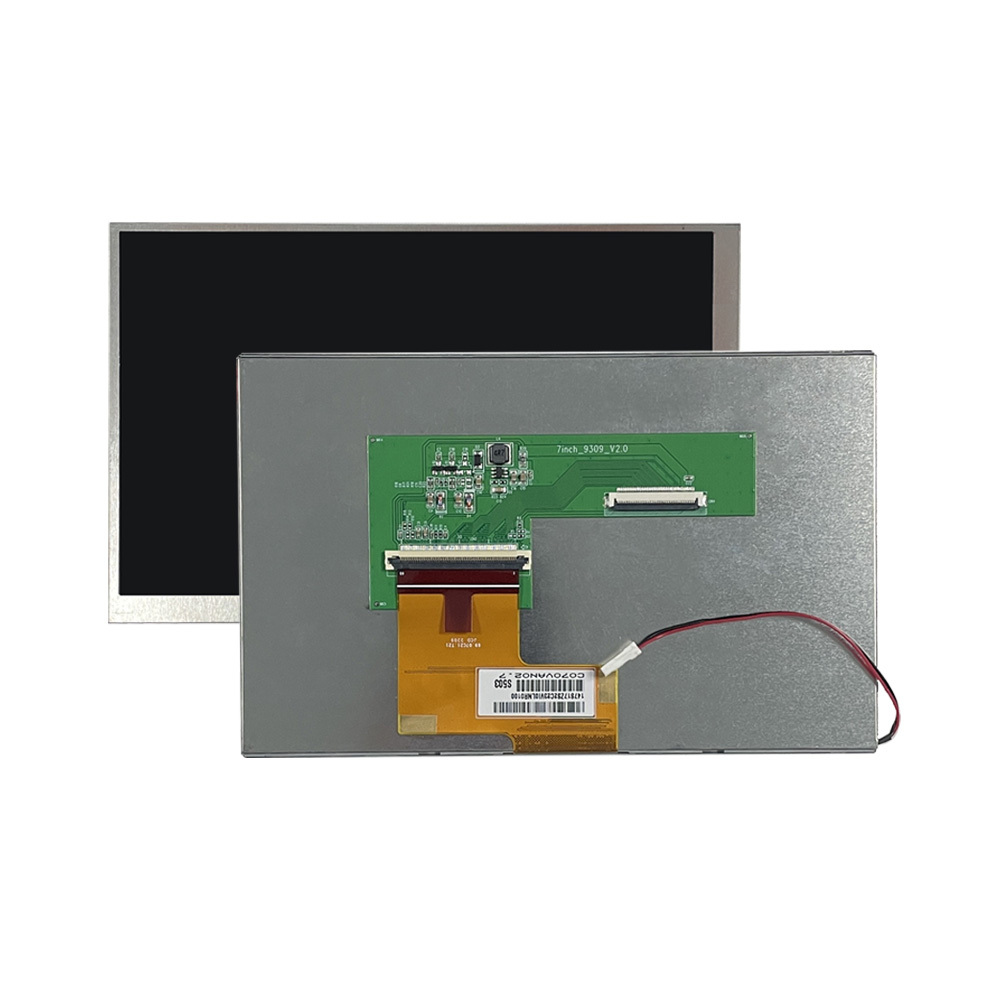

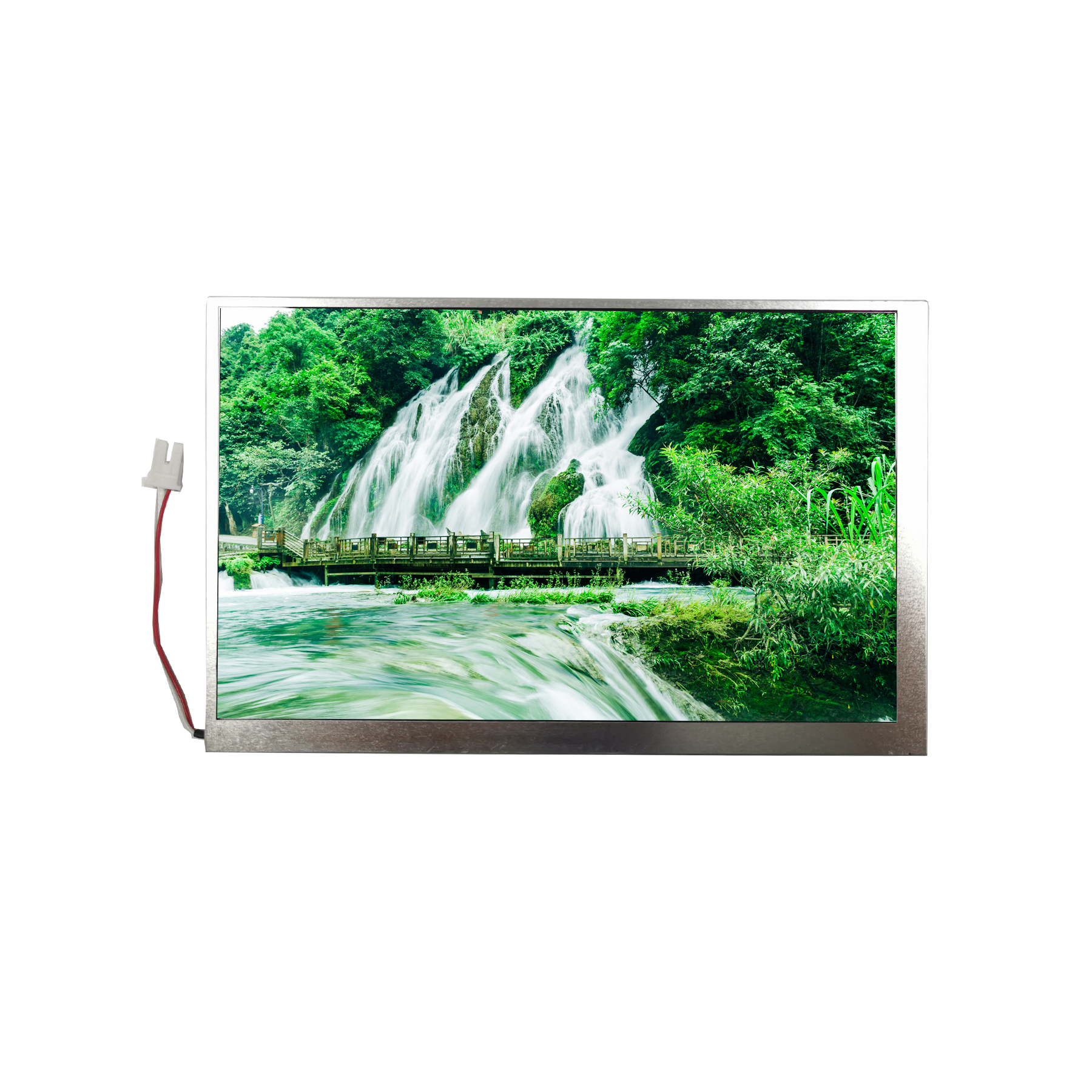

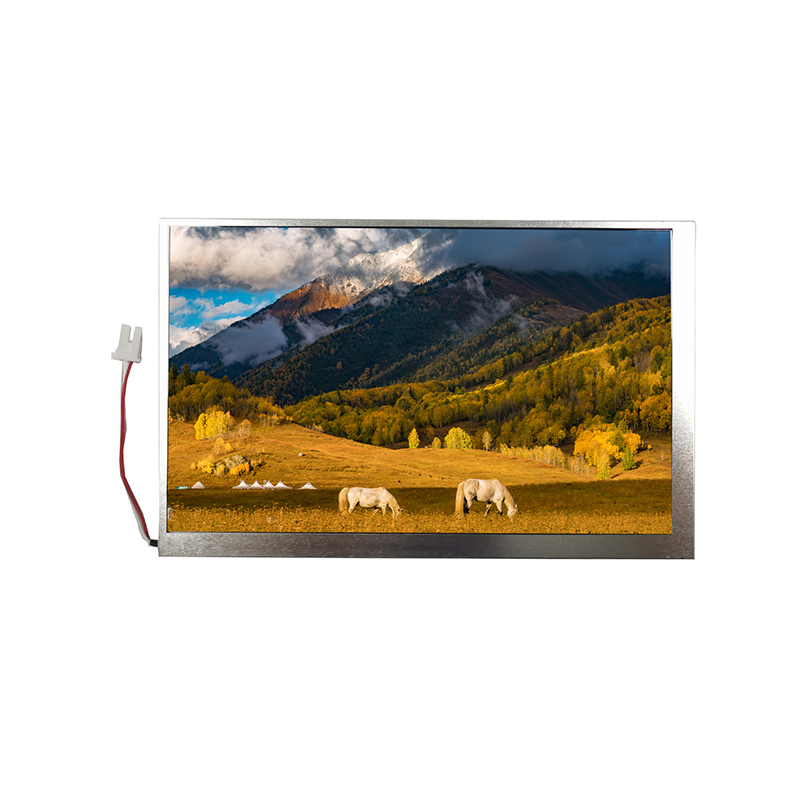

The 7‑inch 800×480 IPS TTL LCD display with wide temperature support (‑30°C to +85°C) is designed for industrial automation, outdoor instrumentation, rugged embedded systems, and harsh environment applications. With an IPS panel offering wide viewing angles, accurate color reproduction, and temperature resilience, this module is ideal for controls, measurement devices, and equipment used in extreme conditions.
Equipped with a TTL interface and optimized for wide temperature operation, this display provides reliable visual performance across applications where conventional displays may fail. It combines rugged durability with stable operation, making it suitable for industrial and embedded product designers seeking both performance and environmental robustness.
This module is built to operate reliably in demanding thermal conditions:
Ultra‑wide operating temperature range: ‑30°C to +85°C
Consistent performance in extreme cold or heat
Suitable for outdoor enclosures and harsh industrial environments
Reduces failure risk due to temperature stress
Wide temperature capability is critical in industries such as factory automation, transportation systems, outdoor kiosks, and energy control equipment.
The IPS panel delivers:
Wide horizontal and vertical viewing angles
Stable color reproduction from multiple viewing positions
Reduced color shift, even at extreme angles
Enhanced visibility for graphical interfaces and data
This makes it suitable for multi‑operator control panels, dashboards, and embedded systems with collaborative user environments.
The 800×480 resolution provides:
Clear text and graphics for typical HMI applications
Appropriate pixel density for embedded system UIs
A balanced trade‑off between resolution, power, and processing load
This resolution is widely adopted in industrial terminals and control interfaces because it supports modern user interface designs without excessive data throughput.
The standard TTL (Transistor‑Transistor Logic) interface offers:
Simple signal connectivity
Low noise, stable operation
Compatibility with microcontrollers and embedded boards
Eases integration with custom electronics
TTL remains a reliable choice for embedded applications where LVDS or RGB interfaces are not required.
| Parameter | Specification |
|---|---|
| Display Size | 7.0 inch |
| Resolution | 800 × 480 |
| Pixel Arrangement | RGB Stripe |
| Panel Type | IPS TFT LCD |
| Brightness | 1000 nit |
| Contrast Ratio | 1000:1 Typical |
| Viewing Angle | 80°/80°/80°/80° (L/R/U/D) |
| Parameter | Specification |
|---|---|
| Interface | TTL |
| Input Voltage | 3.3V / 5V Typical |
| Backlight | White LED |
| Power Consumption | ~2.5W (Typical) |
| Parameter | Specification |
|---|---|
| Outline Size | 165×104×5.3mm |
| Active Area | 152.4×91.44mm |
| Operating Temperature | ‑30°C ~ +85°C (Wide Temperature) |
| Storage Temperature | ‑40°C ~ +90°C |
Detailed datasheet, pin assignments, and dimensional drawings are available upon request.
Used in factory HMIs, machine controllers, and process monitoring screens that require wide temperature resilience and stable visual performance.
Suitable for outdoor kiosks, signage displays, and transportation terminals exposed to fluctuating ambient conditions.
Used in power distribution panels, smart meters, and utility dashboards where wide temperature stability is critical.
Successful display integration requires alignment of hardware, interface protocols, mechanical fit, and software support. Our engineering support includes:
Controller compatibility evaluation
Signal mapping and interface guidance
Touch panel bonding and calibration support (if required)
Mechanical mounting and enclosure consultation
Optical performance optimization
This ensures smoother integration and reduced development risk for OEMs and embedded system designers.
Yes. The module supports a wide operating temperature range (‑30°C to +85°C), making it suitable for many industrial and outdoor environments.
Yes. TTL interface is widely supported by microcontrollers, embedded CPUs, and industrial boards with general I/O control signals.
Yes. Capacitive and resistive touch panel options can be integrated, and optical bonding or GG5 cover glass is available for enhanced durability.
Automation, transportation systems, energy monitoring, outdoor kiosks, and rugged embedded platforms commonly use displays with wide temperature capability.
The 7‑inch 800×480 IPS TTL LCD Display with wide temperature support (‑30°C to +85°C) delivers a rugged, highly reliable, and integration‑friendly solution for industrial automation, embedded terminals, and outdoor or harsh‑environment devices.
Its wide viewing angles, stable TTL interface, and environmental resilience make it ideal for OEMs, embedded developers, and system integrators seeking a dependable display option.
